◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#126718) — 48 parça

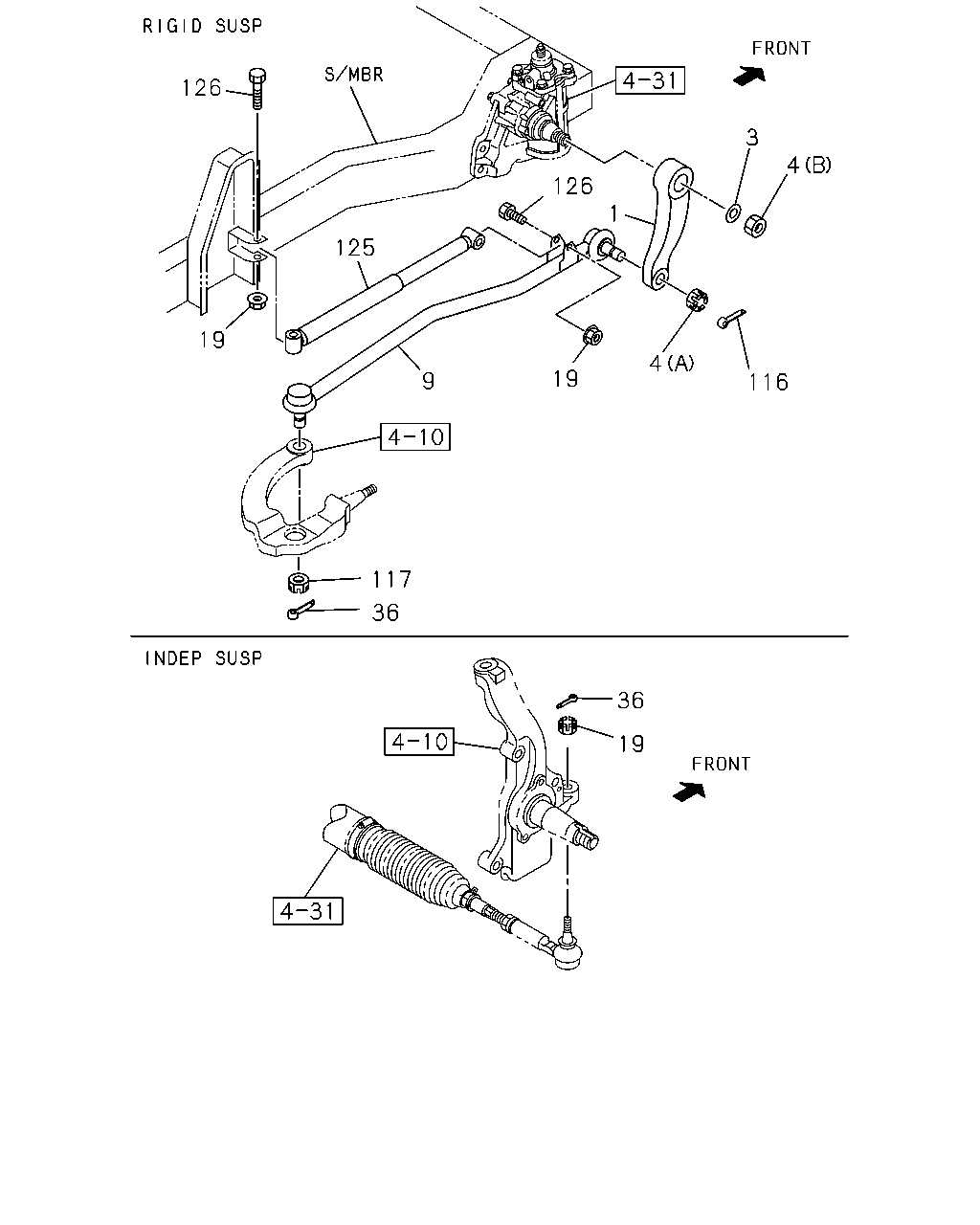

çizim 373929
126 19 117 36 125 9 19 4 116 1 126 4 3 36 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97109-289-1 01 1 1309-1310 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 1309-1310 ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97109-289-1 01 1 1311- ● ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 1311- ●
3 06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=22.5 		0-91510-622-0 01 1 1309-1310 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-622-0 01 1 1309-1310 ●
3 06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=22.5 		0-91510-622-0 01 1 1311- ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-622-0 01 1 1311- ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M22 		0-91111-522-0 01 1 1309-1310 ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 1309-1310 ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M22 		0-91111-522-0 01 1 1311- ● ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 1311- ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1309-1310 ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1309-1310 ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1311- ● ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1311- ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-038-1 01 1 1309-1310 ●
9 06.870 LINK; DRAG 8-98039-038-1 01 1 1309-1310 ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-038-1 01 1 1311- ● ●
9 06.870 LINK; DRAG 8-98039-038-1 01 1 1311- ●
19 06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED 		8-97387-863-0 02 1 1309-1310 ●
19 06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED 		8-97387-863-0 02 1 1311- ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
19 06.865 NUT; PITMAN ARM,STOPPER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1309-1310 ●
19 06.865 NUT; PITMAN ARM,STOPPER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1311- ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(FF0) L=19 		8-98098-024-0 02 1 1309-1310 ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(FF0) L=19 		8-98098-024-0 02 1 1311- ● ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) L=19 		8-98098-024-0 01 1 1309-1310 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-98098-024-0 01 1 1309-1310 ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) L=19 		8-98098-024-0 01 1 1311- ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-98098-024-0 01 1 1311- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.881 L=19 		8-97349-766-0 01 1 1309-1310 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 1309-1310 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.881 L=19 		8-97349-766-0 01 1 1311- ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 1311- ●
117 06.233 NUT; DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M18 SLOTTED 		8-97245-632-0 01 1 1309-1310 ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 1309-1310 ●
117 06.233 NUT; DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M18 SLOTTED 		8-97245-632-0 01 1 1311- ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 1311- ●
125 06.865 DAMPER; STEERING
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98042-883-2 01 1 1309-1310 ●
125 06.865 DAMPER; STEERING 8-98042-883-2 01 1 1309-1310 ●
125 06.865 DAMPER; STEERING
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98042-883-2 01 1 1311- ● ●
125 06.865 DAMPER; STEERING 8-98042-883-2 01 1 1311- ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1309-1310 ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1309-1310 ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1311- ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1311- ●
