◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#126710) — 1176 parça
çizim 373704
39 39 165 184 165 165 184 184 184 116 12 12 157 13 157 116
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1311- ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ●

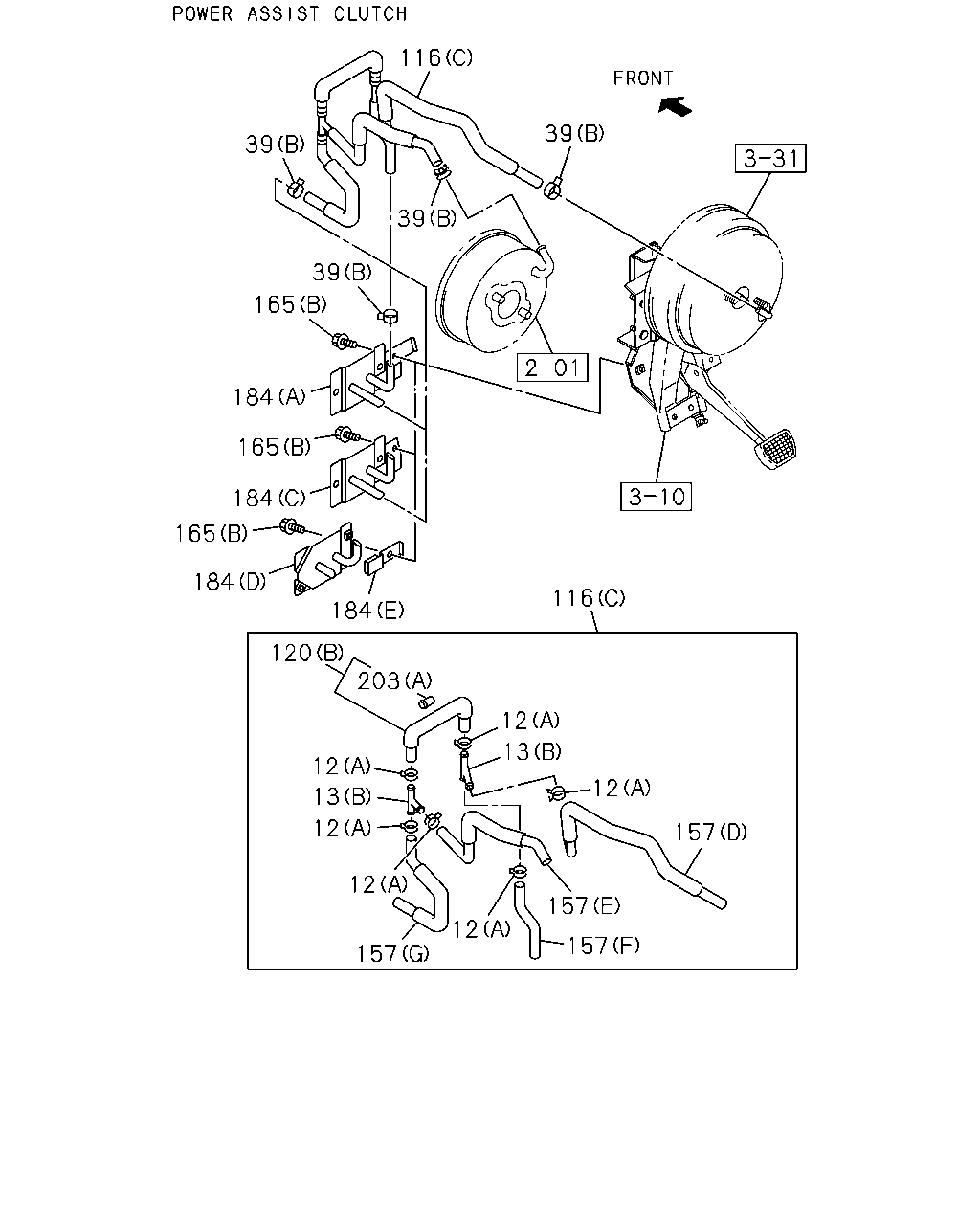

çizim 373728
39 39 39 39 165 184 184 165 165 120 184 116 12 203 12 13 13 12 12 157 157 157 157 12 12 184 116
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1311- ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309-1310 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1311- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309-1310 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1311- ● ● ●

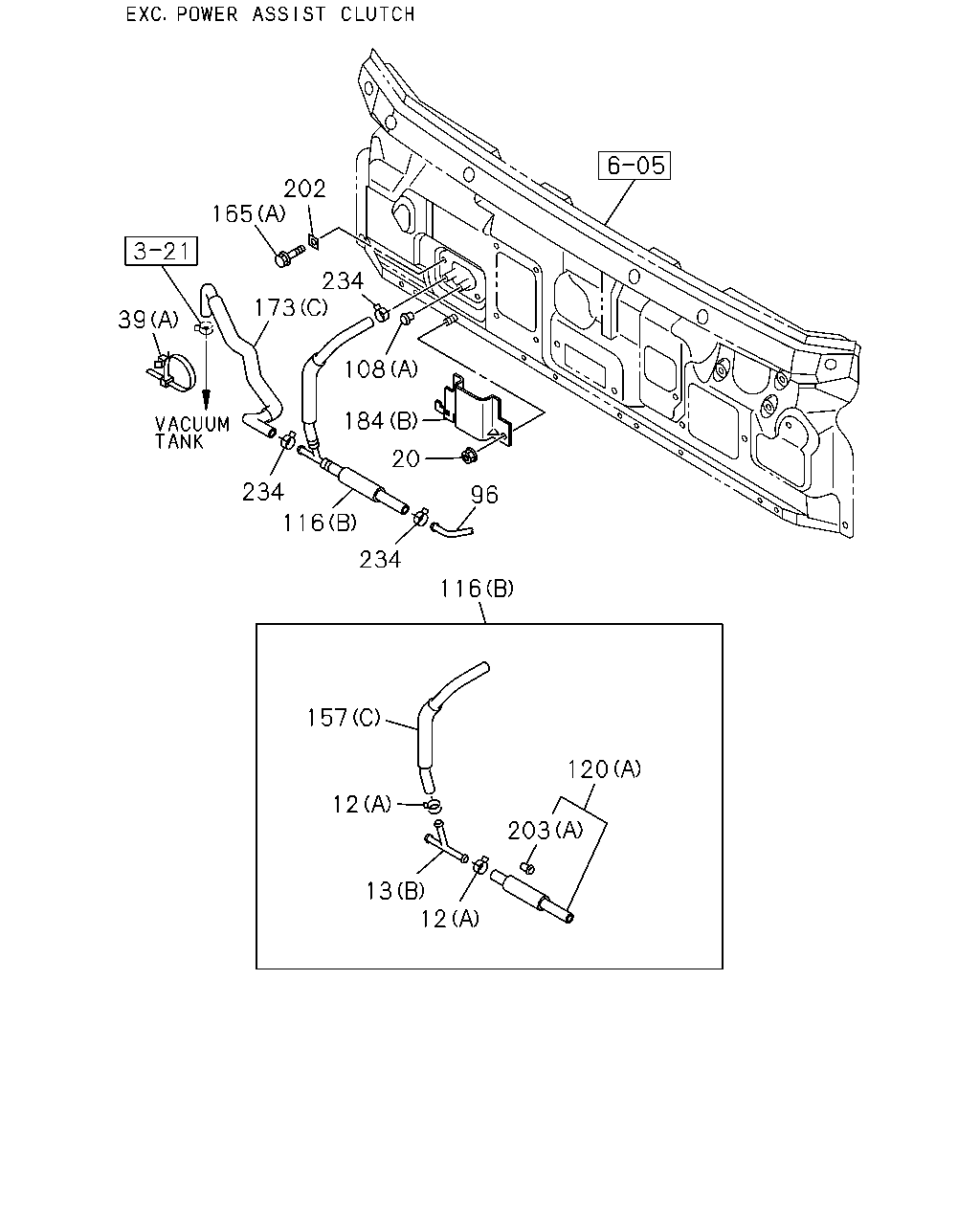

çizim 373754
202 234 108 184 116 234 116 157 12 13 12 203 120 96 20 173 165 39 234
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1311- ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98255-441-1 01 1 1409- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1309-1310 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1311-1403 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1404- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 1404- ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1311- ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1309-1310 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1311- ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1309-1310 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1311- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1309-1310 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1311- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1309-1310 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1309-1310 ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1311- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309-1310 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1311- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309-1310 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1311- ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1311- ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1309-1310 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1311- ● ● ●

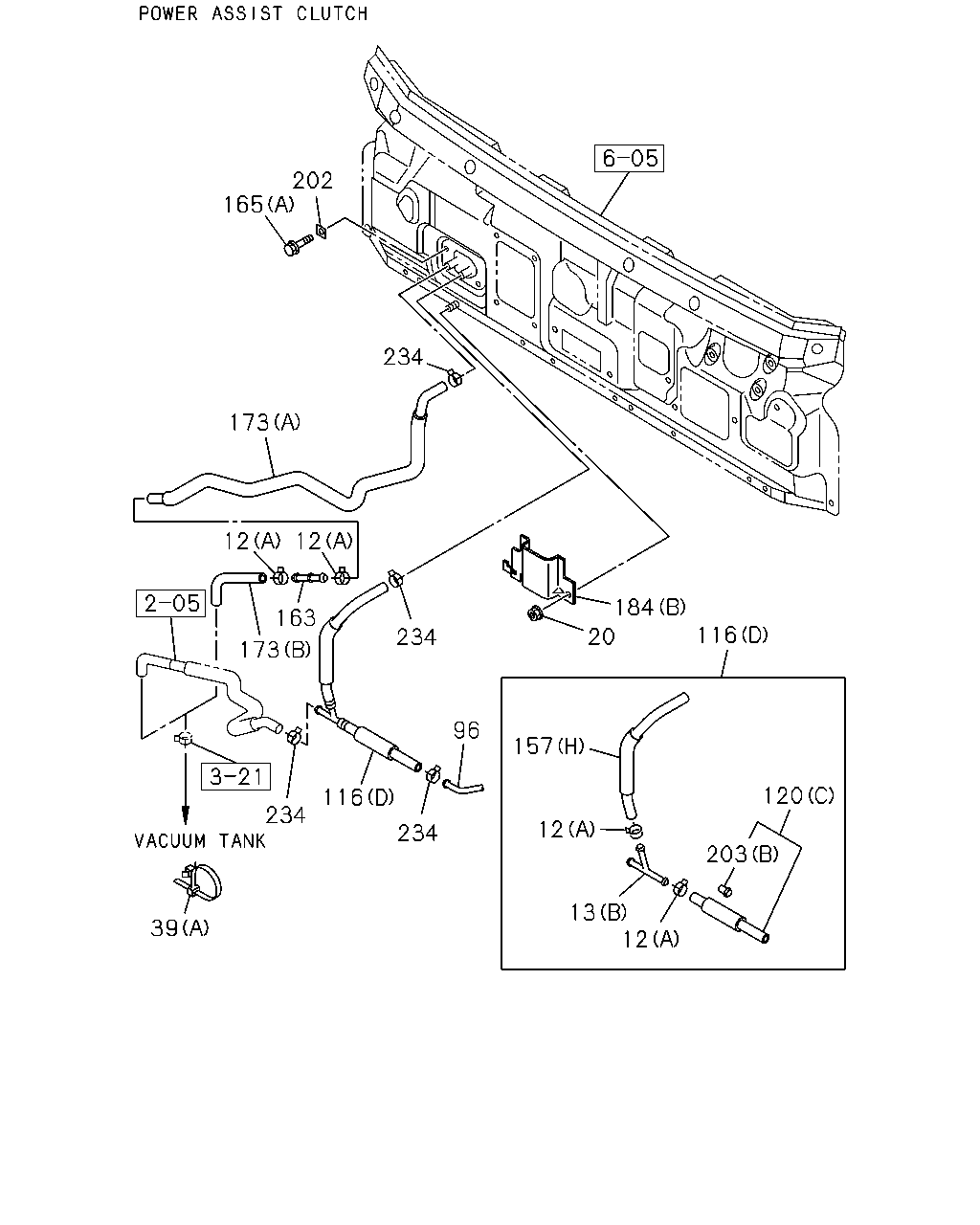

çizim 373792
165 234 173 12 12 234 163 173 234 39 116 234 157 12 13 12 203 120 116 184 20 96 202
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 03 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1311- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309-1310 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1311- ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98255-441-1 01 1 1409- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1309-1310 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1311-1403 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1404- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 1404- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1311- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309-1310 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1311- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1309-1310 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1311- ● ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 1309-1310 ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 1311- ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1311- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1309-1310 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1311- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1309-1310 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1311- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1309-1310 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1311- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1310 ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1309-1310 ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1311- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309-1310 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1311- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309-1310 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1311- ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1311- ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1309-1310 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1311- ● ● ●

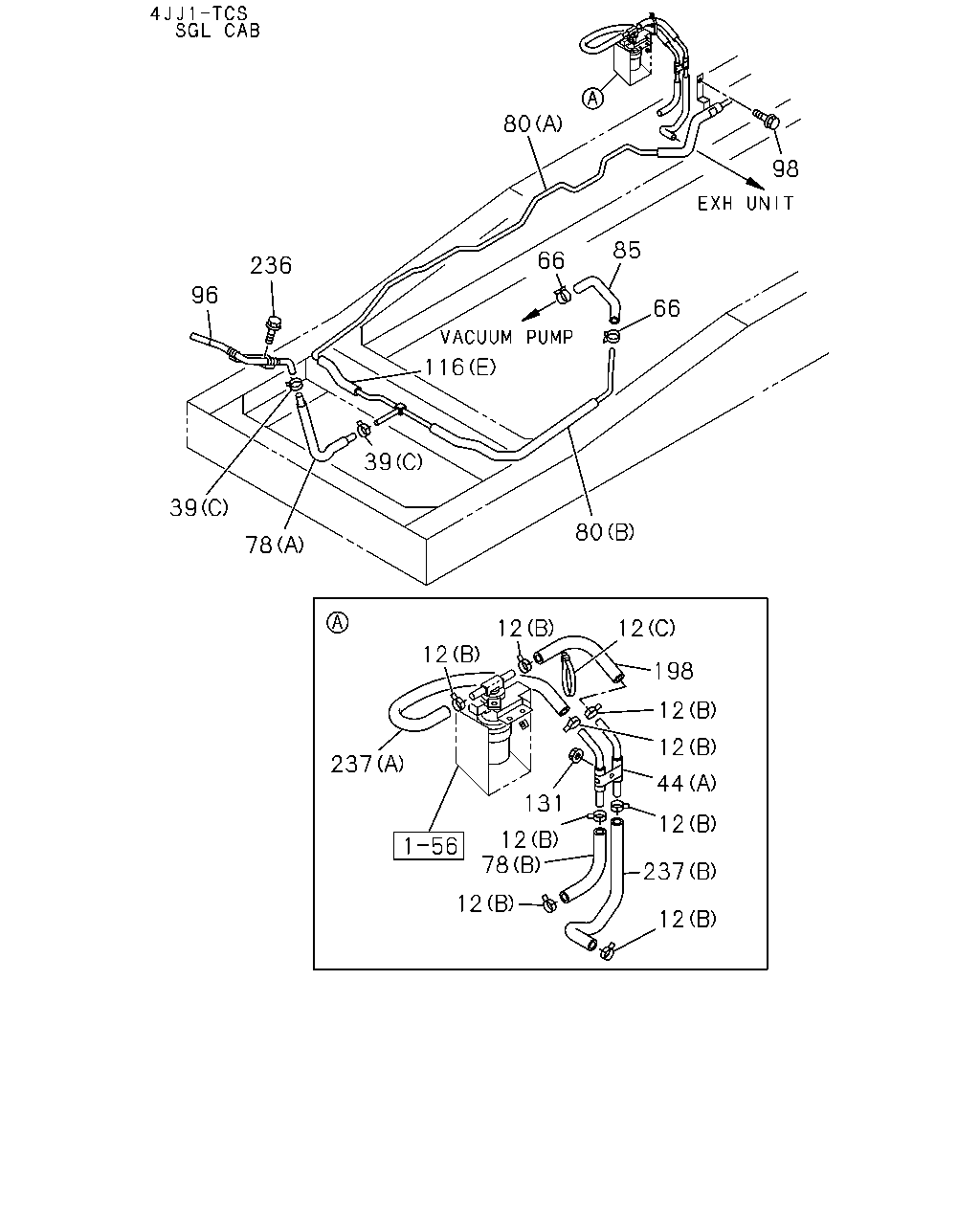

çizim 373830
96 236 39 78 39 116 66 80 85 66 98 80 12 12 12 237 131 12 78 12 12 237 12 44 12 12 198
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98271-263-0 01 1 1402- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98227-597-0 01 1 1311-1401 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98227-597-0 01 1 1402- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98042-654-0 01 1 1309-1310 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1401-1401 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98042-654-0 01 1 1401-1401 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1402-1403 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1404-1408 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1404-1408 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1311- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98281-197-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98189-226-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1402-1403 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1311-1403 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1404- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-98116-895-0 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1309-1310 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1311- ● ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1309-1310 ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1311- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98255-441-1 01 1 1409- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1309-1310 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1311-1403 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1404- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 1404- ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309-1310 ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
131 04.930 NUT; VAC PIPE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1312 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1312 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1312 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1401-1401 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1401-1401 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1402-1403 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1404-1408 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1404-1408 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98260-453-0 01 1 1401- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98076-068-1 01 1 1311-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98076-068-1 01 1 1402- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98064-717-1 01 1 1311-1401 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98064-717-1 01 1 1402-1402 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98064-717-1 01 1 1402- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98189-222-0 01 1 1309-1310 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1402-1403 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1311- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98260-455-2 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G) 		8-98271-264-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98260-454-0 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98227-652-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98227-652-1 01 1 1402- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98227-654-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98227-653-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F) 		8-98227-655-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98227-655-0 01 1 1402-1402 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98227-655-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G) 		8-98227-656-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98227-656-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98189-224-0 01 1 1309-1310 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98231-606-0 01 1 1309-1310 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1401-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1409- ● ● ●
çizim 388529
80 98 237 12 12 66 66 116 39 236 96 39 78 80 12 198 12 12 237 12 12 85
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1311- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98281-197-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98189-226-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1402-1403 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1311-1403 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1404- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-98116-895-0 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1309-1310 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1311- ● ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1309-1310 ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1311- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98255-441-1 01 1 1409- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1309-1310 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1311-1403 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1404- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 1404- ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309-1310 ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98260-453-0 01 1 1401- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98076-068-1 01 1 1311-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98076-068-1 01 1 1402- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98064-717-1 01 1 1311-1401 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98064-717-1 01 1 1402-1402 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98064-717-1 01 1 1402- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98189-222-0 01 1 1309-1310 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1402-1403 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1311- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98260-455-2 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G) 		8-98271-264-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98260-454-0 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98227-652-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98227-652-1 01 1 1402- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98227-654-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98227-653-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F) 		8-98227-655-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98227-655-0 01 1 1402-1402 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98227-655-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G) 		8-98227-656-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98227-656-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98189-224-0 01 1 1309-1310 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98231-606-0 01 1 1309-1310 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1401-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1409- ● ● ●
çizim 388544
236 96 39 78 39 116 66 12 12 237 98 80 85 66 80 12 12 237 131 12 198 12 12 12 78 12 12 44 12 237
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98271-263-0 01 1 1402- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98227-597-0 01 1 1311-1401 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98227-597-0 01 1 1402- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98042-654-0 01 1 1309-1310 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1401-1401 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98042-654-0 01 1 1401-1401 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1402-1403 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1404-1408 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1404-1408 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1311- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98281-197-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98189-226-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1402-1403 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1311-1403 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1404- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-98116-895-0 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1309-1310 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1311- ● ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1309-1310 ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1311- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98255-441-1 01 1 1409- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1309-1310 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1311-1403 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1404- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 1404- ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309-1310 ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
131 04.930 NUT; VAC PIPE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1312 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1312 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1311-1312 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1401-1401 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1401-1401 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1402-1403 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1404-1408 ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1404-1408 ● ●
131 04.930 NUT; VAC PIPE FIX
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ● ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98260-453-0 01 1 1401- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98076-068-1 01 1 1311-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98076-068-1 01 1 1402- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98064-717-1 01 1 1311-1401 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98064-717-1 01 1 1402-1402 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98064-717-1 01 1 1402- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98189-222-0 01 1 1309-1310 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1402-1403 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1311- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98260-455-2 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G) 		8-98271-264-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98260-454-0 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98227-652-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98227-652-1 01 1 1402- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98227-654-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98227-653-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F) 		8-98227-655-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98227-655-0 01 1 1402-1402 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98227-655-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G) 		8-98227-656-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98227-656-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98189-224-0 01 1 1309-1310 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98231-606-0 01 1 1309-1310 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1401-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1409- ● ● ●
çizim 388557
236 96 80 85 66 66 116 39 80 78 39 237 98 44 12 127 98 44 12 12 12 237 80 108 12 235 198 12 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5 		1-09709-298-0 01 1 1402- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32 		1-09700-766-1 01 1 1402- ●
12 04.681 CLIP; HOSE
03.162 (C) L=140 		5-09707-031-1 01 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) L=140 		5-09707-031-1 01 1 1409- ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (B) ID=16 		8-98008-098-0 06 1 1311-1401 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1402 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1402-1403 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1404-1408 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 10 1 1311- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309-1310 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 1311- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309-1310 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1311- ● ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98271-263-0 01 1 1402- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 		8-98227-597-0 01 1 1311-1401 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98227-597-0 01 1 1402- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98042-654-0 01 1 1309-1310 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1311-1312 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1401-1401 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98042-654-0 01 1 1401-1401 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1402-1403 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1404-1408 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1404-1408 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98042-654-0 01 1 1409- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1310 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1311- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98281-197-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98189-226-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1311-1312 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98189-226-0 01 1 1401-1401 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1402-1403 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1404-1408 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98189-226-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1309-1310 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1311-1403 ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98116-895-0 01 1 1404- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-98116-895-0 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-142-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98272-143-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1401-1403 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-591-1 01 1 1404- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98227-592-1 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98071-771-0 01 1 1401-1405 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98071-771-0 01 1 1406- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1311-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98066-971-0 01 1 1401- ●
80 04.930 PIPE; VAC,ENG SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1309-1312 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98056-002-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1309-1312 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1401-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98065-063-2 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1309-1310 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 1311- ● ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1309-1310 ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 1311- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98255-441-1 01 1 1409- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1309-1310 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1311-1403 ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 1404- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 1404- ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1309-1310 ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1311- ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1309-1310 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1309-1310 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1311- ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ●
127 04.930 BOLT; CLIP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1402- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98260-453-0 01 1 1401- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98076-068-1 01 1 1311-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98076-068-1 01 1 1402- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98064-717-1 01 1 1311-1401 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98064-717-1 01 1 1402-1402 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98064-717-1 01 1 1402- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98189-222-0 01 1 1309-1310 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1311-1312 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98189-222-0 01 1 1401-1401 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1402-1403 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1404-1408 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98189-222-0 01 1 1409- ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1311- ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ●
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1311- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98260-455-2 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G) 		8-98271-264-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98260-454-0 01 1 1401- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98227-652-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98227-652-1 01 1 1402- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98227-654-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-98227-654-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98227-653-1 01 1 1311-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98227-653-1 01 1 1404- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F) 		8-98227-655-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98227-655-0 01 1 1402-1402 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98227-655-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G) 		8-98227-656-0 01 1 1311-1401 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98227-656-0 01 1 1402- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98189-224-0 01 1 1309-1310 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98189-224-0 01 1 1401-1401 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1402-1403 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1404-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98189-224-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98231-606-0 01 1 1309-1310 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1311-1312 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1401-1408 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98231-606-0 01 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
