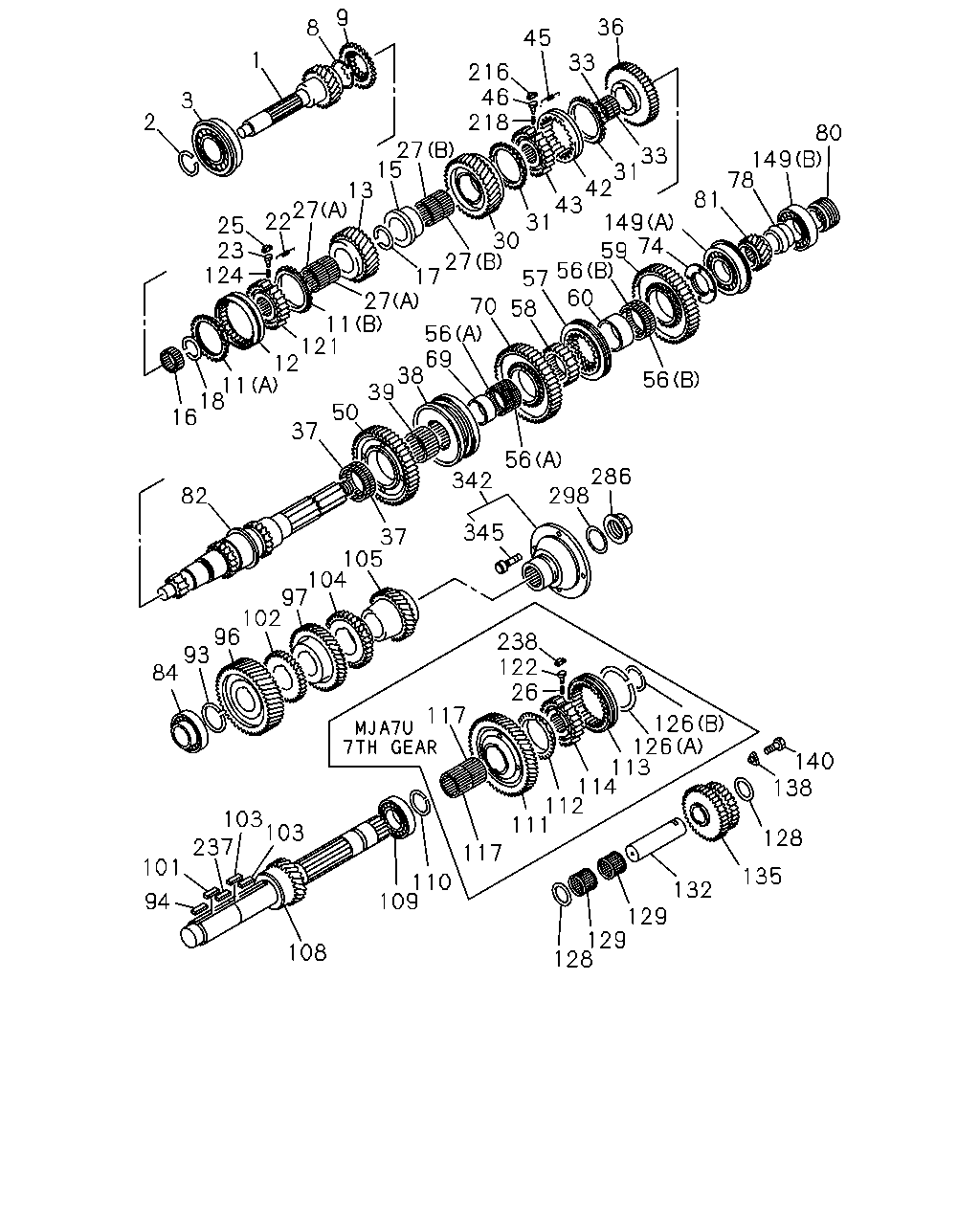

2-26A — MANUAL TRANSMISSION GEAR (#12671) — 101 parça

9 36 8 45 1 33 216 46 218 27 15 13 27 22 3 2 80 149 78 81 33 31 42 43 31 149 30 59 74 27 17 56 57 27 60 70 58 11 56 121 12 69 38 11 39 18 16 50 37 25 23 124 56 56 342 286 298 82 345 37 105 104 97 102 96 93 84 238 122 26 117 126 126 113 114 112 111 117 110 109 140 138 103 103 237 101 128 135 132 129 129 128 94 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	0105-	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	0105-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	0105-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0105-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	0105-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	0105-	●	●
42	SLEEVE	1-33262-222-0	01	1	0105-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	0105-	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	0105-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	0105-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	0105-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0105-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0105-	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0105-	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	0105-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	0105-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-	●	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0105-	●	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0105-	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0105-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0105-	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	0105-	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	0105-	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	0105-	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	0105-	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	0105-	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0105-	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	0105-	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0105-	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0105-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0105-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0105-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	0105-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0105-	●	●
238	INSERT	1-33263-025-2	03	1	0105-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-	●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-	●	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●	●
