◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#126701) — 215 parça

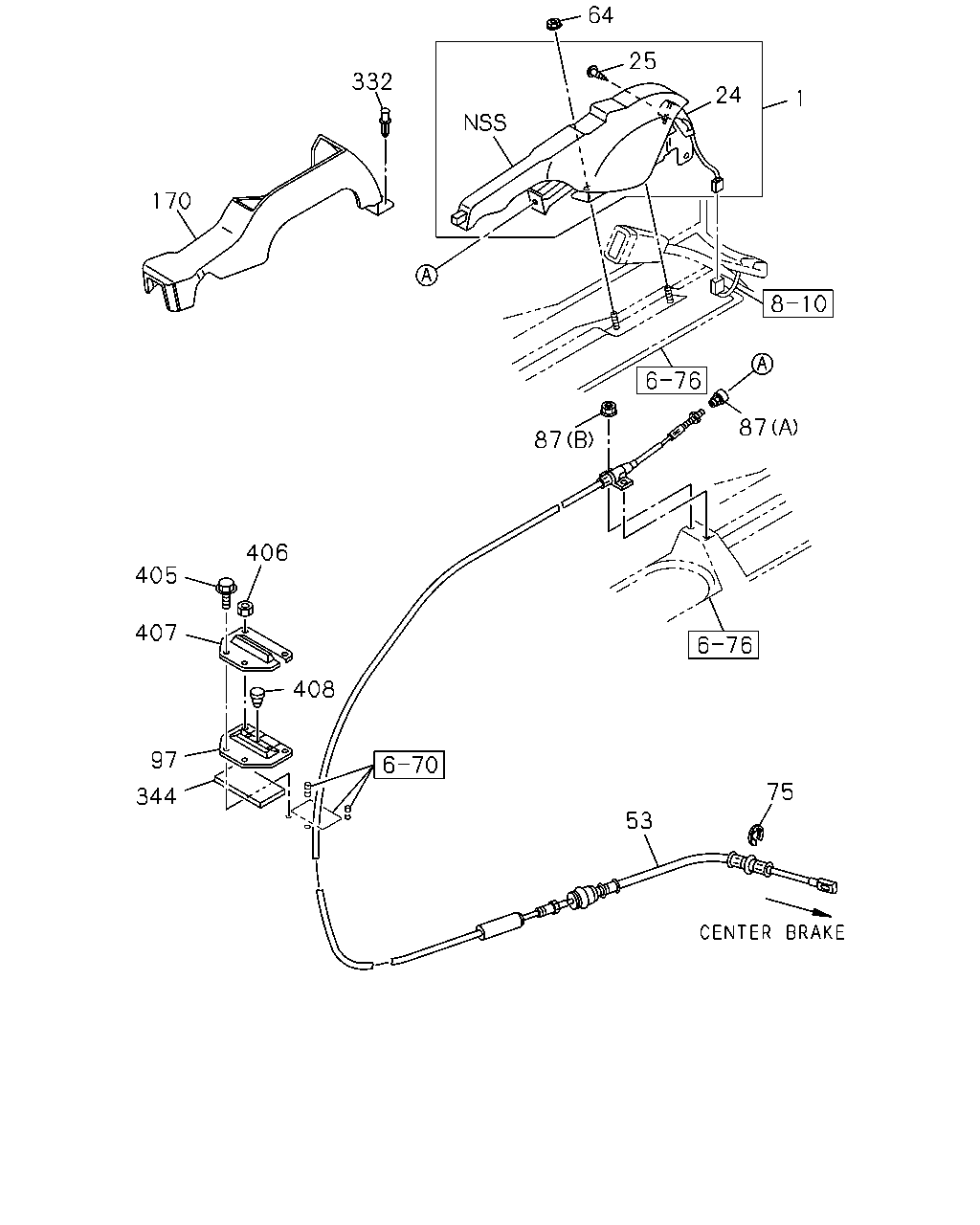

çizim 373789
332 64 25 24 1 170 406 405 407 408 97 344 53 75 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1309-1310 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1311- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1309-1310 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1311- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1309-1310 ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1311- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1311-1401 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1402-1408 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1409- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98211-634-2 01 1 1309-1310 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1311-1401 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98211-634-2 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1402-1408 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1409- ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1309-1310 ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1311- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1309-1310 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1311- ● ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1402- ● ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1311- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1309-1310 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1311- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 1309-1310 ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 1311- ● ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 1309-1310 ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 1311- ● ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1309-1310 ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1311- ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1309- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1309-1310 ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1311- ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1309-1310 ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1311- ● ● ●
408 04.785 CAP; GROMMET
SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1311-1401 ● ●
408 04.785 CAP; GROMMET
SMOOTHER-EX(TYPE2)(8NS) 04.010 		8-97371-108-0 02 1 1402- ● ● ●

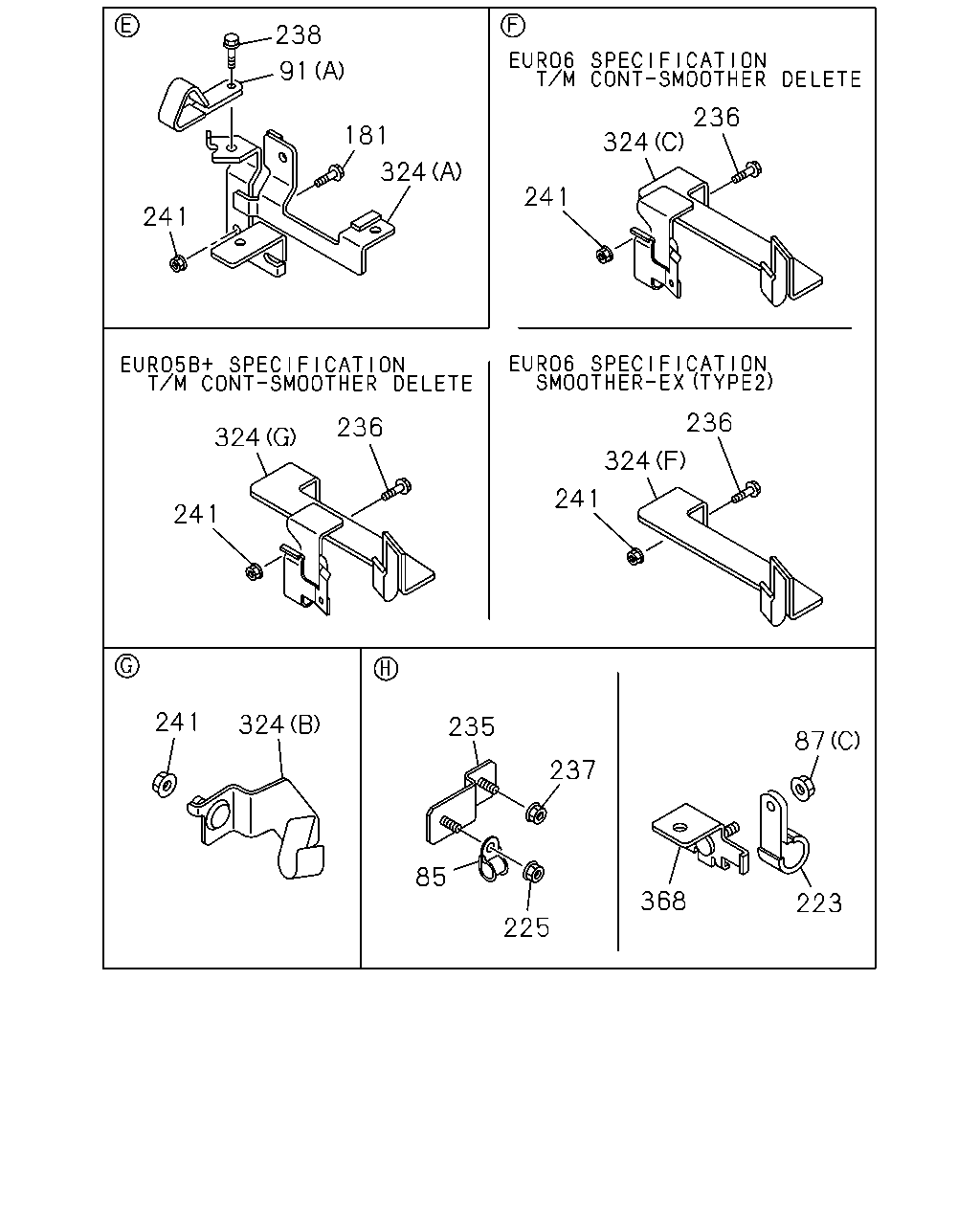

çizim 373810
238 91 181 324 241 324 241 236 241 324 235 237 85 225 368 223 87 241 324 236 241 324 236
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1309-1310 ● ●
85 04.785 CLIP; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1311-1401 ● ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1311-1401 ●
85 04.785 CLIP; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1402- ● ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
87 04.785 NUT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1402- ● ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1311- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1309-1310 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1311- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 02 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 02 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (C) ID=19 L=32 		1-09701-235-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (C) ID=19 L=32 		1-09701-235-0 01 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 03 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 03 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
(B) 		8-98023-622-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98023-622-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
(B) 		8-98023-622-0 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98023-622-0 01 1 1402- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311 ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311 ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ● ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1402- ● ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1402- ● ●
181 04.785 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1311- ●
223 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1311-1401 ● ●
223 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1402- ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME 8-98034-352-0 01 1 1309-1310 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98034-352-0 01 1 1311-1401 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME 8-98034-352-0 01 1 1311-1401 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98034-352-0 01 1 1402- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ● ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ● ●
237 04.785 NUT; BRKT TO FRAME
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402-1408 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
237 04.785 NUT; BRKT TO FRAME
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ● ●
237 04.785 NUT; BRKT TO FRAME
EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1309-1310 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ● ●
241 04.785 NUT; BRKT
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
241 04.785 NUT; BRKT
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98296-447-0 01 1 1410- ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1311-1401 ● ●
324 04.785 BRACKET
(G) 		8-98240-296-0 01 1 1311-1401 ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1402-1408 ● ●
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1402-1408 ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1409- ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1311-1401 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1402-1408 ● ●
324 04.785 BRACKET
SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1402-1408 ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1409- ● ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98185-361-2 01 1 1309-1310 ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98185-361-2 01 1 1311- ● ●
324 04.785 BRACKET
(B) 		8-98207-273-1 01 1 1309-1310 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1311-1408 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1409- ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1409- ●
324 04.785 BRACKET
(C) 		8-98026-099-2 01 1 1309-1310 ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1311-1408 ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1409- ● ● ●
324 04.785 BRACKET
(A) 		8-98242-138-0 01 1 1309-1310 ● ●
324 04.785 BRACKET
(A) 		8-98242-138-0 01 1 1311- ● ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98034-115-0 01 1 1309-1310 ●
324 04.785 BRACKET
(E) 		8-98034-115-0 01 1 1309-1310 ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98034-115-0 01 1 1311- ● ●
324 04.785 BRACKET
(E) 		8-98034-115-0 01 1 1311- ●
368 04.785 BRACKET; T/M SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-97372-863-1 01 1 1311-1401 ● ●
368 04.785 BRACKET; T/M SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-97372-863-1 01 1 1402- ● ● ●

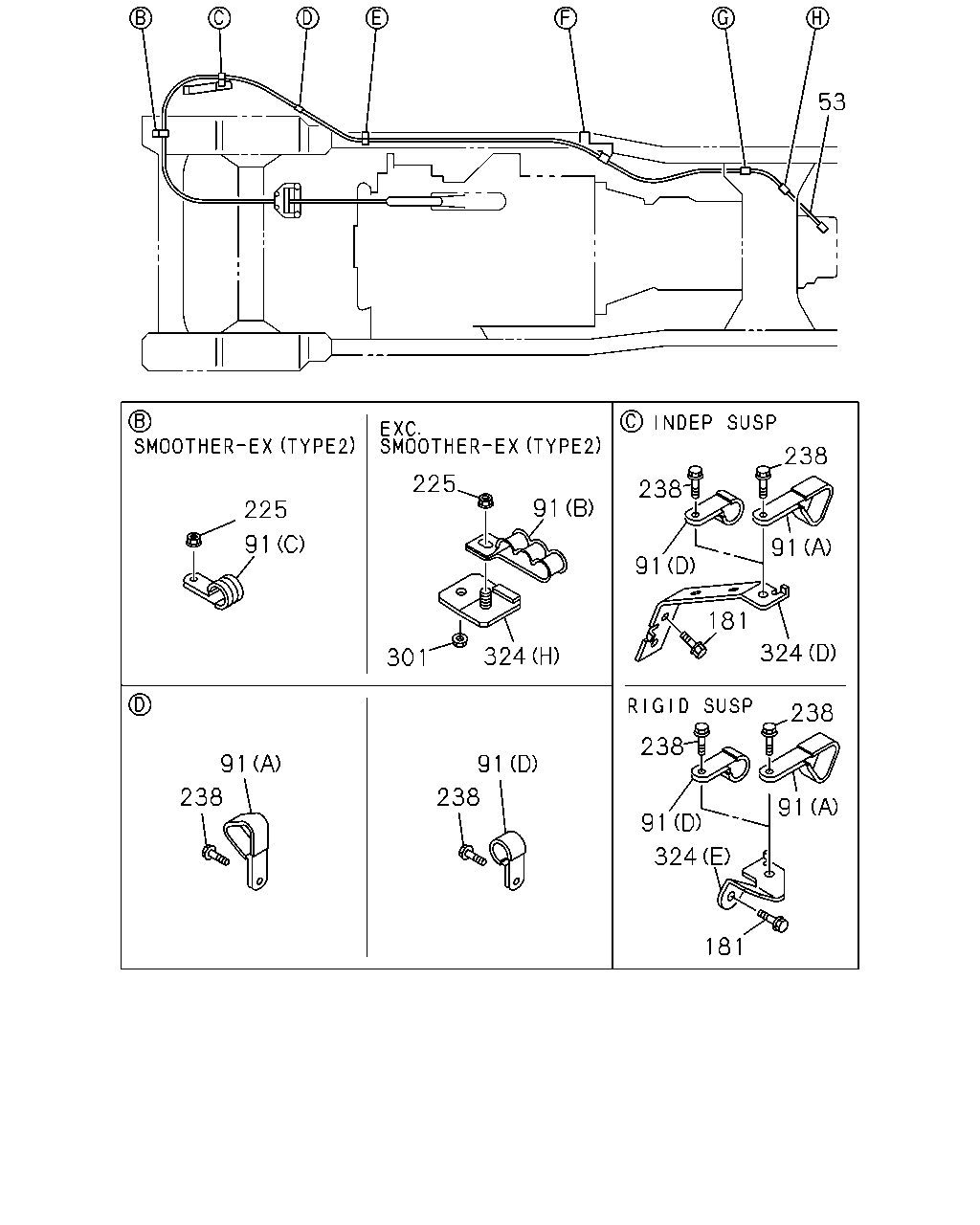

çizim 374764
53 225 91 225 91 324 301 238 91 238 91 238 91 324 181 91 238 324 181 91 91 238 238
BalonParca AdiParca NoAdetTipApplied Date A B C
53 04.779 CABLE; PARK BRK,FRT LWR
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1311-1401 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1402-1408 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98211-636-1 01 1 1409- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98211-634-2 01 1 1309-1310 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1311-1401 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98211-634-2 01 1 1311-1401 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1402-1408 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1402-1408 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-634-2 01 1 1409- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 02 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 01.540 (D) ID=13 L=28 		0-95235-255-0 02 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (C) ID=19 L=32 		1-09701-235-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
SMOOTHER-EX(TYPE2)(8NS) 04.128 (C) ID=19 L=32 		1-09701-235-0 01 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 03 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 03 1 1402- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
(B) 		8-98023-622-0 01 1 1309-1310 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98023-622-0 01 1 1311-1401 ● ●
91 04.785 CLIP; PARKING BRK CABLE
(B) 		8-98023-622-0 01 1 1311-1401 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98023-622-0 01 1 1402- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311 ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311 ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ● ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1311-1401 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1402- ● ● ●
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1402- ● ●
181 04.785 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1309-1310 ●
181 04.785 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1311- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-1401 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1309-1310 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1410- ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98296-447-0 01 1 1410- ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1311-1401 ● ●
324 04.785 BRACKET
(G) 		8-98240-296-0 01 1 1311-1401 ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1402-1408 ● ●
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1402-1408 ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98240-296-0 01 1 1409- ● ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1311-1401 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1402-1408 ● ●
324 04.785 BRACKET
SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1402-1408 ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98038-563-0 01 1 1409- ● ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98185-361-2 01 1 1309-1310 ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98185-361-2 01 1 1311- ● ●
324 04.785 BRACKET
(B) 		8-98207-273-1 01 1 1309-1310 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1311-1408 ● ●
324 04.785 BRACKET
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1409- ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) (B) 		8-98207-273-1 01 1 1409- ●
324 04.785 BRACKET
(C) 		8-98026-099-2 01 1 1309-1310 ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1311-1408 ● ●
324 04.785 BRACKET
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1409- ● ● ●
324 04.785 BRACKET
(A) 		8-98242-138-0 01 1 1309-1310 ● ●
324 04.785 BRACKET
(A) 		8-98242-138-0 01 1 1311- ● ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98034-115-0 01 1 1309-1310 ●
324 04.785 BRACKET
(E) 		8-98034-115-0 01 1 1309-1310 ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98034-115-0 01 1 1311- ● ●
324 04.785 BRACKET
(E) 		8-98034-115-0 01 1 1311- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
