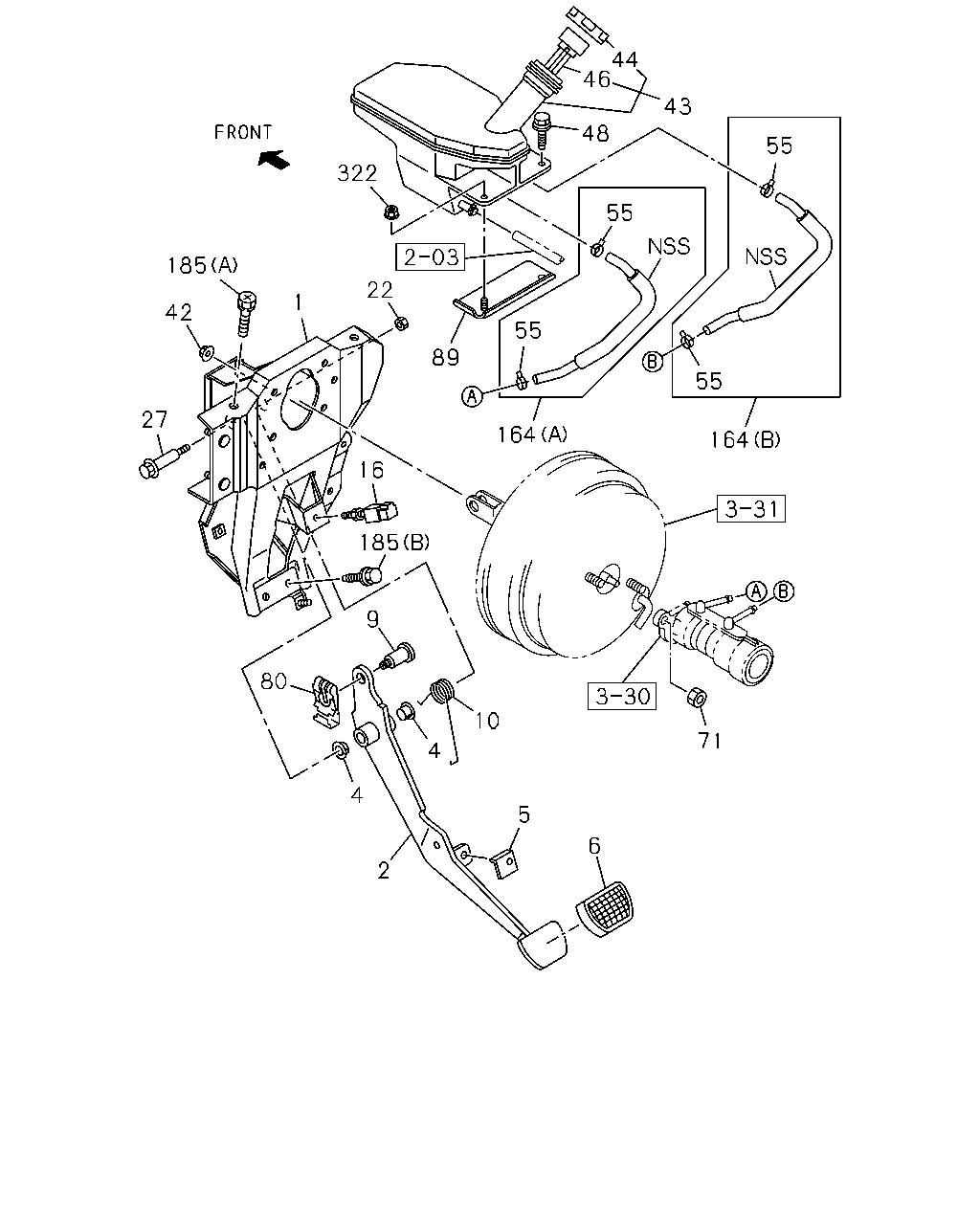

3-10 — BRAKE PEDAL AND CONTROL (#126700) — 58 parça

322 44 43 46 48 55 55 55 55 164 164 89 22 185 42 27 1 16 185 9 80 71 5 6 2 4 4 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.634 BRACKET ASM; PEDAL	8-98003-148-5	01	1	1309-1310	●	●
1	04.634 BRACKET ASM; PEDAL	8-98003-148-5	01	1	1311-	●	●	●
2	04.625 PEDAL; BRK	8-98003-156-0	01	1	1309-1310	●	●
2	04.625 PEDAL; BRK	8-98003-156-0	01	1	1311-	●	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	1309-1310	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	1311-	●	●	●
5	04.634 STOPPER; BRK PEDAL 03.459	8-97302-305-0	01	1	1309-1310	●	●
5	04.634 STOPPER; BRK PEDAL 03.459	8-97302-305-0	01	1	1311-	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	1309-1310	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	1311-	●	●	●
9	04.634 PIN; JAW JOINT	8-98147-657-0	01	1	1309-1310	●	●
9	04.634 PIN; JAW JOINT	8-98147-657-0	01	1	1311-	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	1309-1310	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	1311-	●	●	●
16	02.447 SWITCH; STOP LAMP 03.340	8-94337-761-0	01	1	1309-1310	●	●
16	02.447 SWITCH; STOP LAMP 03.340	8-94337-761-0	01	1	1311-	●	●	●
22	04.634 NUT; SHAFT M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1309-1310	●	●
22	04.634 NUT; SHAFT M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1311-	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	1309-1310	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	1311-	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1309-1310	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1311-	●	●	●
43	04.651 TANK ASM; OIL SMOOTHER-EX(TYPE2)(8NS) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97387-218-3	01	1	1402-	●
43	04.651 TANK ASM; OIL 4 WHEEL DISC BRAKE<JF9> SMOOTHER-EX(TYPE2)(8NS)	8-97387-214-1	01	1	1311-1401	●
43	04.651 TANK ASM; OIL SMOOTHER-EX(TYPE2)(8NS)	8-97387-214-1	01	1	1311-1401		●
43	04.651 TANK ASM; OIL 4 WHEEL DISC BRAKE<JF9> SMOOTHER-EX(TYPE2)(8NS)	8-97387-214-1	01	1	1402-	●
43	04.651 TANK ASM; OIL SMOOTHER-EX(TYPE2)(8NS)	8-97387-214-1	01	1	1402-		●	●
43	04.651 TANK ASM; OIL EXC. 4 WHEEL DISC BRAKE<JF9>, SMOOTHER-EX(TYPE2)(8NS)	8-97387-217-3	01	1	1311-	●
43	04.651 TANK ASM; OIL	8-97387-213-1	01	1	1309-1310	●	●
43	04.651 TANK ASM; OIL 4 WHEEL DISC BRAKE<JF9> EXC. SMOOTHER-EX(TYPE2)(8NS)	8-97387-213-1	01	1	1311-1401	●
43	04.651 TANK ASM; OIL EXC. SMOOTHER-EX(TYPE2)(8NS)	8-97387-213-1	01	1	1311-1401		●
43	04.651 TANK ASM; OIL	8-97387-213-1	01	1	1311-1401			●
43	04.651 TANK ASM; OIL 4 WHEEL DISC BRAKE<JF9> EXC. SMOOTHER-EX(TYPE2)(8NS)	8-97387-213-1	01	1	1402-	●
43	04.651 TANK ASM; OIL EXC. SMOOTHER-EX(TYPE2)(8NS)	8-97387-213-1	01	1	1402-		●	●
44	04.651 CAP; OIL TANK	8-98022-268-0	01	1	1309-1310	●	●
44	04.651 CAP; OIL TANK	8-98022-268-0	01	1	1311-	●	●	●
46	04.651 FILTER; RESERVOIR,BRK	8-98022-269-0	01	1	1309-1310	●	●
46	04.651 FILTER; RESERVOIR,BRK	8-98022-269-0	01	1	1311-	●	●	●
48	04.651 BOLT; OIL TANK TO BRKT 08.077 M6X20 W/PL WASHER	8-97370-668-0	01	1	1309-1310	●	●
48	04.651 BOLT; OIL TANK TO BRKT 08.077 M6X20 W/PL WASHER	8-97370-668-0	01	1	1311-	●	●	●
55	04.681 CLIP; RUBBER HOSE 00.785	8-98168-080-0	04	1	1309-1310	●	●
55	04.681 CLIP; RUBBER HOSE 00.785	8-98168-080-0	04	1	1311-	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1311-	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL 00.833	8-98007-161-0	01	1	1309-1310	●	●
80	04.634 PIN; SNAP,BRK PEDAL 00.833	8-98007-161-0	01	1	1311-	●	●	●
89	04.901 BRACKET; M/CYL	8-98014-337-1	01	1	1309-1310	●	●
89	04.901 BRACKET; M/CYL	8-98014-337-1	01	1	1311-	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK (A)	8-98167-344-2	01	1	1309-1310	●	●
164	04.681 HOSE; RUBBER,OIL TANK (A)	8-98167-344-2	01	1	1311-	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK (B)	8-98167-345-2	01	1	1309-1310	●	●
164	04.681 HOSE; RUBBER,OIL TANK (B)	8-98167-345-2	01	1	1311-	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	1309-1310	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	1311-	●	●	●
185	04.634 BOLT; BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	02	1	1309-1310	●	●
185	04.634 BOLT; BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	02	1	1311-	●	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
