Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#1267) — 144 parça

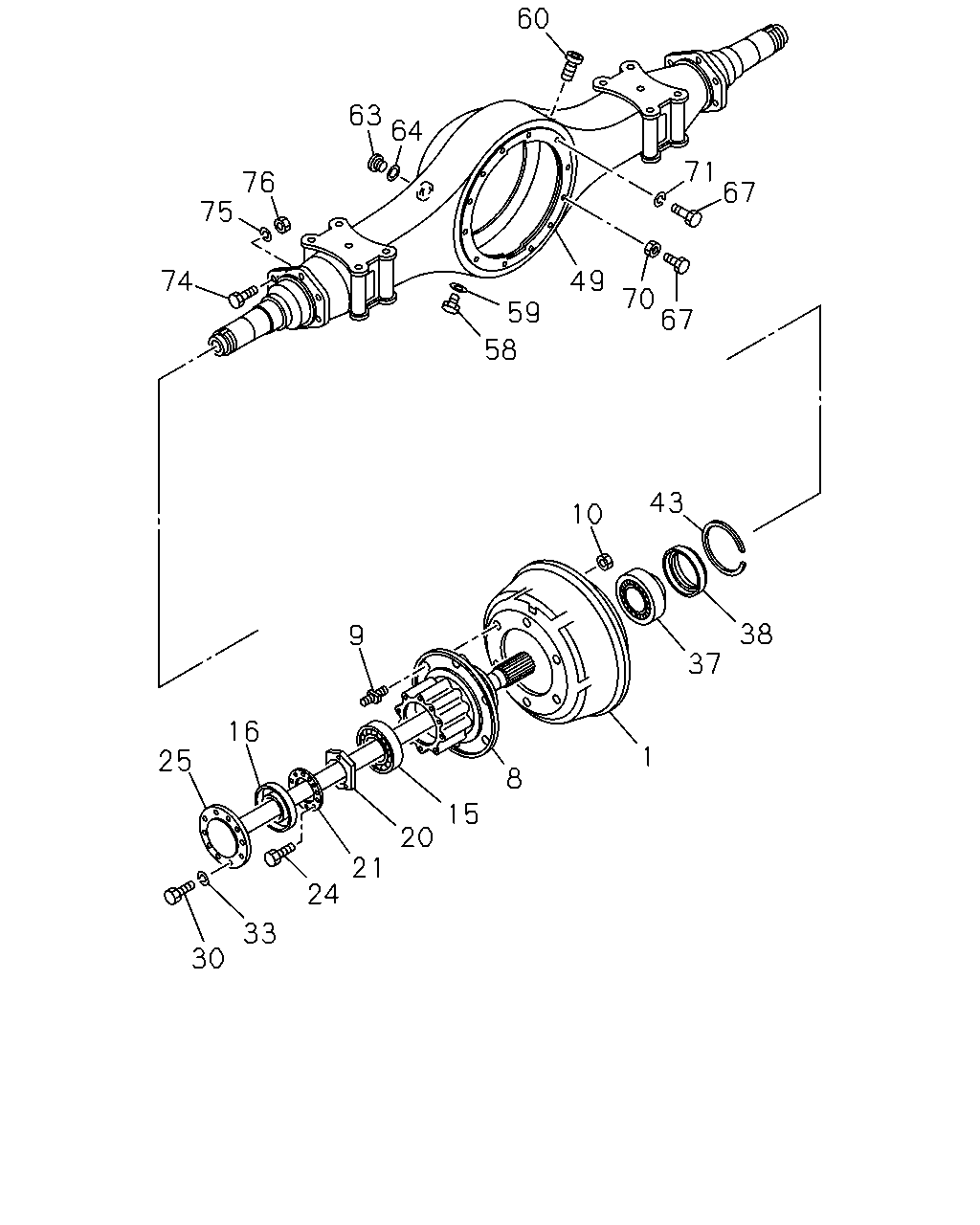

60 63 64 71 67 76 75 49 74 70 67 59 58 43 10 38 9 37 16 1 25 8 15 20 21 24 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-394-0	02	1	9202-	●	●
1	DRUM; BRK,RR FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17"EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D),FINAL G EAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-624-0	02	1	9202-9301	●	●
1	DRUM; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-341-0	02	1	9302-	●	●
1	DRUM; BRK,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-42315-194-3	02	1	9202-		●
8	HUB; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-393-0	02	1	9202-	●	●
8	HUB; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-621-0	02	1	9202-	●	●
8	HUB; RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) H=237.5	1-42311-032-4	02	1	9202-9508		●
8	HUB; RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-42311-100-0	02	1	9509-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-42337-051-0	20	1	9302-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17"EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D),FINAL G EAR 35/6 17" EATON(W5E)	1-87061-407-0	20	1	9202-9301	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-407-0	20	1	9302-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9202-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9202-		●
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M22	9-09110-522-0	16	1	9202-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NSK	1-09812-079-0	02	1	9202-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NACHI	1-09812-166-0	02	1	9202-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NOK	1-09625-226-1	02	1	9202-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) TKK	1-09625-444-0	02	1	9202-		●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-326-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-327-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-328-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-626-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-627-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-628-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	9202-		●
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=88	9-09854-112-0	02	1	9202-		●
24	BOLT; LK WASHER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M6X16 W/LK WASHER	0-50040-616-0	06	1	9202-		●
25	SHAFT; AXLE,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-318-0	02	1	9202-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-600-0	01	1	9202-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-599-0	01	1	9202-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=1035	1-42171-222-2	02	1	9202-9406		●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=1039	1-42171-414-0	02	1	9407-		●
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M14X58	1-09020-095-1	20	1	9202-		●
33	WASHER; AXLE SHAFT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-369-0	16	1	9202-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-614-0	20	1	9202-9408		●
33	WASHER; AXLE SHAFT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-814-0	20	1	9409-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NSK	1-09812-077-0	02	1	9202-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NACHI	1-09812-165-0	02	1	9202-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-350-0	02	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-630-0	02	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NOK	1-09625-265-0	02	1	9202-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) TKK	1-09625-350-0	02	1	9202-		●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) OD=179	1-09587-057-0	02	1	9202-		●
49	CASE; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-370-0	01	1	9202-	●	●
49	CASE; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-598-0	01	1	9202-	●	●
49	CASE; RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-42130-947-2	01	1	9202-		●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-382-0	01	1	9202-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M24X17 FLANGE	1-09604-023-0	01	1	9202-		●
59	GASKET; DRAIN PLUG FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=26.8	9-09920-605-0	01	1	9202-		●
60	BREATHER; RR AXLE CASE	1-09893-017-0	01	1	9202-	●
60	BREATHER; RR AXLE CASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09893-017-0	01	1	9202-		●
60	BREATHER; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09893-003-0	01	1	9202-		●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-385-0	01	1	9202-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M24X17 FLANGE	1-09604-021-0	01	1	9202-9307		●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M24X17 FLANGE	1-09604-022-0	01	1	9308-		●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9307		●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=26.8	9-09920-605-0	01	1	9308-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-357-0	12	1	9202-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) M16X45	9-92041-645-0	04	1	9202-9204		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X45	0-20801-645-0	04	1	9205-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X70	9-91066-670-0	04	1	9202-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X40	9-92061-640-0	08	1	9202-		●
70	NUT; CARRIER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16	9-99111-416-0	04	1	9202-		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-356-0	12	1	9202-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=16.2	9-09150-816-0	12	1	9202-		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-401-0	16	1	9202-	●	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M14X50	1-09040-066-0	14	1	9202-		●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-369-0	16	1	9202-	●	●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-614-0	16	1	9202-9401		●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-814-0	16	1	9402-		●
76	NUT; RR BRK ASM SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-383-0	16	1	9202-	●	●
76	NUT; RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M14	9-99110-514-0	16	1	9202-		●

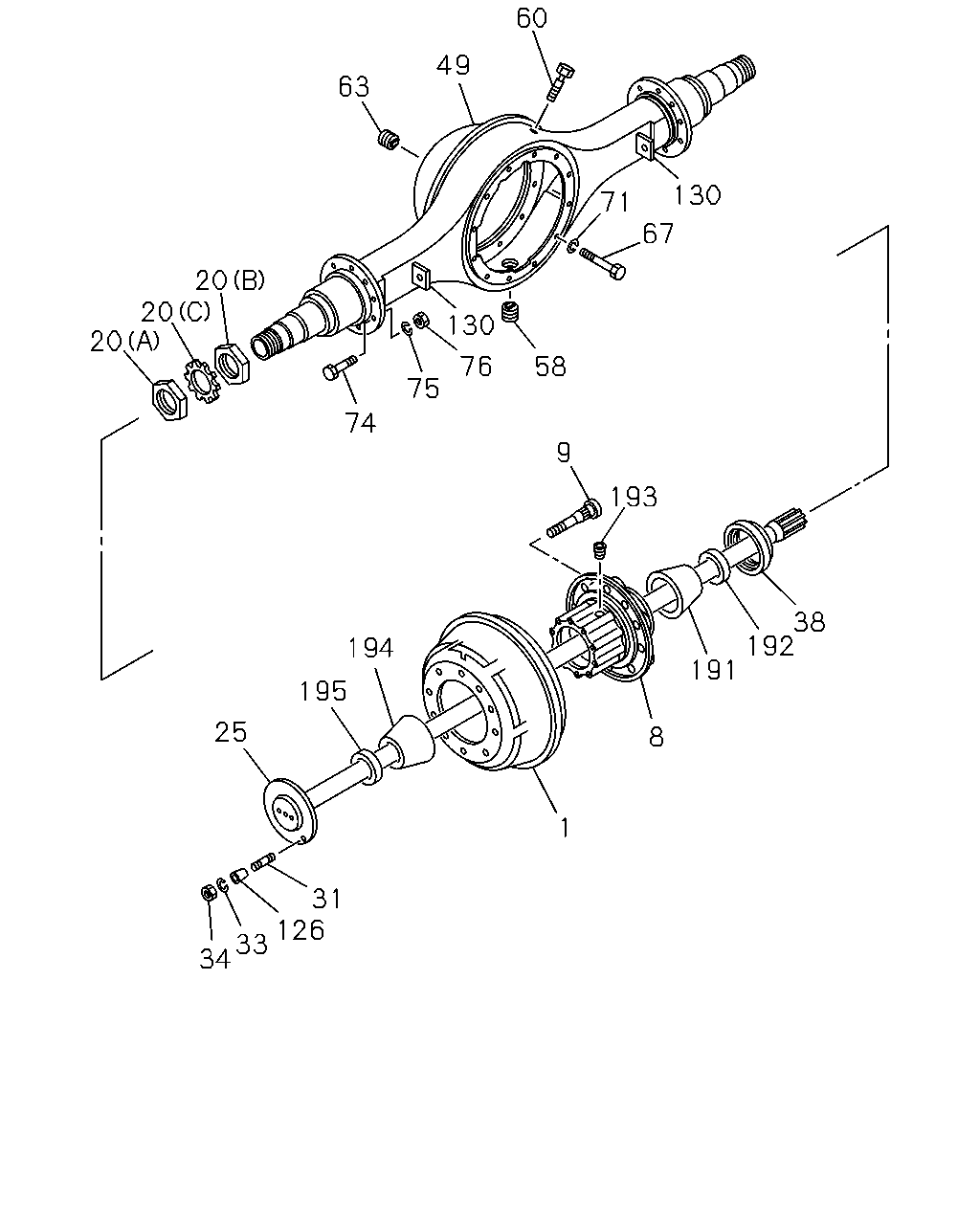

60 49 63 130 71 67 20 20 20 130 76 58 75 74 9 193 38 192 194 191 195 25 8 1 31 126 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-394-0	02	1	9202-	●	●
1	DRUM; BRK,RR FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17"EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D),FINAL G EAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-624-0	02	1	9202-9301	●	●
1	DRUM; BRK,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-341-0	02	1	9302-	●	●
1	DRUM; BRK,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-42315-194-3	02	1	9202-		●
8	HUB; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-393-0	02	1	9202-	●	●
8	HUB; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-621-0	02	1	9202-	●	●
8	HUB; RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) H=237.5	1-42311-032-4	02	1	9202-9508		●
8	HUB; RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-42311-100-0	02	1	9509-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-42337-051-0	20	1	9302-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17"EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D),FINAL G EAR 35/6 17" EATON(W5E)	1-87061-407-0	20	1	9202-9301	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-407-0	20	1	9302-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9202-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9202-		●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-326-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-327-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-328-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-626-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-627-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-628-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	9202-		●
25	SHAFT; AXLE,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-318-0	02	1	9202-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-600-0	01	1	9202-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-599-0	01	1	9202-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=1035	1-42171-222-2	02	1	9202-9406		●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) L=1039	1-42171-414-0	02	1	9407-		●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-395-0	16	1	9202-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-369-0	16	1	9202-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-614-0	20	1	9202-9408		●
33	WASHER; AXLE SHAFT FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-814-0	20	1	9409-		●
34	NUT; AXLE SHAFT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-336-0	16	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-350-0	02	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-630-0	02	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) NOK	1-09625-265-0	02	1	9202-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) TKK	1-09625-350-0	02	1	9202-		●
49	CASE; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-370-0	01	1	9202-	●	●
49	CASE; RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-598-0	01	1	9202-	●	●
49	CASE; RR AXLE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q)	1-42130-947-2	01	1	9202-		●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-382-0	01	1	9202-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M24X17 FLANGE	1-09604-023-0	01	1	9202-		●
60	BREATHER; RR AXLE CASE	1-09893-017-0	01	1	9202-	●
60	BREATHER; RR AXLE CASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09893-017-0	01	1	9202-		●
60	BREATHER; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09893-003-0	01	1	9202-		●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-385-0	01	1	9202-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M24X17 FLANGE	1-09604-021-0	01	1	9202-9307		●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M24X17 FLANGE	1-09604-022-0	01	1	9308-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-357-0	12	1	9202-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) M16X45	9-92041-645-0	04	1	9202-9204		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X45	0-20801-645-0	04	1	9205-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X70	9-91066-670-0	04	1	9202-		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X40	9-92061-640-0	08	1	9202-		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-356-0	12	1	9202-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=16.2	9-09150-816-0	12	1	9202-		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-401-0	16	1	9202-	●	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M14X50	1-09040-066-0	14	1	9202-		●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-369-0	16	1	9202-	●	●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-614-0	16	1	9202-9401		●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) ID=14.2	9-09150-814-0	16	1	9402-		●
76	NUT; RR BRK ASM SETTING FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-383-0	16	1	9202-	●	●
76	NUT; RR BRK ASM SETTING FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M14	9-99110-514-0	16	1	9202-		●
126	COLLAR; AXLE SHAFT FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-351-0	16	1	9202-	●	●
130	BRACKET; CM/SHF,AXLE CASE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 35/6 17" EATON(W5E)	1-87061-399-0	02	1	9202-	●	●
130	BRACKET; CM/SHF,AXLE CASE FINAL GEAR 39/7 17" EATON(W5D) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-399-0	02	1	9202-	●	●
130	BRACKET; CM/SHF,AXLE CASE FINAL GEAR 39/7 17" EATON(W5D) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-399-0	01	1	9202-	●	●
191	CUP; BRG,HUB INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-371-0	02	1	9202-	●	●
191	CUP; BRG,HUB INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-623-0	02	1	9202-	●	●
192	CONE; BRG,HUB INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-406-0	02	1	9202-	●	●
192	CONE; BRG,HUB INNER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-625-0	02	1	9202-	●	●
193	PLUG; HUB,RR AXLE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E)	1-87061-348-0	02	1	9202-	●	●
194	CUP; BRG,HUB OUTER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-404-0	02	1	9202-	●	●
194	CUP; BRG,HUB OUTER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-622-0	02	1	9202-	●	●
195	CONE; BRG,HUB OUTER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-373-0	02	1	9202-	●	●
195	CONE; BRG,HUB OUTER FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 39/7 17" EATON(W5D),FINAL GEAR 35/6 17" EATON(W5E) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-629-0	02	1	9202-	●	●
