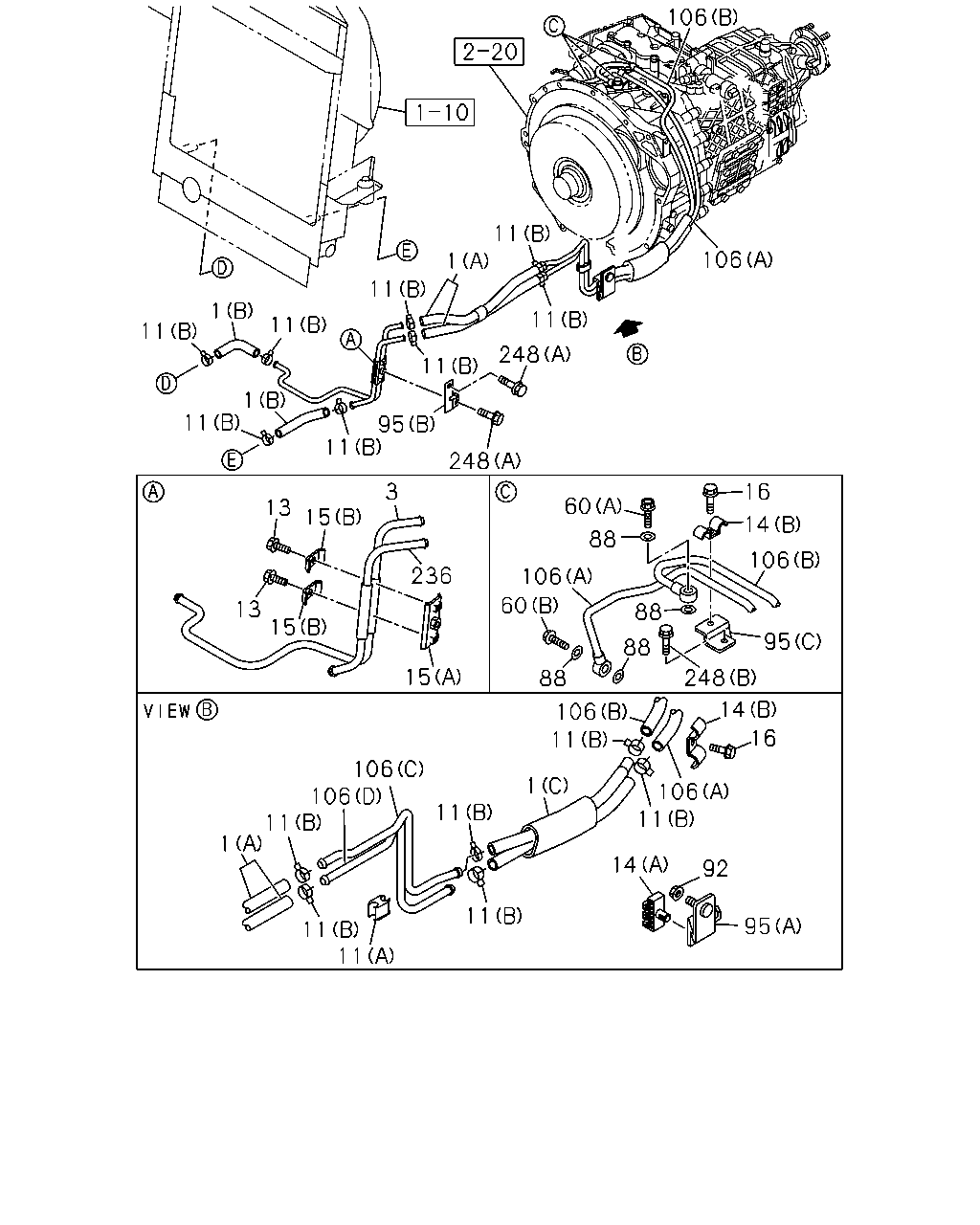

2-53 — TRANSMISSION OIL COOLER SYSTEM (#126693) — 27 parça

106 106 11 11 1 11 11 1 11 11 1 11 11 248 248 95 13 15 3 236 15 15 13 60 88 88 88 88 16 14 106 95 248 106 60 14 16 106 11 1 11 11 1 11 11 11 106 92 95 4 106 106 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) (C)	8-98084-161-0	01	1	1311-	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) (B)	8-98086-380-0	02	1	1311-	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) (A)	8-98172-352-0	01	1	1311-	●	●
3	04.128 PIPE; OIL,A/T TO OIL COOLER SMOOTHER-EX(TYPE2)(8NS)	8-98006-093-1	01	1	1311-	●	●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	1311-	●	●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) 01.097 (B) ID=16	8-97329-628-0	12	1	1311-	●	●
13	04.128 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) M6X25 W/LK WASHER	0-50540-625-0	02	1	1311-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1311-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE SMOOTHER-EX(TYPE2)(8NS) (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1311-	●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (A)	8-98035-763-0	01	1	1311-	●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-764-0	02	1	1311-	●	●
16	04.128 BOLT; CLIP,ENG SIDE SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
60	04.128 BOLT; EYE,ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1311-	●	●
60	04.128 BOLT; EYE,ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1311-	●	●
88	04.128 GASKET; EYE BOLT SMOOTHER-EX(TYPE2)(8NS) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1311-	●	●
92	04.128 NUT; CLIP SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) (C)	8-97349-876-0	01	1	1311-	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) (A)	8-97389-858-2	01	1	1311-	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-762-0	01	1	1311-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-638-0	01	1	1311-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) (C)	8-98084-140-0	01	1	1311-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) (D)	8-98084-141-0	01	1	1311-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) (A)	8-98094-577-0	01	1	1311-	●	●
236	04.128 PIPE; OIL,OIL COOLER TO A/T SGL CAB(NM*S) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS)	8-98006-094-1	01	1	1311-	●	●
236	04.128 PIPE; OIL,OIL COOLER TO A/T SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-745-0	01	1	1311-	●	●
248	04.128 BOLT; RETAINER SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
248	04.128 BOLT; RETAINER SMOOTHER-EX(TYPE2)(8NS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●
