◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#126692) — 48 parça

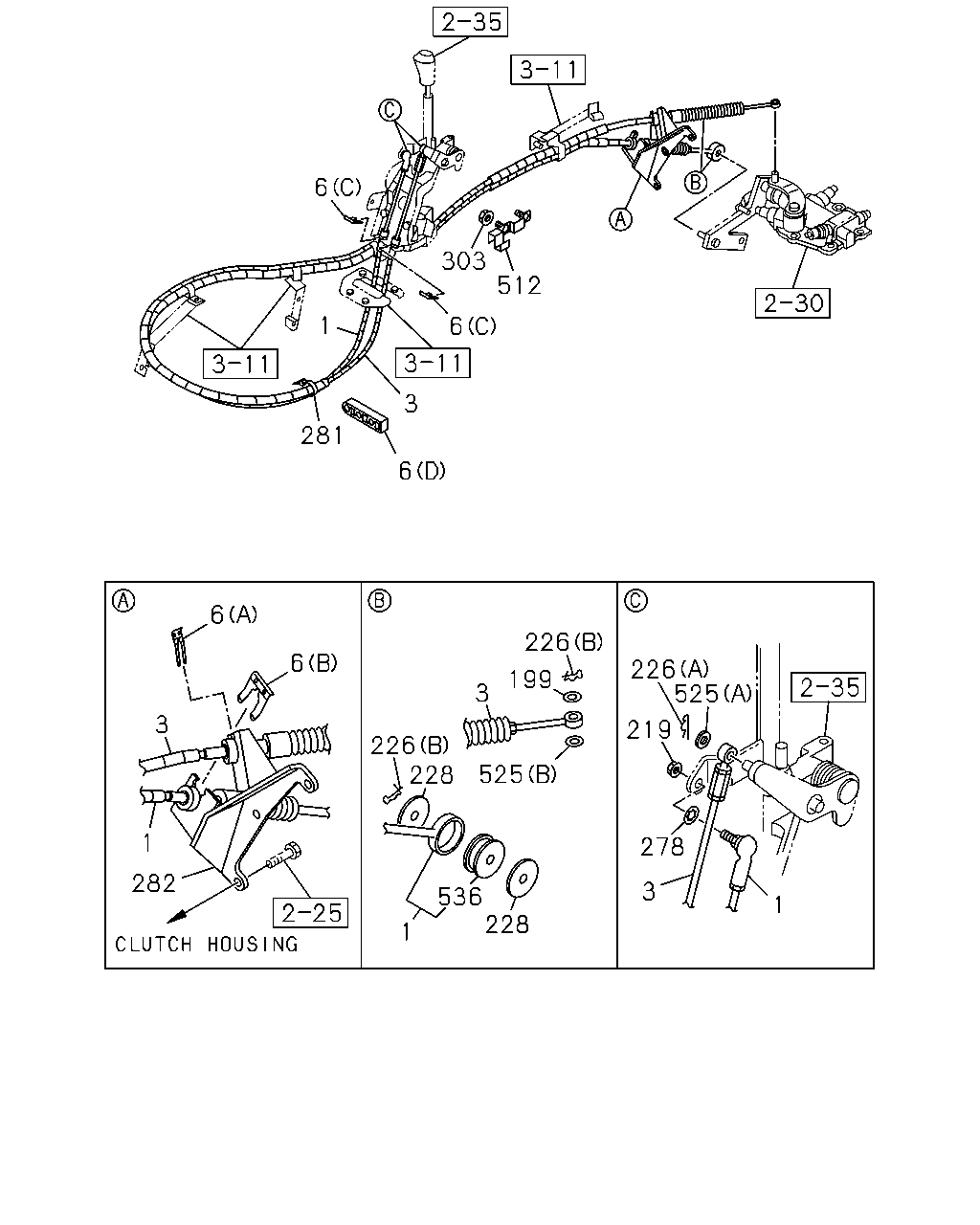

çizim 373922
6 1 281 3 6 512 303 226 226 199 219 278 3 1 1 228 536 228 226 525 3 3 282 6 6 525
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2965 		8-98207-264-1 01 1 1311- ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2955 		8-98164-353-1 01 1 1309-1310 ●
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2955 		8-98164-353-1 01 1 1311-1411 ●
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2955 		8-98292-916-0 01 1 1412- ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3040 		8-98207-271-1 01 1 1311- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3035 		8-98164-362-1 01 1 1309-1310 ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98164-362-1 01 1 1311-1411 ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98283-986-0 01 1 1412- ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 01 1 1309-1310 ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 01 1 1309-1310 ●
6 04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97011-448-0 01 1 1311- ● ●
6 04.047 CLIP; CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97011-448-0 01 1 1311- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1309-1310 ●
6 04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=19.2 		8-97211-011-0 01 1 1311- ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1309-1310 ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>, SMOOTHER-EX(TYPE2)(8NS) 04.008 (D) 		8-97093-491-1 01 1 1311- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1309-1310 ●
6 04.047 CLIP; CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1311- ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1309-1310 ●
199 04.012 WASHER; PL,SELECT
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1311- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1309-1310 ●
219 04.047 NUT; FLANGE,SHAFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1311- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 1309-1310 ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 1309-1310 ●
226 04.047 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=23 		8-94170-378-0 01 1 1311- ● ●
226 04.047 PIN; SHIFT CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) (B) L=23 		8-94170-378-0 01 1 1311- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1309-1310 ●
226 04.047 PIN; SHIFT CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1311- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1309-1310 ●
228 04.047 WASHER; PL,SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 OD=40 		8-97182-975-0 02 1 1311- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1309-1310 ●
278 00.854 WASHER; LK,SHIFT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1311- ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1309-1310 ●
281 04.042 CLIP; BAND
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 L=140 		5-09707-031-1 01 1 1311- ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98200-183-1 01 1 1311- ●
282 04.010 BRACKET; TRANS SIDE 8-97350-449-0 01 1 1309-1310 ●
282 04.010 BRACKET; TRANS SIDE
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-97350-449-0 01 1 1311- ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ●
303 00.855 NUT; CLIP
EXC. SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
512 04.012 GUIDE; CABLE,GEAR CONT
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98200-182-5 01 1 1311- ●
512 04.012 GUIDE; CABLE,GEAR CONT 8-98111-916-0 01 1 1309-1310 ●
512 04.012 GUIDE; CABLE,GEAR CONT
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98111-916-0 01 1 1311- ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1309-1310 ●
525 04.047 WASHER; SHIFT CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1311- ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1309-1310 ●
525 04.047 WASHER; SHIFT CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1311- ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1309-1310 ●
536 00.854 DAMPER; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98097-681-0 01 1 1311- ● ●
