◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#126691) — 65 parça

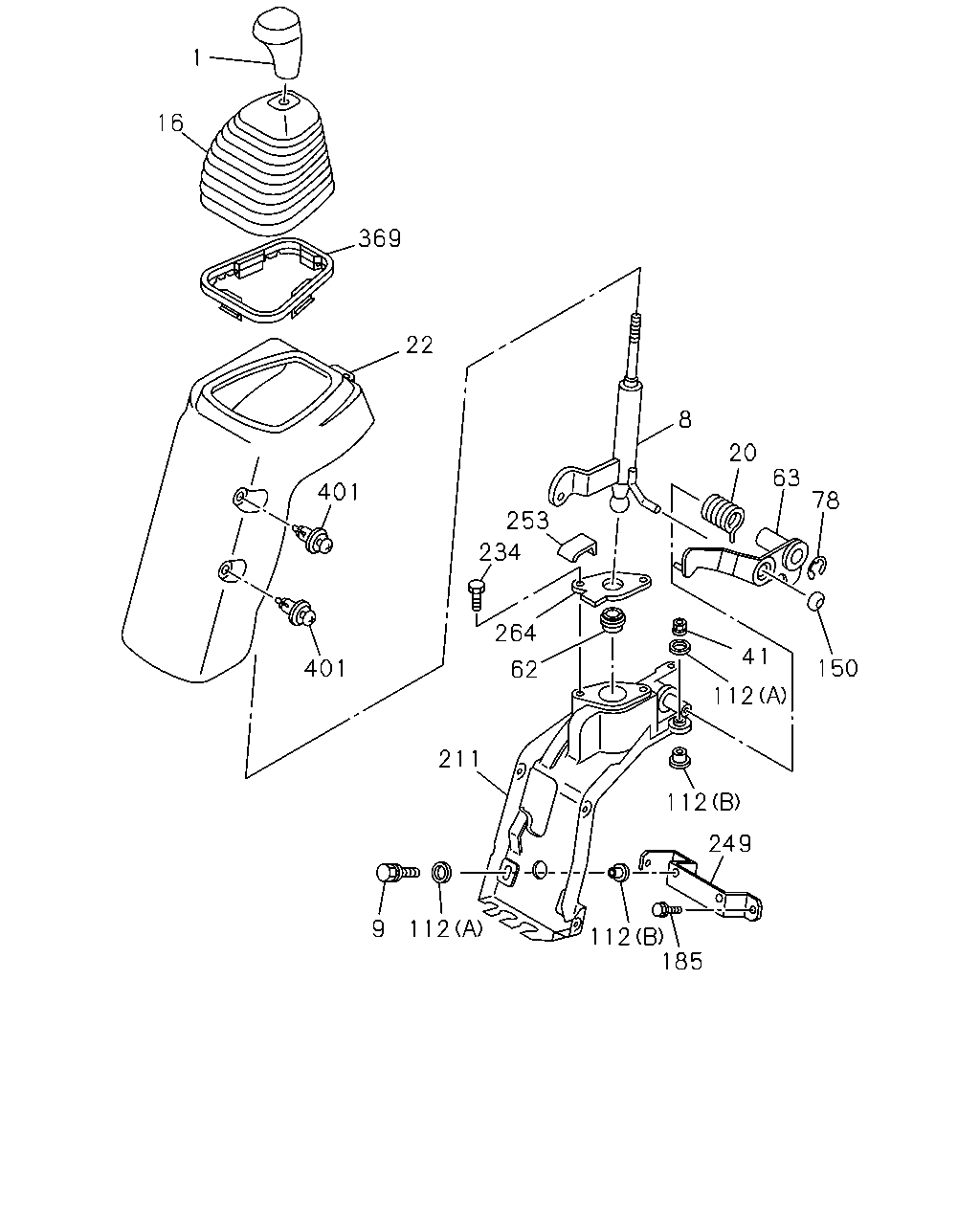

çizim 373863
1 16 369 22 401 401 211 112 9 112 185 249 112 112 41 150 78 63 20 8 253 234 264 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97306-545-1 01 1 1309-1310 ●
1 04.006 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 		8-97306-545-1 01 1 1311- ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97421-814-0 01 1 1311-1311 ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 1309-1310 ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-506-0 01 1 1311- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1309-1310 ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1311- ● ●
16 04.015 BOOT; CHANGE LEVER 8-98035-063-0 01 1 1309-1310 ●
16 04.015 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98035-063-0 01 1 1311- ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1309-1310 ●
20 04.012 SPRING; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-514-1 01 1 1311- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-726-1 01 1 1309-1310 ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-726-1 01 1 1311- ● ●
41 04.012 NUT; CHANGE LEVER
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1309-1310 ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1311- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1309-1310 ●
62 04.012 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97011-895-1 01 1 1311- ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 1309-1310 ●
63 04.006 LEVER; RELAY,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97143-199-0 01 1 1311- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1309-1310 ●
78 04.008 RING; SNAP,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1311- ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1309-1310 ●
112 04.012 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97091-426-0 04 1 1311- ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1309-1310 ●
112 04.012 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97091-427-0 04 1 1311- ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1309-1310 ●
150 04.008 BALL; DETENT,CONT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97049-147-0 01 1 1311- ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1309-1310 ●
211 04.010 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-505-1 01 1 1311- ● ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1309-1310 ●
234 04.010 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 02 1 1311- ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1309-1310 ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1311- ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1309-1310 ●
253 04.012 STOPPER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-510-0 01 1 1311- ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1309-1310 ●
264 04.015 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-511-0 01 1 1311- ● ●
369 04.012 RETAINER; REINF 8-98032-213-1 01 1 1309-1310 ●
369 04.012 RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-213-1 01 1 1311- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1309-1310 ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1311- ● ●

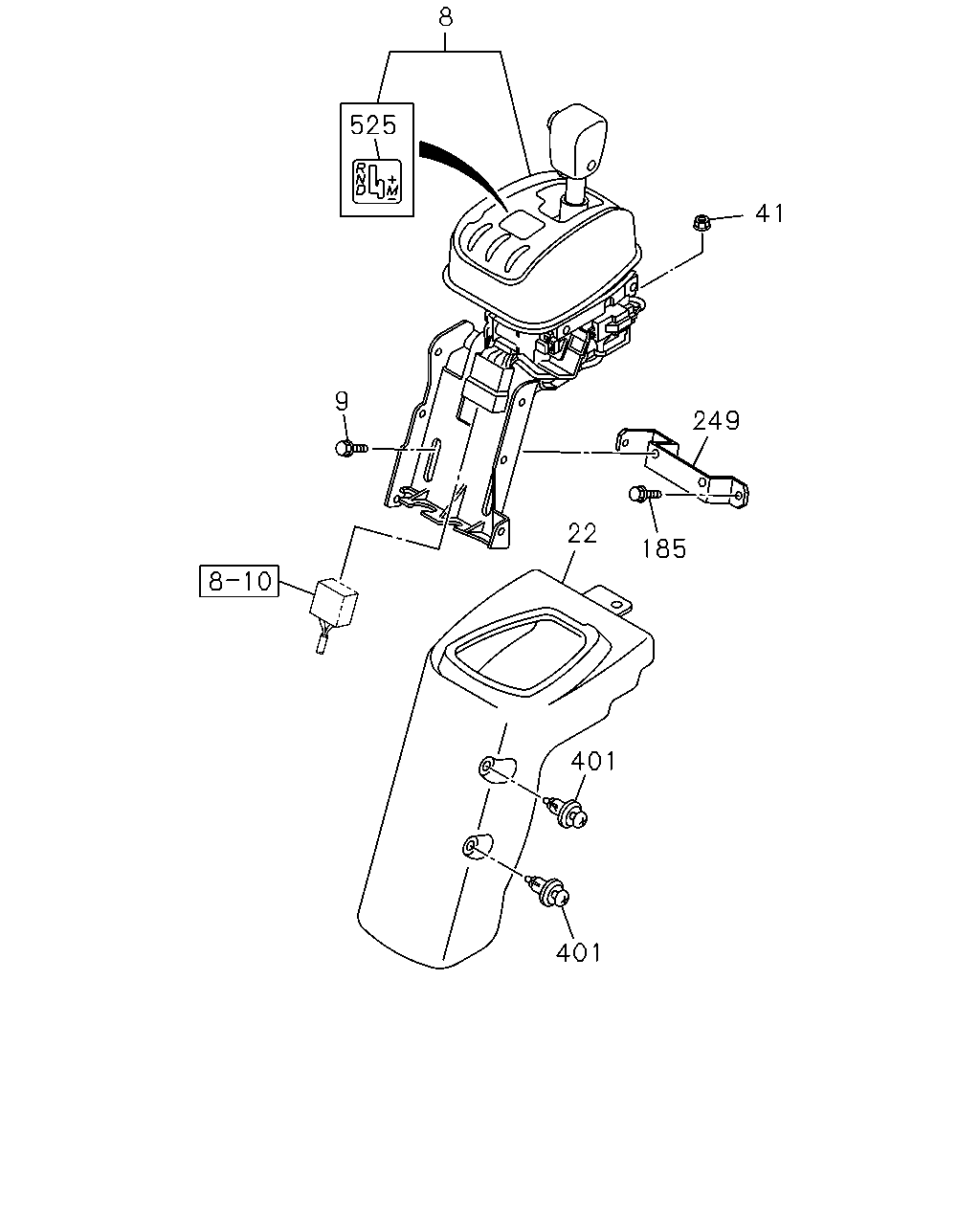

çizim 388417
401 401 22 185 249 41 8 525 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97421-814-0 01 1 1311-1311 ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 04.006 LEVER; CHANGE
SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 1309-1310 ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97204-506-0 01 1 1311- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1309-1310 ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1311- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-726-1 01 1 1309-1310 ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-726-1 01 1 1311- ● ●
41 04.012 NUT; CHANGE LEVER
SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1309-1310 ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1311- ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1309-1310 ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1309-1310 ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1311- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1309-1310 ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1311- ● ●
525 04.040 LABEL; SHIFT POSITION
SMOOTHER-EX(TYPE2)(8NS) 		8-98048-480-1 01 1 1311- ● ●
