Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#126687) — 218 parça

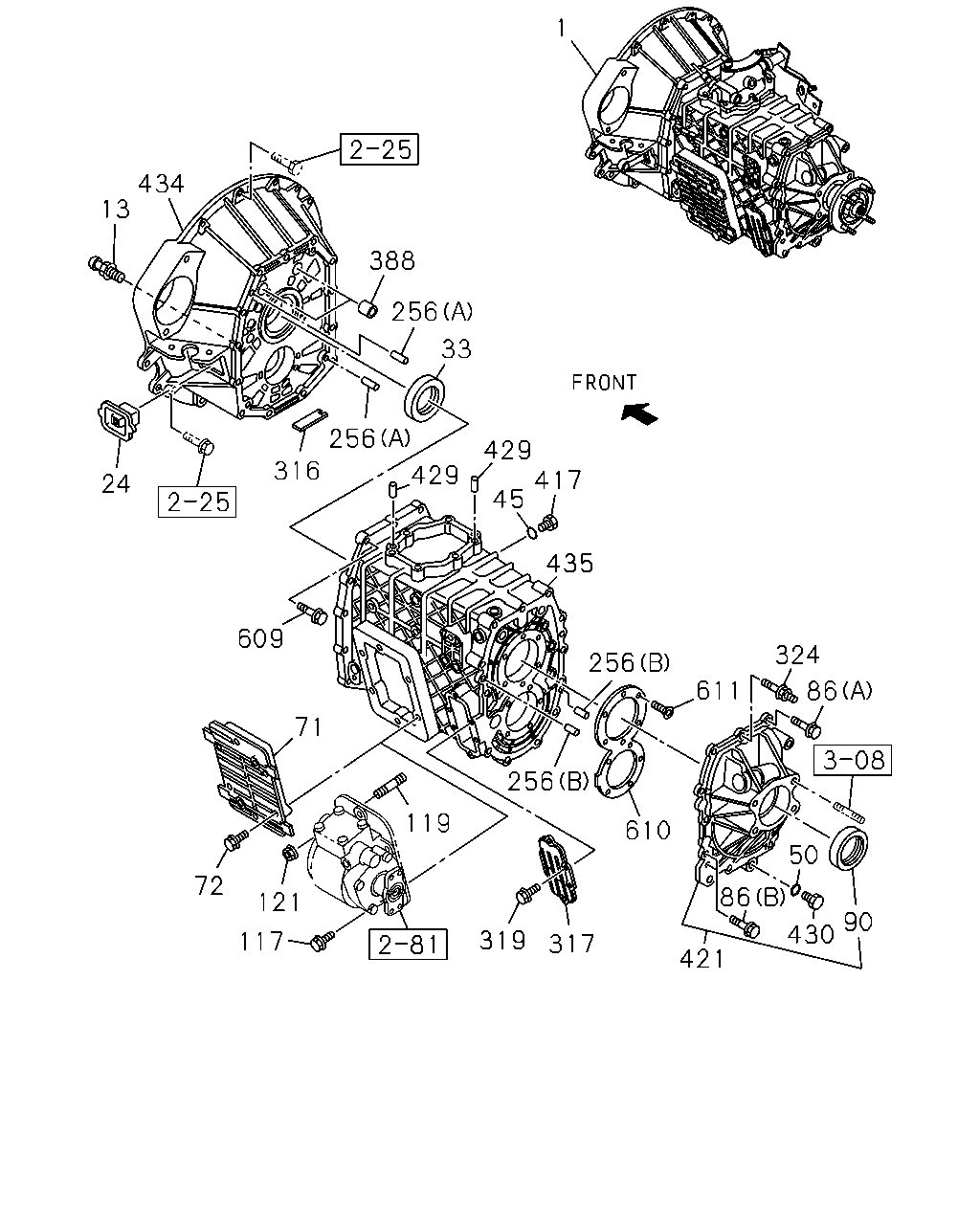

434 13 24 316 256 388 33 256 429 435 45 417 429 256 611 86 324 50 90 430 421 86 610 256 119 71 72 121 117 319 317 609 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-98207-146-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. KD PREPARATORY PACK<6HF>	8-98207-143-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) KD PREPARATORY PACK<6HF> SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98207-146-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98207-143-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-98230-592-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. KD PREPARATORY PACK<6HF>	8-98230-593-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) KD PREPARATORY PACK<6HF> SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98230-592-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98230-593-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1311-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1311-	●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1309-1310		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-634-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1309-1310		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98223-634-0	01	1	1311-		●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1309-1310		●
13	04.302 SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-384-1	01	1	1311-	●	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1309-1310		●
24	00.797 COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-201-0	01	1	1311-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97255-187-0	02	1	1311-1401		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97255-187-0	02	1	1402-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1309-1310		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-550-0	01	1	1311-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1309-1310		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1309-1310		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-	●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1309-1310		●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1311-	●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1309-1310		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1311-	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1309-1310		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1311-	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1309-1310		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1311-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1309-1310		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1311-	●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1309-1310		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1311-	●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1309-1310		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.342 M10X25 L=40	0-44011-025-0	02	1	1311-	●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1309-1310		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.403 M10X30 L=45	0-44011-030-0	02	1	1311-	●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-	●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1309-1310		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1311-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1309-1310		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1311-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1309-1310		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1311-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1309-1310		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1311-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1309-1310		●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1311-	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1309-1310		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1311-	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1309-1310		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1311-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1309-1310		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1311-	●	●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1309-1310		●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1311-	●	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1309-1310		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1311-	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1309-1310		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1311-	●	●
434	00.683 HOUSING; CLU SMOOTHER-EX(TYPE2)(8NS)	8-98100-978-0	01	1	1311-1401		●
434	00.683 HOUSING; CLU SMOOTHER-EX(TYPE2)(8NS)	8-98100-978-0	01	1	1402-	●	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1309-1310		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	1311-	●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1309-1310		●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1311-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1309-1310		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1311-	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1309-1310		●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1311-	●	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1309-1310		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1311-	●	●

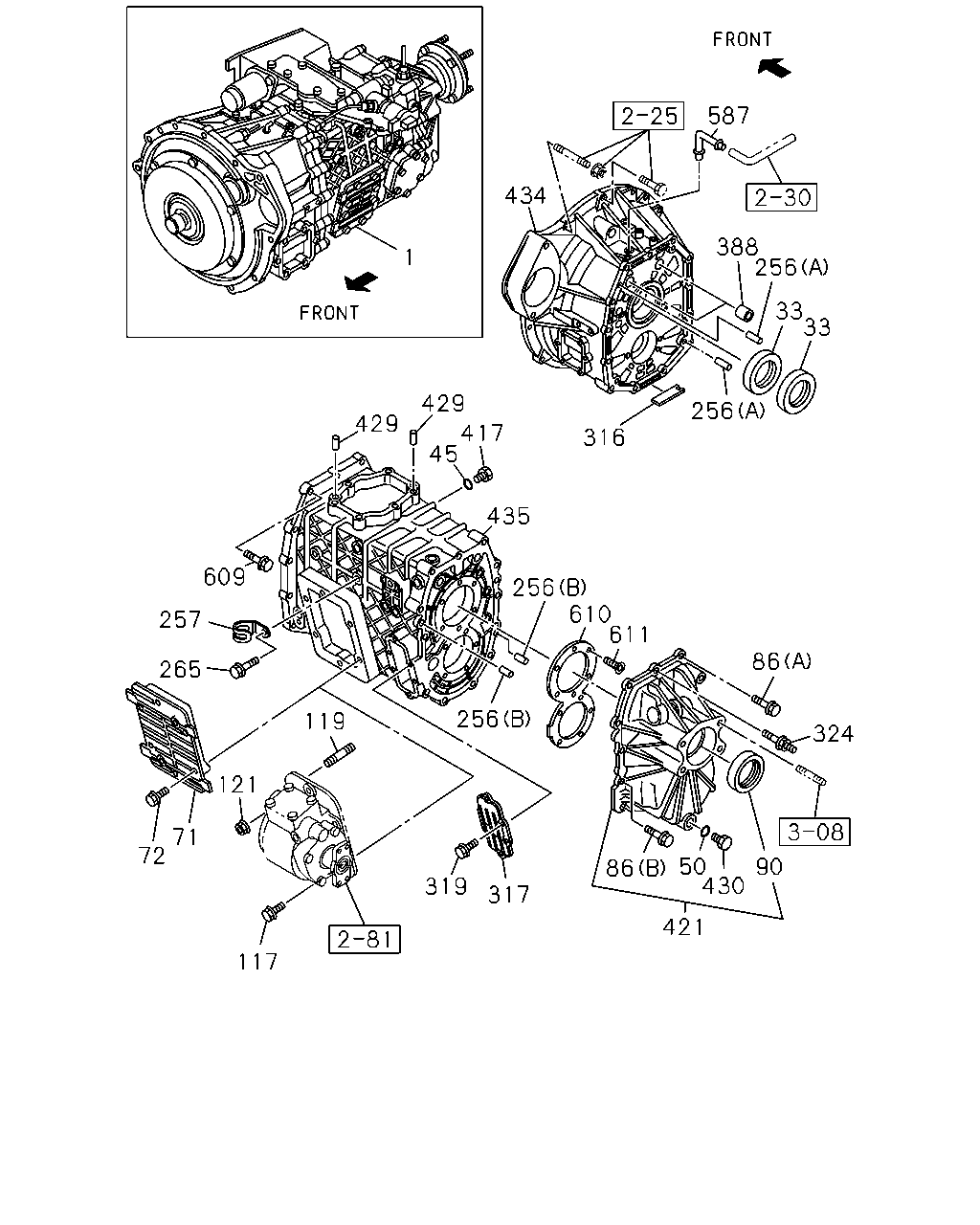

1 434 587 388 33 256 33 256 316 610 256 435 417 429 429 609 257 119 265 72 121 71 117 319 317 50 430 421 86 90 324 86 611 256 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-98207-146-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. KD PREPARATORY PACK<6HF>	8-98207-143-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) KD PREPARATORY PACK<6HF> SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98207-146-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98207-143-0	01	1	1402-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-98230-592-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. KD PREPARATORY PACK<6HF>	8-98230-593-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) KD PREPARATORY PACK<6HF> SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98230-592-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98230-593-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1311-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1311-	●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1309-1310		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-634-0	01	1	1311-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98223-634-0	01	1	1309-1310		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98223-634-0	01	1	1311-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97255-187-0	02	1	1311-1401		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97255-187-0	02	1	1402-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1309-1310		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-550-0	01	1	1311-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1309-1310		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1309-1310		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-	●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1309-1310		●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1311-	●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1309-1310		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1311-	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1309-1310		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1311-	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1309-1310		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1311-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1309-1310		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1311-	●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1309-1310		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1311-	●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1309-1310		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.342 M10X25 L=40	0-44011-025-0	02	1	1311-	●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1309-1310		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.403 M10X30 L=45	0-44011-030-0	02	1	1311-	●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-	●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1309-1310		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1311-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1309-1310		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1311-	●	●
257	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1311-1401		●
257	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1402-	●	●
265	00.785 BOLT; CLIP SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1311-1401		●
265	00.785 BOLT; CLIP SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1402-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1309-1310		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1311-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1309-1310		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1311-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1309-1310		●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1311-	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1309-1310		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1311-	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1309-1310		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1311-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1309-1310		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1311-	●	●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1309-1310		●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1311-	●	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1309-1310		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1311-	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1309-1310		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1311-	●	●
434	00.683 HOUSING; CLU SMOOTHER-EX(TYPE2)(8NS)	8-98100-978-0	01	1	1311-1401		●
434	00.683 HOUSING; CLU SMOOTHER-EX(TYPE2)(8NS)	8-98100-978-0	01	1	1402-	●	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1309-1310		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	1311-	●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1309-1310		●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1311-	●	●
587	04.020 PIPE; BREATHER SMOOTHER-EX(TYPE2)(8NS) 04.510	8-97358-318-0	01	1	1311-1401		●
587	04.020 PIPE; BREATHER SMOOTHER-EX(TYPE2)(8NS) 04.510	8-97358-318-0	01	1	1402-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1309-1310		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1311-	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1309-1310		●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1311-	●	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1309-1310		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1311-	●	●

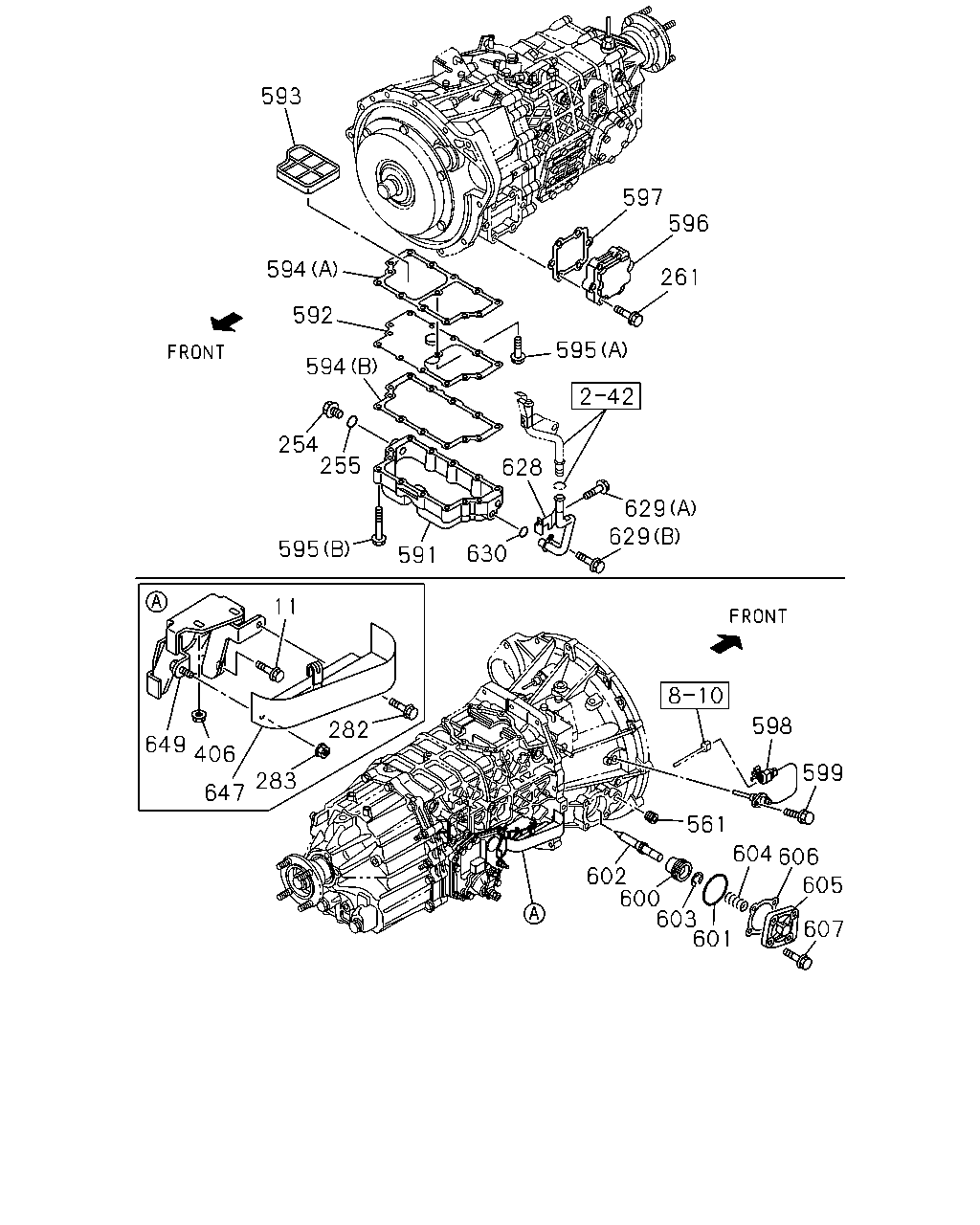

593 594 594 592 254 595 591 630 629 629 628 595 261 596 597 11 282 283 647 649 406 602 600 603 601 607 605 606 604 561 599 598 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.085 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) M10X20 FLANGE	0-28761-020-0	02	1	1311-	●	●
254	04.104 PLUG; DRAIN,OIL SMOOTHER-EX(TYPE2)(8NS) 04.105	8-97365-374-0	01	1	1311-1401		●
254	04.104 PLUG; DRAIN,OIL SMOOTHER-EX(TYPE2)(8NS) 04.105	8-97365-374-0	01	1	1402-	●	●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) ID=17	8-97115-712-0	01	1	1311-1401		●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) ID=17	8-97115-712-0	01	1	1402-	●	●
261	04.109 BOLT; COVER SMOOTHER-EX(TYPE2)(8NS) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	1311-1401		●
261	04.109 BOLT; COVER SMOOTHER-EX(TYPE2)(8NS) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	1402-	●	●
282	00.785 BOLT; PROTECTOR SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
283	04.083 NUT; PROTECTOR SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
406	04.510 NUT; BRKT SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE	0-91180-210-0	02	1	1311-	●	●
561	04.104 PLUG SMOOTHER-EX(TYPE2)(8NS)	8-97320-204-0	01	1	1311-1401		●
561	04.104 PLUG SMOOTHER-EX(TYPE2)(8NS)	8-97320-204-0	01	1	1402-	●	●
591	04.195 PAN; OIL SMOOTHER-EX(TYPE2)(8NS)	8-97256-429-2	01	1	1311-1401		●
591	04.195 PAN; OIL SMOOTHER-EX(TYPE2)(8NS)	8-97256-429-2	01	1	1402-	●	●
592	04.338 COVER; STRAINER SMOOTHER-EX(TYPE2)(8NS)	8-97289-771-1	01	1	1311-1401		●
592	04.338 COVER; STRAINER SMOOTHER-EX(TYPE2)(8NS)	8-97289-771-1	01	1	1402-	●	●
593	04.338 FILTER; STRAINER SMOOTHER-EX(TYPE2)(8NS)	8-97256-438-1	01	1	1311-1401		●
593	04.338 FILTER; STRAINER SMOOTHER-EX(TYPE2)(8NS)	8-97256-438-1	01	1	1402-	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A)	8-97256-430-1	01	1	1311-1401		●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A)	8-97256-430-1	01	1	1402-	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B)	8-97289-772-0	01	1	1311-1401		●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B)	8-97289-772-0	01	1	1402-	●	●
595	04.510 BOLT; OIL PAN SMOOTHER-EX(TYPE2)(8NS) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-1401		●
595	04.510 BOLT; OIL PAN SMOOTHER-EX(TYPE2)(8NS) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1402-	●	●
595	04.510 BOLT; OIL PAN SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	1311-1401		●
595	04.510 BOLT; OIL PAN SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	1402-	●	●
596	04.317 COVER; OIL PAN SMOOTHER-EX(TYPE2)(8NS)	8-97289-773-0	01	1	1311-1401		●
596	04.317 COVER; OIL PAN SMOOTHER-EX(TYPE2)(8NS)	8-97289-773-0	01	1	1402-	●	●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97289-774-0	01	1	1311-1401		●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97289-774-0	01	1	1402-	●	●
598	04.329 SENSOR; TURBINE SMOOTHER-EX(TYPE2)(8NS)	8-97316-495-1	01	1	1311-1401		●
598	04.329 SENSOR; TURBINE SMOOTHER-EX(TYPE2)(8NS)	8-97316-495-1	01	1	1402-	●	●
599	04.329 BOLT; SENSOR SMOOTHER-EX(TYPE2)(8NS) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1311-1401		●
599	04.329 BOLT; SENSOR SMOOTHER-EX(TYPE2)(8NS) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1402-	●	●
600	04.105 PISTON; BRAKE SMOOTHER-EX(TYPE2)(8NS)	8-97254-652-1	01	1	1311-1401		●
600	04.105 PISTON; BRAKE SMOOTHER-EX(TYPE2)(8NS)	8-97254-652-1	01	1	1402-	●	●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97254-755-0	01	1	1311-1401		●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97254-755-0	01	1	1402-	●	●
602	04.166 PLUNGER; BRAKE SMOOTHER-EX(TYPE2)(8NS)	8-97254-653-0	01	1	1311-1401		●
602	04.166 PLUNGER; BRAKE SMOOTHER-EX(TYPE2)(8NS)	8-97254-653-0	01	1	1402-	●	●
603	04.317 RING; SNAP SMOOTHER-EX(TYPE2)(8NS) 03.838 ID=8	9-09185-008-0	01	1	1311-1401		●
603	04.317 RING; SNAP SMOOTHER-EX(TYPE2)(8NS) 03.838 ID=8	9-09185-008-0	01	1	1402-	●	●
604	04.384 SPRING; PISTON SMOOTHER-EX(TYPE2)(8NS)	8-97254-752-0	01	1	1311-1401		●
604	04.384 SPRING; PISTON SMOOTHER-EX(TYPE2)(8NS)	8-97254-752-0	01	1	1402-	●	●
605	04.356 COVER; CYLINDER SMOOTHER-EX(TYPE2)(8NS)	8-97254-756-0	01	1	1311-1401		●
605	04.356 COVER; CYLINDER SMOOTHER-EX(TYPE2)(8NS)	8-97254-756-0	01	1	1402-	●	●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97254-757-0	01	1	1311-1401		●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS)	8-97254-757-0	01	1	1402-	●	●
607	04.109 BOLT; COVER SMOOTHER-EX(TYPE2)(8NS) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	1311-1401		●
607	04.109 BOLT; COVER SMOOTHER-EX(TYPE2)(8NS) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	1402-	●	●
628	04.439 TUBE; OIL FILLER SMOOTHER-EX(TYPE2)(8NS)	8-98017-101-1	01	1	1311-1401		●
628	04.439 TUBE; OIL FILLER SMOOTHER-EX(TYPE2)(8NS)	8-98017-101-1	01	1	1402-	●	●
629	04.317 BOLT; OIL FILLER SMOOTHER-EX(TYPE2)(8NS) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	1311-1401		●
629	04.317 BOLT; OIL FILLER SMOOTHER-EX(TYPE2)(8NS) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	1402-	●	●
629	04.317 BOLT; OIL FILLER SMOOTHER-EX(TYPE2)(8NS) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1311-1401		●
629	04.317 BOLT; OIL FILLER SMOOTHER-EX(TYPE2)(8NS) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1402-	●	●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) ID=15.8	8-97305-656-0	01	1	1311-1401		●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) ID=15.8	8-97305-656-0	01	1	1402-	●	●
647	00.782 PROTECTOR; HEAT SMOOTHER-EX(TYPE2)(8NS)	8-97329-465-0	01	1	1311-	●	●
649	04.105 BRACKET; SOLENOID SMOOTHER-EX(TYPE2)(8NS)	8-97387-237-0	01	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
