2-03 — CLUTCH PEDAL AND CONTROL (#126681) — 124 parça

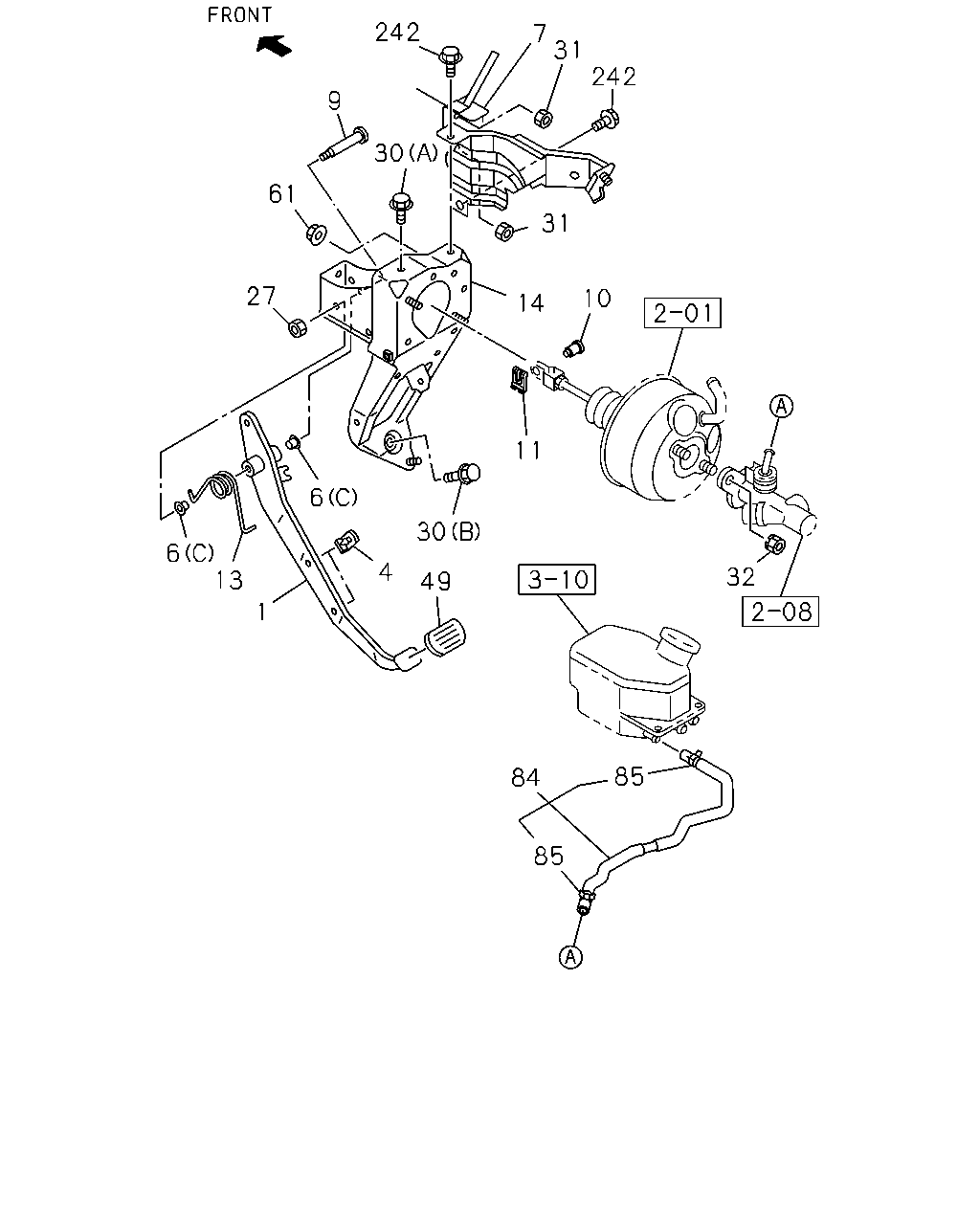

242 7 31 242 31 9 30 27 14 11 10 32 30 13 6 6 6 4 6 1 49 84 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98002-484-0	01	1	1309-1310	●	●
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-484-0	01	1	1311-	●	●	●
1	00.830 PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98034-752-0	01	1	1309-1310	●	●
1	00.830 PEDAL; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-752-0	01	1	1311-	●	●	●
4	00.829 STOPPER; CLU PEDAL	8-97853-534-1	02	1	1309-1310	●	●
4	00.829 STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-534-1	02	1	1311-	●	●	●
6	00.831 BUSHING; CLU PEDAL 04.792 (C)	8-94238-596-0	02	1	1309-1310	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C)	8-94238-596-0	02	1	1311-	●	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	1309-1310	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	1311-	●	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	1309-1310	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	1311-	●	●	●
7	00.829 BRACKET; CLU PEDAL	8-98029-186-4	01	1	1309-1310	●	●
7	00.829 BRACKET; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-186-4	01	1	1311-	●	●	●
9	00.833 PIN; CLU PEDAL 04.634	8-97866-667-0	01	1	1309-1310	●	●
9	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97866-667-0	01	1	1311-	●	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-98147-657-0	01	1	1309-1310	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-98147-657-0	01	1	1311-1401	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-98147-657-0	01	1	1311-1401			●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-98147-657-0	01	1	1402-	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1309-1310	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	1311-1401	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1311-1401			●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	1402-	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1309-1310	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-621-1	01	1	1311-	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1309-1310	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1311-	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-98002-482-4	01	1	1309-1310	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-482-4	01	1	1311-	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1309-1310	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1311-	●	●	●
27	00.833 NUT; FULCRUM PIN 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1309-1310	●	●
27	00.833 NUT; FULCRUM PIN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1311-	●	●	●
30	00.829 BOLT; CLU MTG BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1309-1310	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1311-	●	●	●
30	00.829 BOLT; CLU MTG BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1309-1310	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1311-	●	●	●
31	01.153 NUT; MTG BRKT TO BODY 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310	●	●
31	01.153 NUT; MTG BRKT TO BODY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1311-	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310	●	●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401			●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	1402-	●	●	●
49	00.829 RUBBER; PAD,CLU PEDAL	8-97853-413-2	01	1	1309-1310	●	●
49	00.829 RUBBER; PAD,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-413-2	01	1	1311-	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98153-001-5	01	1	1309-1310	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98153-001-5	01	1	1311-1401	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98153-001-5	01	1	1311-1401			●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98153-001-5	01	1	1402-	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1309-1310	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1311-1401	●	●
84	00.785 HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1311-1401			●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1402-	●	●	●
85	00.785 CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1309-1310	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98168-080-0	02	1	1311-1401	●	●
85	00.785 CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1311-1401			●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98168-080-0	02	1	1402-	●	●	●
242	00.785 BOLT; BRKT,CLUTCH 03.604 M8X16 FLANGE	0-28450-816-0	02	1	1309-1310	●	●
242	00.785 BOLT; BRKT,CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE	0-28450-816-0	02	1	1311-	●	●	●

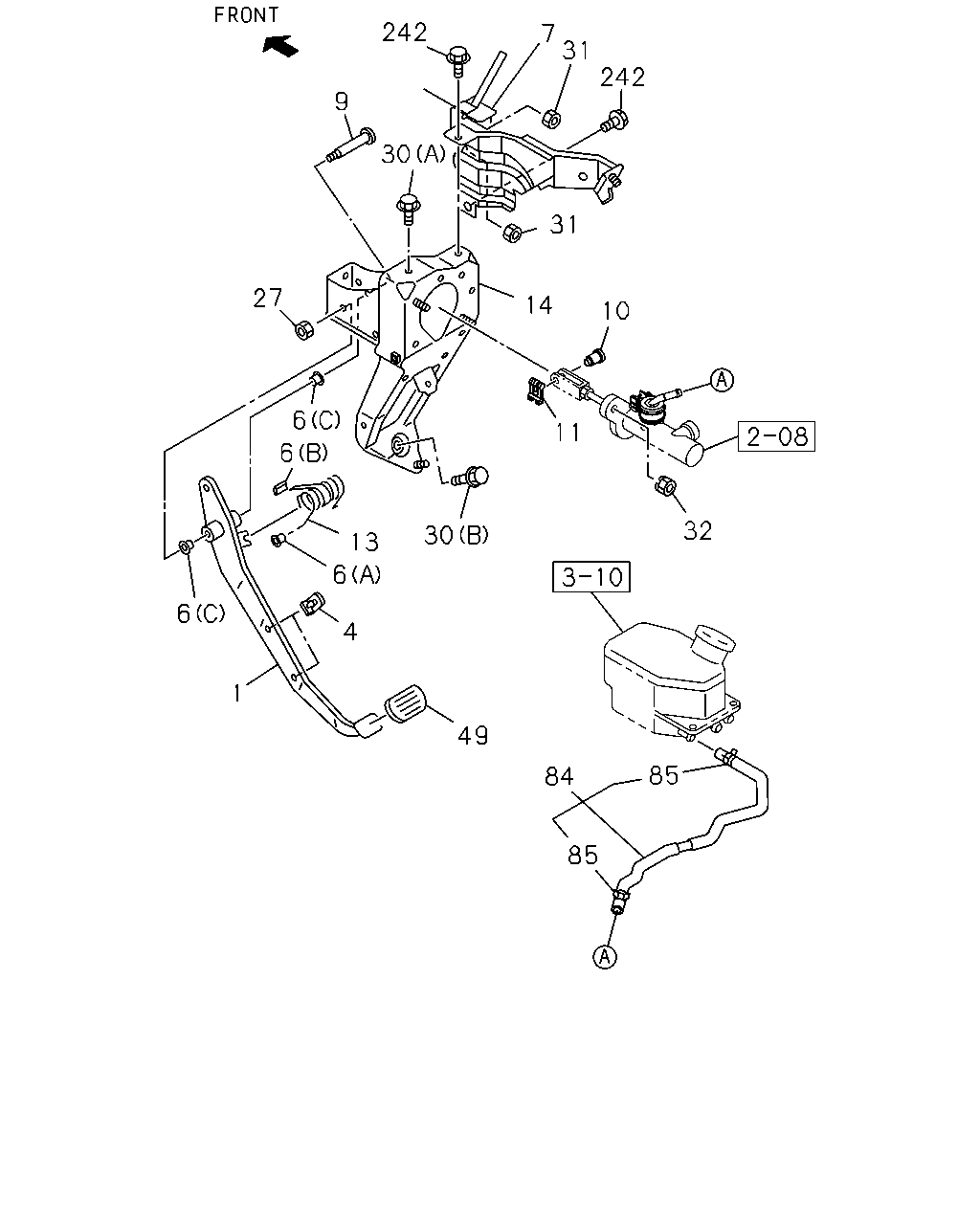

242 7 31 242 9 30 61 27 31 14 10 11 6 13 1 6 4 49 39 84 85 85 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-98002-484-0	01	1	1309-1310	●	●
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-484-0	01	1	1311-	●	●	●
1	00.830 PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-98034-752-0	01	1	1309-1310	●	●
1	00.830 PEDAL; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-752-0	01	1	1311-	●	●	●
4	00.829 STOPPER; CLU PEDAL	8-97853-534-1	02	1	1309-1310	●	●
4	00.829 STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-534-1	02	1	1311-	●	●	●
6	00.831 BUSHING; CLU PEDAL 04.792 (C)	8-94238-596-0	02	1	1309-1310	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C)	8-94238-596-0	02	1	1311-	●	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	1309-1310	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	1311-	●	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	1309-1310	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	1311-	●	●	●
7	00.829 BRACKET; CLU PEDAL	8-98029-186-4	01	1	1309-1310	●	●
7	00.829 BRACKET; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-186-4	01	1	1311-	●	●	●
9	00.833 PIN; CLU PEDAL 04.634	8-97866-667-0	01	1	1309-1310	●	●
9	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97866-667-0	01	1	1311-	●	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-98147-657-0	01	1	1309-1310	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-98147-657-0	01	1	1311-1401	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-98147-657-0	01	1	1311-1401			●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-98147-657-0	01	1	1402-	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1309-1310	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	1311-1401	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL	8-98007-161-0	01	1	1311-1401			●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	1402-	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T)	8-98023-621-1	01	1	1309-1310	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-621-1	01	1	1311-	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1309-1310	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	1311-	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-98002-482-4	01	1	1309-1310	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-482-4	01	1	1311-	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1309-1310	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-750-0	01	1	1311-	●	●	●
27	00.833 NUT; FULCRUM PIN 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1309-1310	●	●
27	00.833 NUT; FULCRUM PIN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	1311-	●	●	●
30	00.829 BOLT; CLU MTG BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1309-1310	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1311-	●	●	●
30	00.829 BOLT; CLU MTG BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1309-1310	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1311-	●	●	●
31	01.153 NUT; MTG BRKT TO BODY 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310	●	●
31	01.153 NUT; MTG BRKT TO BODY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	1311-	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1309-1310	●	●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	1311-1401			●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	1402-	●	●	●
49	00.829 RUBBER; PAD,CLU PEDAL	8-97853-413-2	01	1	1309-1310	●	●
49	00.829 RUBBER; PAD,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-413-2	01	1	1311-	●	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER	8-94279-050-0	04	1	1309-1310	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	04	1	1311-1401	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER	8-94279-050-0	04	1	1311-1401			●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	04	1	1402-	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98153-001-5	01	1	1309-1310	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98153-001-5	01	1	1311-1401	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T)	8-98153-001-5	01	1	1311-1401			●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98153-001-5	01	1	1402-	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1309-1310	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1311-1401	●	●
84	00.785 HOSE; RUBBER,CLU LINE EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1311-1401			●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98217-270-1	01	1	1402-	●	●	●
85	00.785 CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1309-1310	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98168-080-0	02	1	1311-1401	●	●
85	00.785 CLIP; HOSE TO M/CYL	8-98168-080-0	02	1	1311-1401			●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98168-080-0	02	1	1402-	●	●	●
242	00.785 BOLT; BRKT,CLUTCH 03.604 M8X16 FLANGE	0-28450-816-0	02	1	1309-1310	●	●
242	00.785 BOLT; BRKT,CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE	0-28450-816-0	02	1	1311-	●	●	●
