1-56 — EXHAUST BRAKE SYSTEM (#126679) — 97 parça

1 5 1 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU)	8-98228-983-0	01	1	1311-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1309-1408	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98227-173-0	01	1	1409-1510	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB)	8-98321-773-0	01	1	1511-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU)	8-98228-984-1	01	1	1311-	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1309-1408	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1409-	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCC ENG(RDU) 03.613 M10 FLANGE	8-97096-192-1	04	1	1311-	●	●	●

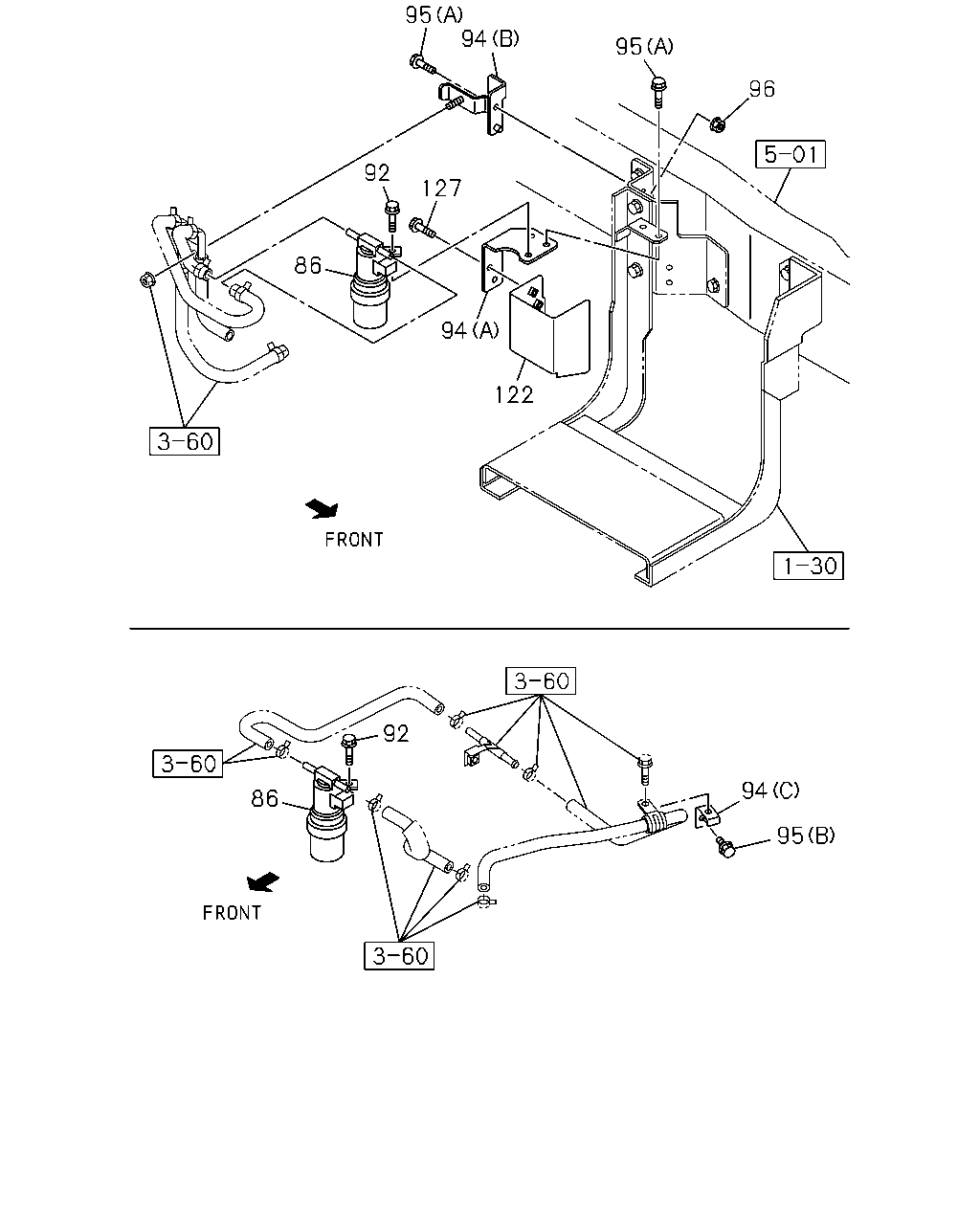

95 92 94 127 95 96 94 86 122 92 86 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1309-1310	●	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1311-1408	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1311-1408			●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1409-	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408			●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98227-649-0	01	1	1311-1401			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98227-649-0	01	1	1402-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1309-1310	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-694-2	01	1	1311-1312	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1311-1312	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98042-694-2	01	1	1401-1401	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-694-2	01	1	1401-1401	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1402-1403	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-694-2	01	1	1402-1403	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1404-1408	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98042-694-2	01	1	1404-1408	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1409-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98042-694-2	01	1	1409-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	1409-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1309-1310	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98211-757-1	01	1	1311-1401	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98211-757-1	01	1	1311-1401	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1402-1403	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1402-1403	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1404-1408	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98211-757-1	01	1	1404-1408	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1409-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98211-757-1	01	1	1409-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98211-757-1	01	1	1409-			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-1312	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1401-1401	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1401-1401	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1402-1403	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1402-1403	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1404-1408	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1404-1408	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1409-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1409-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1409-			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-1401			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1402-			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1309-1310	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1311-1312	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	1311-1312	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1401-1401	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1401-1401	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1402-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1402-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1312	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1312	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1401-1401	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1401-1401	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-1403	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1402-1403	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1404-1408	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1404-1408	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-			●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98269-467-0	01	1	1401-	●	●
122	03.640 PROTECTOR; MAG VLV	8-98098-564-0	01	1	1309-1310	●	●
122	03.640 PROTECTOR; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98098-564-0	01	1	1311-1312	●	●
122	03.640 PROTECTOR; MAG VLV WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-98098-564-0	01	1	1401-	●	●
127	04.902 BOLT; PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1309-1310	●	●
127	04.902 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1311-	●	●

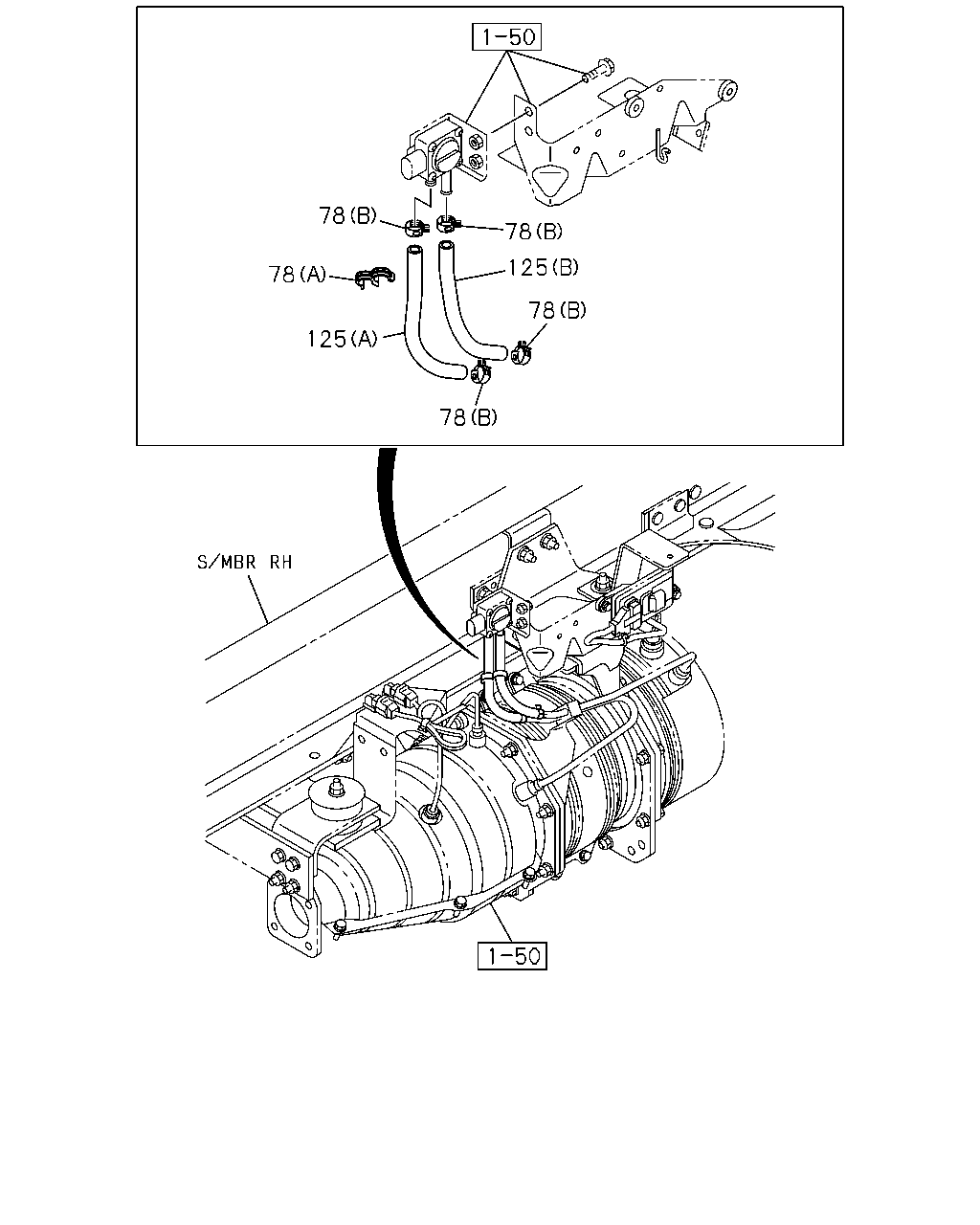

78 78 78 78 78 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1309-1310	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1311-	●	●	●
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1309-1310	●	●
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1311-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (C)	8-98236-427-1	01	1	1311-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (D)	8-98236-428-1	01	1	1311-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98123-965-0	01	1	1309-1408	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98123-965-0	01	1	1409-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98242-584-0	01	1	1309-1408	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98242-584-0	01	1	1409-	●	●	●

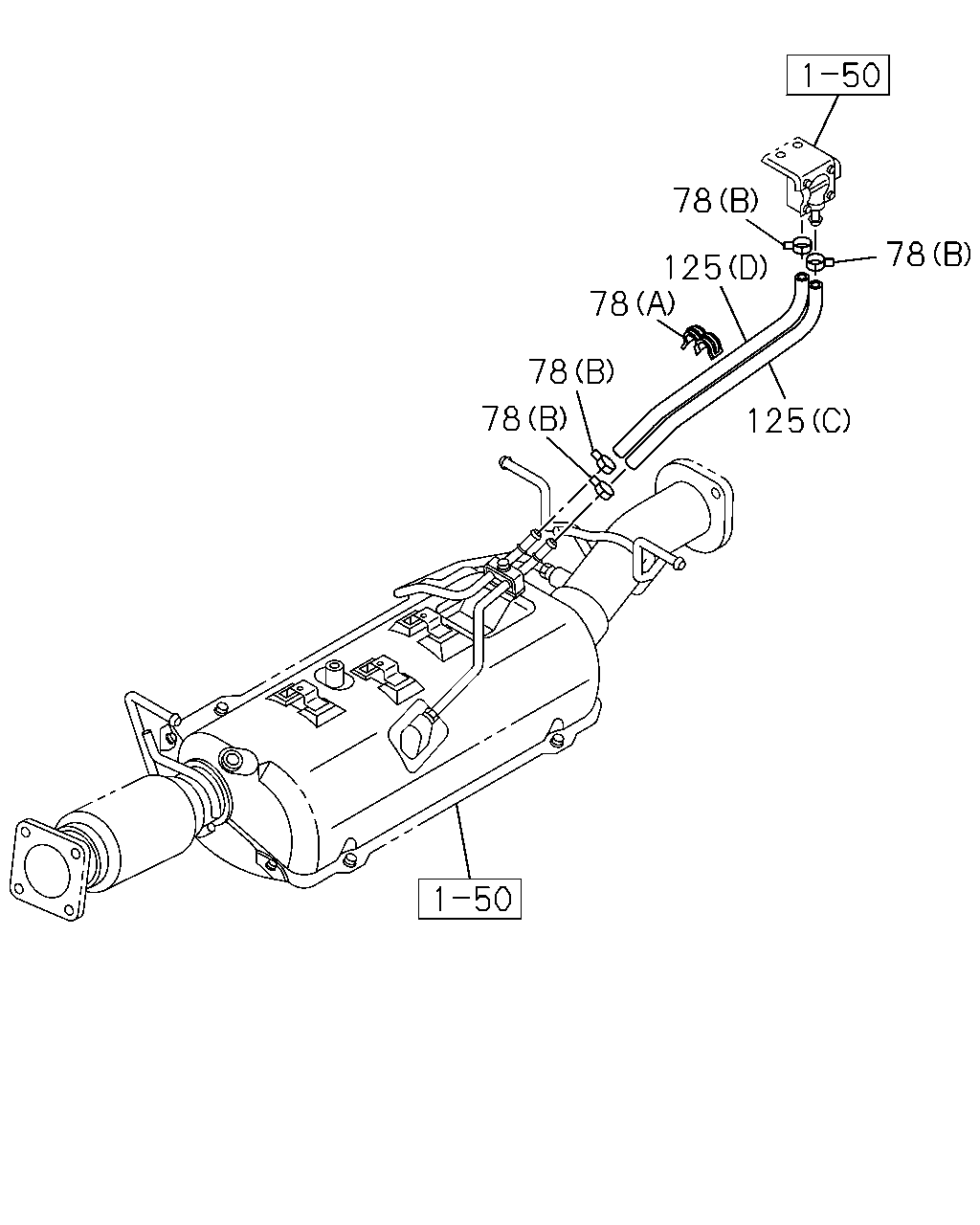

78 125 78 78 78 125 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1309-1310	●	●
78	03.636 CLIP; HOSE 03.162 (B) ID=13	8-97329-627-0	04	1	1311-	●	●	●
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1309-1310	●	●
78	03.636 CLIP; HOSE 03.162 (A)	8-97173-119-0	01	1	1311-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (C)	8-98236-427-1	01	1	1311-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCC ENG(RDU) (D)	8-98236-428-1	01	1	1311-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98123-965-0	01	1	1309-1408	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98123-965-0	01	1	1409-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98242-584-0	01	1	1309-1408	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98242-584-0	01	1	1409-	●	●	●
