Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#126674) — 142 parça

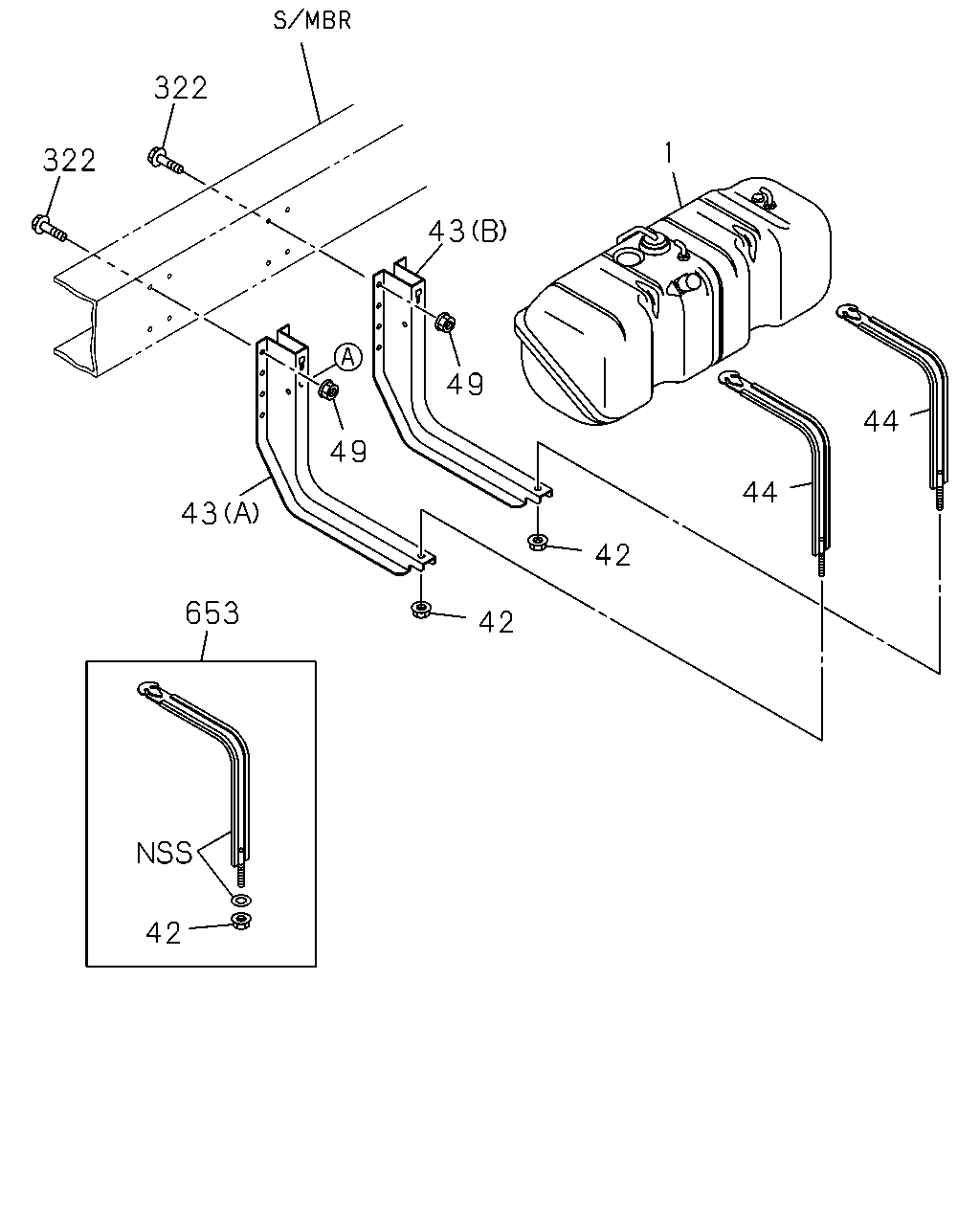

322 322 43 653 42 42 42 44 44 1 49 49 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 100L<N02> 1003X375X380 90L	8-98227-022-3	01	1	1309-	●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63L<6EF> 756X375X323 57L	8-98227-018-3	01	1	1309-1408	●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63L<6EF> 756X375X323 57L	8-98227-018-3	01	1	1409-	●		●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 75L<7GX> 756X375X323 70L	8-98227-020-3	01	1	1309-1408	●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 75L<7GX> 756X375X323 70L	8-98227-020-3	01	1	1409-	●	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 100L<N02> 1003X348X375 100L	8-98104-008-4	01	1	1311-	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> 756X375X323 57L	8-98147-352-4	01	1	1311-	●		●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 75L<7GX> 756X375X375 70L	8-98104-005-4	01	1	1311-	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1309-1310	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1311-	●	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) FUEL TANK 75L<7GX> (A)	8-97384-081-1	01	1	1311-	●	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02> (A)	8-97384-081-1	01	1	1311-	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> (B)	8-98148-223-0	01	1	1311-	●		●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (B)	8-97384-056-1	01	1	1309-1310	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-97384-056-1	01	1	1309-1310	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> (B)	8-97384-056-1	01	1	1311-1408	●	●	●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02> (B)	8-97384-056-1	01	1	1311-1408	●	●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (B)	8-97384-056-1	01	1	1409-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-97384-056-1	01	1	1409-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> (B)	8-97384-056-1	01	1	1409-			●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (A)	8-98223-601-0	01	1	1309-1408	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98223-601-0	01	1	1309-1408	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> (A)	8-98223-601-0	01	1	1409-	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB) FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98223-601-0	01	1	1409-	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB) FUEL TANK 75L<7GX> (A)	8-98223-601-0	01	1	1409-			●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> (A)	8-98223-602-0	01	1	1309-1408	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB) FUEL TANK 63L<6EF> (A)	8-98223-602-0	01	1	1409-	●		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98061-738-1	01	1	1309-1310	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98061-738-1	01	1	1311-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98061-739-1	01	1	1309-1310	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98061-739-1	01	1	1311-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> (B)	8-98148-222-0	01	1	1309-1310	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> (B)	8-98148-222-0	01	1	1311-	●		●
44	03.023 BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-98245-202-0	02	1	1309-1310	●
44	03.023 BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-98245-202-0	02	1	1311-	●		●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE	0-91180-210-0	04	1	1406-	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE	0-91180-210-0	06	1	1311-1402	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 04.085 M10 FLANGE	0-91180-210-0	06	1	1403-1405	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	06	1	1406-	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE	0-91180-210-0	06	1	1406-	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) FUEL TANK 75L<7GX> SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE	0-91180-210-0	06	1	1406-		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1309-1310	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1311-1402	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1311-1402	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1311-1402	●		●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1403-1405	●	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1403-1405	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1403-1405	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1406-	●	●
49	03.023 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1406-	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1406-	●	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 04.085 M10 FLANGE	0-91180-210-0	08	1	1406-			●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1311-1402	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 63L<6EF> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1311-1402	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1403-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1403-	●
322	03.895 BOLT; BRKT FIX IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1309-1310	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1311-1402	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1311-1402	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1311-1402			●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1311-1402			●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1403-1408	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1403-1408	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1403-1408			●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1409-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1409-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1409-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> IDENTIFICATION LABEL FOR KD<6UT> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1409-			●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1409-			●
322	03.895 BOLT; BRKT FIX EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1309-1310	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1311-1408	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02>,FUEL TANK 63L<6EF>, FUEL TANK 75L<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1311-1408	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1409-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1409-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X40 FLANGE	8-98124-451-2	08	1	1409-			●
653	03.022 BAND KIT; FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1309-1310	●	●
653	03.022 BAND KIT; FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1311-	●	●
653	03.022 BAND KIT; FUEL TANK FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1311-			●

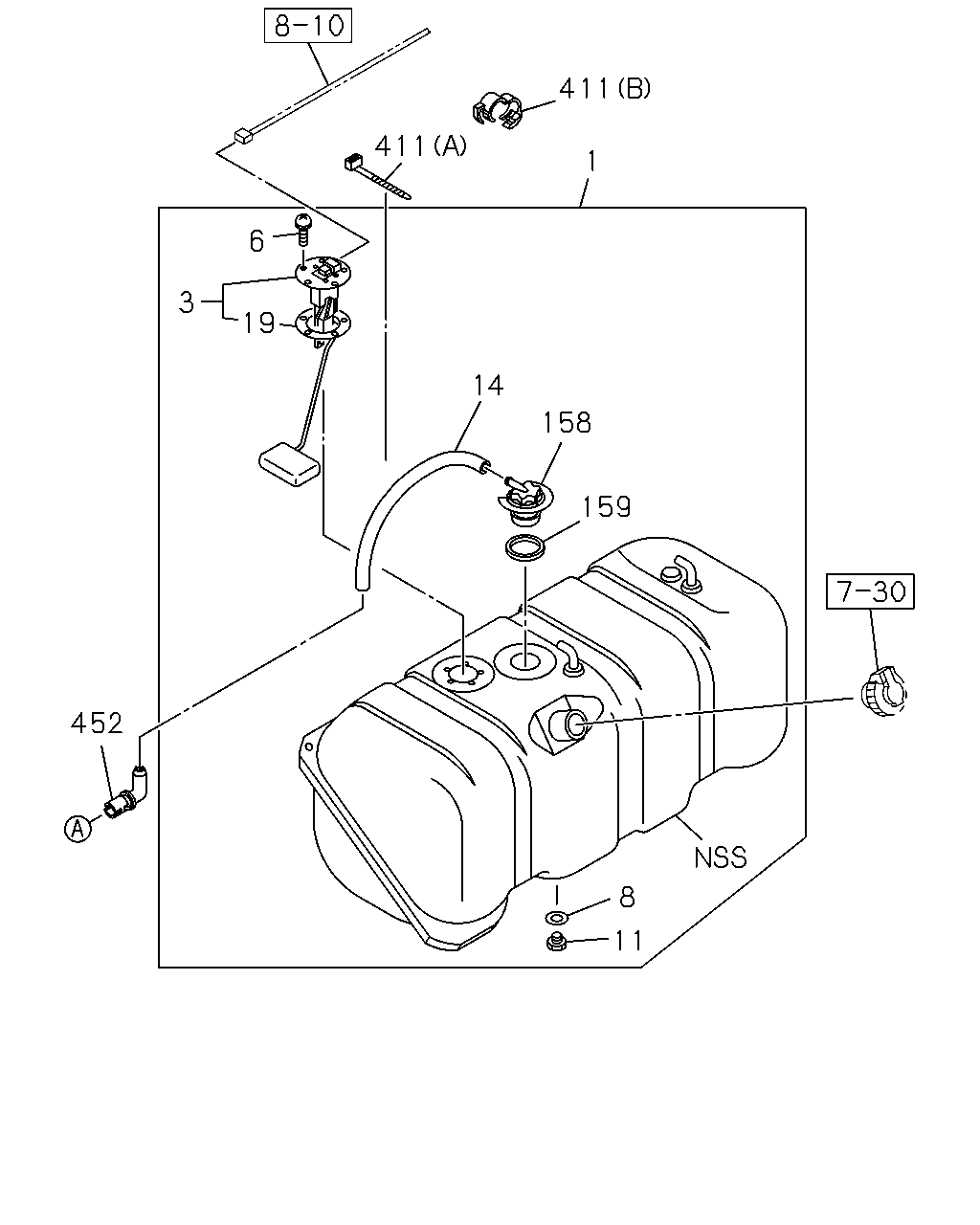

411 411 1 6 3 19 452 14 158 159 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 100L<N02> 1003X375X380 90L	8-98227-022-3	01	1	1309-	●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63L<6EF> 756X375X323 57L	8-98227-018-3	01	1	1309-1408	●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 63L<6EF> 756X375X323 57L	8-98227-018-3	01	1	1409-	●		●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 75L<7GX> 756X375X323 70L	8-98227-020-3	01	1	1309-1408	●	●
1	03.001 TANK; FUEL 4JJ1-TCS ENG(LFB) FUEL TANK 75L<7GX> 756X375X323 70L	8-98227-020-3	01	1	1409-	●	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 100L<N02> 1003X348X375 100L	8-98104-008-4	01	1	1311-	●	●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 63L<6EF> 756X375X323 57L	8-98147-352-4	01	1	1311-	●		●
1	03.001 TANK; FUEL 4JJ1-TCC ENG(RDU) FUEL TANK 75L<7GX> 756X375X375 70L	8-98104-005-4	01	1	1311-	●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100L<N02>	8-98113-178-0	01	1	1309-	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98147-557-0	01	1	1309-1310	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98147-557-0	01	1	1311-	●		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75L<7GX>	8-98113-177-0	01	1	1309-1310	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75L<7GX>	8-98113-177-0	01	1	1311-	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1309-1310	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1311-	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1309-1310	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1311-	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100L<N02> L=420	8-98157-809-0	01	1	1309-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1309-1310	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1309-1310		●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1311-	●	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1309-1310	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1311-	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1309-1310	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1311-	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1309-1310	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1311-	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) (B) ID=20	8-94241-972-0	01	1	1311-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	02	1	1311-1403	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	02	1	1311-1403	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	02	1	1404-1408	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	02	1	1404-1408	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	02	1	1404-1408			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	02	1	1409-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	02	1	1409-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	02	1	1409-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) L=140	5-09707-031-1	01	1	1309-1310	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	01	1	1311-1408	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 03.162 (A) L=140	5-09707-031-1	01	1	1311-1408		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	01	1	1409-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 03.162 (A) L=140	5-09707-031-1	01	1	1409-			●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1309-1310	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1311-	●	●	●

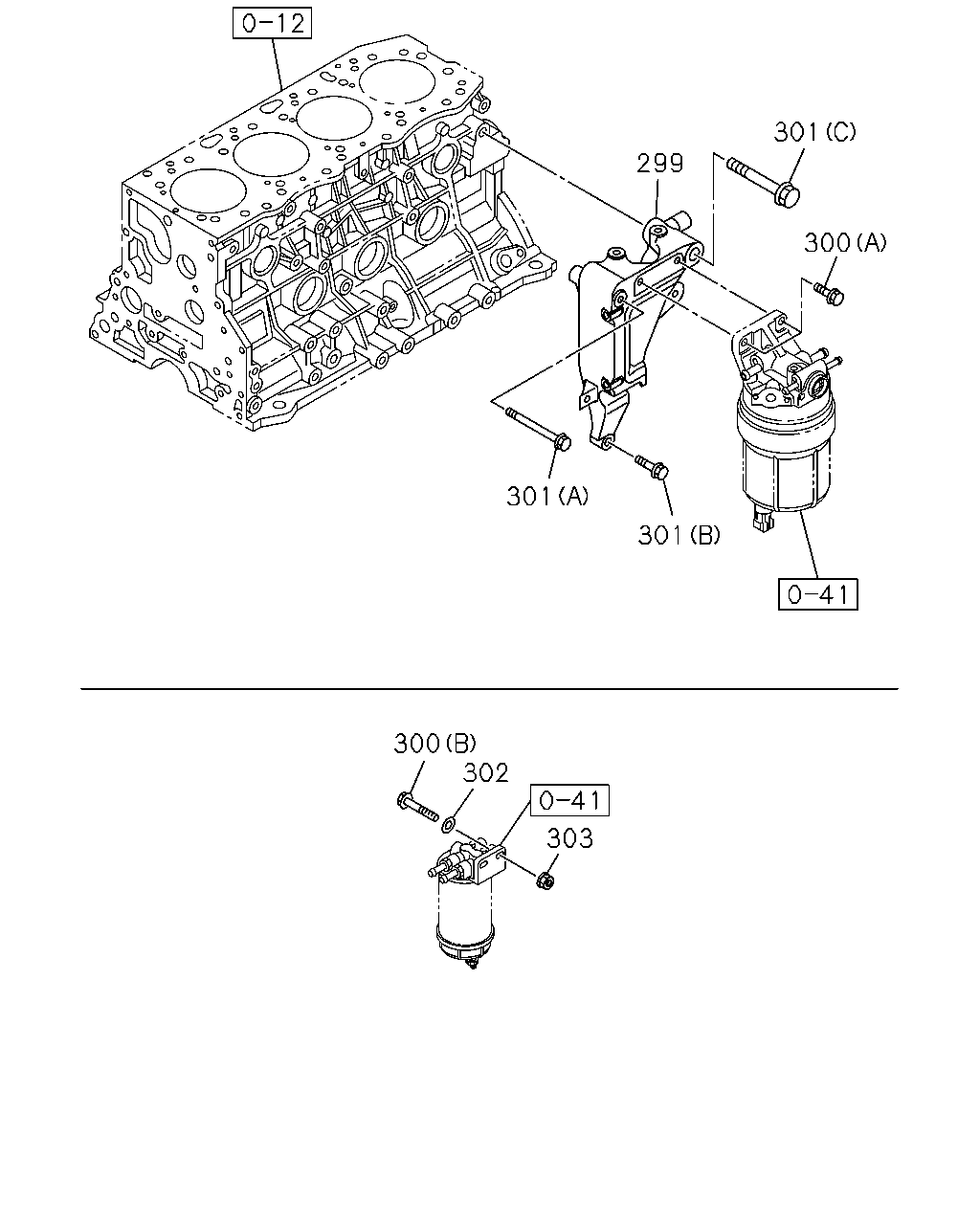

299 301 300 301 301 300 302 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
299	03.162 BRACKET; FUEL FILTER	8-98089-227-1	01	1	1309-1310	●	●
299	03.162 BRACKET; FUEL FILTER	8-98089-227-1	01	1	1311-	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1311-1401	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1402-1403	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1404-	●	●	●
300	03.162 BOLT; BRKT TO BODY 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
300	03.162 BOLT; BRKT TO BODY 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.100 (A) M8X90 FLANGE	0-28050-890-0	01	1	1309-1310	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.100 (A) M8X90 FLANGE	0-28050-890-0	01	1	1311-	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 04.510 (B) M10X35 FLANGE	0-28051-035-0	01	1	1309-1310	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 04.510 (B) M10X35 FLANGE	0-28051-035-0	01	1	1311-	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (C) M14X90 FLANGE	0-28851-490-0	01	1	1309-1310	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (C) M14X90 FLANGE	0-28851-490-0	01	1	1311-	●	●	●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1311-1401	●	●	●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1402-1403	●	●	●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1404-	●	●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	02	1	1311-1401	●	●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1402-1403	●	●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1404-	●	●	●
