Sayfa 0-36 - Isuzu EPC

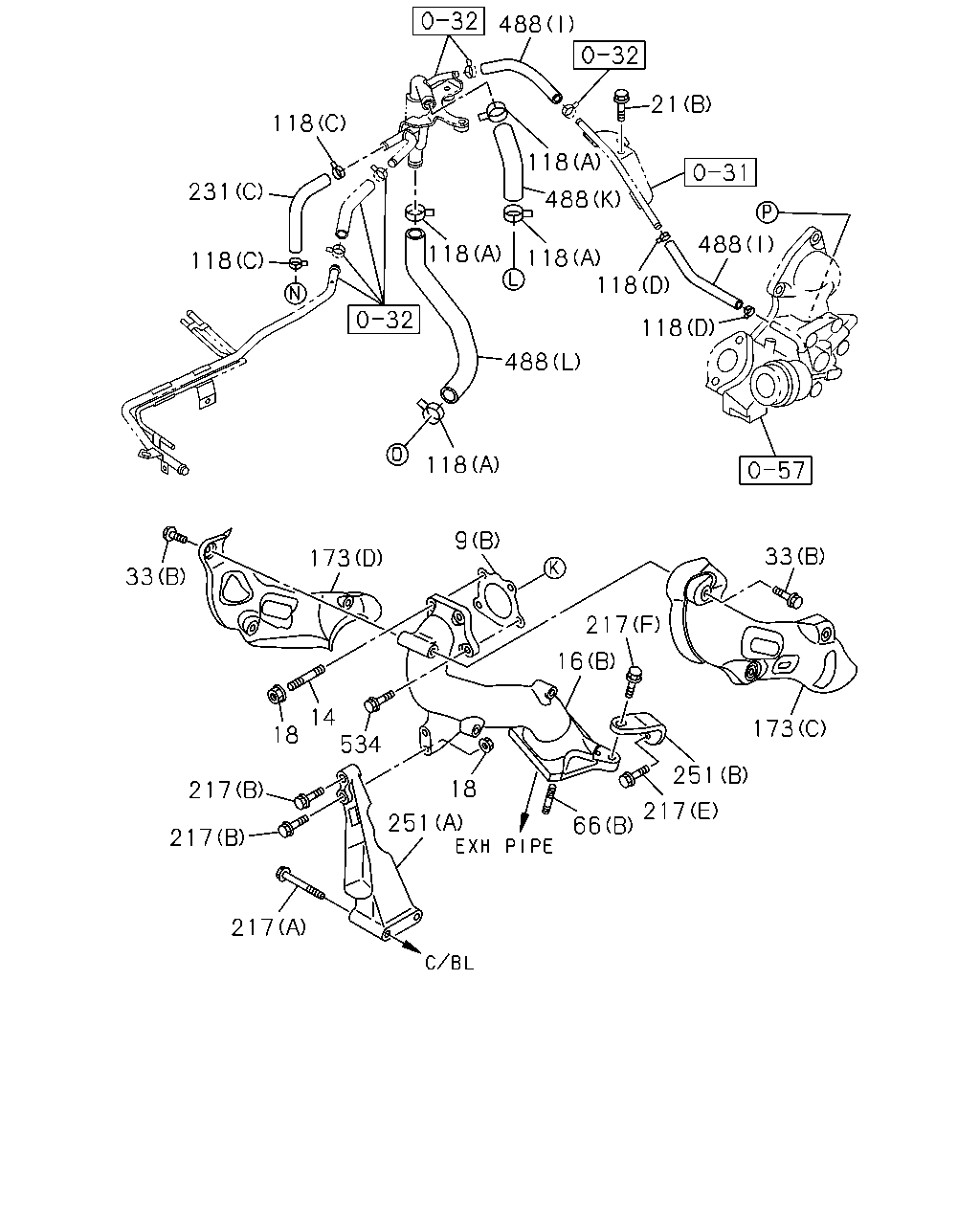

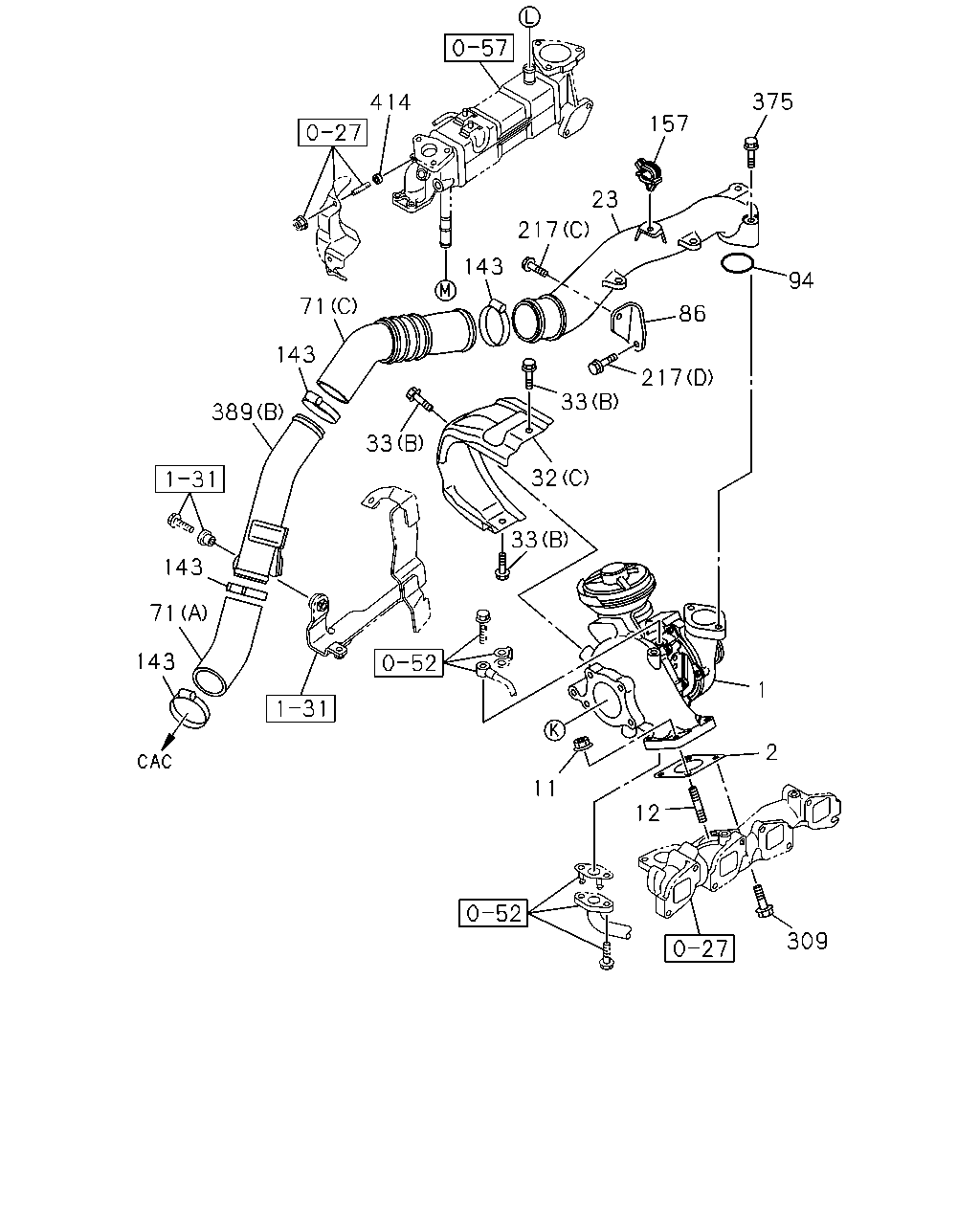

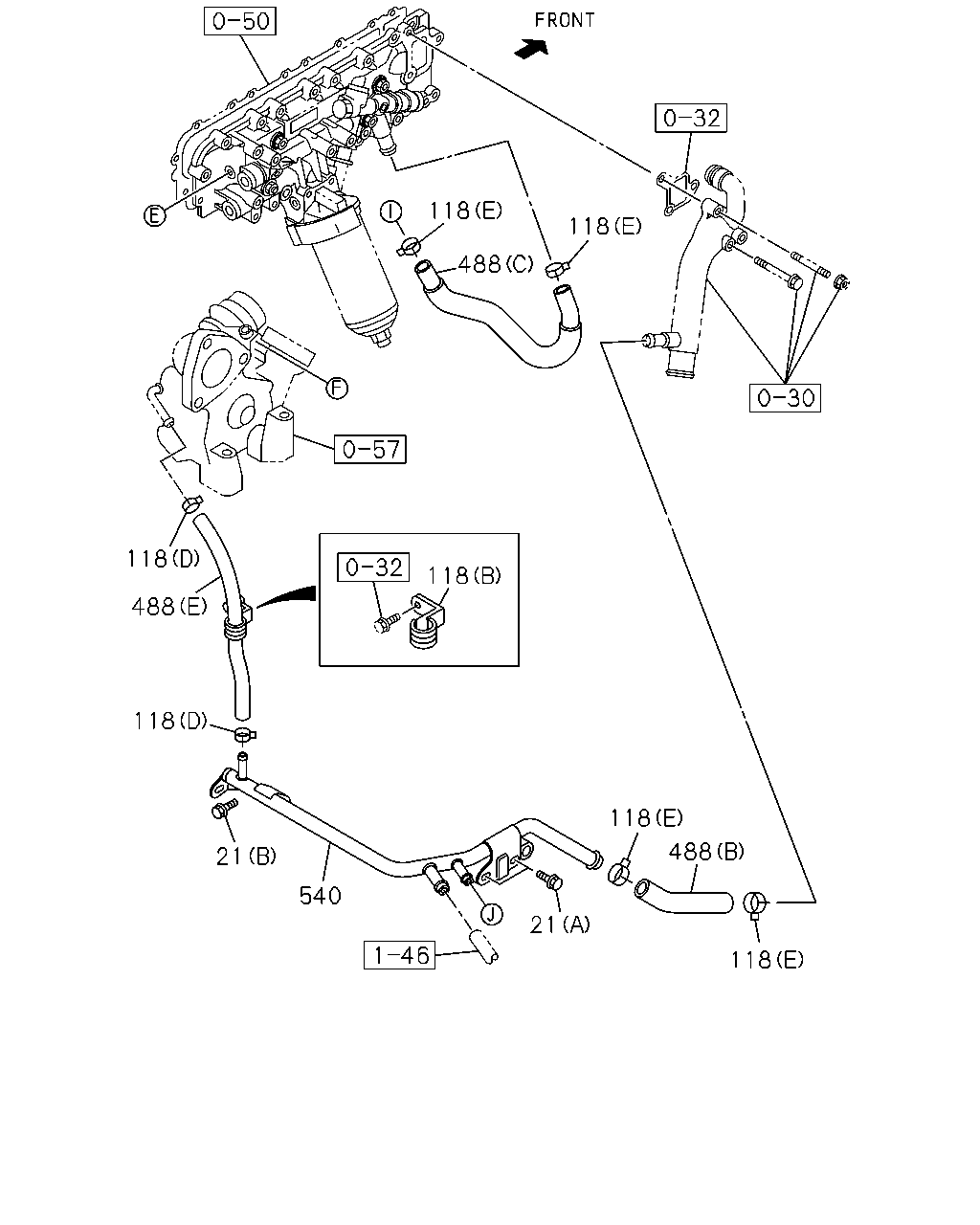

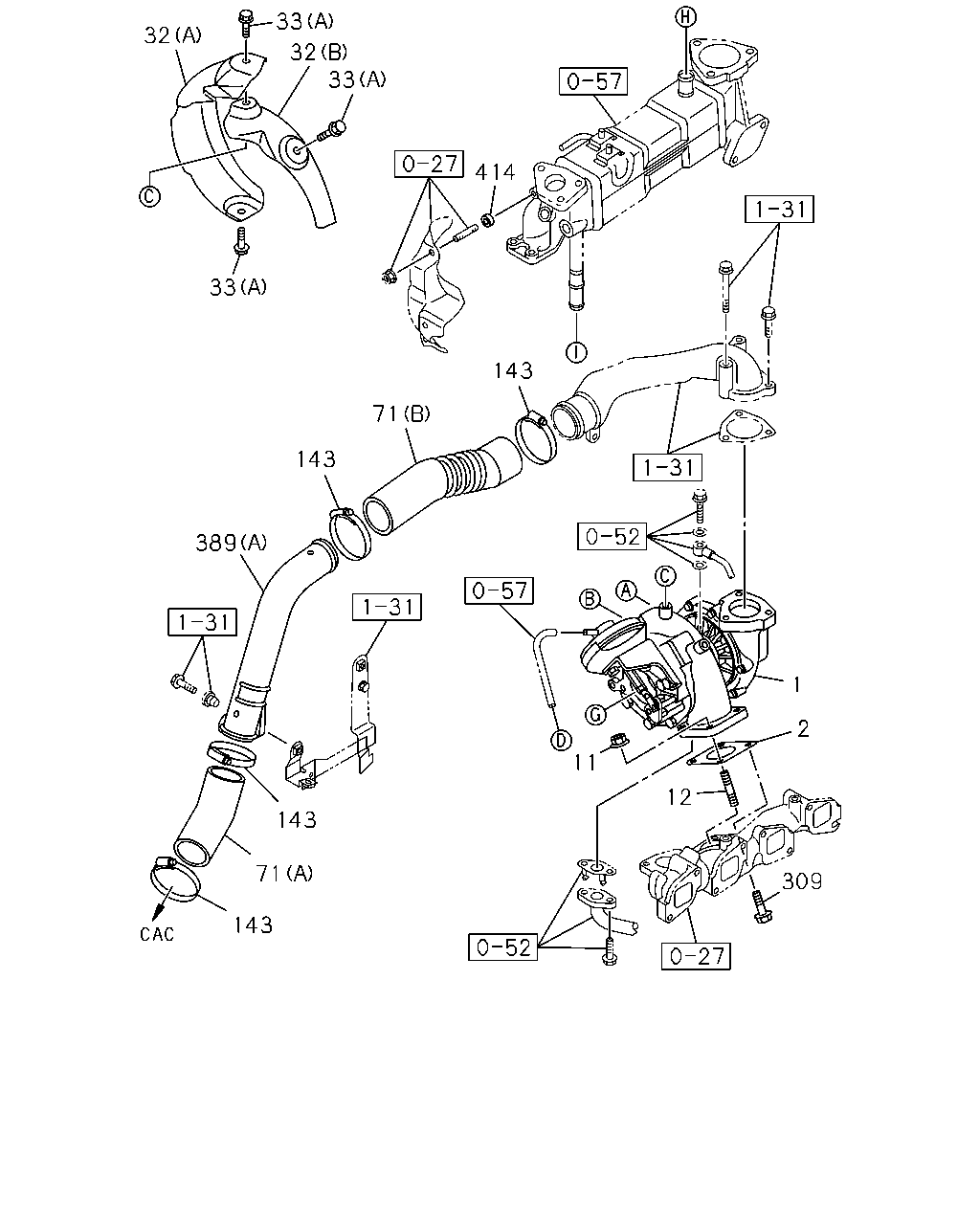

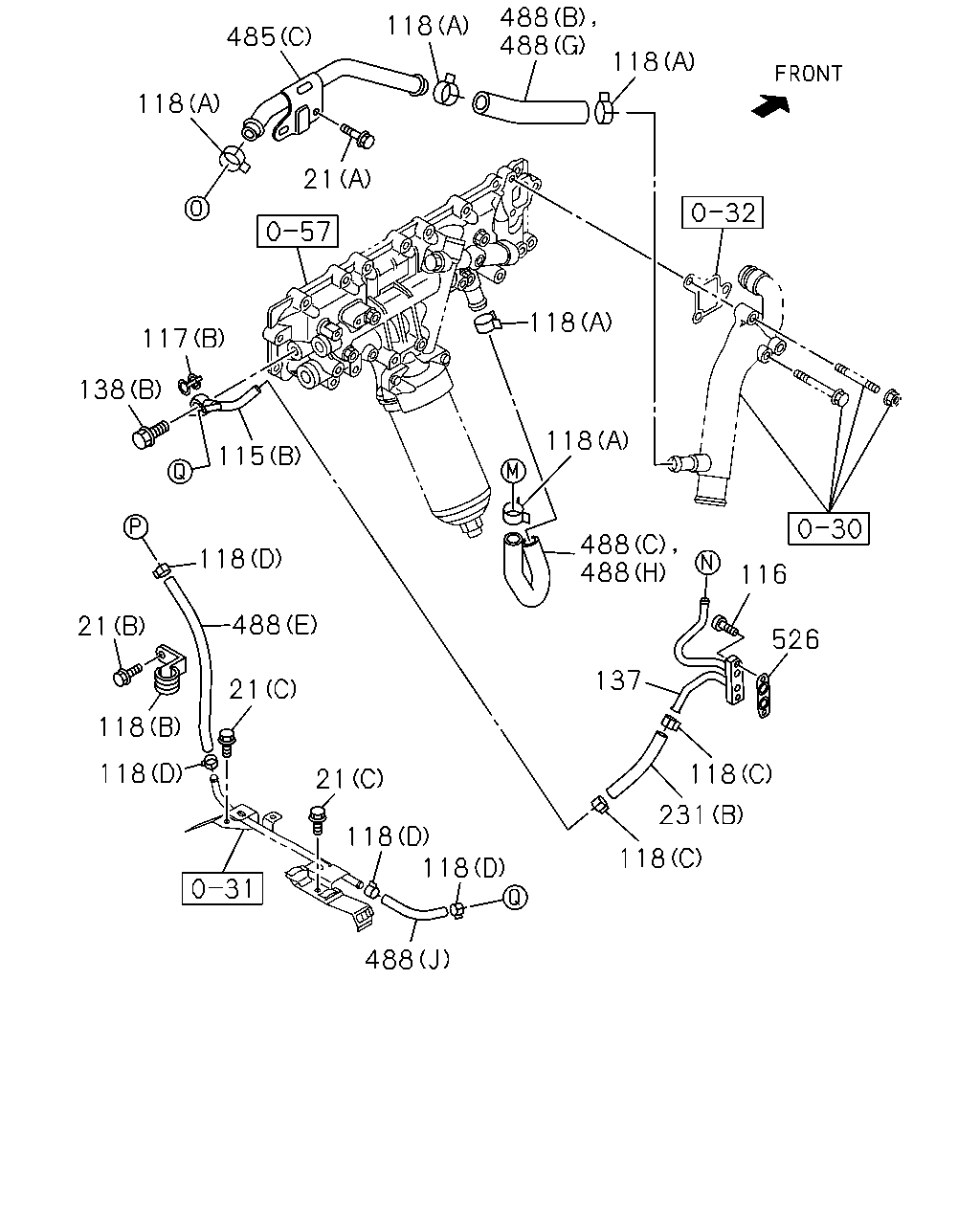

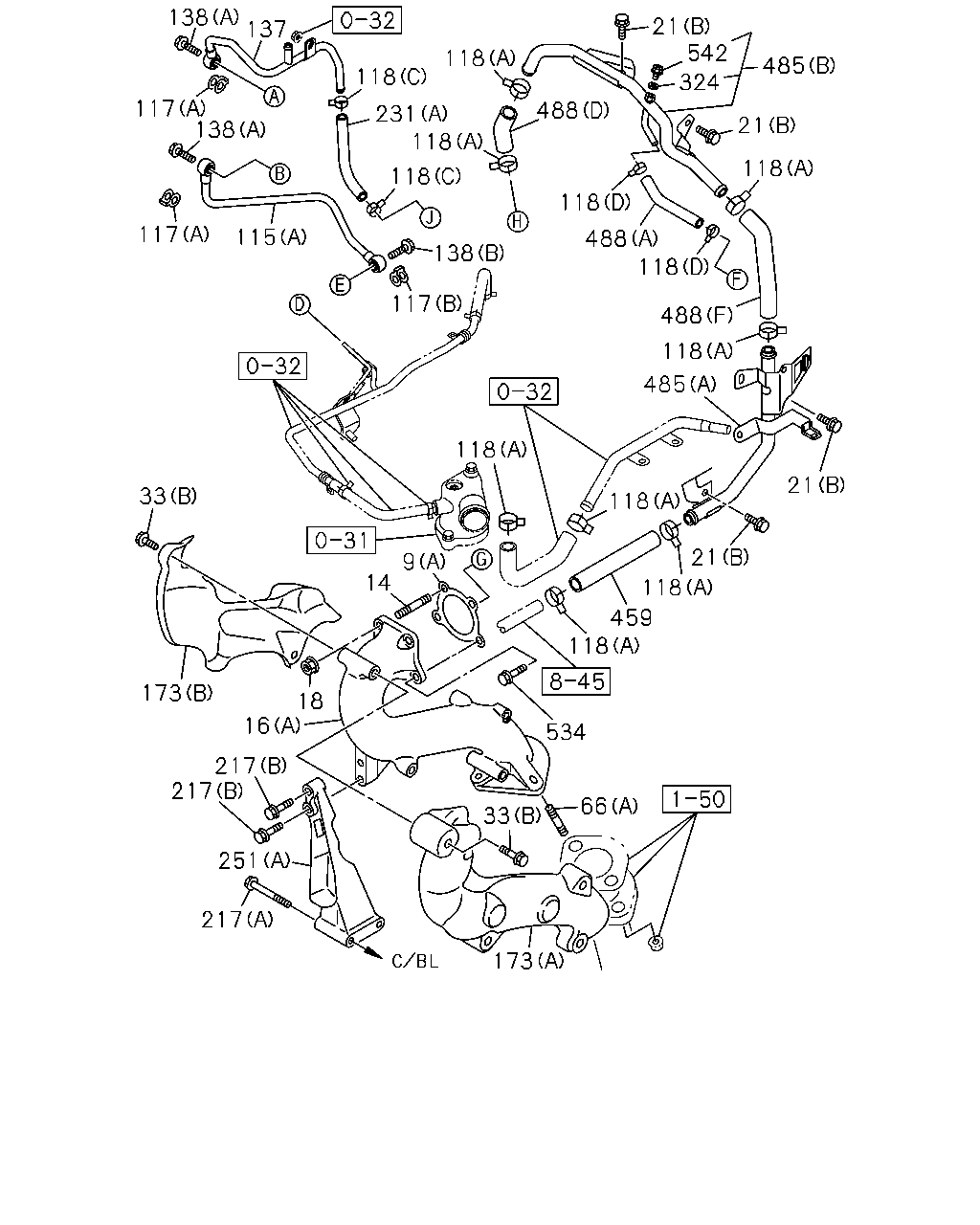

0-36 — TURBOCHARGER SYSTEM (#126656) — 314 parça

32 33 32 33 33 71 143 143 414 389 143 71 143 12 11 1 2 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1311-	●
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1309-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1309-1310		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1311-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1309-1310		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1311-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1309-1310		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98179-608-0	01	1	1311-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1309-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1309-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1311-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1309-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1309-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98111-372-1	01	1	1311-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1309-1310		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1311-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-1	01	1	1309-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1309-1310		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1311-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1309-1310		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1311-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1309-1310		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1311-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (B)	8-98111-209-0	01	1	1311-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (A)	8-98038-996-1	01	1	1309-		●
414	03.602 SPACER	8-98143-884-0	01	1	1309-1310		●
414	03.602 SPACER	8-98143-884-0	01	1	1311-	●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1311-	●

118 118 488 118 488 118 21 540 118 21 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1311-		●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	05	1	1309-1310		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1309-1310		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1311-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1311-	●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1309-1310		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1311-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1309-1310		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1311-1502	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1309-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1309-1502		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-		●
488	03.163 HOSE; RUBBER (I)	0-03607-140-0	02	1	1311-	●
488	03.163 HOSE; RUBBER (G) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (H)	8-98075-184-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (J)	8-98196-479-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (K)	8-98239-420-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (L)	8-98239-697-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1309-1310		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1311-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1309-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1503-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1503-	●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1311-	●
540	03.342 PIPE; WATER	8-98221-556-0	01	1	1309-		●

117 138 137 138 117 115 33 173 16 18 217 217 217 251 33 173 66 534 118 459 118 21 21 118 9 14 118 485 118 488 118 488 118 118 21 485 324 542 21 118 118 231 118 118 138 117 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98241-385-0	01	1	1311-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	1309-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1309-1310		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
16	03.609 ADAPTER; EXH PIPE (B)	8-98224-792-1	01	1	1311-	●
16	03.609 ADAPTER; EXH PIPE (A)	8-98147-897-1	01	1	1309-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1309-1310		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1311-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1311-		●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	05	1	1309-1310		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1309-1310		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1311-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1309-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1309-		●
66	03.342 STUD; EXH PIPE 05.387 (B) M10X31 L=43	8-98022-413-0	04	1	1311-	●
66	03.342 STUD; EXH PIPE (A) M10X25 L=45	0-43211-025-0	03	1	1309-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98223-106-0	01	1	1311-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98083-025-1	01	1	1309-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1309-1310		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1311-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1311-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1311-	●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1309-1310		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1311-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1309-1310		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1311-1502	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1309-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1309-1502		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1311-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1309-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1309-1310		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1311-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1309-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1311-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1311-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1309-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1309-		●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1309-1310		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1311-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1309-1310		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1311-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1311-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1311-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1309-		●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1311-	●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1309-1310		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1311-	●	●
324	00.386 GASKET; PLUG	5-09503-132-1	01	1	1309-		●
459	03.341 HOSE; WATER 01.540 L=140 SERVICED BY L=3000	0-03566-300-0	01	1	1309-		●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	1311-	●
485	01.097 PIPE; WATER EGR (A)	8-98209-500-2	01	1	1309-1503		●
485	01.097 PIPE; WATER EGR (A)	8-98295-887-0	01	1	1504-		●
485	01.097 PIPE; WATER EGR (B)	8-98245-594-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (I)	0-03607-140-0	02	1	1311-	●
488	03.163 HOSE; RUBBER (G) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (H)	8-98075-184-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (J)	8-98196-479-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (K)	8-98239-420-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (L)	8-98239-697-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1309-1310		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1311-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1309-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1503-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1503-	●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1311-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1309-1310		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1311-	●	●
542	01.252 PLUG; AIR BLEED 10.701 M6X8	8-94155-893-0	01	1	1309-		●

414 71 143 389 143 71 143 11 12 309 2 1 33 32 33 33 217 86 94 375 157 23 217 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1311-	●
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1309-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1309-1310		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1311-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1309-1310		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1311-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1309-1310		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98237-774-1	01	1	1311-1506	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98308-040-0	01	1	1507-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98179-608-0	01	1	1311-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1309-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1309-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1311-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1309-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1309-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98111-372-1	01	1	1311-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1309-1310		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1311-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-1	01	1	1309-		●
86	03.417 BRACKET; INL PIPE	8-98173-247-0	01	1	1311-	●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1311-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1309-1310		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1311-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1309-1310		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1311-	●	●
157	03.417 CLIP; HOSE,INL ID=8	8-98136-175-0	01	1	1311-1506	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1309-1310		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1311-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1309-1310		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1311-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1309-1310		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1311-	●	●
375	03.342 BOLT; FLANGE 00.386 M8X50 FLANGE	0-28050-850-0	02	1	1311-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (B)	8-98111-209-0	01	1	1311-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (A)	8-98038-996-1	01	1	1309-		●
414	03.602 SPACER	8-98143-884-0	01	1	1309-1310		●
414	03.602 SPACER	8-98143-884-0	01	1	1311-	●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1311-	●

231 118 118 488 21 118 488 118 118 488 118 173 33 18 14 534 217 217 217 9 251 18 16 217 66 217 251 173 33 118 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98241-385-0	01	1	1311-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	1309-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1309-1310		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1311-	●	●
16	03.609 ADAPTER; EXH PIPE (B)	8-98224-792-1	01	1	1311-	●
16	03.609 ADAPTER; EXH PIPE (A)	8-98147-897-1	01	1	1309-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1309-1310		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1311-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1311-		●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	05	1	1309-1310		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1309-1310		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1311-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1309-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1309-		●
66	03.342 STUD; EXH PIPE 05.387 (B) M10X31 L=43	8-98022-413-0	04	1	1311-	●
66	03.342 STUD; EXH PIPE (A) M10X25 L=45	0-43211-025-0	03	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1311-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1311-	●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1309-1310		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1311-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1309-1310		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1311-1502	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1309-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1309-1502		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1311-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1311-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1309-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1309-		●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1311-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1309-1310		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1311-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1309-1310		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1311-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1311-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1311-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1309-		●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1311-	●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1309-1310		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1311-	●	●
488	03.163 HOSE; RUBBER (I)	0-03607-140-0	02	1	1311-	●
488	03.163 HOSE; RUBBER (G) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (H)	8-98075-184-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (J)	8-98196-479-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (K)	8-98239-420-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (L)	8-98239-697-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1309-1310		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1311-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1309-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1503-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1503-	●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1311-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1309-1310		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1311-	●	●

118 488 488 118 485 118 21 117 138 115 118 21 488 21 118 118 21 118 118 488 118 231 118 137 527 116 488 488 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1311-		●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	05	1	1309-1310		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1309-1310		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98223-106-0	01	1	1311-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98083-025-1	01	1	1309-		●
116	03.342 BOLT; WATER PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1311-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1309-1310		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1311-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1311-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1311-	●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1309-1310		●
118	03.342 CLIP; WATER HOSE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1311-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1309-1310		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	08	1	1311-1502	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	02	1	1309-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1309-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1309-1502		●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	04	1	1503-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1311-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1309-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1309-1310		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1311-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1309-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B) L=100	0-03609-100-0	01	1	1311-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1311-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1309-		●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	1311-	●
485	01.097 PIPE; WATER EGR (A)	8-98209-500-2	01	1	1309-1503		●
485	01.097 PIPE; WATER EGR (A)	8-98295-887-0	01	1	1504-		●
485	01.097 PIPE; WATER EGR (B)	8-98245-594-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (I)	0-03607-140-0	02	1	1311-	●
488	03.163 HOSE; RUBBER (G) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (H)	8-98075-184-0	01	1	1311-1502	●
488	03.163 HOSE; RUBBER (J)	8-98196-479-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (K)	8-98239-420-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (L)	8-98239-697-0	01	1	1311-	●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1309-1310		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1311-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1309-		●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1309-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1503-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1309-1502		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1503-	●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1311-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
