2-08 — CLUTCH MASTER CYLINDER (#12665) — 20 parça

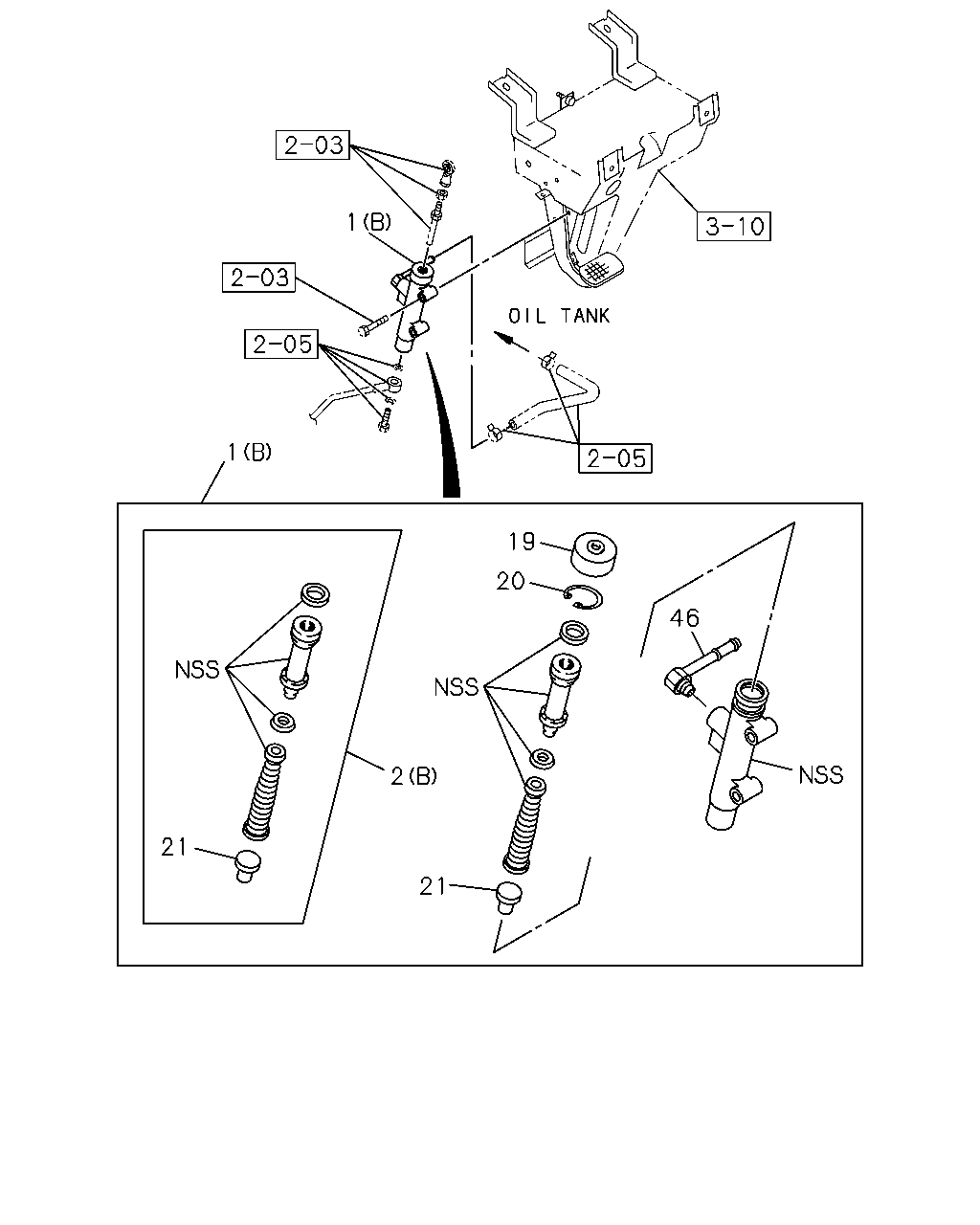

1 1 19 20 46 2 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A> (A)	1-47500-232-2	01	1	0105-
1	CYLINDER ASM; CLUTCH MASTER ZF M/T<X9E> (B)	1-47500-242-2	01	1	0105-
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A> (A)	1-85576-114-0	01	1	0105-
2	REPAIR KIT; CLU M/CYL ZF M/T<X9E> (B)	1-47550-046-0	01	1	0105-
19	BOOT; CLU M/CYL ISUZU M/T<X9A>	9-47545-032-0	01	1	0105-
19	BOOT; CLU M/CYL ZF M/T<X9E>	1-47545-011-0	01	1	0105-
20	RING; SNAP,BODY ISUZU M/T<X9A> OD=26.9	9-09180-125-0	01	1	0105-
20	RING; SNAP,BODY ZF M/T<X9E>	1-47515-009-0	01	1	0105-
21	VALVE; CHECK	1-47565-004-0	01	1	0105-
46	CONNECTOR; PIPE	1-47517-004-0	01	1	0105-

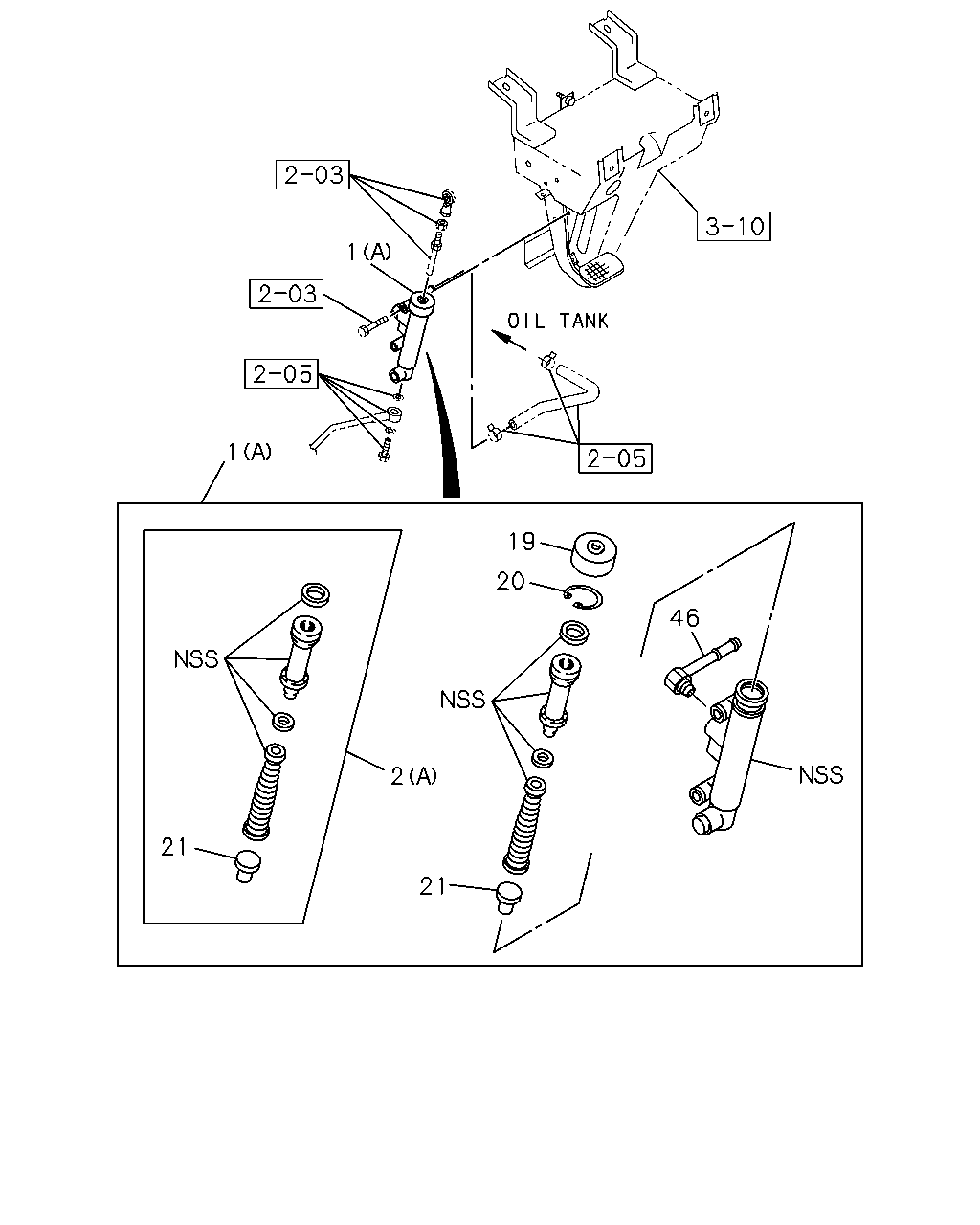

1 1 19 20 46 2 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A> (A)	1-47500-232-2	01	1	0105-
1	CYLINDER ASM; CLUTCH MASTER ZF M/T<X9E> (B)	1-47500-242-2	01	1	0105-
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A> (A)	1-85576-114-0	01	1	0105-
2	REPAIR KIT; CLU M/CYL ZF M/T<X9E> (B)	1-47550-046-0	01	1	0105-
19	BOOT; CLU M/CYL ISUZU M/T<X9A>	9-47545-032-0	01	1	0105-
19	BOOT; CLU M/CYL ZF M/T<X9E>	1-47545-011-0	01	1	0105-
20	RING; SNAP,BODY ISUZU M/T<X9A> OD=26.9	9-09180-125-0	01	1	0105-
20	RING; SNAP,BODY ZF M/T<X9E>	1-47515-009-0	01	1	0105-
21	VALVE; CHECK	1-47565-004-0	01	1	0105-
46	CONNECTOR; PIPE	1-47517-004-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
