0-11 — CYLINDER HEAD (#126643) — 66 parça

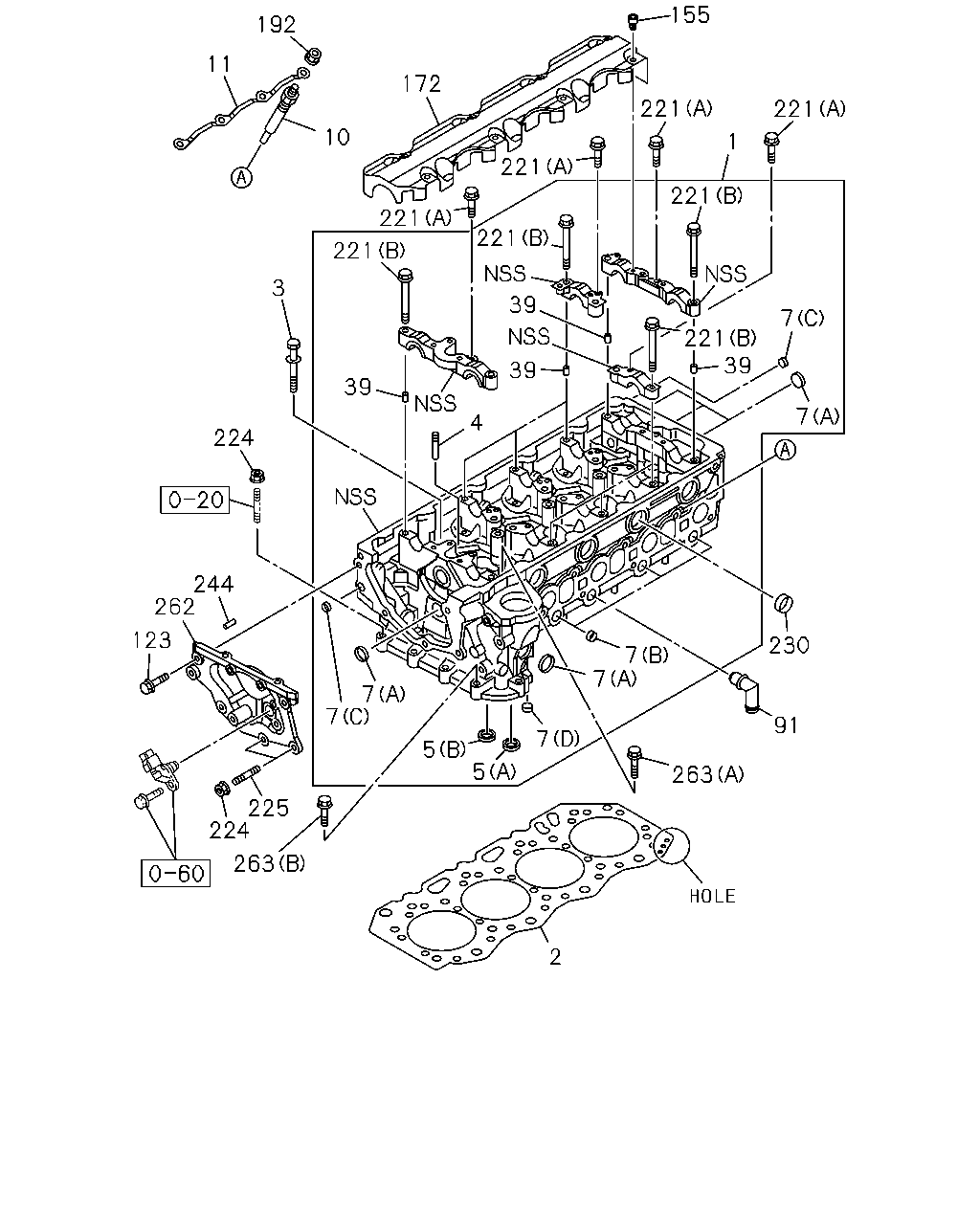

çizim 374227
11 192 172 10 221 221 221 221 155 221 1 221 221 39 39 4 39 224 3 244 262 123 225 224 263 7 7 5 5 2 7 7 7 263 91 230 7 7 39 221
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-98238-315-0 01 1 1309-1310 ●
1 00.269 HEAD ASM; CYL 8-98238-315-0 01 1 1311-1409 ● ●
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1410- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.11 1-HOLE 		8-98234-668-0 01 1 1309-1310 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.11 1-HOLE 		8-98234-668-0 01 1 1311-1401 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.11 1-HOLE 		8-98228-333-0 01 1 1402-1406 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.14 1-HOLE 		8-98261-311-0 01 1 1407- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.16 2-HOLE 		8-98234-669-0 01 1 1309-1310 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.16 2-HOLE 		8-98234-669-0 01 1 1311-1401 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.16 2-HOLE 		8-98228-334-0 01 1 1402-1406 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.19 2-HOLE 		8-98261-312-0 01 1 1407- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.21 3-HOLE 		8-98234-670-0 01 1 1309-1310 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.21 3-HOLE 		8-98234-670-0 01 1 1311-1401 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.21 3-HOLE 		8-98228-335-0 01 1 1402-1406 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.24 3-HOLE 		8-98261-313-0 01 1 1407- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER 		8-98201-019-0 18 1 1309-1310 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER 		8-98201-019-0 18 1 1311- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1309-1310 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1311- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1309-1310 ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1311- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1309-1310 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1311- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 07 1 1309-1310 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 07 1 1311- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1309-1310 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 02 1 1311- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=8 		8-97233-429-0 01 1 1309-1310 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=8 		8-97233-429-0 01 1 1311- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=24 		8-97333-120-0 05 1 1309-1310 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=24 		8-97333-120-0 05 1 1311- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1311- ●
10 02.270 PLUG; GLOW
BOSCH 		8-98238-424-0 04 1 1309- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1309-1310 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1311- ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1309-1310 ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1311- ● ●
91 08.846 PIPE; HTR 8-98209-467-2 01 1 1309-1310 ●
91 08.846 PIPE; HTR 8-98209-467-2 01 1 1311- ● ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1309-1310 ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1311- ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1309-1310 ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1311- ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98212-020-0 01 1 1309-1310 ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98212-020-0 01 1 1311- ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1309-1310 ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1311- ● ●
221 00.413 BOLT; BRKT
01.531 (A) M6X30 FLANGE 		0-28050-630-0 08 1 1309-1310 ●
221 00.413 BOLT; BRKT
01.531 (A) M6X30 FLANGE 		0-28050-630-0 08 1 1311- ● ●
221 00.413 BOLT; BRKT
01.531 (B) M8X85 		1-09044-074-0 21 1 1309-1310 ●
221 00.413 BOLT; BRKT
01.531 (B) M8X85 		1-09044-074-0 21 1 1311- ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1309-1310 ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1311- ● ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1309-1310 ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1311- ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.306 OD=30 		1-09639-034-0 04 1 1309-1310 ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.306 OD=30 		1-09639-034-0 04 1 1311- ● ●
244 00.206 PIN; HEAD GASKET
08.939 OD=5 L=10 		9-08150-510-0 01 1 1309-1310 ●
244 00.206 PIN; HEAD GASKET
08.939 OD=5 L=10 		9-08150-510-0 01 1 1311- ● ●
262 00.206 COVER; CYL HEAD 8-98201-552-0 01 1 1309-1310 ●
262 00.206 COVER; CYL HEAD 8-98201-552-0 01 1 1311-1510 ● ●
262 00.206 COVER; CYL HEAD 8-98243-226-0 01 1 1511- ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1309-1310 ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1311- ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1309-1310 ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1311- ● ●
