8-60 — HEATER UNIT; FRONT (#126632) — 176 parça

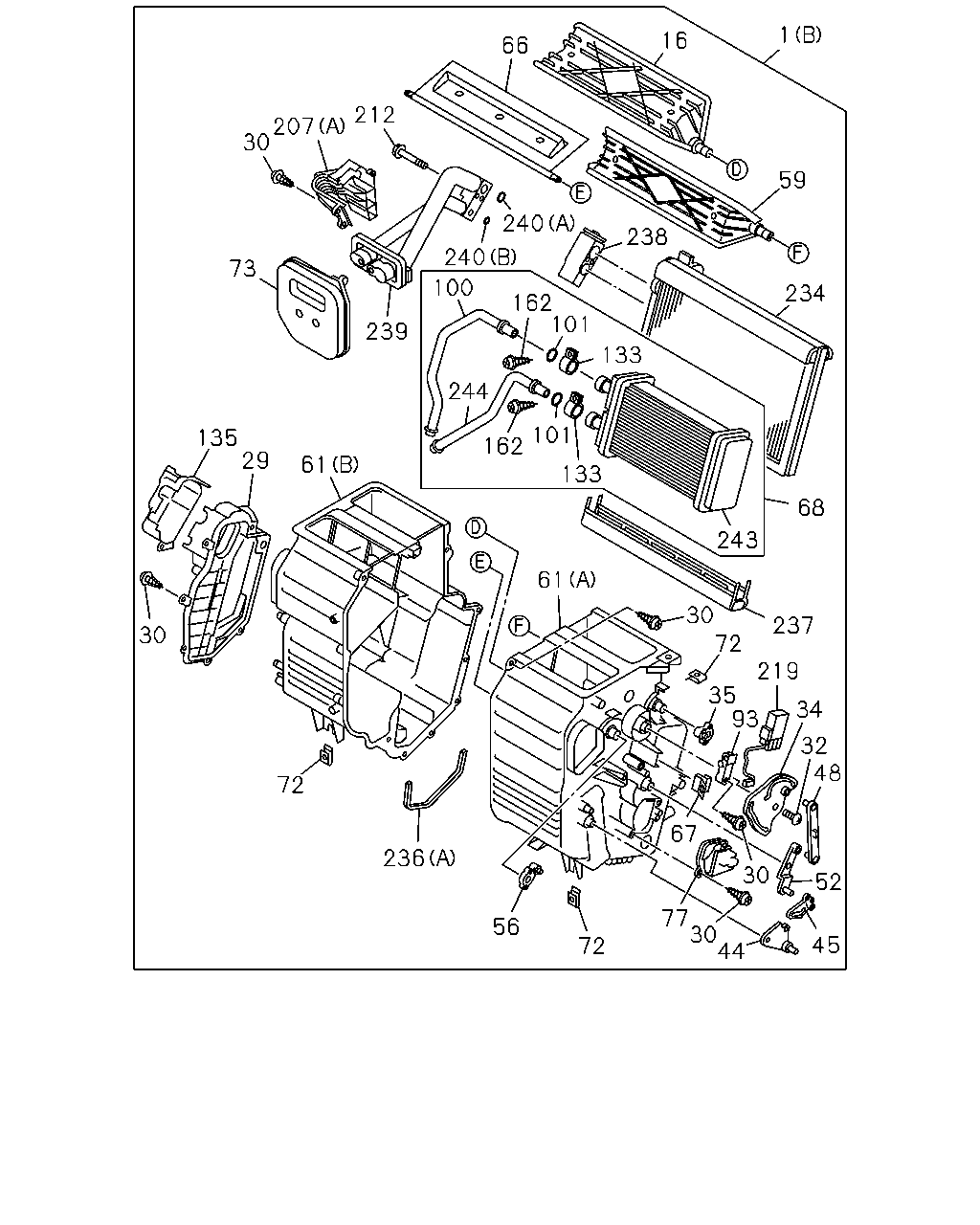

212 207 30 73 239 100 240 240 238 101 162 244 162 101 133 133 243 68 234 59 1 16 66 135 30 29 61 61 72 236 56 72 67 93 35 237 30 72 219 34 32 48 52 30 77 30 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1309-1310	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1311-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1309-1310	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1311-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1309-1310	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1311-	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1309-1310	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1311-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1309-1310	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1311-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1309-1310	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1311-	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1309-1310	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1311-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1309-1310	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1311-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1309-1310	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1311-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1309-1310	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1311-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1309-1310	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1311-	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1309-1310	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1311-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1309-1310	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1311-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1309-1310	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1311-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1309-1310	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1311-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1309-1310	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1311-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1309-1310	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1311-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1309-1310	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1311-	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1309-1310	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1311-	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1309-1310	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1311-	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1309-1310	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1311-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1309-1310	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1311-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1309-1310	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1311-	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1309-1310	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1311-	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1309-1310	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1311-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1309-1310	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1311-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1309-1310	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1311-	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1309-1310	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1311-	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1309-1310	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1311-	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1309-1310	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1311-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1309-1310	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1311-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1309-1310	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1311-	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1309-1310	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1311-	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1309-1310	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1311-	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1309-1310	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1311-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1309-1310	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1311-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1309-1310	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1311-	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1309-1310	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1311-	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1309-1310	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1311-	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1309-1310	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1311-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1309-1310	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1311-	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1309-1310	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1311-	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1309-1310	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1311-	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1309-1310	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1311-	●	●	●

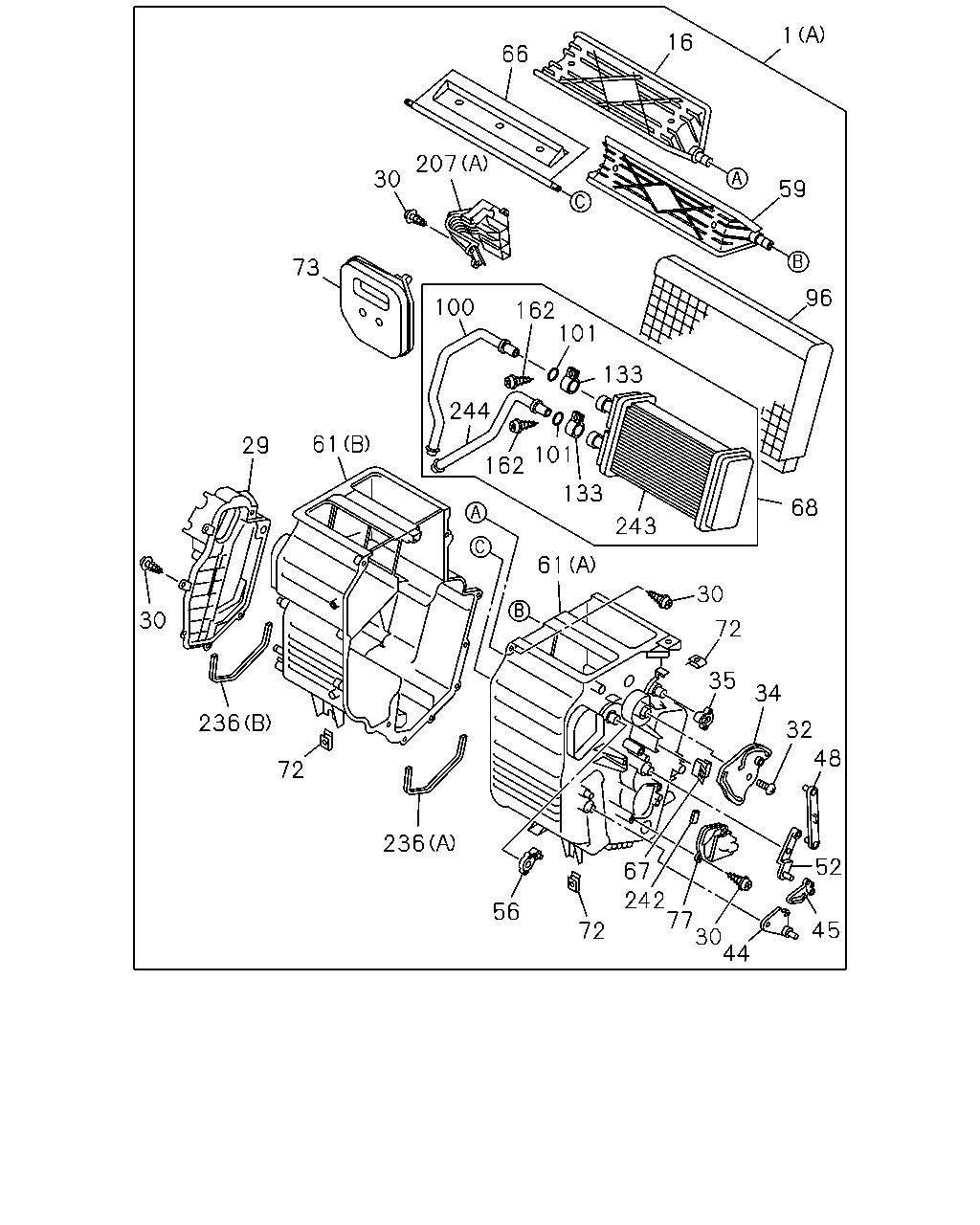

207 30 73 100 101 162 244 133 162 101 133 243 61 30 72 68 96 59 16 66 35 34 32 52 48 45 44 30 77 242 72 67 56 236 72 236 30 29 61 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1309-1310	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1311-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1309-1310	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1311-	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1309-1310	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1311-	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1309-1310	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1311-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1309-1310	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1311-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1309-1310	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1311-	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1309-1310	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1311-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1309-1310	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1311-	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1309-1310	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1311-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1309-1310	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1311-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1309-1310	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1311-	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1309-1310	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1311-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1309-1310	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1311-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1309-1310	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1311-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1309-1310	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1311-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1309-1310	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1311-	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1309-1310	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1311-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1309-1310	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1311-	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1309-1310	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1311-	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1309-1310	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1311-	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1309-1310	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1311-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1309-1310	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1311-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1309-1310	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1311-	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1309-1310	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1311-	●	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1309-1310	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1311-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1309-1310	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1311-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1309-1310	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1311-	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1309-1310	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1311-	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1309-1310	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1311-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1309-1310	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1311-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1309-1310	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1311-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1309-1310	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1311-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1309-1310	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1311-	●	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1309-1310	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1311-	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1309-1310	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1311-	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1309-1310	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1311-	●	●	●

236 235 235 234 207 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1309-1310	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1311-	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1309-1310	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1311-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1309-1310	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1311-	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1309-1310	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1311-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1309-1310	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1311-	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1309-1310	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1311-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1309-1310	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1311-	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1309-1310	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
