8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#126625) — 65 parça

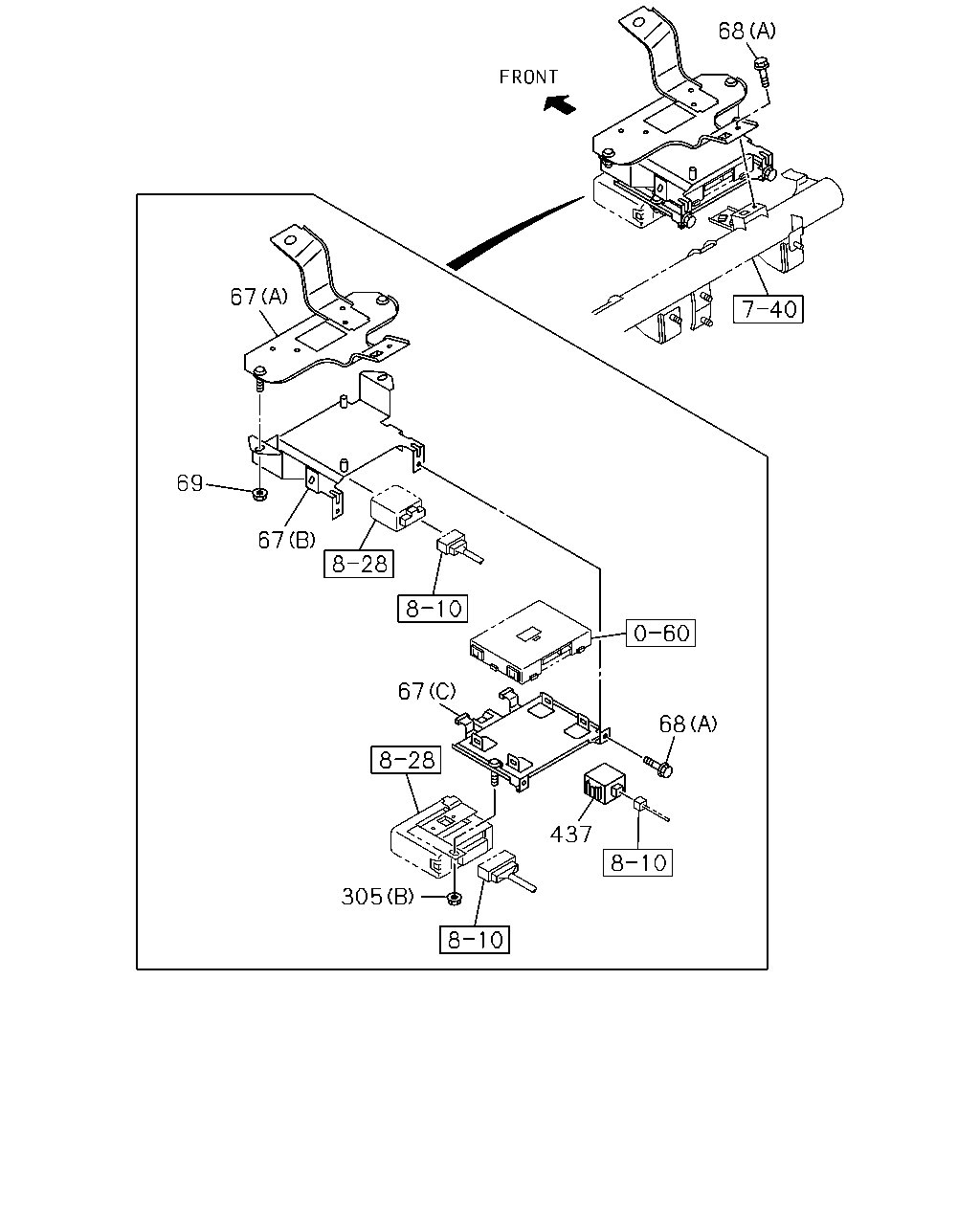

çizim 373387
437 68 67 305 67 69 67 68
BalonParca AdiParca NoAdetTipApplied Date A B C
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (D) 		8-98222-208-0 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (D) 		8-98222-208-0 01 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98222-391-1 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98222-391-1 01 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98222-394-2 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98222-394-2 01 1 1311- ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1309-1310 ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 03 1 1309-1310 ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 03 1 1311- ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ● ●
305 08.915 NUT; CONT UNIT
SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ● ●
305 08.915 NUT; CONT UNIT
SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1402- ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1311- ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1309-1310 ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1311- ● ● ●

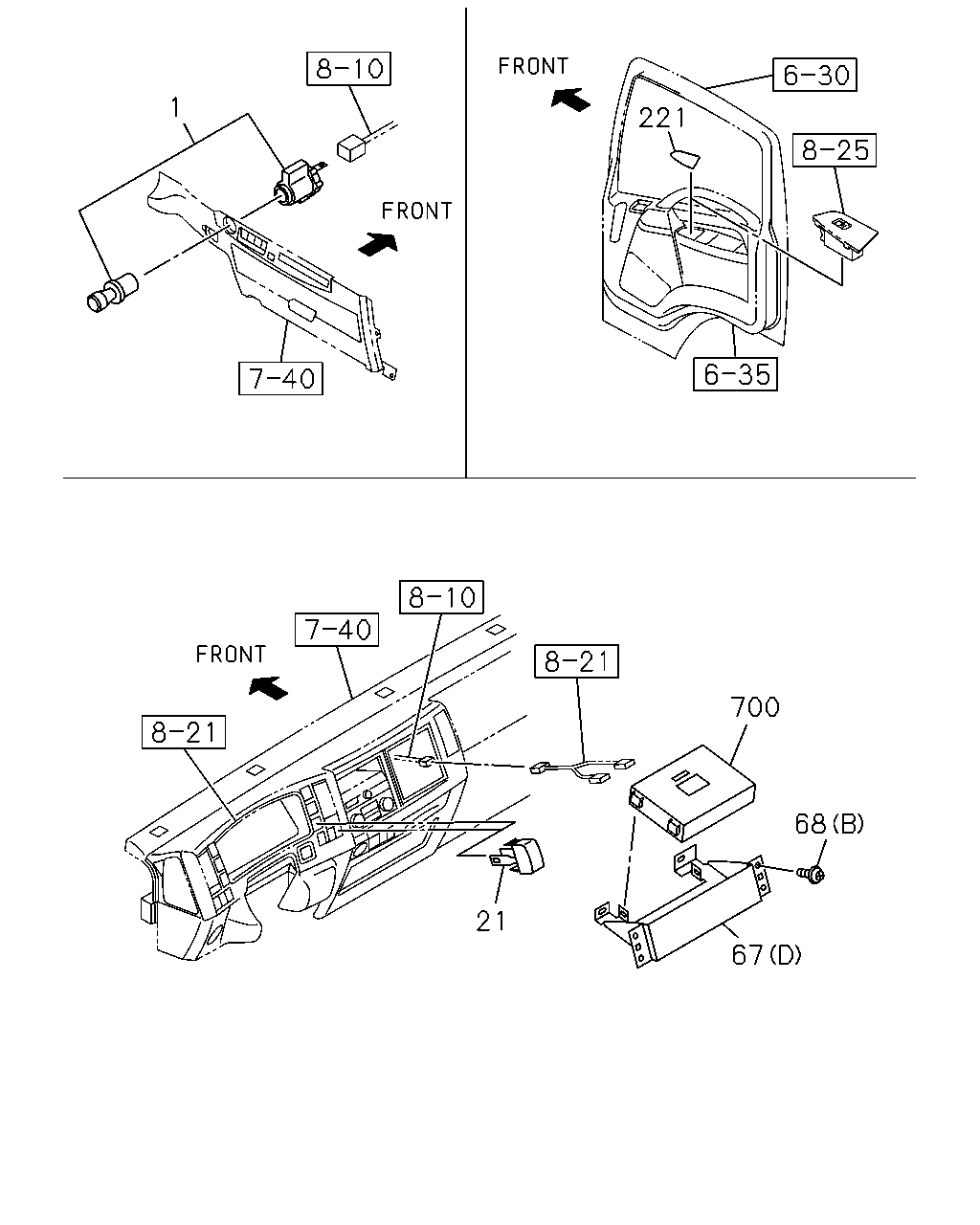

çizim 373690
67 68 700 21 1 221
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1309-1310 ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1311- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1309-1310 ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (D) 		8-98222-208-0 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (D) 		8-98222-208-0 01 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98222-391-1 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98222-391-1 01 1 1311- ● ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98222-394-2 01 1 1309-1310 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98222-394-2 01 1 1311- ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1309-1310 ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 03 1 1309-1310 ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 03 1 1311- ● ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1309-1310 ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1311- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1311- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1309-1310 ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1311- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1311- ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98219-812-1 01 1 1309-1310 ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98219-812-1 01 1 1311- ● ● ●

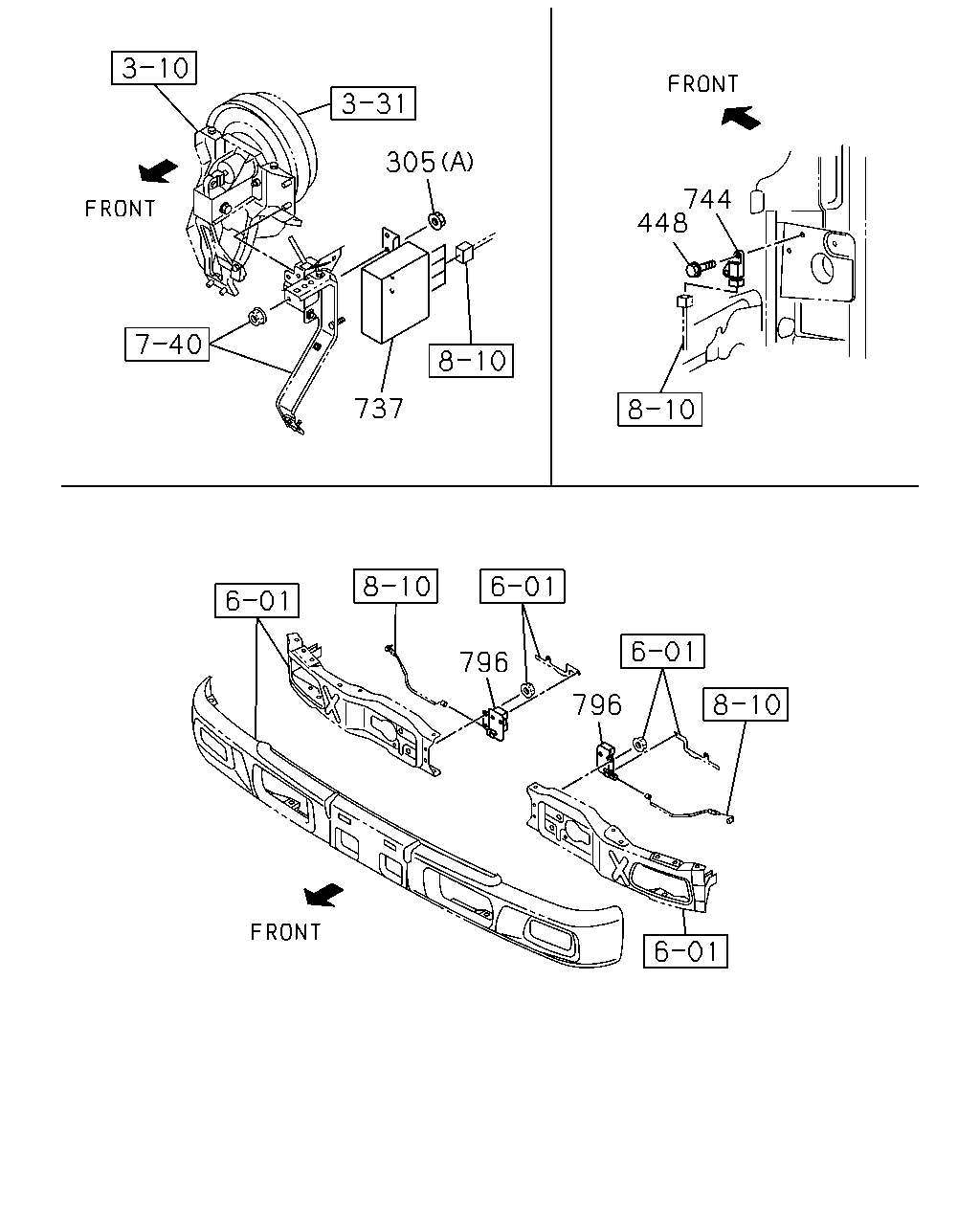

çizim 389516
305 737 744 448 796 796
BalonParca AdiParca NoAdetTipApplied Date A B C
305 08.915 NUT; CONT UNIT
SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ● ●
305 08.915 NUT; CONT UNIT
SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 1402- ● ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1309-1310 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1311- ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1309-1310 ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1311- ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98249-710-1 01 1 1402-1408 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98249-710-1 01 1 1402-1408 ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98249-710-1 01 1 1409- ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98239-155-2 01 1 1311-1408 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98239-155-2 01 1 1409- ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1309-1310 ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1311- ● ● ●
796 02.510 RESISTOR; DROPPING
07.247 		8-98225-337-1 01 1 1309-1310 ● ●
796 02.510 RESISTOR; DROPPING
07.247 		8-98225-337-1 01 1 1311- ● ● ●
796 02.510 RESISTOR; DROPPING
07.247 		8-98225-338-1 01 1 1309-1310 ● ●
796 02.510 RESISTOR; DROPPING
07.247 		8-98225-338-1 01 1 1311- ● ● ●
