◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#126621) — 621 parça

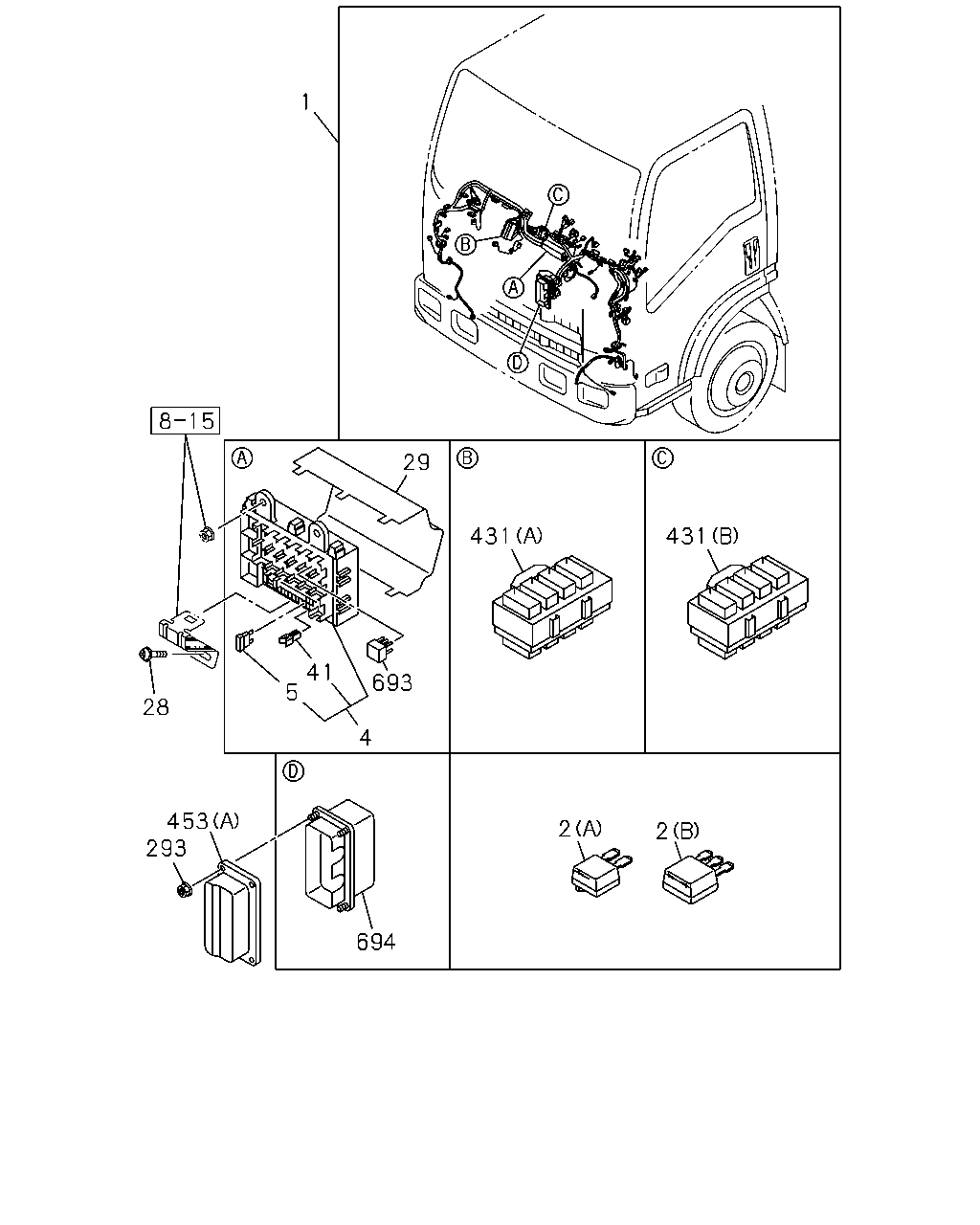

çizim 373409
1 29 431 693 41 5 28 453 293 694 4 431 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98286-496-0 01 1 1409- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98286-500-0 01 1 1409- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98286-495-0 01 1 1409- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98286-499-0 01 1 1409- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-412-3 01 1 1402-1407 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-412-3 01 1 1408- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-411-3 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-411-3 01 1 1311- ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1402-1407 ● ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1408- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1408- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-394-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-394-2 01 1 1402-1407 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-394-2 01 1 1408- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-392-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98223-392-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-392-2 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-392-2 01 1 1311- ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1402-1407 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1408- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1408- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1309-1310 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1311- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1309-1310 ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1311- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1309-1310 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1311- ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1309-1310 ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1311- ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1309-1310 ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1311- ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1309-1310 ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1311- ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1309-1310 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1309-1310 ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1311- ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1309-1310 ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1311- ● ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1309-1310 ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1311- ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1309-1310 ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1311- ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1309-1310 ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 03 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1311-1312 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94452-553-0 01 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) (F) 		8-94452-553-0 01 1 1401-1401 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1402-1402 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1402-1402 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-94452-553-0 01 1 1402-1403 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-94452-553-0 01 1 1402-1403 ●
453 02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) (F) 		8-94452-553-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-94452-553-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-94452-553-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-94452-553-0 01 1 1404-1408 ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) (F) 		8-94452-553-0 01 1 1409- ● ● ●
453 02.483 PROTECTOR; HARNESS
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 03 1 1311-1312 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1402-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1409- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98114-566-1 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98114-566-1 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1311-1312 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 01 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) (D) 		8-94417-716-0 01 1 1401-1401 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1402-1402 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1402-1402 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 01 1 1402-1403 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 01 1 1402-1403 ●
453 02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) (D) 		8-94417-716-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-94417-716-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-94417-716-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-94417-716-0 01 1 1404-1408 ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) (D) 		8-94417-716-0 01 1 1409- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1311- ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1309-1310 ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ● ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1309-1310 ● ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1311- ● ● ●

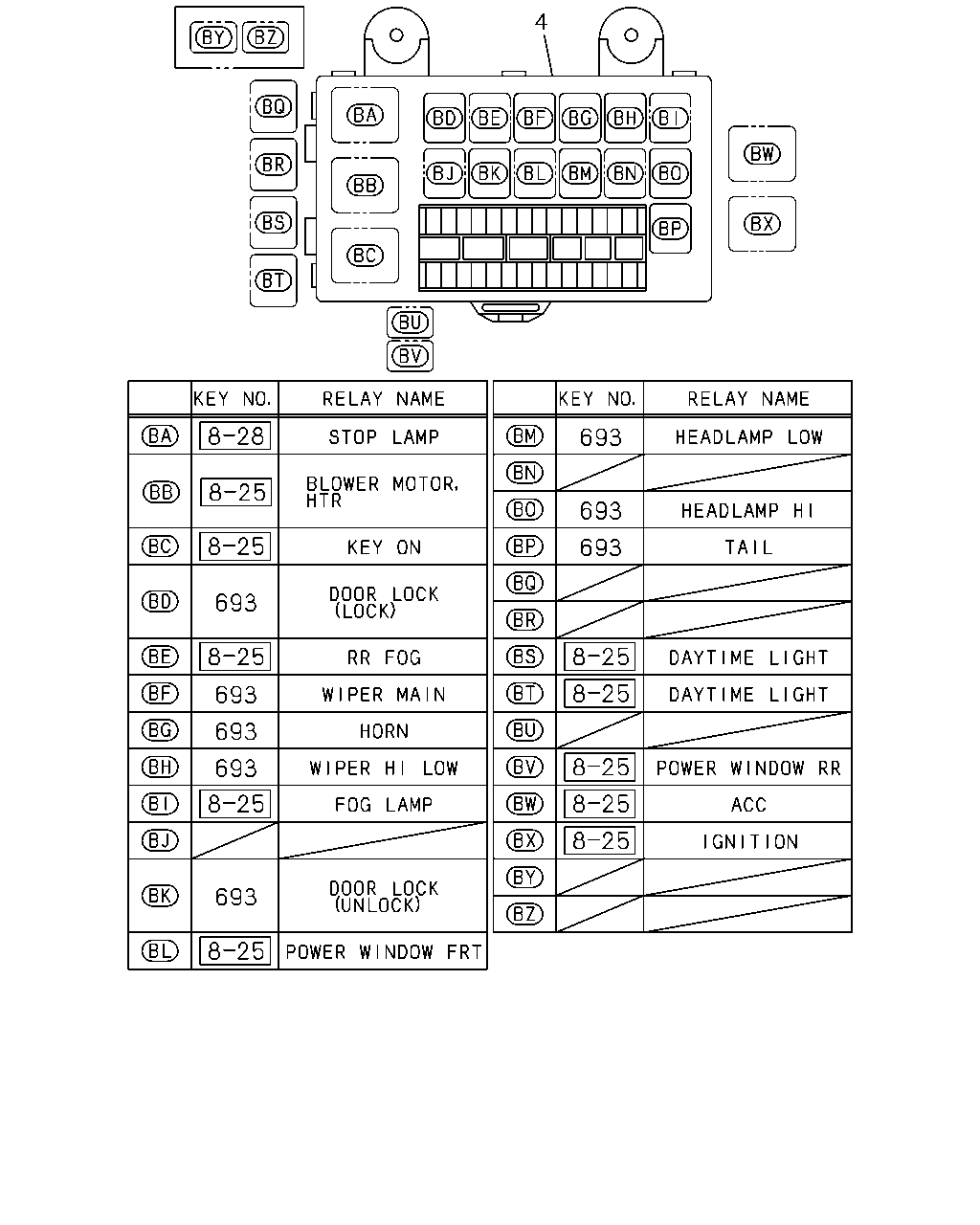

çizim 373463
693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1309-1310 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1311- ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1309-1310 ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ● ●

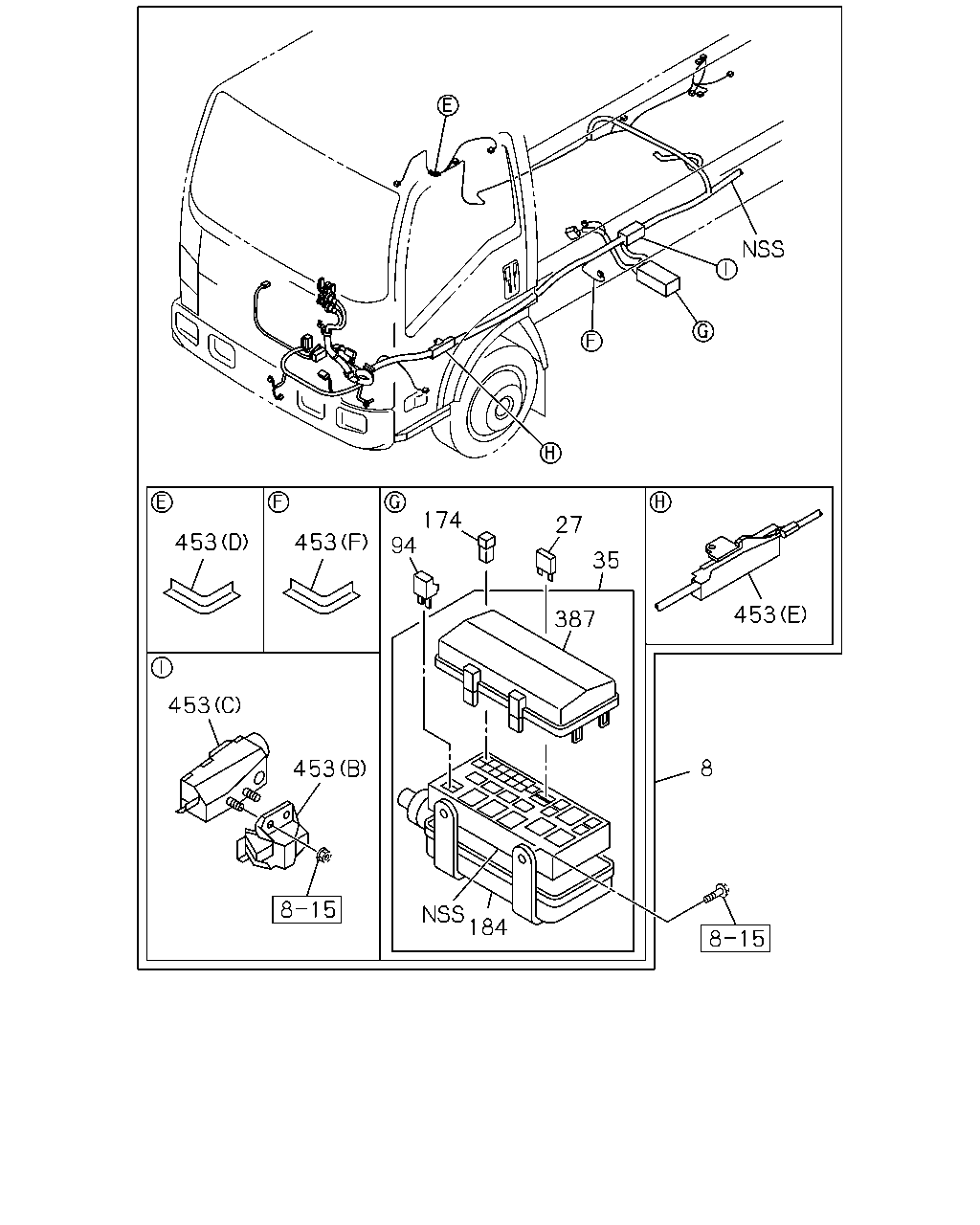

çizim 373490
453 35 27 174 94 453 453 453 453 8 184 387
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-609-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-609-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-541-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-541-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-613-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-613-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-543-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-543-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-607-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-540-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-611-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-542-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-333-3 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98230-333-3 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-516-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-516-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-336-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-336-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-336-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-336-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-519-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-519-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-334-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-334-3 01 1 1409-1409 ●

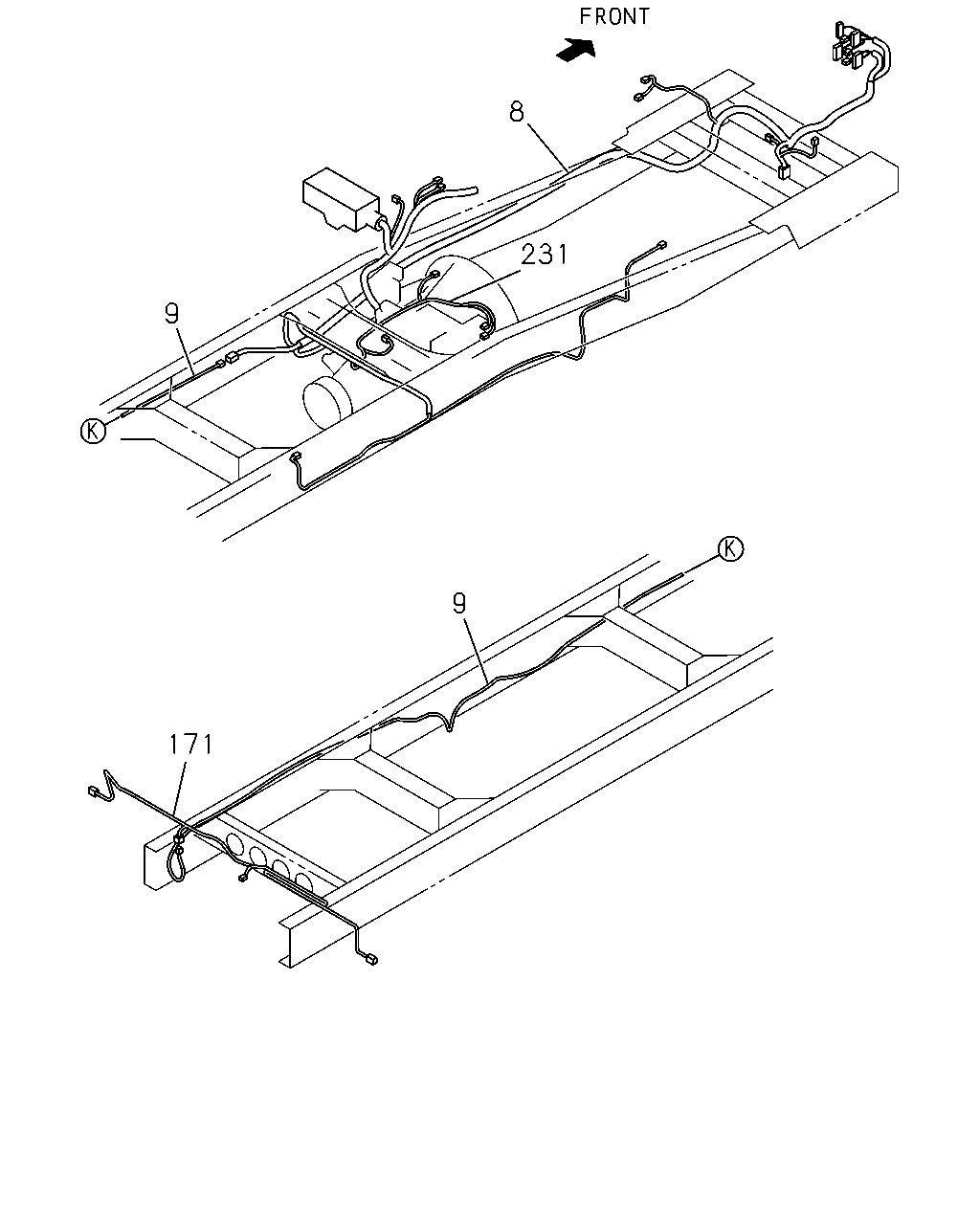

8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-517-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-895-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98259-895-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98259-895-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-961-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-961-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-961-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-533-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-533-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-533-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-897-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98259-897-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98259-897-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-963-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-963-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-963-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-535-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-535-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-535-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-894-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98259-894-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-960-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-960-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-532-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-532-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-896-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98259-896-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-962-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-962-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-534-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-534-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-335-2 01 1 1402-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-2 01 1 1402-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-2 01 1 1402-1403 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-335-3 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-3 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-3 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-518-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-518-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-518-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-600-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-600-2 01 1 1401-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1401-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1401-1403 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-600-2 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-514-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-514-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-514-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-612-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-612-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-492-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-492-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-492-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-524-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-524-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-524-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-598-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-598-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-598-2 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-598-2 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-512-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-512-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-610-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-610-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-610-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-610-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-493-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-493-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-525-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-525-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-601-2 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-601-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-515-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-515-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-513-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-608-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-494-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-494-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-494-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-526-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-526-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-526-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-606-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-606-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-606-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-606-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-606-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-606-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-495-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-495-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-527-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-527-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1309-1310 ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1311- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1309-1310 ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1311- ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1309-1310 ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1311- ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1309-1310 ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1311- ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1309-1310 ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1311- ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1309-1310 ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1311- ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1309-1310 ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1311- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1309-1310 ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1311- ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1309-1310 ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 03 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1311-1312 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94452-553-0 01 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) (F) 		8-94452-553-0 01 1 1401-1401 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1402-1402 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-94452-553-0 01 1 1402-1402 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-94452-553-0 01 1 1402-1403 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-94452-553-0 01 1 1402-1403 ●
453 02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) (F) 		8-94452-553-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-94452-553-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-94452-553-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-94452-553-0 01 1 1404-1408 ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) (F) 		8-94452-553-0 01 1 1409- ● ● ●
453 02.483 PROTECTOR; HARNESS
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 03 1 1311-1312 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1402-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1409- ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 02 1 1409- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98114-566-1 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98114-566-1 01 1 1311- ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1311-1312 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 01 1 1311-1312 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1401-1401 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) (D) 		8-94417-716-0 01 1 1401-1401 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1402-1402 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-94417-716-0 01 1 1402-1402 ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 01 1 1402-1403 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) 		8-94417-716-0 01 1 1402-1403 ●
453 02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) (D) 		8-94417-716-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-94417-716-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-94417-716-0 01 1 1404-1408 ● ●
453 02.483 PROTECTOR; HARNESS
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-94417-716-0 01 1 1404-1408 ●
453 02.483 PROTECTOR; HARNESS
EURO5B+ SPECIFICATION(NT5) (D) 		8-94417-716-0 01 1 1409- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1309-1310 ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1311- ● ● ●

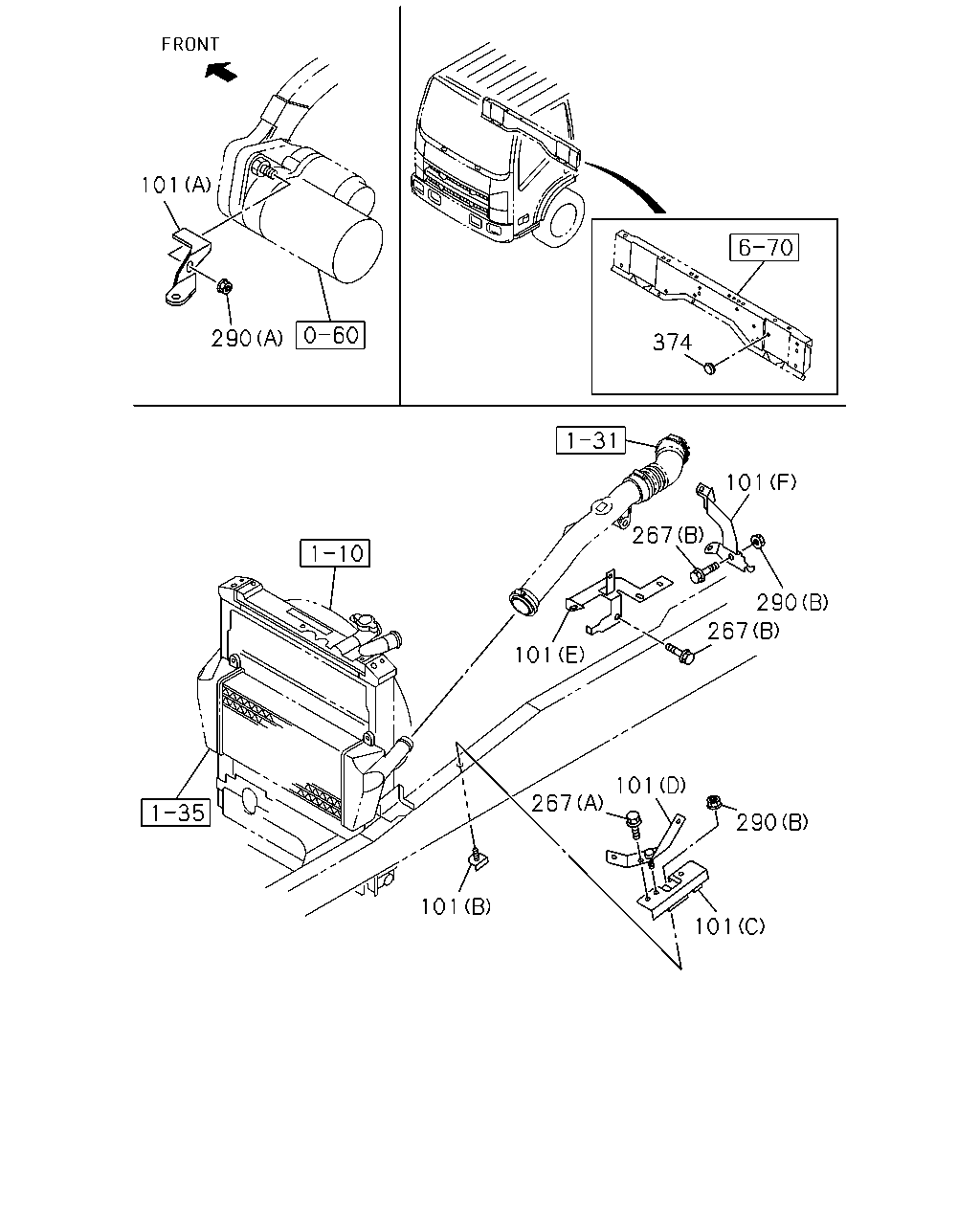

çizim 373553
101 290 374 101 267 267 101 290 290 101 267 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98227-633-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO6 SPECIFICATION(NT6) (E) 		8-98227-633-1 01 1 1311-1408 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO6 SPECIFICATION(NT6) (E) 		8-98227-633-1 01 1 1409- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98227-634-0 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO6 SPECIFICATION(NT6) (F) 		8-98227-634-0 01 1 1311-1408 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO6 SPECIFICATION(NT6) (F) 		8-98227-634-0 01 1 1409- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-070-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-070-1 01 1 1311- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98078-071-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98078-071-1 01 1 1311- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98093-465-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98093-465-1 01 1 1311- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (A) 		8-98030-725-1 01 1 1309-1310 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (A) 		8-98030-725-1 01 1 1311-1401 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) 02.183 (A) 		8-98030-725-1 01 1 1311-1401 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (A) 		8-98030-725-1 01 1 1402-1408 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (A) 		8-98030-725-1 01 1 1402-1408 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. SMOOTHER-EX(TYPE2)(8NS) 02.183 (A) 		8-98030-725-1 01 1 1409- ● ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1309-1310 ● ●
267 02.483 BOLT; BRKT
EURO6 SPECIFICATION(NT6) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1311-1408 ● ●
267 02.483 BOLT; BRKT
EURO6 SPECIFICATION(NT6) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1309-1310 ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1311- ● ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1309-1310 ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ● ● ●
290 02.483 NUT; BRKT
EURO6 SPECIFICATION(NT6) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1311-1408 ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
290 02.483 NUT; BRKT
EURO6 SPECIFICATION(NT6) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1409- ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1309-1310 ● ●
290 02.483 NUT; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ● ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1311-1401 ●
290 02.483 NUT; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ● ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1402-1408 ●
290 02.483 NUT; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1409- ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 1311- ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1309-1310 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF>,SMOOTHER-EX(TYPE2)(8NS) 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1311- ●

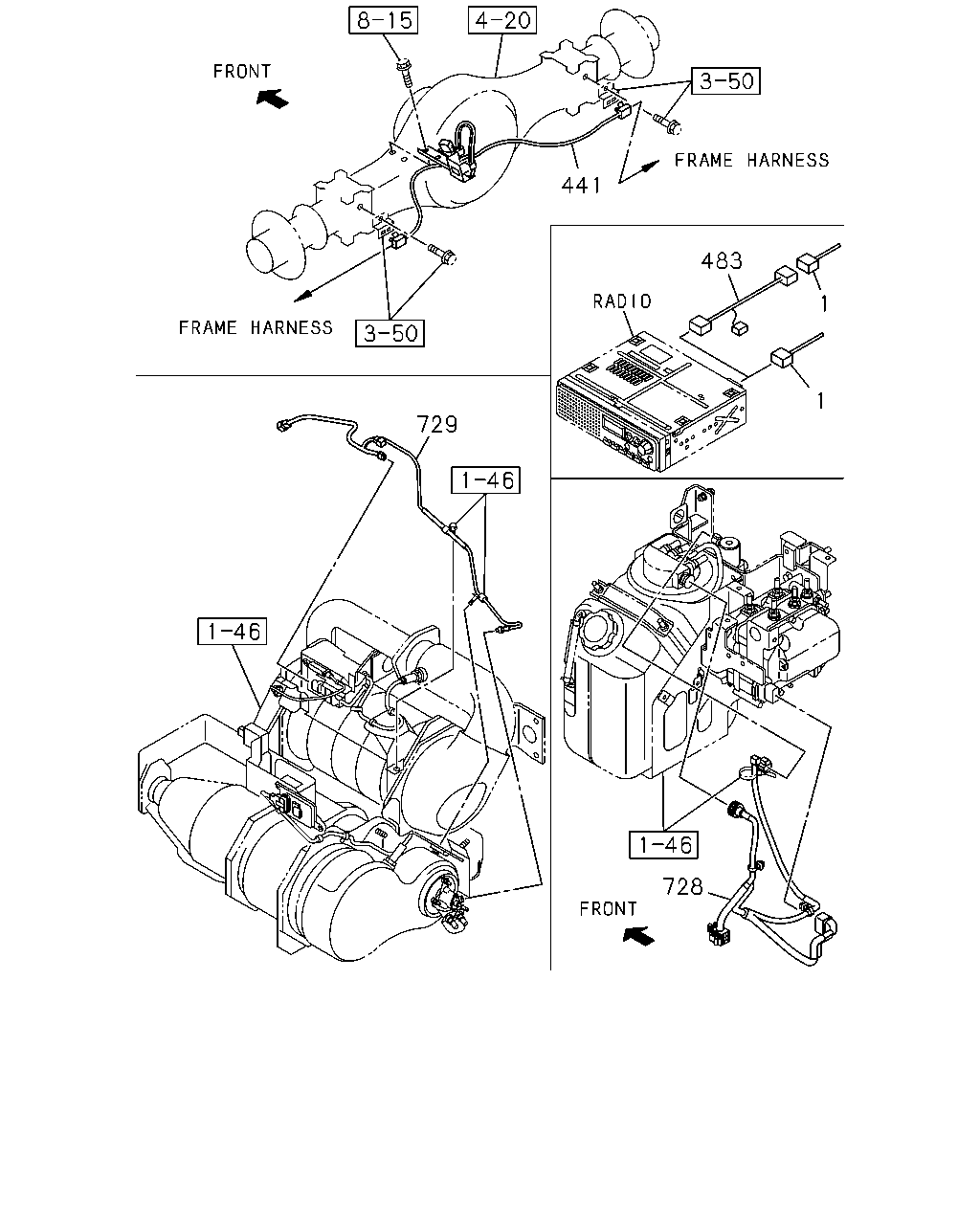

çizim 374228
441 483 1 1 728 729
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98286-496-0 01 1 1409- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98286-500-0 01 1 1409- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98286-495-0 01 1 1409- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98286-499-0 01 1 1409- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-412-3 01 1 1402-1407 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-412-3 01 1 1408- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-411-3 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98223-411-3 01 1 1311- ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1402-1407 ● ●
1 02.480 HARNESS; CAB
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1408- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-410-3 01 1 1408- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-394-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-394-2 01 1 1402-1407 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-394-2 01 1 1408- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98223-392-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98223-392-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-392-2 01 1 1311- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-392-2 01 1 1311- ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1309-1310 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1311-1401 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1402-1407 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1408- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98223-391-2 01 1 1408- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-97308-220-4 01 1 1311- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98236-734-0 01 1 1311-1408 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-98236-734-0 01 1 1311-1408 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98236-734-0 01 1 1409- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) 		8-98236-734-0 01 1 1409- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98246-125-0 01 1 1311- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98080-696-1 01 1 1309-1310 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 		8-98080-696-1 01 1 1309-1310 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98080-696-1 01 1 1311-1408 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR WIDE TREAD(V4T) 		8-98080-696-1 01 1 1311-1408 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98080-696-1 01 1 1409- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR WIDE TREAD(V4T) 		8-98080-696-1 01 1 1409- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98080-696-1 01 1 1409- ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1309-1310 ● ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1311- ● ● ●
728 02.480 HARNESS; DEF DCM SPLY 8-98227-646-0 01 1 1309-1310 ● ●
728 02.480 HARNESS; DEF DCM SPLY
EURO6 SPECIFICATION(NT6) 		8-98227-646-0 01 1 1311-1408 ● ●
728 02.480 HARNESS; DEF DCM SPLY
EURO6 SPECIFICATION(NT6) 		8-98227-646-0 01 1 1409- ● ● ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1402-1408 ● ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1409- ● ●
729 02.480 HARNESS; DEF DCM
EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1409- ●
729 02.480 HARNESS; DEF DCM 8-98227-644-1 01 1 1309-1310 ● ●
729 02.480 HARNESS; DEF DCM
EURO6 SPECIFICATION(NT6) 		8-98227-644-1 01 1 1311-1401 ● ●
729 02.480 HARNESS; DEF DCM
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-644-1 01 1 1402- ● ●

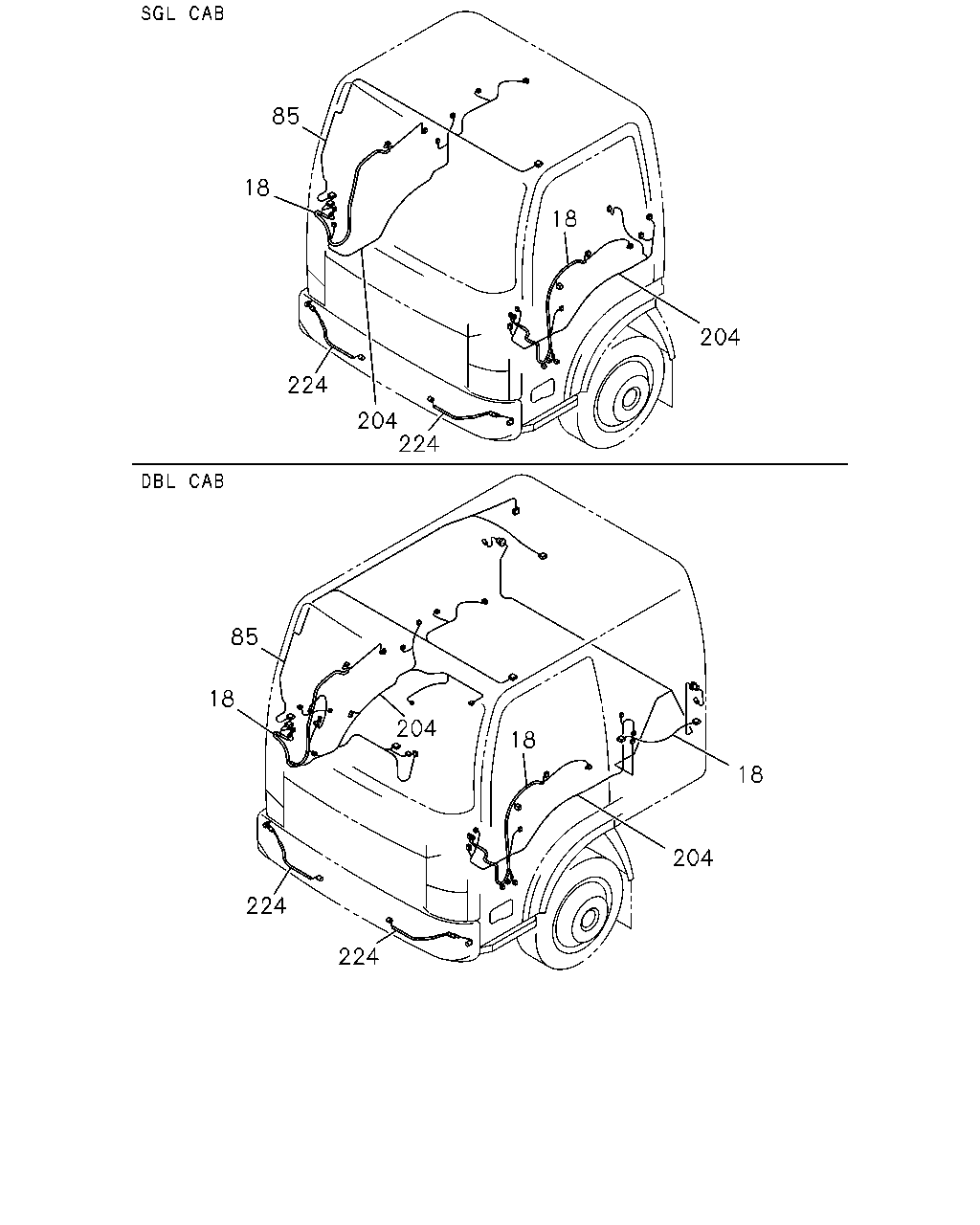

çizim 374514
85 18 224 204 224 204 18 85 18 204 18 18 204 224 224
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-082-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-082-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-082-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-082-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-082-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-090-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-090-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-090-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-090-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-090-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-080-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-080-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-080-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-080-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-080-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-088-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-088-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-088-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-088-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-088-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-081-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-081-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-081-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-089-3 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-089-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-089-3 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-079-2 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-079-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-079-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-087-2 01 1 1309-1310 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-087-2 01 1 1311- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> FRONT 		8-98071-087-2 01 1 1311- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-203-1 01 1 1311- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-201-2 01 1 1309- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-501-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-500-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-891-0 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> SMOOTHER-EX(TYPE2)(8NS) 		8-98240-893-0 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1311-1401 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98207-335-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-334-1 01 1 1311-1401 ● ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-334-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98207-334-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-499-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-074-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-073-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-498-1 01 1 1311-1401 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-498-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-072-3 01 1 1311- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-506-1 01 1 1309-1310 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1311-1401 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98206-506-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98074-595-3 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98074-595-3 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1309- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1309-1310 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1311-1401 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1402- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98206-505-1 01 1 1402- ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1309-1310 ● ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1311- ● ● ●
çizim 374589
8 9 231 9 171
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-609-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-609-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-541-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-541-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-613-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-613-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-543-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-543-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-607-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-540-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-611-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-542-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-333-3 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98230-333-3 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-516-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-516-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-336-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-336-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-336-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-336-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-519-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-519-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-334-3 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-334-3 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-517-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-895-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98259-895-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98259-895-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-961-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-961-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-961-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-533-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-533-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-533-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-897-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98259-897-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98259-897-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-963-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-963-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-963-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-535-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-535-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-535-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-894-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98259-894-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-960-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-960-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-532-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-532-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98259-896-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98259-896-0 01 1 1401-1402 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-962-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-962-0 01 1 1403-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-534-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-534-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-335-2 01 1 1402-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-2 01 1 1402-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-2 01 1 1402-1403 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98230-335-3 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-3 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98230-335-3 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-518-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-518-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-518-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-600-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-600-2 01 1 1401-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1401-1403 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1401-1403 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-600-2 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-600-2 01 1 1404-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-514-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-514-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-514-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-612-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-612-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98227-612-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-492-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-492-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-492-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-524-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-524-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98293-524-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-598-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-598-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-598-2 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-598-2 01 1 1401-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-512-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-512-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-610-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-610-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-610-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-610-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-493-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-493-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-525-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-525-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-601-2 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-601-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-601-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-515-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-515-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1402-1408 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-599-2 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-513-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-608-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-608-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98227-608-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-494-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-494-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98271-494-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-526-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-526-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-526-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-606-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-606-2 01 1 1309-1310 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-606-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-606-2 01 1 1311-1312 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98227-606-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98227-606-2 01 1 1401-1401 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98271-495-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98271-495-0 01 1 1402-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98293-527-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-527-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-427-0 01 1 1409- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-419-1 01 1 1404- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5) 		8-98048-419-1 01 1 1404- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 		8-98080-439-0 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-414-2 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) 		8-98048-414-2 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-424-1 01 1 1311-1408 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98048-424-1 01 1 1311-1408 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98048-424-1 01 1 1311-1408 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 		8-98048-424-1 01 1 1409- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98048-424-1 01 1 1409- ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) 		8-98227-425-2 01 1 1309-1310 ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 		8-98227-425-2 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) 		8-98227-425-2 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98227-426-2 01 1 1309-1310 ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 		8-98227-426-2 01 1 1311- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98227-426-2 01 1 1311- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-025-0 01 1 1309-1310 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-025-0 01 1 1311- ● ● ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1311-1401 ● ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1402- ● ● ●
çizim 374746
329 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-767-0 01 1 1311- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (B) 		8-98249-769-0 01 1 1311- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-538-2 01 1 1309-1408 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-538-2 01 1 1409- ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-98227-630-1 01 1 1309-1310 ● ●
329 02.480 CABLE; ENG TO FRAME 8-98227-630-1 01 1 1311- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
