Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#12662) — 240 parça

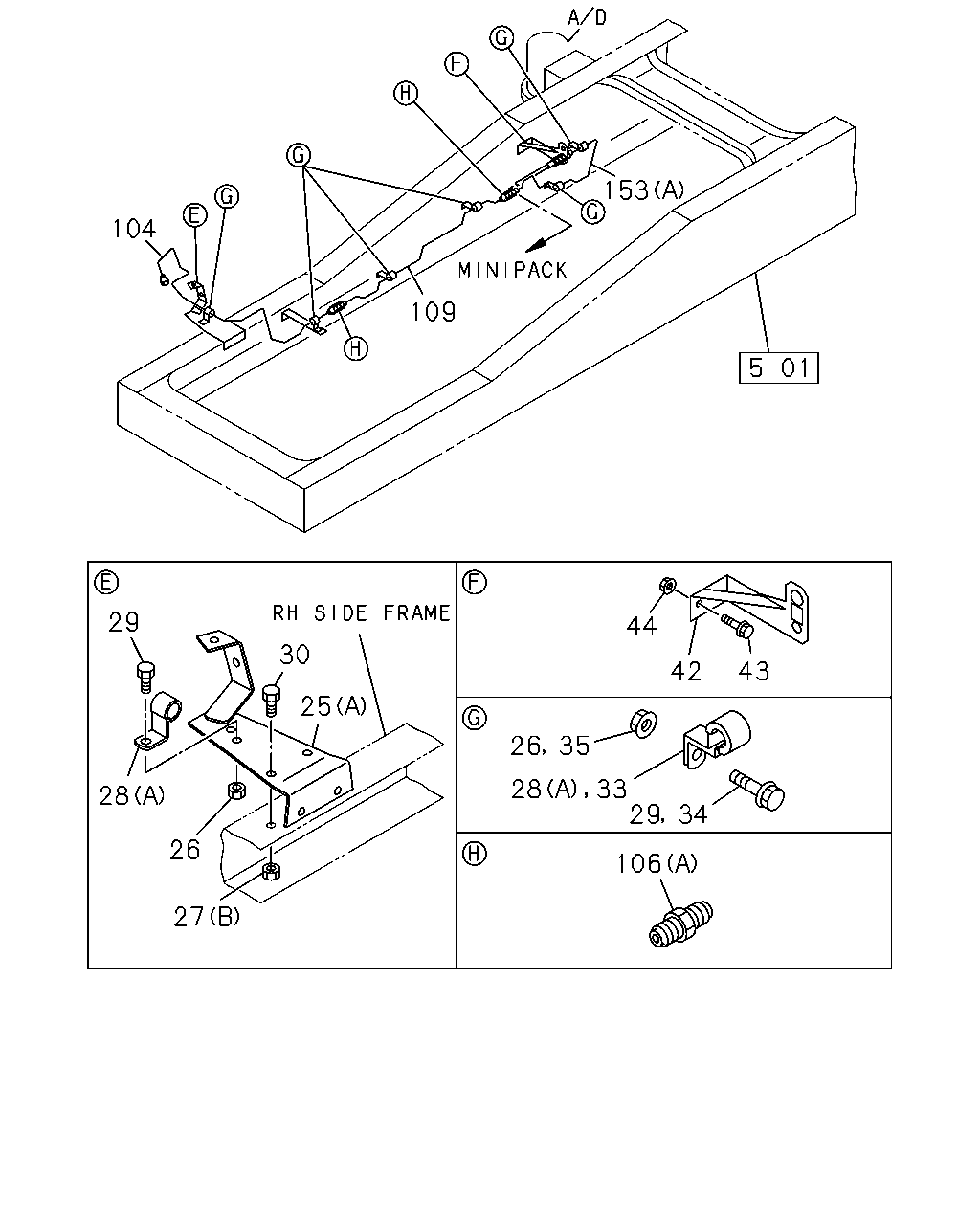

35 33 111 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-

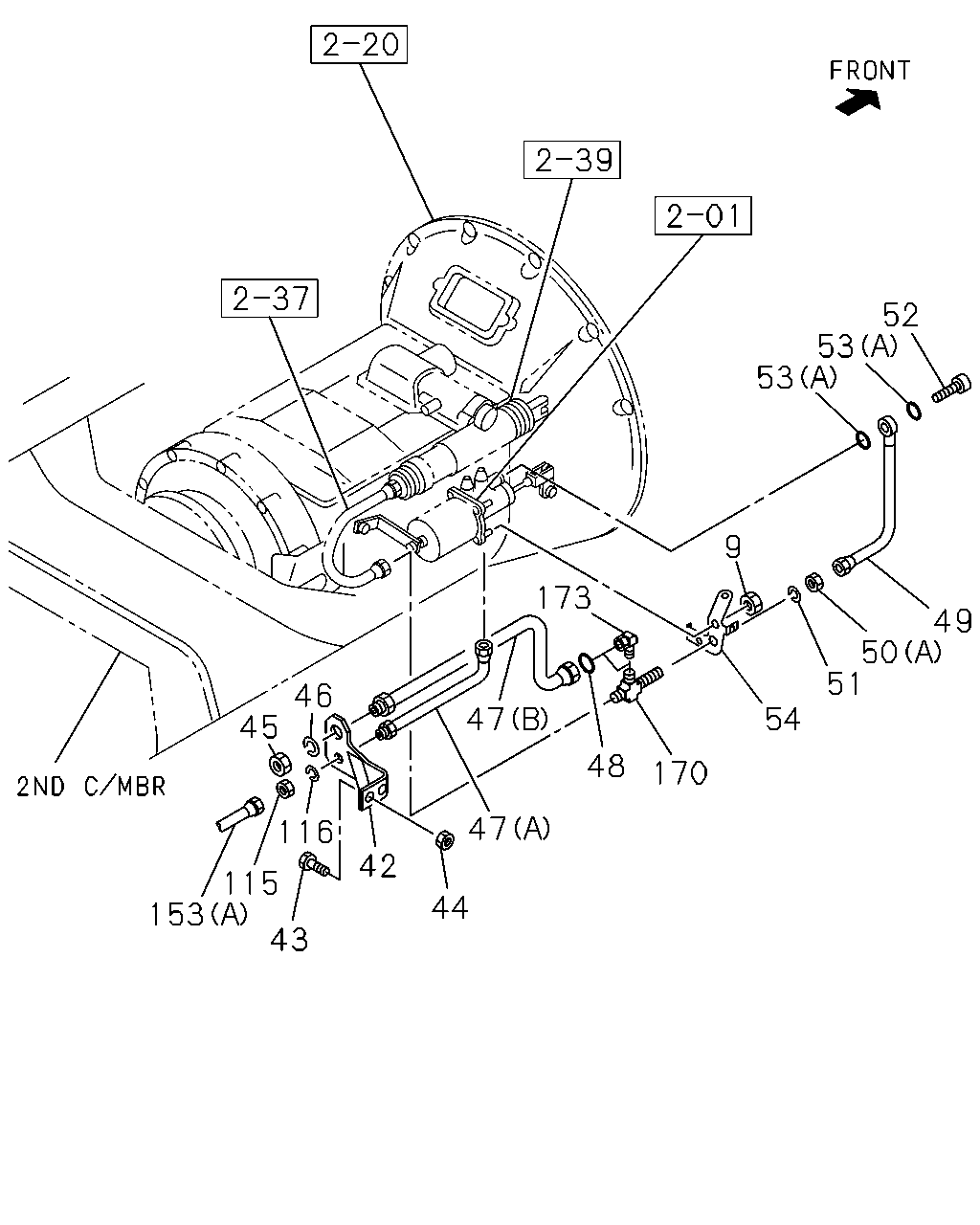

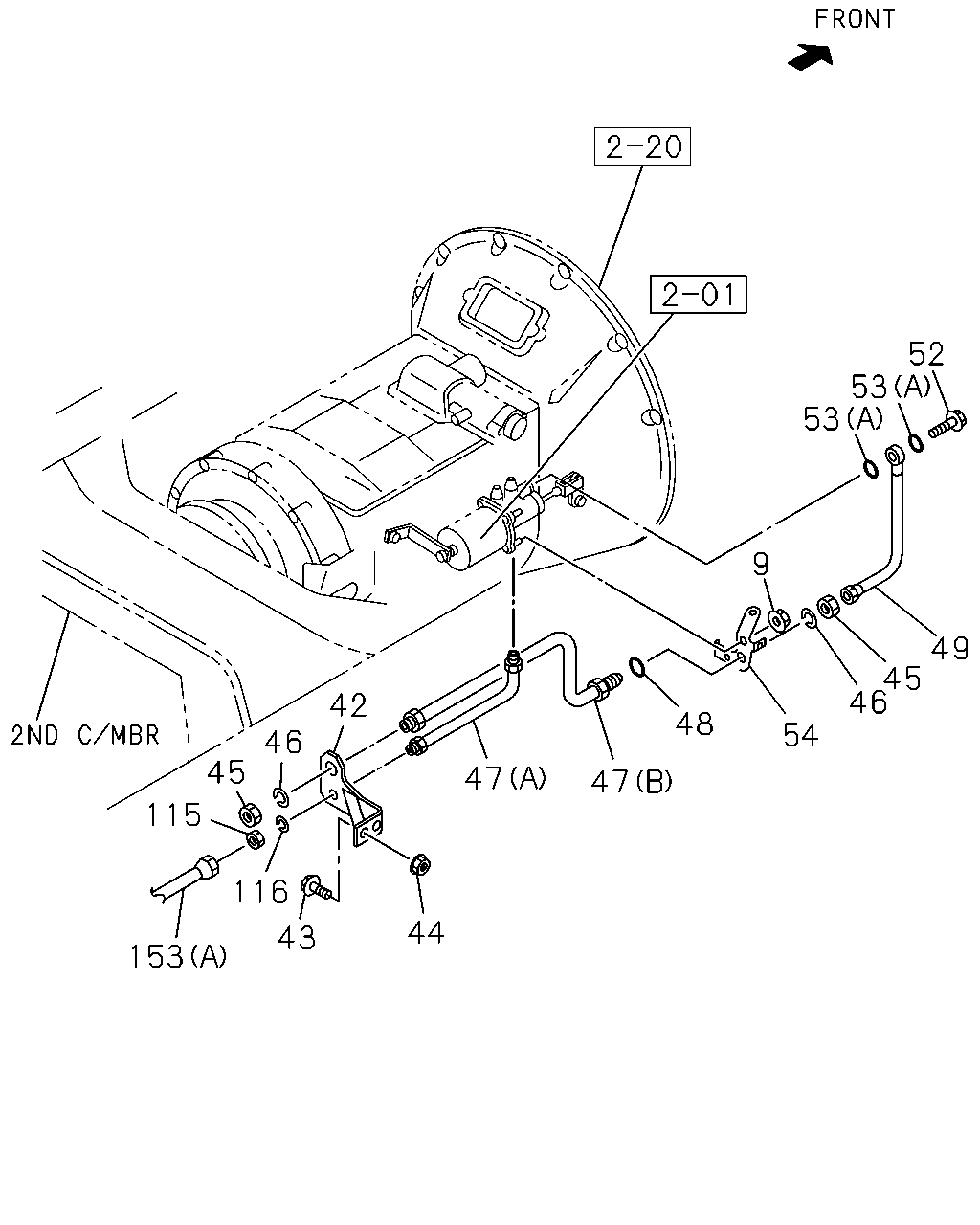

52 53 53 9 173 49 50 51 46 47 54 45 48 170 47 116 42 115 153 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G) M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (D) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G)	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S>	1-09656-640-0	01	1	0105-
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-

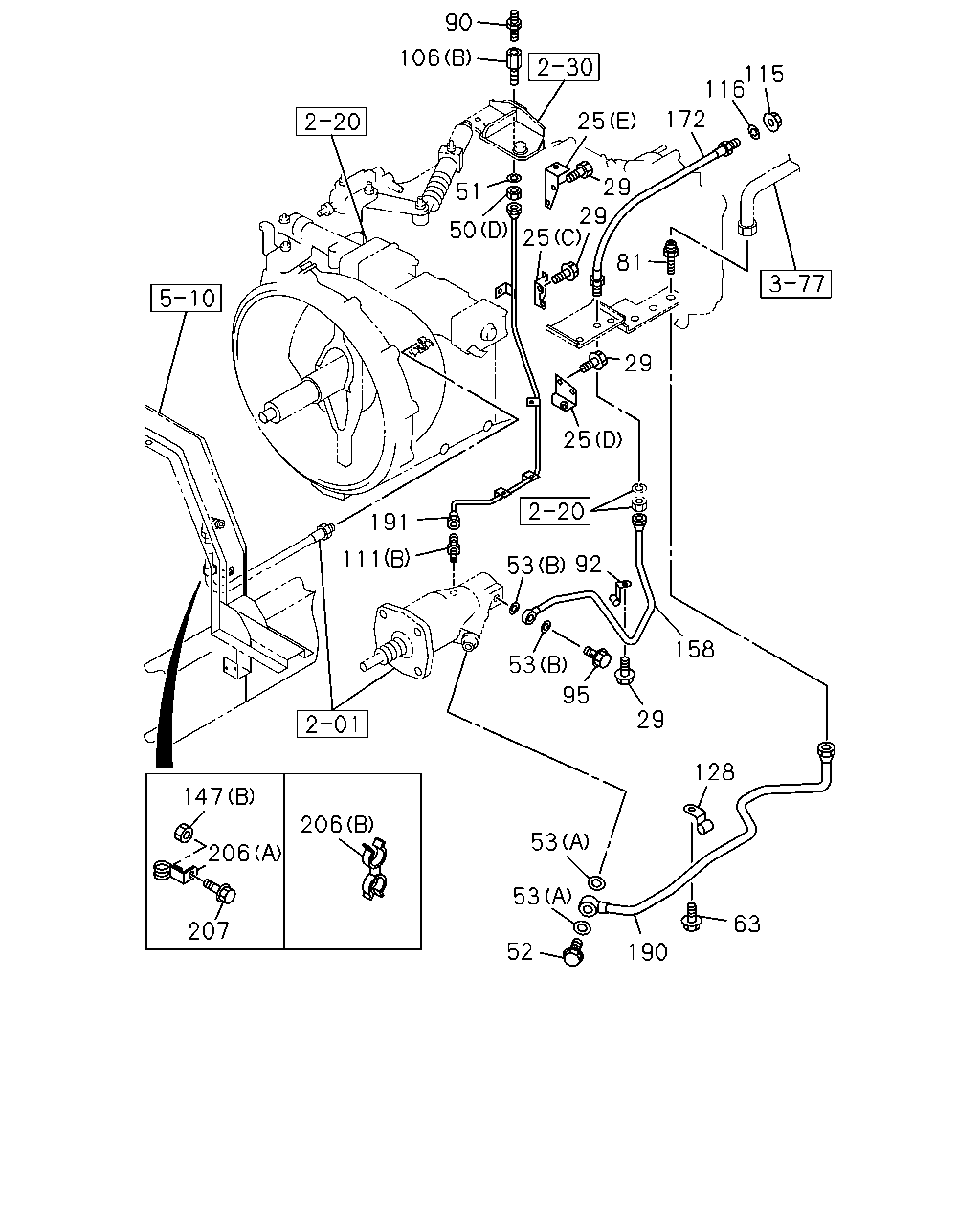

90 106 115 116 172 25 29 29 50 25 51 81 29 25 191 111 158 53 95 29 128 147 206 206 53 53 63 207 52 190 53 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (E)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (D) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	01	1	0105-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8>	1-09664-233-0	01	1	0105-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8>	1-31829-485-0	01	1	0105-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=9 L=32	9-09524-865-0	01	1	0105-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M14X27 FLANGE	1-09675-086-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B)	1-09654-384-0	01	1	0105-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=14.2	9-09150-514-0	01	1	0105-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=13	1-09701-030-1	01	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8>	1-49119-466-2	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> L=400	1-09364-263-0	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8>	1-49119-465-1	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8>	1-49163-427-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-0107
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=50	1-09701-072-0	01	1	0108-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0108-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-

24 153 167 56 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0105-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
167	BRACKET; UNION	1-71117-183-3	01	1	0105-

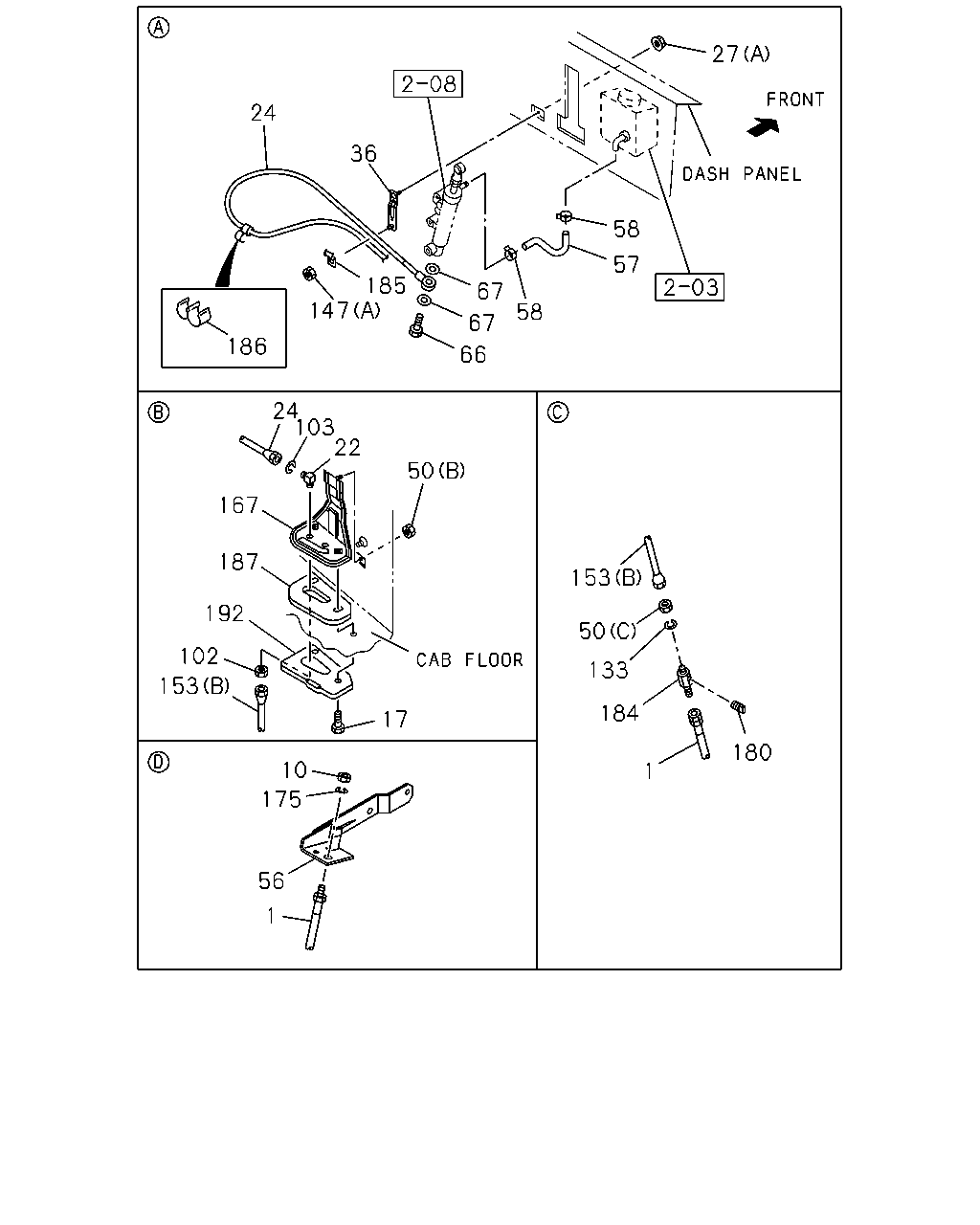

27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 102 133 153 184 17 180 10 1 175 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (D) M12	9-09840-280-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0105-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 FLANGE	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
167	BRACKET; UNION	1-71117-183-3	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0105-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0105-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0105-
187	SEAL; BRKT	1-71117-222-0	01	1	0105-
192	PLATE	1-71117-221-0	01	1	0105-

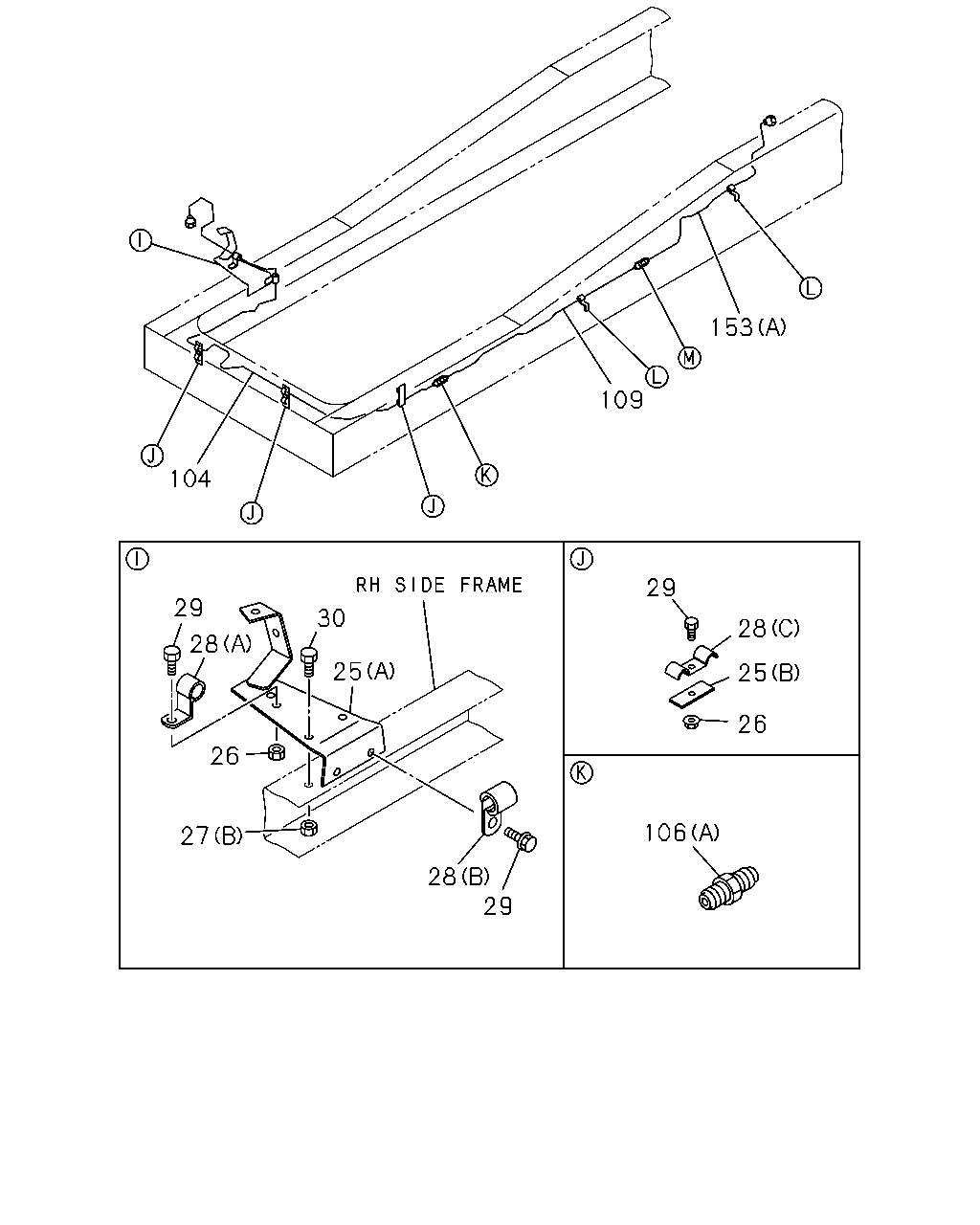

153 104 109 29 44 30 42 43 25 26 35 28 33 29 28 34 26 106 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (E)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2495	1-49163-209-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B)	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

52 53 53 9 49 45 46 42 48 54 46 45 47 47 115 116 44 43 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G) M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G)	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

153 109 104 29 29 30 28 28 25 25 26 26 106 27 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (E)	1-47478-406-0	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2495	1-49163-209-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTOR SHIFT CONTROL<WX8> (B)	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A)	1-49166-494-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
