Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#126616) — 402 parça

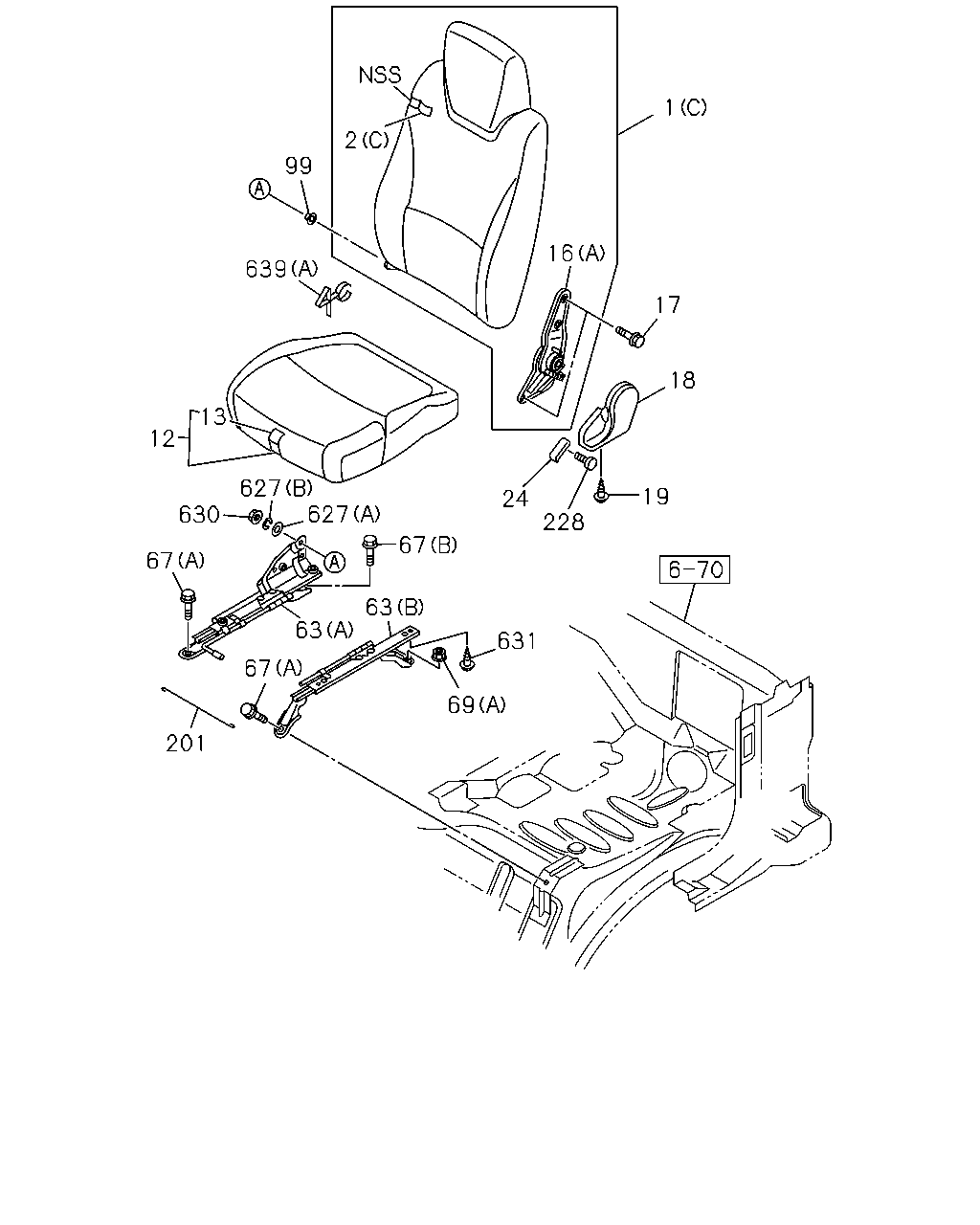

1 16 17 18 19 228 24 631 69 201 67 63 67 627 627 630 67 12 13 639 99 2 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-594-0	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-595-1	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (C) DARK GRAY	8-97429-980-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97429-980-0	01	1	1409-			●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97421-237-1	01	1	1309-1310	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97421-237-1	01	1	1311-1408	●	●	●
1	16.720 BACK ASM; SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97421-237-1	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT EXC. FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97421-237-1	01	1	1409-			●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97466-506-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-507-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (C) DARK GRAY	8-97429-981-0	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97429-981-0	01	1	1409-			●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97421-256-0	01	1	1309-1310	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97421-256-0	01	1	1311-1408	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97421-256-0	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97421-256-0	01	1	1409-			●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-597-1	01	1	1504-	●	●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> DARK GRAY	8-97465-011-1	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-011-1	01	1	1409-			●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-008-1	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1309-1310	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1311-1408	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-250-1	01	1	1311-1408			●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97421-250-2	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-250-2	01	1	1409-			●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1309-1408	●	●
12	16.670 CUSHION; SEAT,FRT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-2	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> DARK GRAY	8-97465-017-1	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> DARK GRAY	8-97465-017-1	01	1	1409-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-014-1	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1309-1310	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1311-1408	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-1	01	1	1311-1408			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97421-270-2	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-270-2	01	1	1409-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1309-1408	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-2	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1309-1310	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1311-1408	●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7> (B) BLACK W/KNOB	8-97859-274-3	01	1	1409-1409	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1409-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1309-1310	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1311-1408	●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98005-418-1	01	1	1409-1409	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7> (A)	8-98005-418-1	01	1	1409-1409			●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98005-418-1	01	1	1409-1503	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1409-1503			●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1504-	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1309-1310	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1311-1408	●	●	●
17	16.682 BOLT; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20	8-98062-661-0	04	1	1409-1409	●	●
17	16.682 BOLT; RECLINING EXC. FACE LIFT MODEL<TX7> M10X20	8-98062-661-0	04	1	1409-1409			●
17	16.682 BOLT; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M10X20	8-98062-661-0	04	1	1409-1503	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1409-1503			●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1504-	●	●	●
18	16.682 COVER; RECLINING FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-599-0	01	1	1504-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1309-1310	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1311-1408	●	●	●
18	16.682 COVER; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97409-361-0	01	1	1409-1409	●	●
18	16.682 COVER; RECLINING EXC. FACE LIFT MODEL<TX7> GRAY	8-97409-361-0	01	1	1409-1409			●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> GRAY	8-97409-361-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1409-			●
19	16.686 SCREW; COVER FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	01	1	1504-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1309-1310	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1311-1408	●	●	●
19	16.686 SCREW; COVER EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5	8-98062-663-0	01	1	1409-1409	●	●
19	16.686 SCREW; COVER EXC. FACE LIFT MODEL<TX7> M5	8-98062-663-0	01	1	1409-1409			●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M5	8-98062-663-0	01	1	1409-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1409-			●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1309-1310	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1311-1408	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97409-362-0	01	1	1409-1409	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. FACE LIFT MODEL<TX7> GRAY	8-97409-362-0	01	1	1409-1409			●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> GRAY	8-97409-362-0	01	1	1409-1503	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1409-1503			●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1504-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98306-528-0	01	1	1504-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1309-1310	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1311-1408	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98002-907-2	01	1	1409-1409	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7> (A) INNER	8-98002-907-2	01	1	1409-1409			●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A) INNER	8-98002-907-2	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1409-			●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1309-1310	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1311-1408	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) OUTER	8-98002-908-1	01	1	1409-1409	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7> (B) OUTER	8-98002-908-1	01	1	1409-1409			●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (B) OUTER	8-98002-908-1	01	1	1409-1503	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1409-1503			●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1504-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1309-1310	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1311-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1309-1310	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1311-	●	●	●
69	16.682 NUT; FRT SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-362-0	06	1	1504-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1309-1310	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1311-	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1309-1310	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1311-1408	●	●	●
99	16.716 BUSHING; SEAT BACK EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98112-751-0	01	1	1409-1409	●	●
99	16.716 BUSHING; SEAT BACK EXC. FACE LIFT MODEL<TX7>	8-98112-751-0	01	1	1409-1409			●
99	16.716 BUSHING; SEAT BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>	8-98112-751-0	01	1	1409-1503	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1409-1503			●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1504-	●	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1309-1310	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1311-1408	●	●	●
201	16.682 CABLE; ADJ EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98003-086-1	01	1	1409-1409	●	●
201	16.682 CABLE; ADJ EXC. FACE LIFT MODEL<TX7>	8-98003-086-1	01	1	1409-1409			●
201	16.682 CABLE; ADJ EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>	8-98003-086-1	01	1	1409-1503	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1409-1503			●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1504-	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1309-1310	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1311-1408	●	●	●
228	16.714 SCREW; KNOB EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4	8-98062-662-0	01	1	1409-1409	●	●
228	16.714 SCREW; KNOB EXC. FACE LIFT MODEL<TX7> M4	8-98062-662-0	01	1	1409-1409			●
228	16.714 SCREW; KNOB EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M4	8-98062-662-0	01	1	1409-1503	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1409-1503			●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1504-	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1309-1310	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1311-1408	●	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98063-223-0	01	1	1409-1409	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7> (A)	8-98063-223-0	01	1	1409-1409			●
627	16.682 WASHER; FRT SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98063-223-0	01	1	1409-1503	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1409-1503			●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1504-	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1309-1310	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1311-1408	●	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98063-224-0	01	1	1409-1409	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7> (B)	8-98063-224-0	01	1	1409-1409			●
627	16.682 WASHER; FRT SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (B)	8-98063-224-0	01	1	1409-1503	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1409-1503			●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1504-	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1309-1310	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1311-1408	●	●	●
630	16.682 NUT; CAP EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8	8-98063-225-0	01	1	1409-1409	●	●
630	16.682 NUT; CAP EXC. FACE LIFT MODEL<TX7> M8	8-98063-225-0	01	1	1409-1409			●
630	16.682 NUT; CAP EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M8	8-98063-225-0	01	1	1409-1503	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1409-1503			●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1504-	●	●	●
631	16.682 BOLT; ADJ,SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	03	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	01	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1309-1310	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1311-1408	●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-1409	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-1409			●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-			●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1309-1310	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1311-1408	●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-1409	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-1409			●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-			●
639	16.679 CLIP; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-960-0	02	1	1504-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> (A)	8-98097-693-0	01	1	1309-1310	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> (A)	8-98097-693-0	01	1	1311-1408	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1311-1408			●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98097-693-0	01	1	1409-1409	●	●
639	16.679 CLIP; SEAT EXC. FACE LIFT MODEL<TX7> (A)	8-98097-693-0	01	1	1409-1409			●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98097-693-0	01	1	1409-	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1409-			●

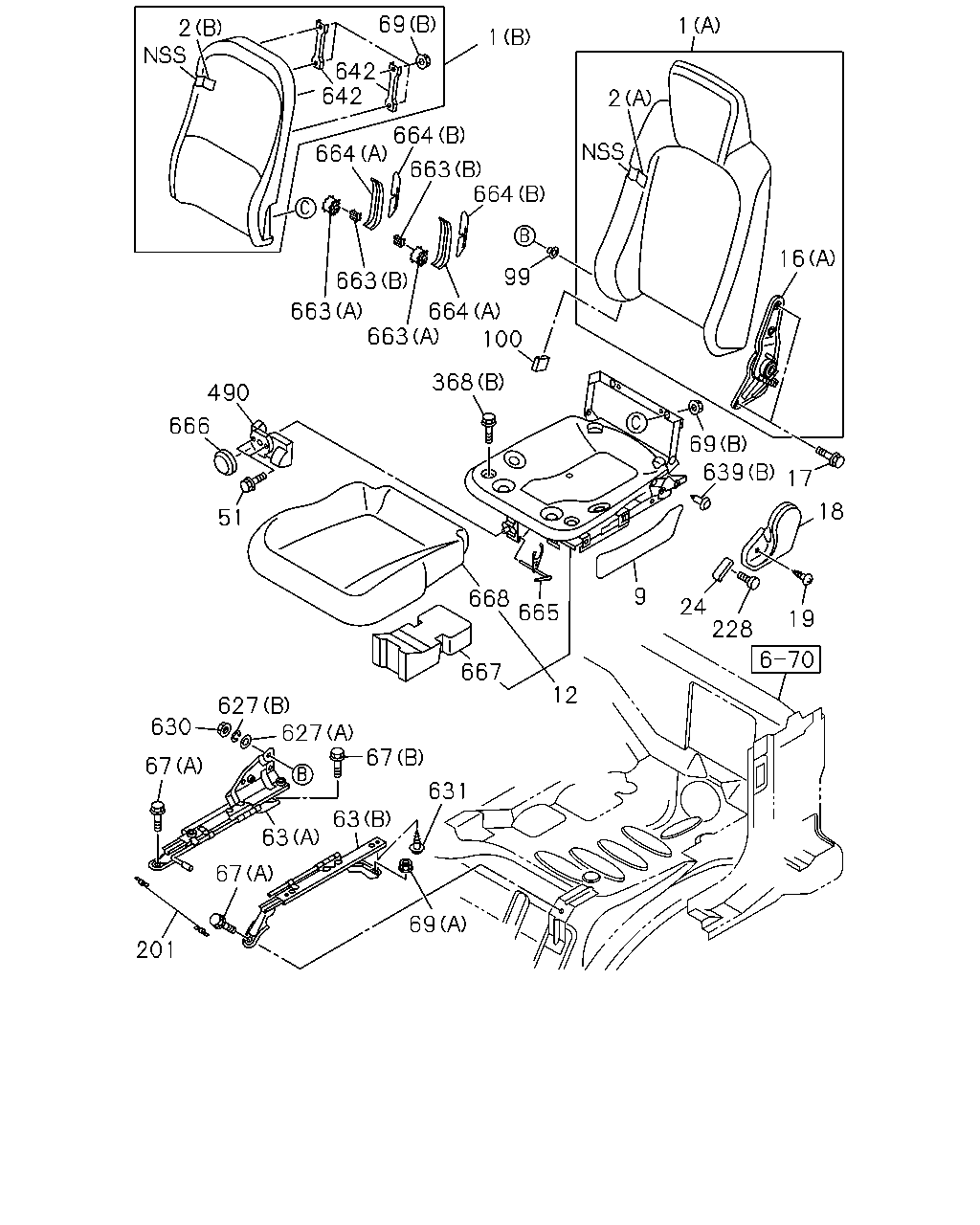

1 2 16 69 17 639 18 19 228 24 9 12 69 631 67 63 63 67 201 67 630 627 627 667 665 668 51 666 490 368 100 99 664 663 663 663 664 663 664 664 2 642 642 69 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-594-0	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-595-1	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (C) DARK GRAY	8-97429-980-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97429-980-0	01	1	1409-			●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97421-237-1	01	1	1309-1310	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97421-237-1	01	1	1311-1408	●	●	●
1	16.720 BACK ASM; SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97421-237-1	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT EXC. FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97421-237-1	01	1	1409-			●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97466-506-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-507-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (C) DARK GRAY	8-97429-981-0	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97429-981-0	01	1	1409-			●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97421-256-0	01	1	1309-1310	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97421-256-0	01	1	1311-1408	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97421-256-0	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. FACE LIFT MODEL<TX7> (C) DARK GRAY	8-97421-256-0	01	1	1409-			●
9	16.682 COVER; SIDE FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-601-0	01	1	1504-	●	●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-597-1	01	1	1504-	●	●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> DARK GRAY	8-97465-011-1	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-011-1	01	1	1409-			●
12	16.670 CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-008-1	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1309-1310	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1311-1408	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-250-1	01	1	1311-1408			●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97421-250-2	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-250-2	01	1	1409-			●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1309-1408	●	●
12	16.670 CUSHION; SEAT,FRT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-2	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1309-1310	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1311-1408	●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7> (B) BLACK W/KNOB	8-97859-274-3	01	1	1409-1409	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1409-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1309-1310	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1311-1408	●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98005-418-1	01	1	1409-1409	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7> (A)	8-98005-418-1	01	1	1409-1409			●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98005-418-1	01	1	1409-1503	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1409-1503			●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1504-	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1309-1310	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1311-1408	●	●	●
17	16.682 BOLT; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20	8-98062-661-0	04	1	1409-1409	●	●
17	16.682 BOLT; RECLINING EXC. FACE LIFT MODEL<TX7> M10X20	8-98062-661-0	04	1	1409-1409			●
17	16.682 BOLT; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M10X20	8-98062-661-0	04	1	1409-1503	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1409-1503			●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1504-	●	●	●
18	16.682 COVER; RECLINING FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-599-0	01	1	1504-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1309-1310	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1311-1408	●	●	●
18	16.682 COVER; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97409-361-0	01	1	1409-1409	●	●
18	16.682 COVER; RECLINING EXC. FACE LIFT MODEL<TX7> GRAY	8-97409-361-0	01	1	1409-1409			●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> GRAY	8-97409-361-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1409-			●
19	16.686 SCREW; COVER FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	01	1	1504-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1309-1310	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1311-1408	●	●	●
19	16.686 SCREW; COVER EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5	8-98062-663-0	01	1	1409-1409	●	●
19	16.686 SCREW; COVER EXC. FACE LIFT MODEL<TX7> M5	8-98062-663-0	01	1	1409-1409			●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M5	8-98062-663-0	01	1	1409-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1409-			●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1309-1310	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1311-1408	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97409-362-0	01	1	1409-1409	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. FACE LIFT MODEL<TX7> GRAY	8-97409-362-0	01	1	1409-1409			●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> GRAY	8-97409-362-0	01	1	1409-1503	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1409-1503			●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1504-	●	●	●
51	16.686 SCREW; COVER FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	02	1	1504-	●	●
63	16.682 ADJUSTER; SEAT SLIDE FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98306-528-0	01	1	1504-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1309-1310	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1311-1408	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98002-907-2	01	1	1409-1409	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7> (A) INNER	8-98002-907-2	01	1	1409-1409			●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A) INNER	8-98002-907-2	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1409-			●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1309-1310	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1311-1408	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) OUTER	8-98002-908-1	01	1	1409-1409	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. FACE LIFT MODEL<TX7> (B) OUTER	8-98002-908-1	01	1	1409-1409			●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (B) OUTER	8-98002-908-1	01	1	1409-1503	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1409-1503			●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1504-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1309-1310	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1311-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1309-1310	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1311-	●	●	●
69	16.682 NUT; FRT SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-362-0	06	1	1504-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1309-1310	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1311-	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1309-1310	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1311-1408	●	●	●
99	16.716 BUSHING; SEAT BACK EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98112-751-0	01	1	1409-1409	●	●
99	16.716 BUSHING; SEAT BACK EXC. FACE LIFT MODEL<TX7>	8-98112-751-0	01	1	1409-1409			●
99	16.716 BUSHING; SEAT BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>	8-98112-751-0	01	1	1409-1503	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1409-1503			●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1504-	●	●	●
100	16.686 COVER; HINGE FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-969-0	01	1	1504-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1309-1310	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1311-1408	●	●	●
201	16.682 CABLE; ADJ EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98003-086-1	01	1	1409-1409	●	●
201	16.682 CABLE; ADJ EXC. FACE LIFT MODEL<TX7>	8-98003-086-1	01	1	1409-1409			●
201	16.682 CABLE; ADJ EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5>	8-98003-086-1	01	1	1409-1503	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1409-1503			●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1504-	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1309-1310	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1311-1408	●	●	●
228	16.714 SCREW; KNOB EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4	8-98062-662-0	01	1	1409-1409	●	●
228	16.714 SCREW; KNOB EXC. FACE LIFT MODEL<TX7> M4	8-98062-662-0	01	1	1409-1409			●
228	16.714 SCREW; KNOB EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M4	8-98062-662-0	01	1	1409-1503	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1409-1503			●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1504-	●	●	●
368	16.682 BOLT; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-986-0	06	1	1504-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1309-1310	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1311-1408	●	●	●
368	16.682 BOLT; SEAT EXC. FACE LIFT MODEL<TX7> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-1409	●	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-	●	●	●
490	16.682 COVER; FRONT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-603-0	01	1	1504-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1309-1310	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1311-1408	●	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98063-223-0	01	1	1409-1409	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7> (A)	8-98063-223-0	01	1	1409-1409			●
627	16.682 WASHER; FRT SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98063-223-0	01	1	1409-1503	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1409-1503			●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1504-	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1309-1310	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1311-1408	●	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98063-224-0	01	1	1409-1409	●	●
627	16.682 WASHER; FRT SEAT EXC. FACE LIFT MODEL<TX7> (B)	8-98063-224-0	01	1	1409-1409			●
627	16.682 WASHER; FRT SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (B)	8-98063-224-0	01	1	1409-1503	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1409-1503			●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1504-	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1309-1310	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1311-1408	●	●	●
630	16.682 NUT; CAP EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8	8-98063-225-0	01	1	1409-1409	●	●
630	16.682 NUT; CAP EXC. FACE LIFT MODEL<TX7> M8	8-98063-225-0	01	1	1409-1409			●
630	16.682 NUT; CAP EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M8	8-98063-225-0	01	1	1409-1503	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1409-1503			●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1504-	●	●	●
631	16.682 BOLT; ADJ,SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	03	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	01	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1309-1310	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1311-1408	●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-1409	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-1409			●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-			●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1309-1310	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1311-1408	●	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-1409	●	●
631	16.682 BOLT; ADJ,SEAT EXC. FACE LIFT MODEL<TX7> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-1409			●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-			●
639	16.679 CLIP; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-960-0	02	1	1504-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> (A)	8-98097-693-0	01	1	1309-1310	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> (A)	8-98097-693-0	01	1	1311-1408	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1311-1408			●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98097-693-0	01	1	1409-1409	●	●
639	16.679 CLIP; SEAT EXC. FACE LIFT MODEL<TX7> (A)	8-98097-693-0	01	1	1409-1409			●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98097-693-0	01	1	1409-	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1409-			●
642	16.716 SLIDER; CUSHION FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-971-0	02	1	1504-	●	●
663	16.724 GEAR; SLIDE, SEATBACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98286-369-0	02	1	1504-	●	●
663	16.724 GEAR; SLIDE, SEATBACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-370-0	02	1	1504-	●	●
664	16.724 COVER; SLIDE, SEATBACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98286-363-0	02	1	1504-	●	●
664	16.724 COVER; SLIDE, SEATBACK FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-364-0	02	1	1504-	●	●
665	16.716 GAGE; WEIGHT,SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98286-372-0	01	1	1504-	●	●
666	16.716 DIAL; WEIGHT GAGE FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98286-375-0	01	1	1504-	●	●
667	16.716 PAD; SEAT SUSPENSION FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-951-0	01	1	1504-	●	●
668	16.716 TRIM COVER & PAD; SEAT CUSHION FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA>	8-97466-590-0	01	1	1504-	●	●

361 114 126 478 139 479 480 116 115 16 139 368 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1309-1310	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1311-1408	●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7> (B) BLACK W/KNOB	8-97859-274-3	01	1	1409-1409	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1409-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1309-1310	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1311-1408	●	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98005-418-1	01	1	1409-1409	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. FACE LIFT MODEL<TX7> (A)	8-98005-418-1	01	1	1409-1409			●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORA GE<WN5> (A)	8-98005-418-1	01	1	1409-1503	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1409-1503			●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1504-	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-027-0	01	1	1409-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK FACE LIFT MODEL<TX7> DARK GRAY	8-97465-027-0	01	1	1409-			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK FACE LIFT MODEL<TX7> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-028-0	01	1	1409-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-293-1	01	1	1309-1310	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-293-1	01	1	1311-1408	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-293-1	01	1	1311-1408			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-293-1	01	1	1409-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-293-1	01	1	1409-			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-294-1	01	1	1309-1408	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-294-1	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-043-1	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-043-1	01	1	1409-			●
115	16.720 CUSHION ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-042-1	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-324-1	01	1	1309-1310	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-324-1	01	1	1311-1408	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-324-1	01	1	1311-1408			●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-324-3	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-324-3	01	1	1409-			●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-323-0	01	1	1309-1408	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-323-2	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-052-1	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI FACE LIFT MODEL<TX7> DARK GRAY	8-97465-052-1	01	1	1409-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI FACE LIFT MODEL<TX7> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-051-1	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-344-0	01	1	1309-1310	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-344-0	01	1	1311-1408	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97421-344-0	01	1	1311-1408			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-344-2	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-344-2	01	1	1409-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-343-0	01	1	1309-1408	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-343-2	01	1	1409-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	1309-1310	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	1311-1408	●	●	●
126	16.686 BUSHING; HINGE,RECLINING EXC. FACE LIFT MODEL<TX7>	8-98069-558-0	01	1	1409-1409	●	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	1409-	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	1309-1310	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	1311-	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	1309-1310	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	1311-1408	●	●	●
361	16.682 BOLT; ADJ,RECLINING EXC. FACE LIFT MODEL<TX7> M8X18	8-94279-109-1	02	1	1409-1409	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	1409-	●	●	●
368	16.682 BOLT; SEAT FACE LIFT MODEL<TX7> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-986-0	06	1	1504-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1309-1310	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1311-1408	●	●	●
368	16.682 BOLT; SEAT EXC. FACE LIFT MODEL<TX7> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-1409	●	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-020-0	01	1	1409-	●	●
460	16.670 BACK ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> DARK GRAY	8-97465-020-0	01	1	1409-			●
460	16.670 BACK ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-021-0	01	1	1409-	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-280-2	01	1	1309-1310	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-280-2	01	1	1311-1408	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97421-280-2	01	1	1311-1408			●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-280-2	01	1	1409-	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-280-2	01	1	1409-			●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-281-2	01	1	1309-1408	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-281-2	01	1	1409-	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-187-0	01	1	1309-1310	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-187-0	01	1	1311-	●	●	●
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	1309-1310	●	●
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	1311-	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1309-1310	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
