◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#126612) — 24 parça

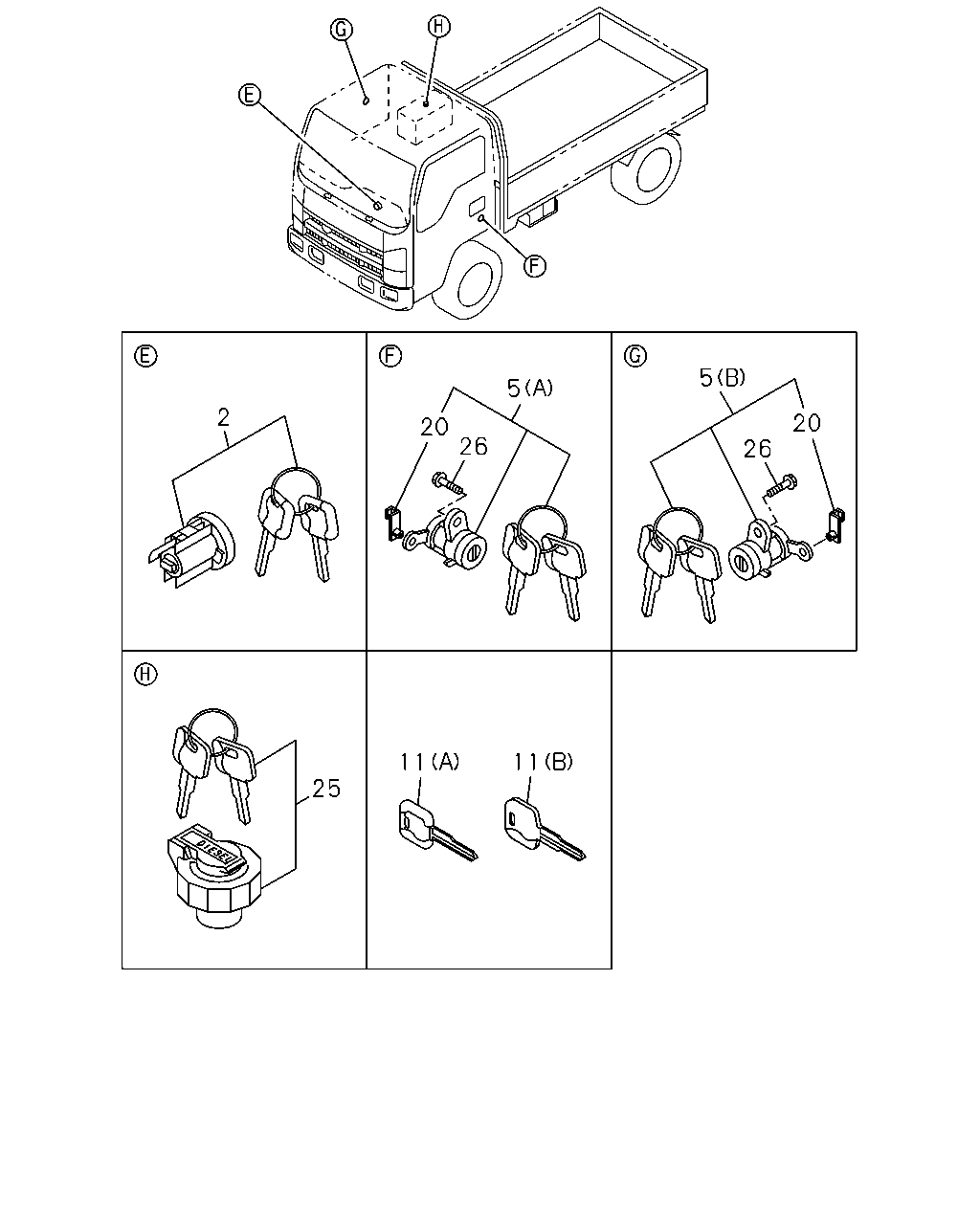

çizim 373348
5 20 26 5 26 20 2 25 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1309-1310 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1311- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1309-1310 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1311- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1309-1310 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1311- ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 1309-1310 ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 1311- ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 1309-1310 ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 1311- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1309-1310 ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1311- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1309-1310 ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1311- ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1309-1310 ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1311- ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1309-1310 ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1311- ● ● ●

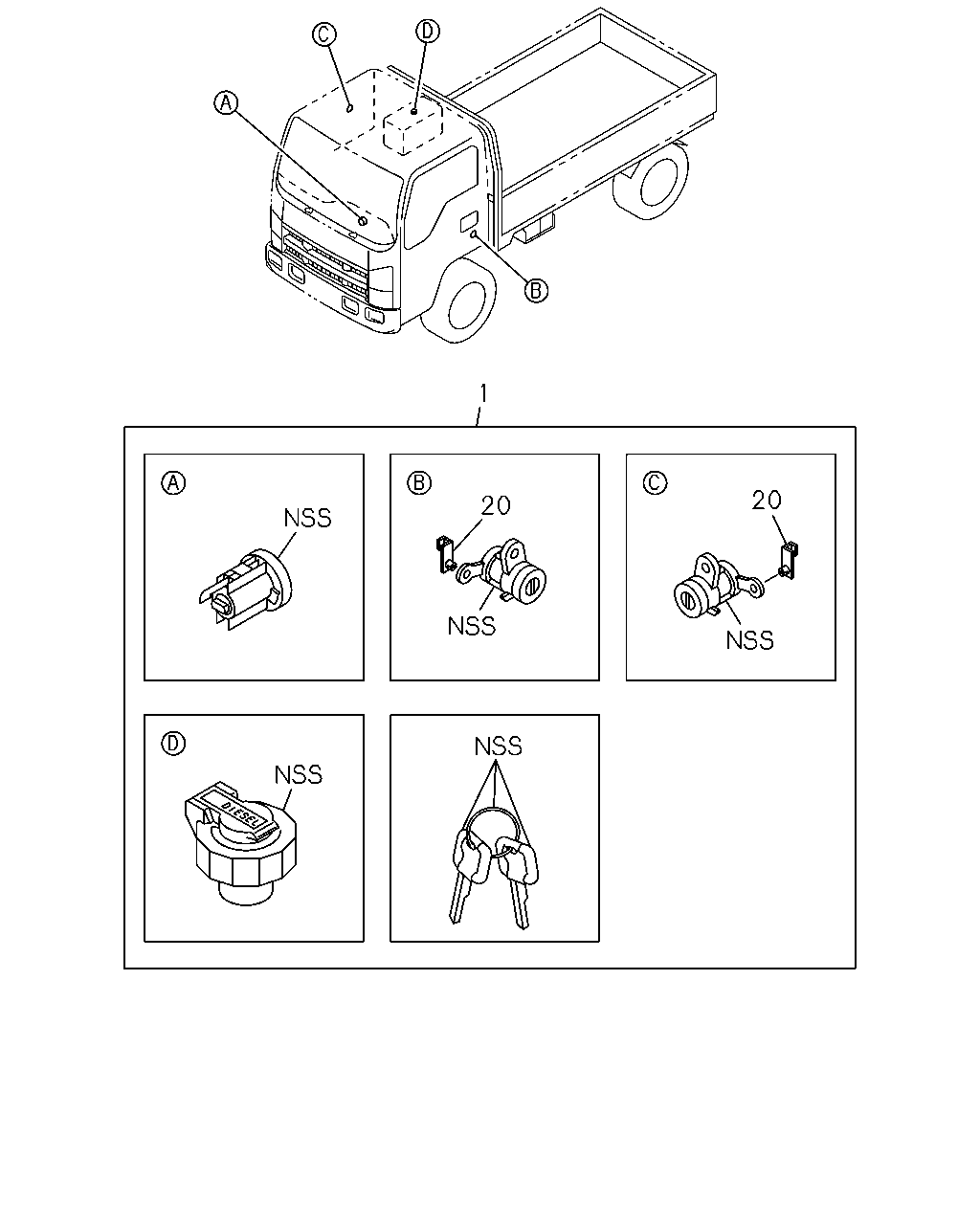

çizim 373350
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.188 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1309-1310 ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1311- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1309-1310 ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1311- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1309-1310 ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1311- ● ● ●
