6-80 — BACK PANEL (#126605) — 54 parça

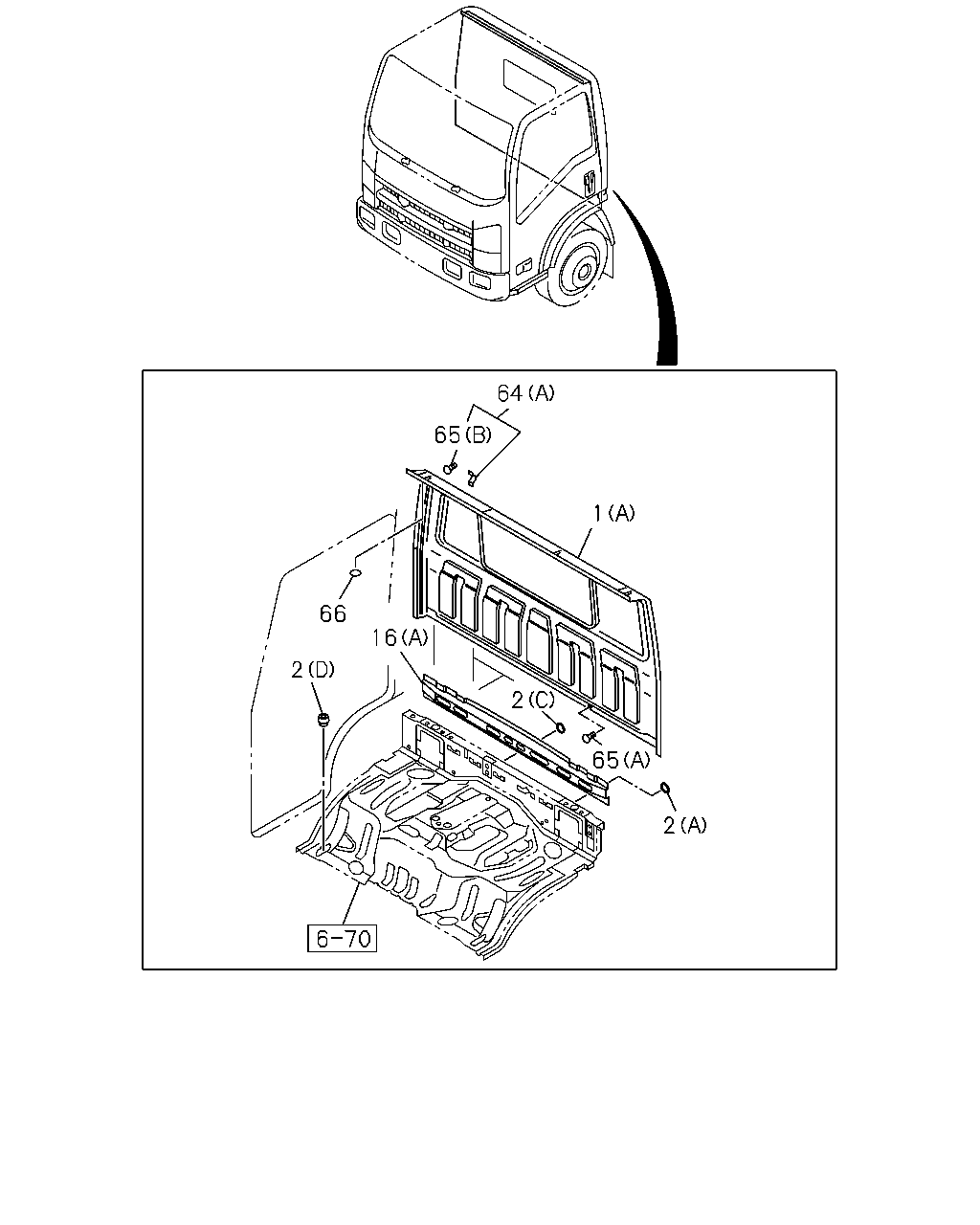

çizim 374456
2 1 64 65 16 66 2 2 65
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1311- ●
1 16.587 PANEL; BACK OUTER
4JJ1-TCS ENG(LFB) (A) 		8-97584-300-3 01 1 1309-1310 ● ●
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 1311- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1311- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1311- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1309-1310 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1311- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1309- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1311- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1311- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1-TCS ENG(LFB) (A) 		8-97584-607-3 01 1 1309-1310 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1311- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1311- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1311- ●
64 16.587 BRACKET; AIR INTAKE DUCT
4JJ1-TCS ENG(LFB) 16.570 (A) 		8-97584-611-1 01 1 1309-1310 ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1311- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1311- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1311- ●
65 17.198 STUD; BACK PANEL
4JJ1-TCS ENG(LFB) 16.588 (A) M6X12 		8-98013-112-0 04 1 1309-1310 ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1311- ● ●
65 17.198 STUD; BACK PANEL
4JJ1-TCS ENG(LFB) (B) 		8-94389-701-0 01 1 1309-1310 ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1311- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1309- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1309- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●

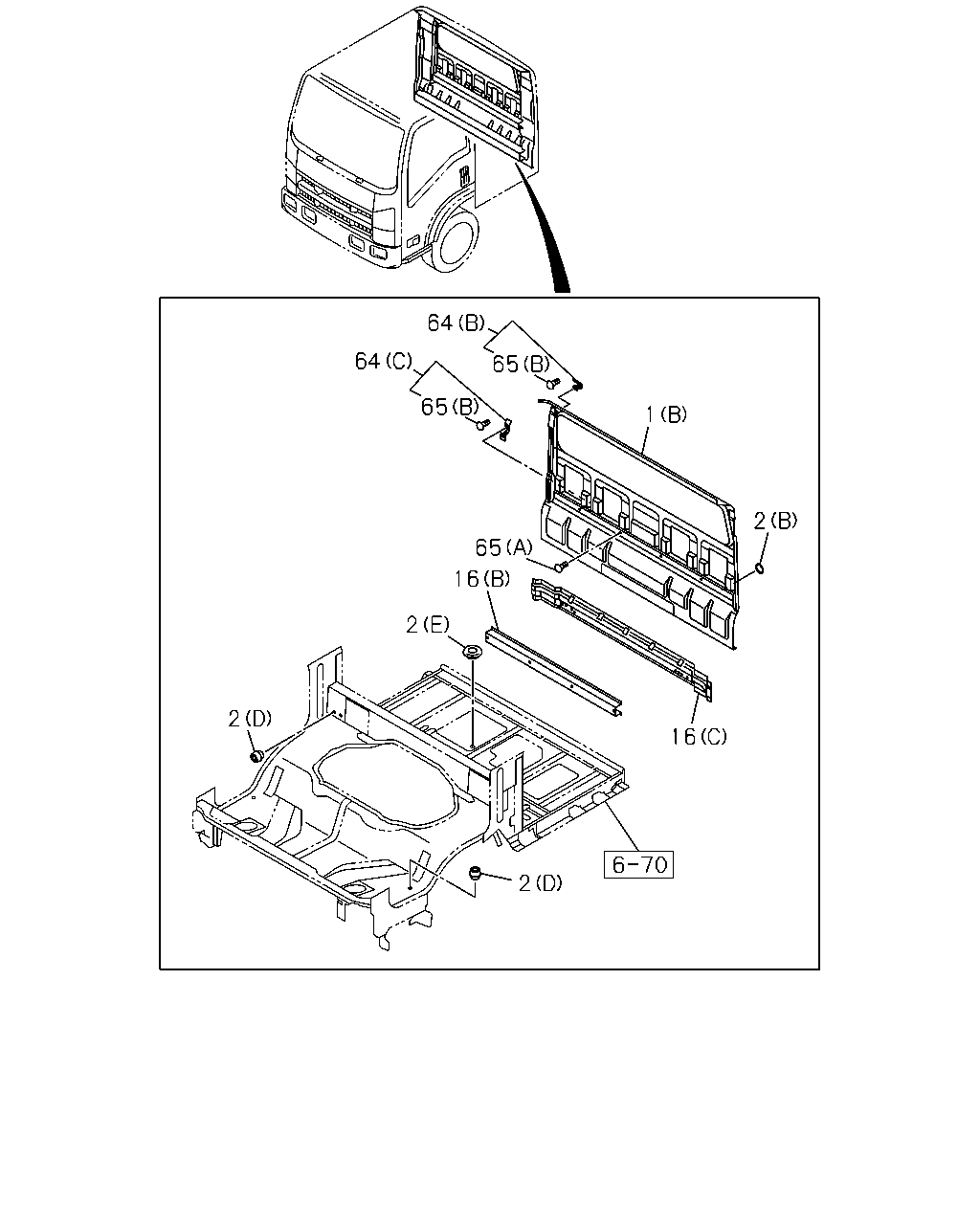

çizim 389348
16 2 1 65 64 64 65 65 16 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1311- ●
1 16.587 PANEL; BACK OUTER
4JJ1-TCS ENG(LFB) (A) 		8-97584-300-3 01 1 1309-1310 ● ●
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 1311- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1311- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1311- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1309-1310 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1311- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1309- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1311- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1311- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1-TCS ENG(LFB) (A) 		8-97584-607-3 01 1 1309-1310 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1311- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1311- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1311- ●
64 16.587 BRACKET; AIR INTAKE DUCT
4JJ1-TCS ENG(LFB) 16.570 (A) 		8-97584-611-1 01 1 1309-1310 ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1311- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1311- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1311- ●
65 17.198 STUD; BACK PANEL
4JJ1-TCS ENG(LFB) 16.588 (A) M6X12 		8-98013-112-0 04 1 1309-1310 ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1311- ● ●
65 17.198 STUD; BACK PANEL
4JJ1-TCS ENG(LFB) (B) 		8-94389-701-0 01 1 1309-1310 ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1311- ● ●
