6-66 — HEAD LINING AND TRIM (#126600) — 133 parça

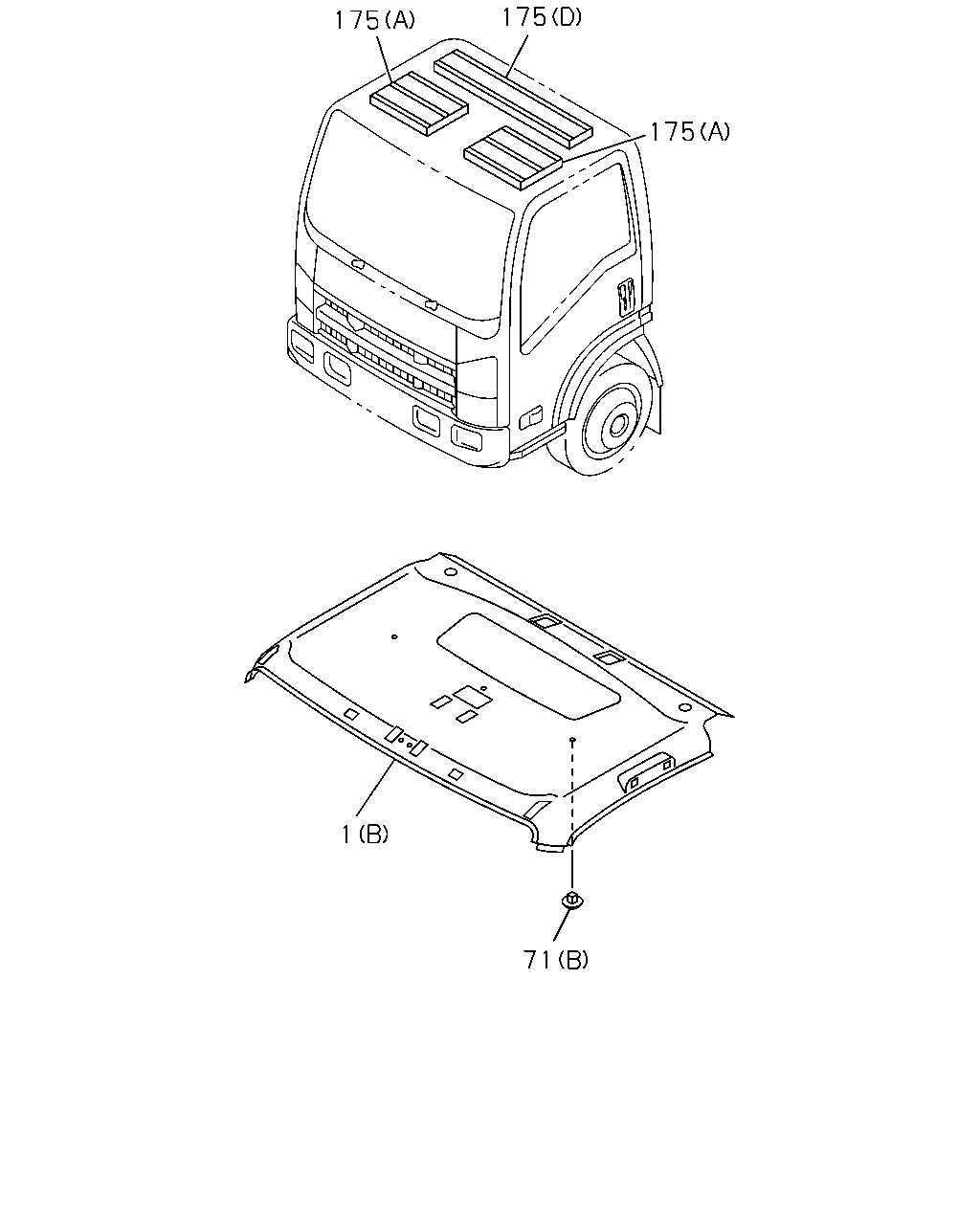

çizim 373320
1 71 175 175 175
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (C) DARK GRAY 		8-97411-682-0 01 1 1311- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97406-291-4 01 1 1311- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97406-289-3 01 1 1311- ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97425-051-0 01 1 1309- ● ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97425-049-0 01 1 1309- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97411-681-2 01 1 1309- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-282-6 01 1 1309- ● ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1309- ● ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 34 1 1311- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 1311- ●
71 16.742 FASTENER; HD LINING
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 03 1 1309- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1309- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> (B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1309- ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98053-866-2 02 1 1311- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 1311- ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98051-799-2 01 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1309-1310 ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1311- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1309- ● ●

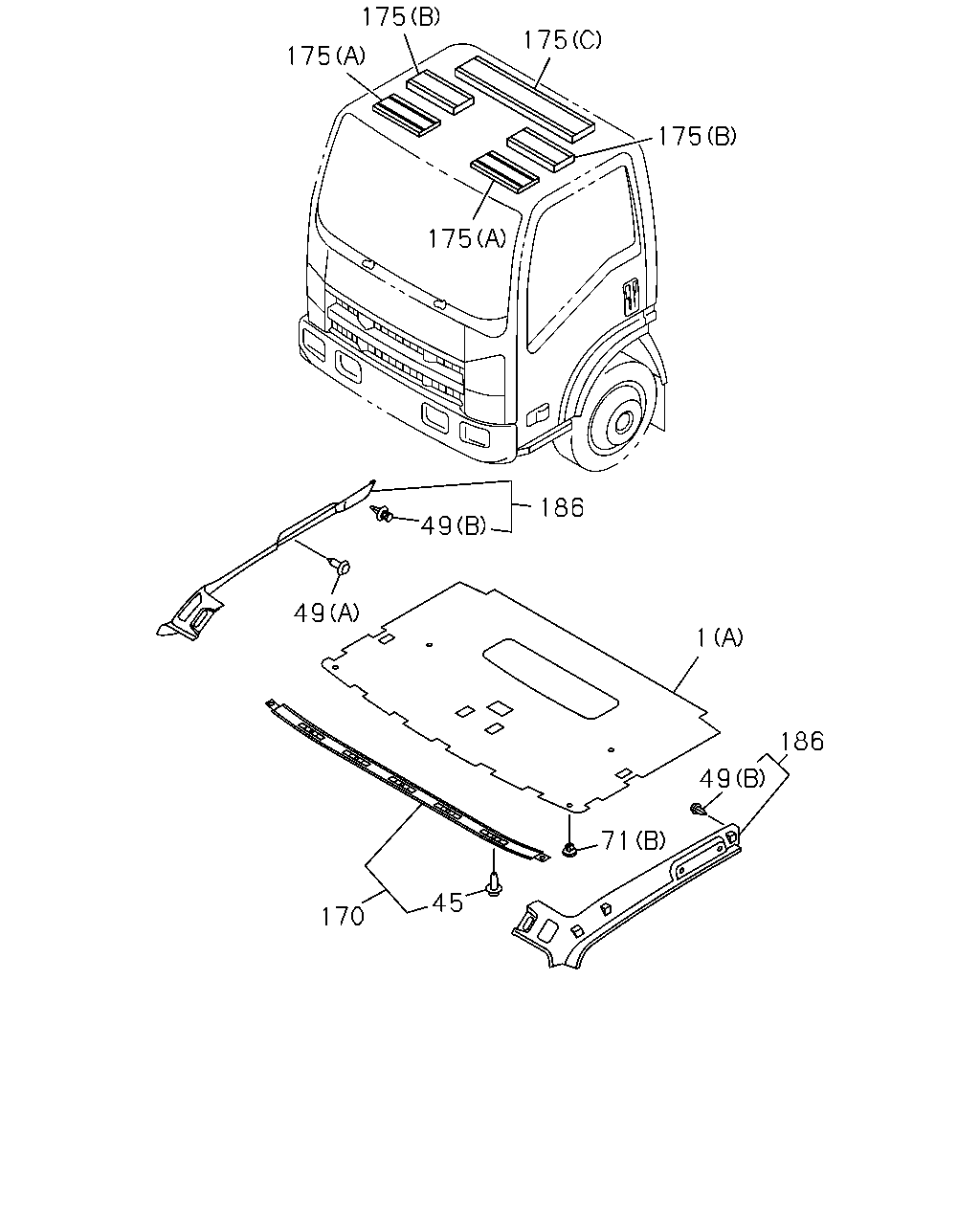

çizim 374114
175 175 175 175 175 186 49 49 1 49 186 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (C) DARK GRAY 		8-97411-682-0 01 1 1311- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97406-291-4 01 1 1311- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97406-289-3 01 1 1311- ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97425-051-0 01 1 1309- ● ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97425-049-0 01 1 1309- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97411-681-2 01 1 1309- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-282-6 01 1 1309- ● ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1309- ● ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1309-1310 ● ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1311- ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1311- ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1311- ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 1311- ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1311- ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 1311- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1311-1410 ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1311-1410 ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 1311-1410 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 34 1 1311- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 1311- ●
71 16.742 FASTENER; HD LINING
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 03 1 1309- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1309- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> (B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1309- ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1309- ● ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-296-4 01 1 1309-1310 ● ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-296-4 01 1 1311- ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 1311- ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98053-866-2 02 1 1311- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 1311- ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98051-799-2 01 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1309-1310 ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1311- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1309- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1311- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1311- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1311- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1311- ●

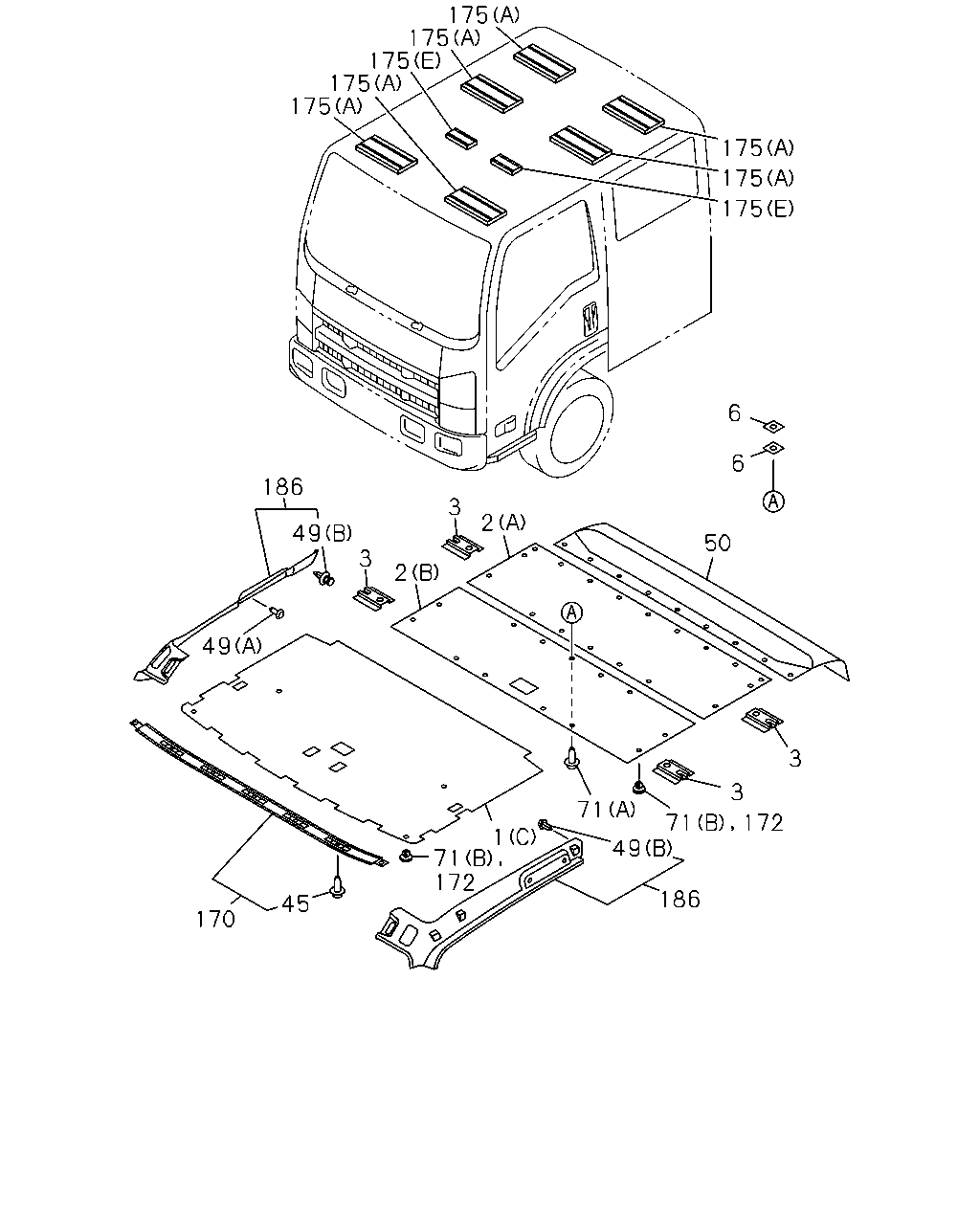

çizim 389347
175 175 175 175 175 175 175 175 6 6 50 2 3 2 3 49 186 49 170 45 71 172 1 71 71 172 3 3 186 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (C) DARK GRAY 		8-97411-682-0 01 1 1311- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97406-291-4 01 1 1311- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97406-289-3 01 1 1311- ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97425-051-0 01 1 1309- ● ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97425-049-0 01 1 1309- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97411-681-2 01 1 1309- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-282-6 01 1 1309- ● ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 1309- ● ●
2 16.742 LINING; HD,ROOF RR
(A) DARK GRAY 		8-97406-292-2 01 1 1311- ●
2 16.742 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97407-331-3 01 1 1311- ●
3 16.575 COVER; TRIM,ROOF SIDE
DARK GRAY 		8-97407-365-0 04 1 1311- ●
6 16.742 SPACER; HD LINING
1 SET=20 PIECE 		8-98100-429-0 01 1 1311- ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1309-1310 ● ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1311- ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1311- ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1311- ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 1311- ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 04 1 1311- ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 1311- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1309-1310 ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1311-1410 ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1311-1410 ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 1311-1410 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ●
50 16.742 TRIM; ROOF BACK
DARK GRAY 		8-97406-295-2 01 1 1311- ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 34 1 1311- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 1311- ●
71 16.742 FASTENER; HD LINING
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 03 1 1309- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1309- ● ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> (B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1309- ● ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 1309- ● ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-296-4 01 1 1309-1310 ● ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-296-4 01 1 1311- ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 1311- ●
172 16.742 RETAINER; HEAD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 19 1 1311- ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98053-866-2 02 1 1311- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 1311- ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98051-799-2 01 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1309-1310 ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1311- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 1309- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 1309- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1311- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1311- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1311- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1309-1310 ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1311- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1311- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
