4-11 — FRONT HUB AND DRUM OR ROTOR (#1266) — 121 parça

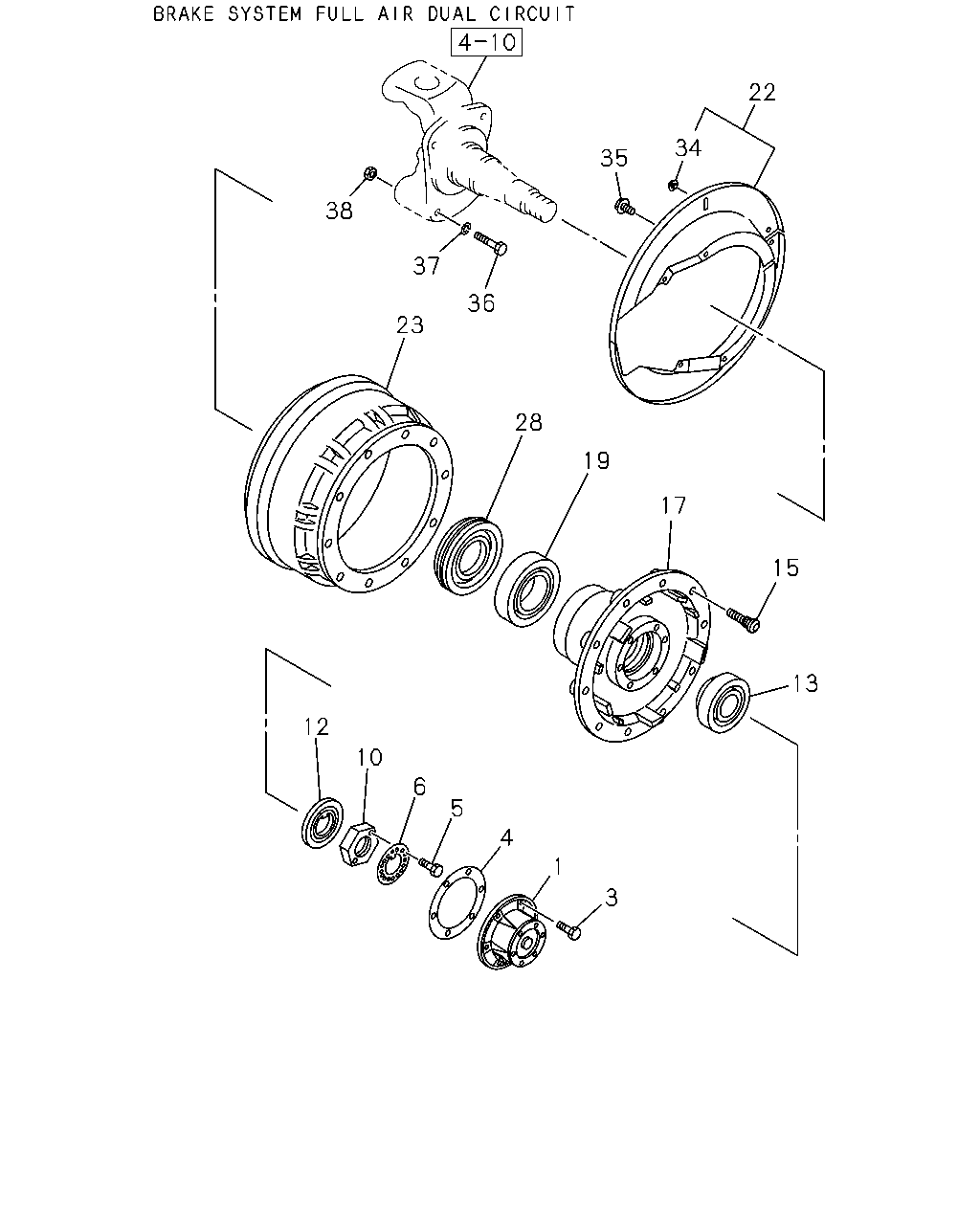

22 34 35 38 37 36 23 28 19 17 15 13 12 10 6 5 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9202-	●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42313-016-1	02	1	9202-		●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=156	9-42313-123-2	02	1	9202-		●
3	BOLT; HUB CAP,FRT WHEEL M8X18 W/LK WASHER	9-01900-818-0	12	1	9202-9204	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	9-01900-818-0	12	1	9202-9204		●
3	BOLT; HUB CAP,FRT WHEEL M8X18 W/LK WASHER	0-50040-818-0	12	1	9205-9509	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	0-50040-818-0	12	1	9205-9509		●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9510-	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	12	1	9510-		●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X14 W/LK WASHER	9-01900-814-0	12	1	9202-9204		●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X14 W/LK WASHER	0-50040-814-0	12	1	9205-9509		●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 FLANGE	0-28080-812-0	12	1	9510-		●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9202-	●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09630-119-0	02	1	9202-		●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-029-0	02	1	9202-		●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9202-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9202-	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9202-	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9202-	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-085-0	02	1	9202-	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-031-0	20	1	9202-	●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42337-031-0	20	1	9202-		●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	9202-		●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	9202-		●
17	HUB; FRT AXLE	1-42312-089-1	02	1	9202-	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42312-089-1	02	1	9202-		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-047-2	02	1	9202-9211		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-111-0	02	1	9212-9404		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-109-0	02	1	9405-9506		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-128-0	02	1	9507-		●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9202-	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-143-0	02	1	9202-	●	●
22	COVER SET; FRT BRK DRUM	1-87061-774-0	01	1	9202-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-774-0	01	1	9202-		●
22	COVER SET; FRT BRK DRUM	1-87061-773-0	01	1	9202-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-773-0	01	1	9202-		●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	9202-		●
23	DRUM; BRK,FRT	1-42315-330-1	02	1	9202-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42315-330-1	02	1	9202-		●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42315-329-1	02	1	9202-9307		●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42315-336-1	02	1	9308-		●
28	SEAL; OIL,FRT HUB TOKYO BUHIN	1-09625-449-1	02	1	9202-	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TOKYO BUHIN	1-09625-449-1	02	1	9202-		●
28	SEAL; OIL,FRT HUB KOYO	1-09625-503-0	02	1	9407-	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KOYO	1-09625-503-0	02	1	9407-		●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=140	1-09625-041-0	02	1	9202-		●
34	COVER; CHECK HOLE,DRUM COVER	1-87061-402-0	04	1	9202-	●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-402-0	04	1	9202-		●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09333-095-0	04	1	9202-9501		●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09333-151-0	04	1	9502-		●
35	BOLT; DRUM COVER	1-87061-389-0	08	1	9202-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-389-0	08	1	9202-		●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9204		●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-		●
36	BOLT; BACK PLATE M16X52	1-09044-001-1	04	1	9202-	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-516-0	04	1	9202-9401	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	04	1	9402-	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	04	1	9202-	●	●

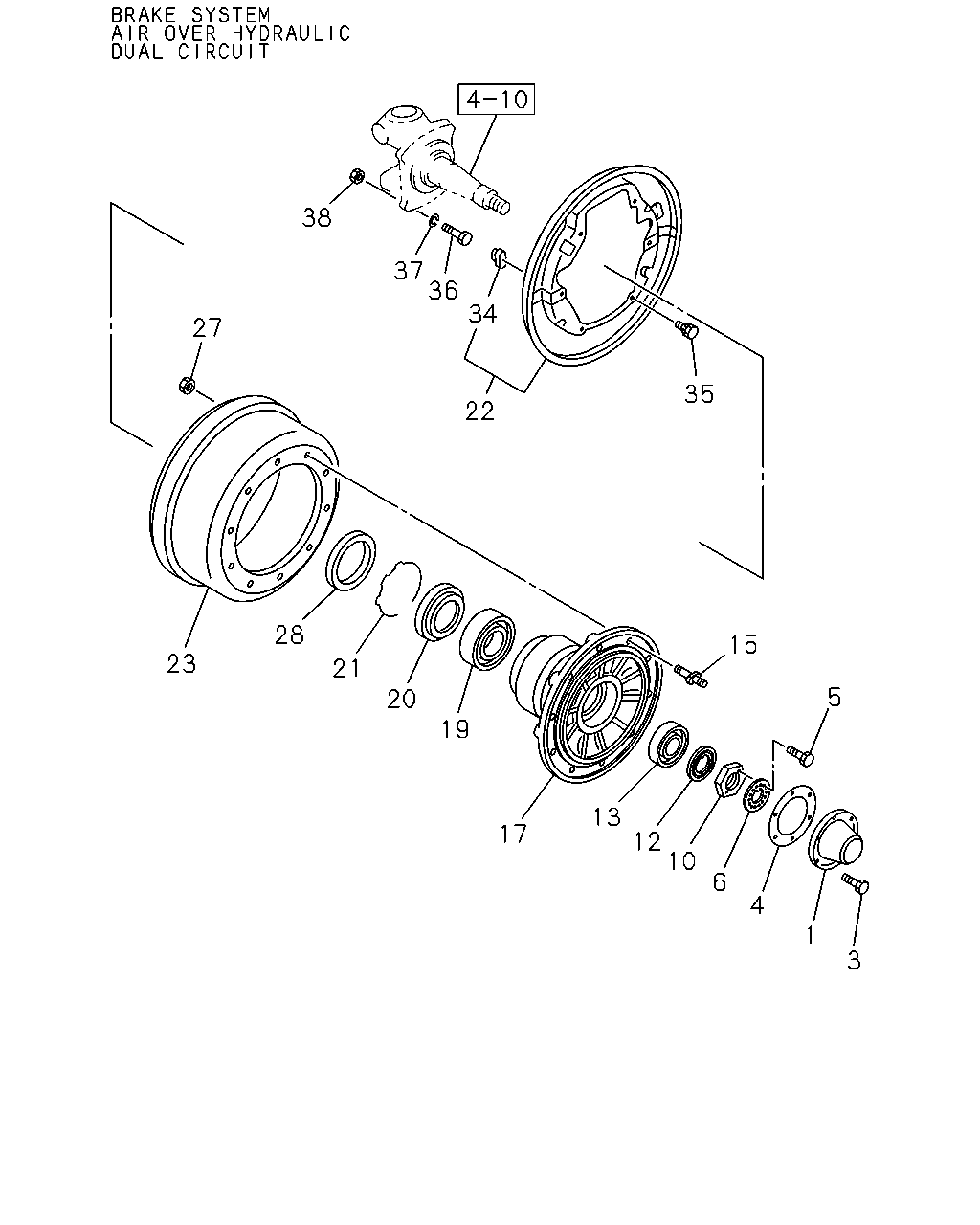

38 37 36 34 27 35 22 28 15 23 21 5 20 19 13 17 12 10 6 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9202-	●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42313-016-1	02	1	9202-		●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=156	9-42313-123-2	02	1	9202-		●
3	BOLT; HUB CAP,FRT WHEEL M8X18 W/LK WASHER	9-01900-818-0	12	1	9202-9204	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	9-01900-818-0	12	1	9202-9204		●
3	BOLT; HUB CAP,FRT WHEEL M8X18 W/LK WASHER	0-50040-818-0	12	1	9205-9509	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	0-50040-818-0	12	1	9205-9509		●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9510-	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	12	1	9510-		●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X14 W/LK WASHER	9-01900-814-0	12	1	9202-9204		●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X14 W/LK WASHER	0-50040-814-0	12	1	9205-9509		●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 FLANGE	0-28080-812-0	12	1	9510-		●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9202-	●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09630-119-0	02	1	9202-		●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-029-0	02	1	9202-		●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9202-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9202-	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9202-	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9202-	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-085-0	02	1	9202-	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-031-0	20	1	9202-	●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42337-031-0	20	1	9202-		●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	9202-		●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	9202-		●
17	HUB; FRT AXLE	1-42312-089-1	02	1	9202-	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42312-089-1	02	1	9202-		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-047-2	02	1	9202-9211		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-111-0	02	1	9212-9404		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-109-0	02	1	9405-9506		●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42312-128-0	02	1	9507-		●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9202-	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-143-0	02	1	9202-	●	●
20	COVER; HUB BRG INNER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-039-0	02	1	9202-		●
21	RING; SNAP,HUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09587-017-0	02	1	9202-		●
22	COVER SET; FRT BRK DRUM	1-87061-774-0	01	1	9202-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-774-0	01	1	9202-		●
22	COVER SET; FRT BRK DRUM	1-87061-773-0	01	1	9202-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-773-0	01	1	9202-		●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	9202-		●
23	DRUM; BRK,FRT	1-42315-330-1	02	1	9202-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42315-330-1	02	1	9202-		●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42315-329-1	02	1	9202-9307		●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42315-336-1	02	1	9308-		●
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09110-522-0	16	1	9202-		●
28	SEAL; OIL,FRT HUB TOKYO BUHIN	1-09625-449-1	02	1	9202-	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TOKYO BUHIN	1-09625-449-1	02	1	9202-		●
28	SEAL; OIL,FRT HUB KOYO	1-09625-503-0	02	1	9407-	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KOYO	1-09625-503-0	02	1	9407-		●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=140	1-09625-041-0	02	1	9202-		●
34	COVER; CHECK HOLE,DRUM COVER	1-87061-402-0	04	1	9202-	●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-402-0	04	1	9202-		●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09333-095-0	04	1	9202-9501		●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09333-151-0	04	1	9502-		●
35	BOLT; DRUM COVER	1-87061-389-0	08	1	9202-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87061-389-0	08	1	9202-		●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9204		●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-		●
36	BOLT; BACK PLATE M16X52	1-09044-001-1	04	1	9202-	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-516-0	04	1	9202-9401	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	04	1	9402-	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	04	1	9202-	●	●
