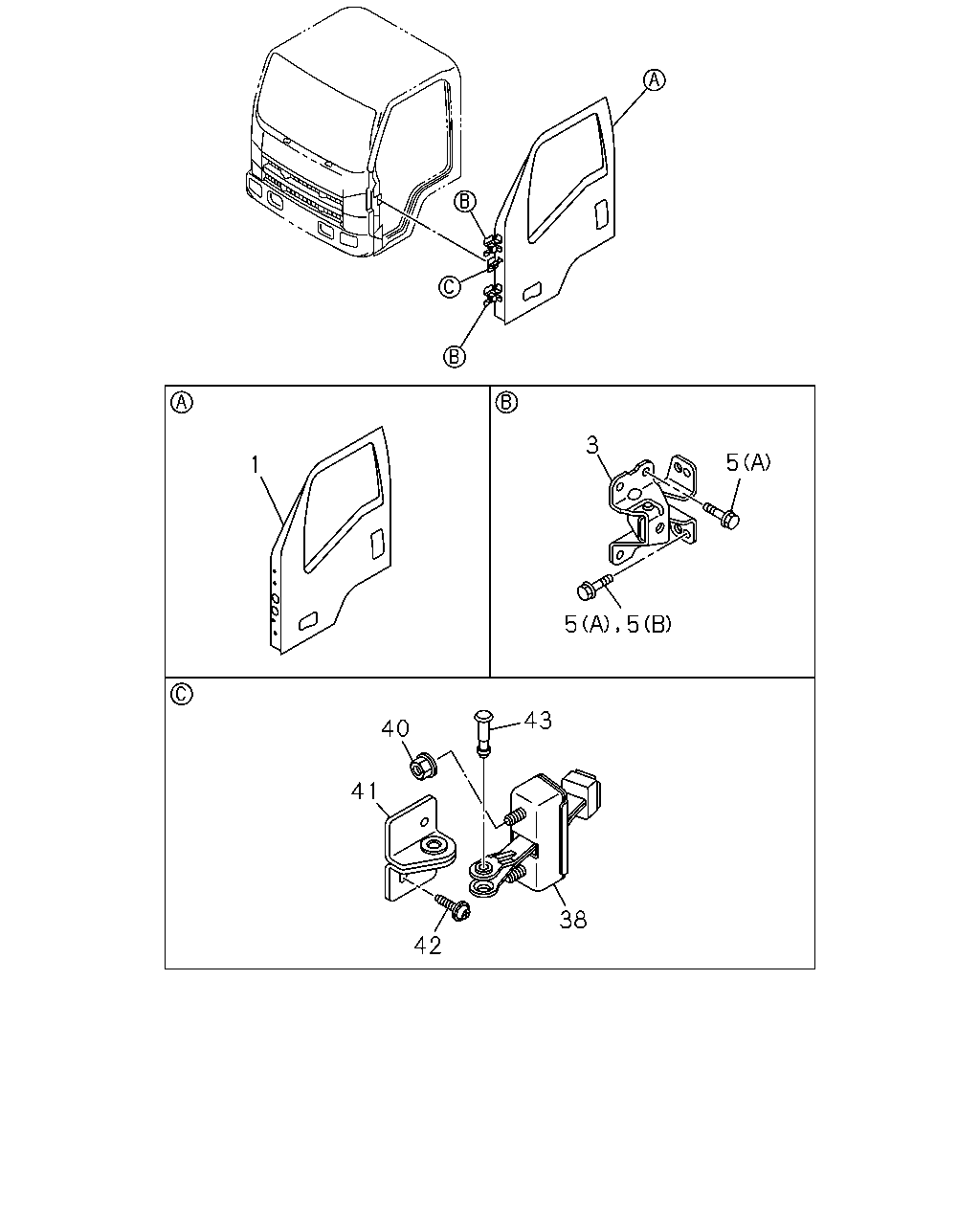

6-30 — FRONT DOOR AND HINGE (#126593) — 29 parça

5 3 5 5 43 38 42 41 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98171-225-0	01	1	1309-1310	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98171-225-0	01	1	1311-1411	●	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98260-601-0	01	1	1412-	●	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98171-233-0	01	1	1309-1310	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98171-233-0	01	1	1311-1411	●	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98260-602-0	01	1	1412-	●	●	●
3	16.320 HINGE; DOOR FRT	8-98191-302-0	04	1	1309-1310	●	●
3	16.320 HINGE; DOOR FRT	8-98191-302-0	04	1	1311-	●	●	●
5	16.320 BOLT; HINGE KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE	8-98049-756-0	08	1	1309-1310	●	●
5	16.320 BOLT; HINGE KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE	8-98049-756-0	08	1	1311-	●	●	●
5	16.320 BOLT; HINGE (B) M8X23 FLANGE	8-98029-440-0	08	1	1309-1310	●	●
5	16.320 BOLT; HINGE EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE	8-98029-440-0	08	1	1309-1310	●	●
5	16.320 BOLT; HINGE EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE	8-98029-440-0	08	1	1311-1408	●	●	●
5	16.320 BOLT; HINGE (B) M8X23 FLANGE	8-98029-440-0	08	1	1311-1408	●	●
5	16.320 BOLT; HINGE EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE	8-98029-440-0	08	1	1409-	●	●	●
5	16.320 BOLT; HINGE EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE	8-98029-440-0	08	1	1409-	●	●
5	16.320 BOLT; HINGE (A) M8X20 FLANGE	8-98049-756-0	12	1	1309-1310	●	●
5	16.320 BOLT; HINGE (A) M8X20 FLANGE	8-98049-756-0	12	1	1311-	●	●	●
38	16.320 CHECKER ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-730-6	02	1	1309-1310	●	●
38	16.320 CHECKER ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-730-6	02	1	1311-1508	●	●	●
38	16.320 CHECKER ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98296-602-0	02	1	1509-	●	●	●
40	16.320 NUT; CHECKER 01.840 M8 W/DISHED WASHER	8-97329-625-0	04	1	1309-1310	●	●
40	16.320 NUT; CHECKER 01.840 M8 W/DISHED WASHER	8-97329-625-0	04	1	1311-	●	●	●
41	16.320 BRACKET; CHECKER	8-98029-290-3	02	1	1309-1310	●	●
41	16.320 BRACKET; CHECKER	8-98029-290-3	02	1	1311-	●	●	●
42	16.320 BOLT; BRKT M6X20 W/PL WASHER	8-98032-159-2	04	1	1309-1310	●	●
42	16.320 BOLT; BRKT M6X20 W/PL WASHER	8-98032-159-2	04	1	1311-	●	●	●
43	16.320 PIN	8-98037-152-2	02	1	1309-1310	●	●
43	16.320 PIN	8-98037-152-2	02	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
