6-20 — SIDE PANEL AND STEP (#126592) — 264 parça

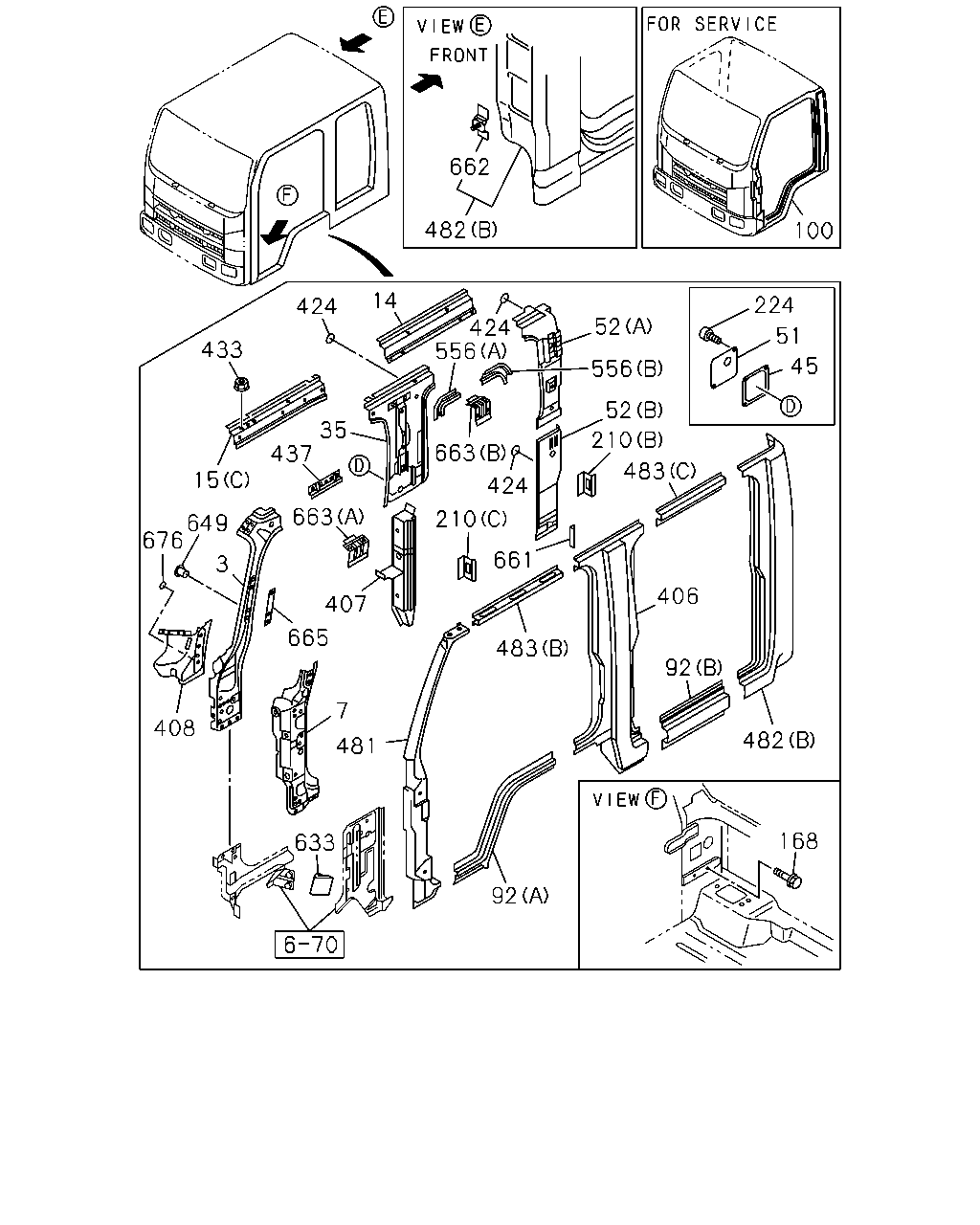

çizim 373507
662 482 100 224 45 51 52 52 556 210 483 406 92 482 168 92 7 481 633 408 665 663 407 3 676 649 15 437 35 14 424 433 424 556 663 210 424 661 483
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1311- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1311- ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1311- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1309- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1311- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1311- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1311- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1311- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1311- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1311- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1311- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-98006-251-3 01 1 1311- ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1311- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1311- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1311- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-543-2 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-543-2 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1309- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-543-2 01 1 1309- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1309-1310 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1311- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1309- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1309- ● ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1311- ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 1311- ●
406 16.570 PILLAR; CENTER 8-98097-233-0 01 1 1311- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1311- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1311- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1311- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1311- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1311- ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 16 1 1311- ●
424 16.570 SEAL; CLOSING
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1311- ●
424 16.570 SEAL; CLOSING
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 16 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1309- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1311- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1311- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1309- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1309- ● ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1311- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1311- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1311- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1311- ●
633 16.592 SEALER
4JJ1-TCS ENG(LFB) 16.165 		8-97852-601-2 02 1 1509- ●
633 16.592 SEALER
16.165 		8-97852-601-2 02 1 1409-1410 ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1309-1310 ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1311- ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1311- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1311- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1311- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1309- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1311- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1311- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1309- ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1309-1310 ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1311- ● ● ●

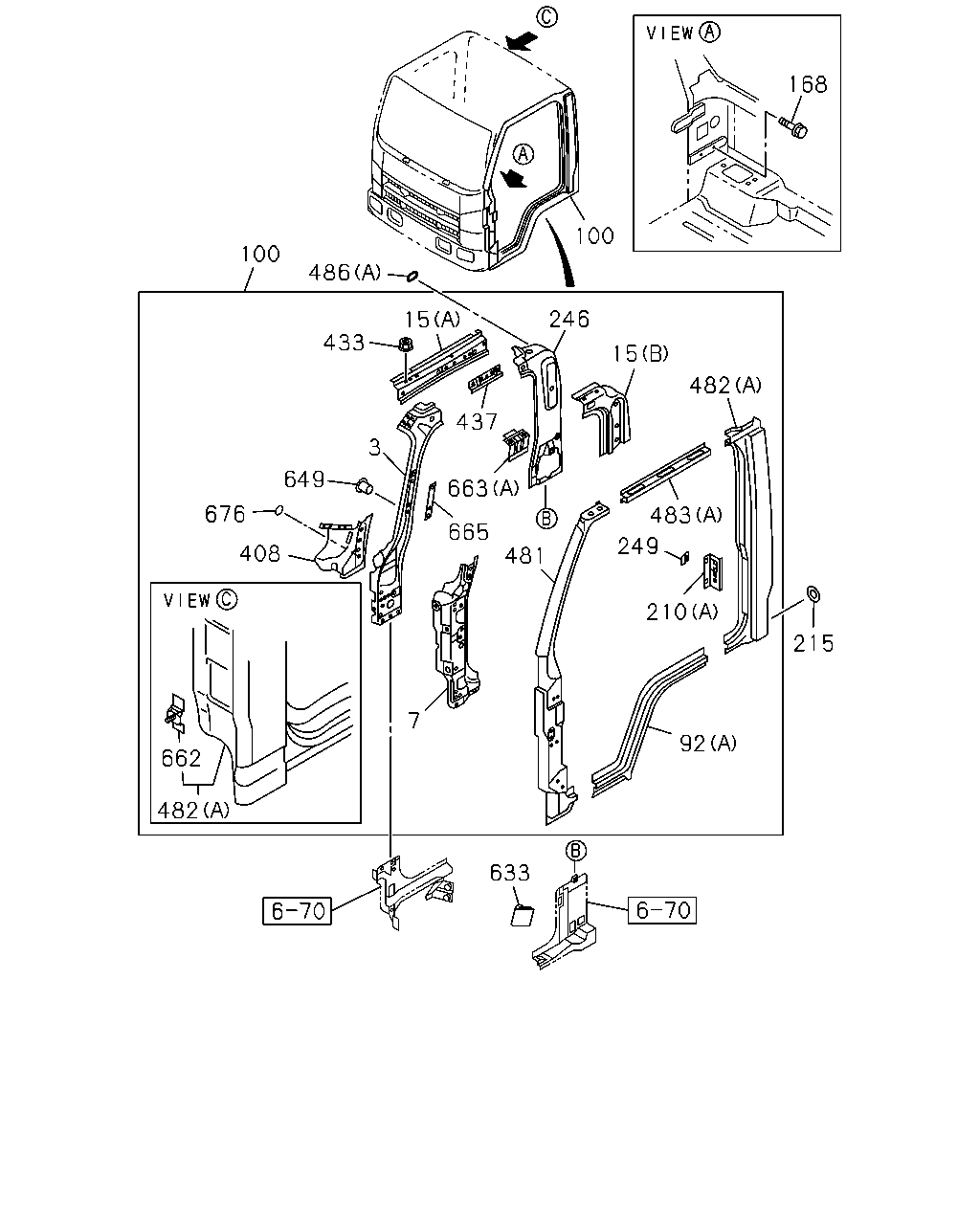

çizim 374098
168 100 100 486 433 15 246 482 15 437 663 665 3 649 676 408 7 662 482 481 483 249 210 215 92 633
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1311- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1311- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1309- ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1311- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1311- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1311- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-543-2 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-543-2 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1309- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-543-2 01 1 1309- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1309-1310 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1311- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1309- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1309- ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1309- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1309- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1309- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 1309- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1311- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1311- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1309- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1311- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1311- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1309- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1311- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●
633 16.592 SEALER
4JJ1-TCS ENG(LFB) 16.165 		8-97852-601-2 02 1 1509- ●
633 16.592 SEALER
16.165 		8-97852-601-2 02 1 1409-1410 ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1309-1310 ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1311- ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1311- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1309- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1311- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1311- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1309- ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1309-1310 ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1311- ● ● ●

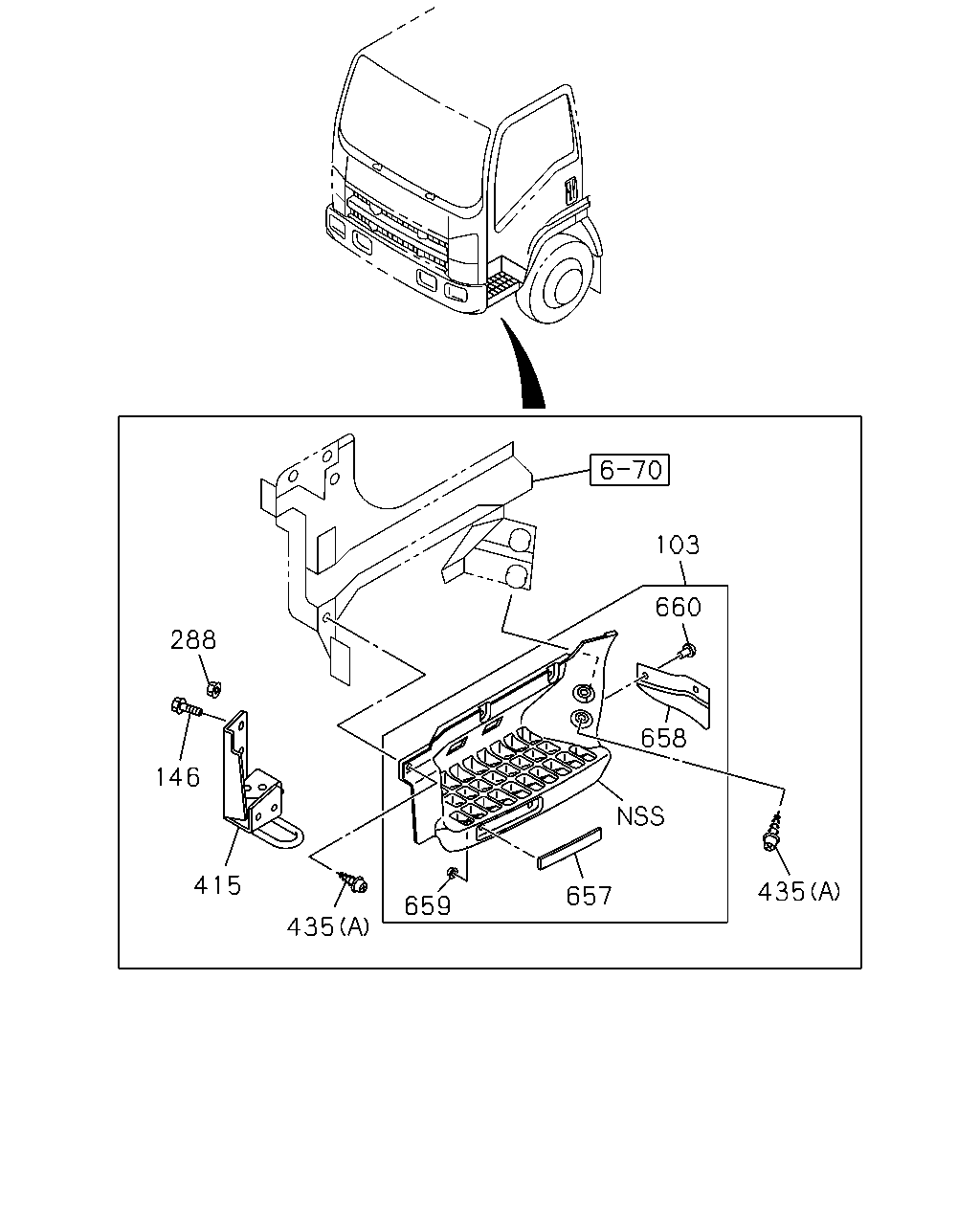

çizim 389192
103 660 658 435 657 659 435 415 146 288
BalonParca AdiParca NoAdetTipApplied Date A B C
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1309-1310 ● ●
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1311- ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1309-1310 ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1311- ● ● ●
146 08.228 BOLT; STEP BRKT
4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1509- ●
146 08.228 BOLT; STEP BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409-1410 ● ● ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 M8 FLANGE 		0-91180-108-0 06 1 1409- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ●
415 08.228 REINFORCEMENT; ASSIST STEP
4JJ1-TCS ENG(LFB) 		8-98112-547-1 01 1 1509- ●
415 08.228 REINFORCEMENT; ASSIST STEP
4JJ1-TCS ENG(LFB) 		8-98112-548-1 01 1 1509- ●
415 08.228 REINFORCEMENT; ASSIST STEP 8-98112-547-1 01 1 1409-1410 ● ● ●
415 08.228 REINFORCEMENT; ASSIST STEP 8-98112-548-1 01 1 1409-1410 ● ● ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1409- ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1311-1408 ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1409- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1309-1310 ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1311- ● ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1309-1310 ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1311- ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1309-1310 ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1311- ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1309-1310 ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1311- ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1309-1310 ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1311- ● ● ●

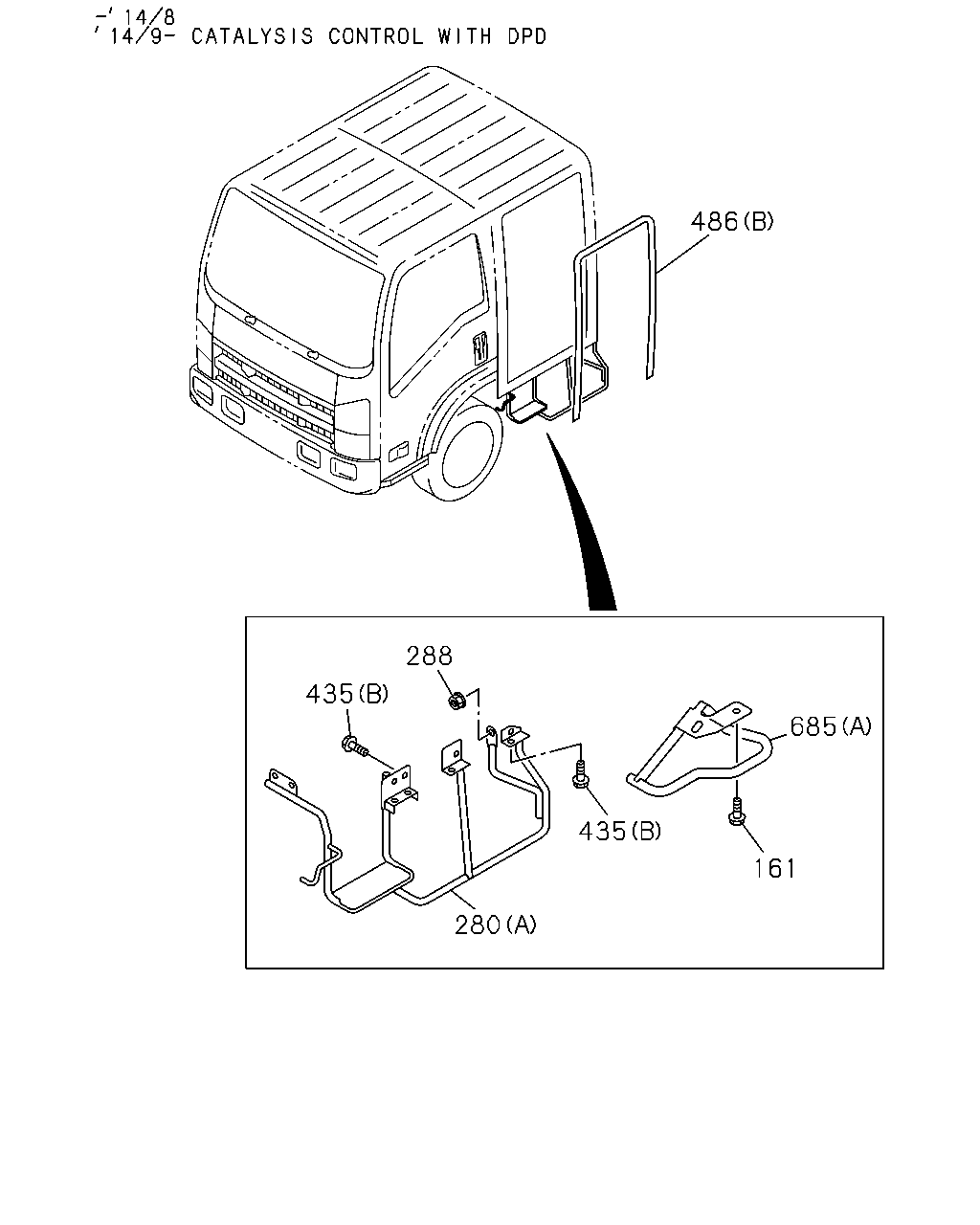

çizim 389276
161 685 435 280 288 435 486
BalonParca AdiParca NoAdetTipApplied Date A B C
161 08.225 BOLT; FIX
4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1311- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. CAUTION SPANISH<YN1> (C) 		8-98299-317-0 01 1 1410- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-98279-451-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-447-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98279-448-0 01 1 1409-1409 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) CAUTION SPANISH<YN1> (C) 		8-98299-329-0 01 1 1410- ●
280 08.225 STEP ASM; RR
(A) 		8-98079-880-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98079-880-1 01 1 1409- ●
280 08.225 STEP ASM; RR
(A) 		8-98081-707-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98081-707-1 01 1 1409- ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 M8 FLANGE 		0-91180-108-0 06 1 1409- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1409- ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1311-1408 ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1409- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1309-1310 ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1311- ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1311- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●
685 08.225 BAR ASM; GUARD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-449-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-398-0 01 1 1311-1408 ●
685 08.225 BAR ASM; GUARD
(A) 		8-98240-398-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-399-0 01 1 1311- ●

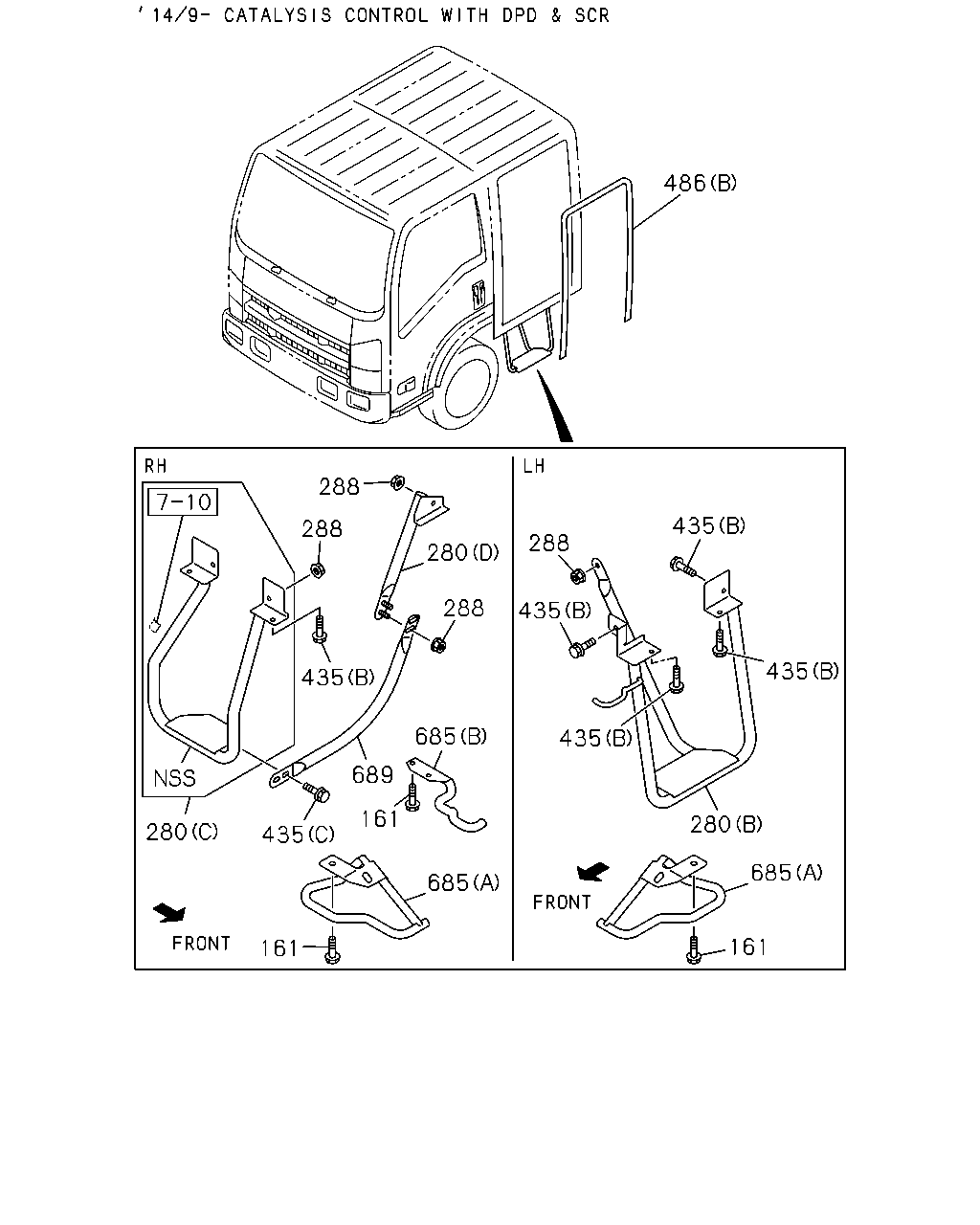

çizim 444169
486 435 288 435 280 288 288 288 435 685 689 161 435 280 161 685 280 685 161 435 435
BalonParca AdiParca NoAdetTipApplied Date A B C
161 08.225 BOLT; FIX
4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1311- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. CAUTION SPANISH<YN1> (C) 		8-98299-317-0 01 1 1410- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-98279-451-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-447-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98279-448-0 01 1 1409-1409 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) CAUTION SPANISH<YN1> (C) 		8-98299-329-0 01 1 1410- ●
280 08.225 STEP ASM; RR
(A) 		8-98079-880-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98079-880-1 01 1 1409- ●
280 08.225 STEP ASM; RR
(A) 		8-98081-707-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98081-707-1 01 1 1409- ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 M8 FLANGE 		0-91180-108-0 06 1 1409- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1409- ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1311-1408 ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1409- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1309-1310 ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1311- ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1311- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●
685 08.225 BAR ASM; GUARD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-449-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-398-0 01 1 1311-1408 ●
685 08.225 BAR ASM; GUARD
(A) 		8-98240-398-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-399-0 01 1 1311- ●
689 08.225 SUPPORT; STEP REAR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 16.545 		8-98283-606-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
