◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#126588) — 92 parça

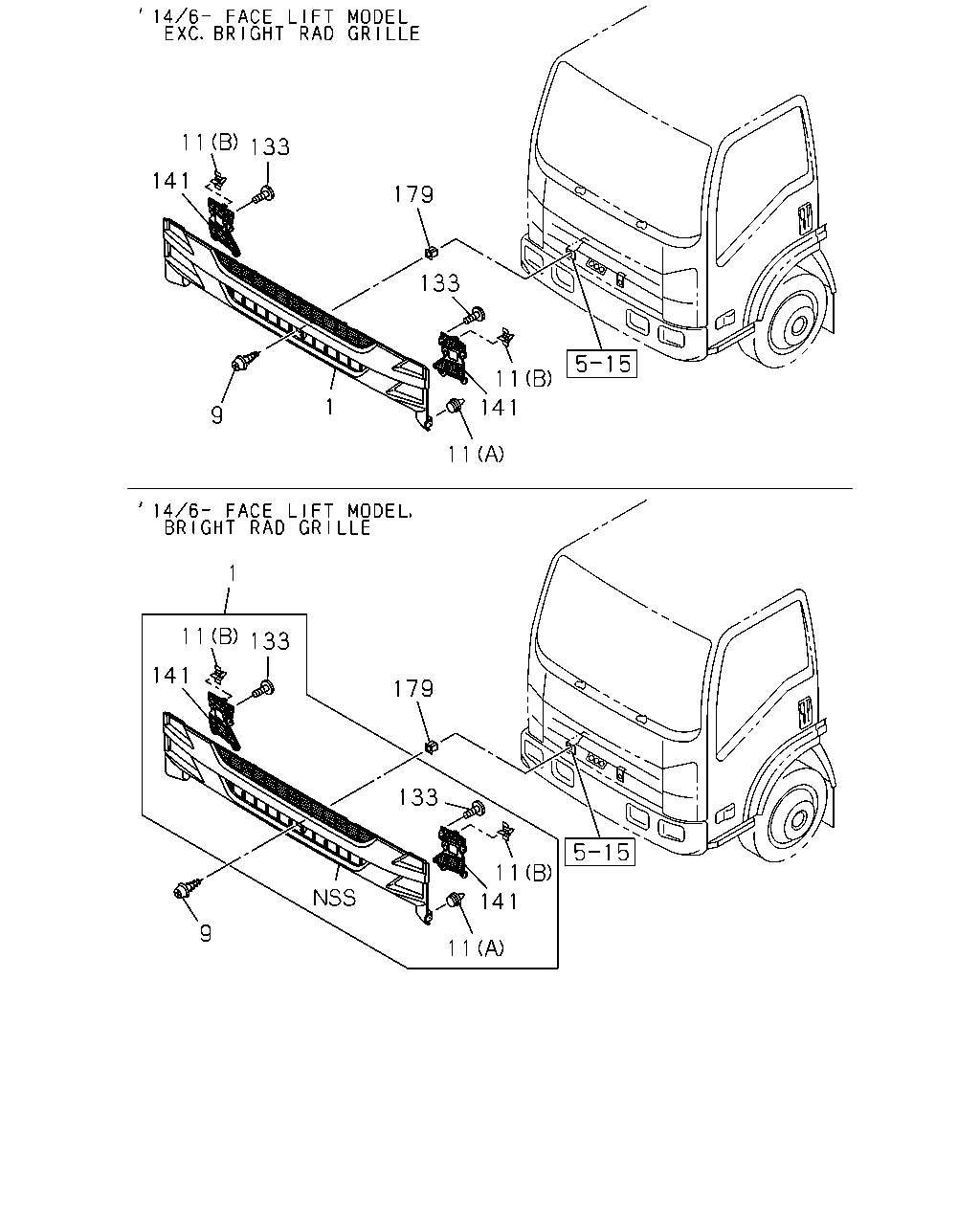

çizim 373437
11 141 133 179 133 11 141 11 1 9 11 133 141 179 133 11 141 9 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-068-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-640-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-372-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-387-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97429-374-1 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-373-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-455-4 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-455-4 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-455-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-465-3 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1309-1405 ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1406- ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1309-1310 ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1311- ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1309-1310 ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1311- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1309-1310 ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1311- ● ● ●
133 01.269 SCREW; COVER
FACE LIFT MODEL<TX7> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 1406- ● ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-643-0 01 1 1406- ● ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-644-0 01 1 1406- ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1309-1310 ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1311- ● ● ●

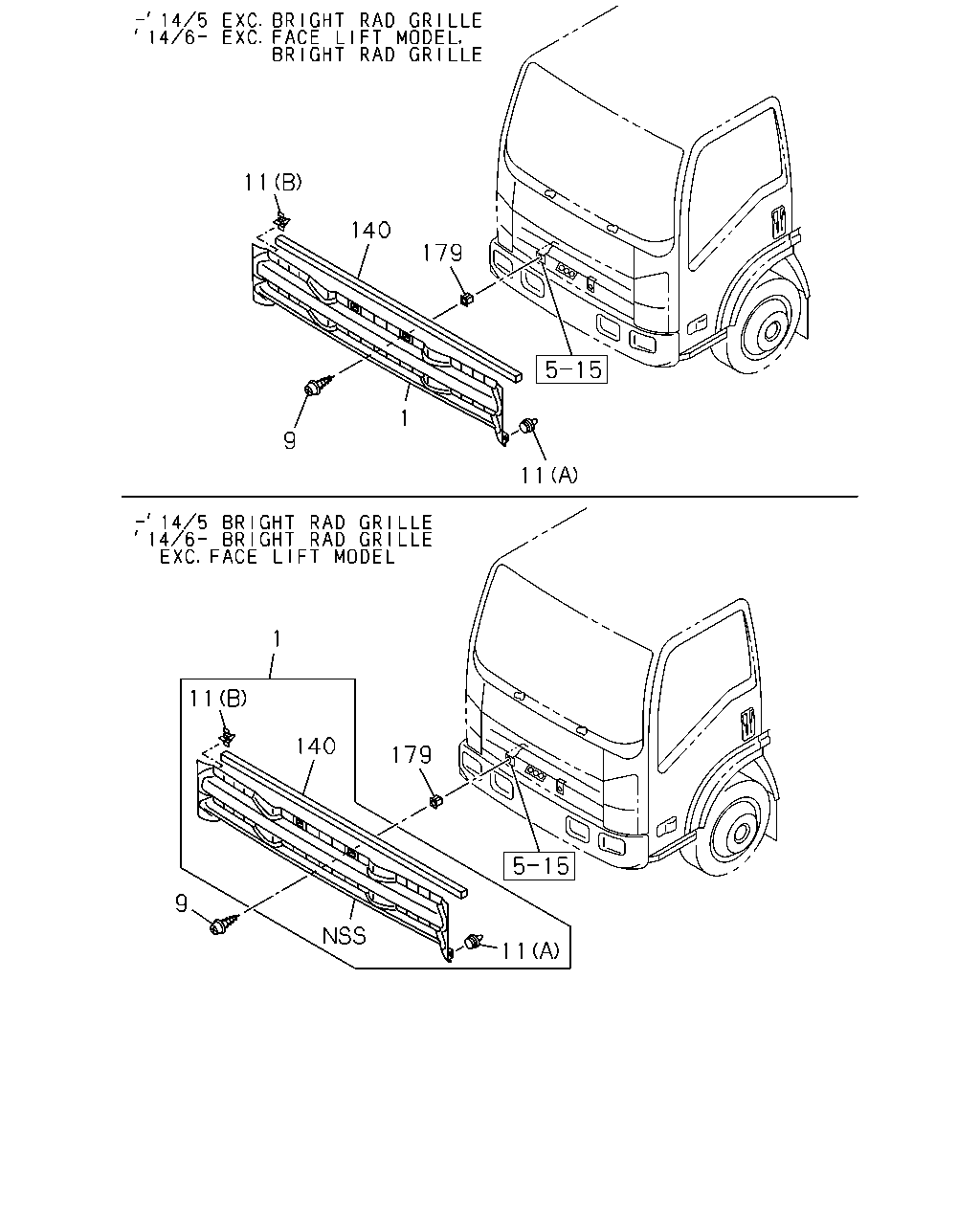

çizim 374039
11 140 179 11 1 11 9 140 179 11 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-068-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-640-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-372-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-387-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97429-374-1 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-373-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-455-4 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-455-4 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-455-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-465-3 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1309-1405 ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1309-1310 ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1311-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1406- ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1309-1310 ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1311- ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1309-1310 ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1311- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1309-1310 ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1311- ● ● ●
140 01.266 SEAL; RAD GRILLE 8-98054-279-0 01 1 1309-1310 ● ●
140 01.266 SEAL; RAD GRILLE 8-98054-279-0 01 1 1311-1405 ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> 		8-98054-279-0 01 1 1406- ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1309-1310 ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1311- ● ● ●

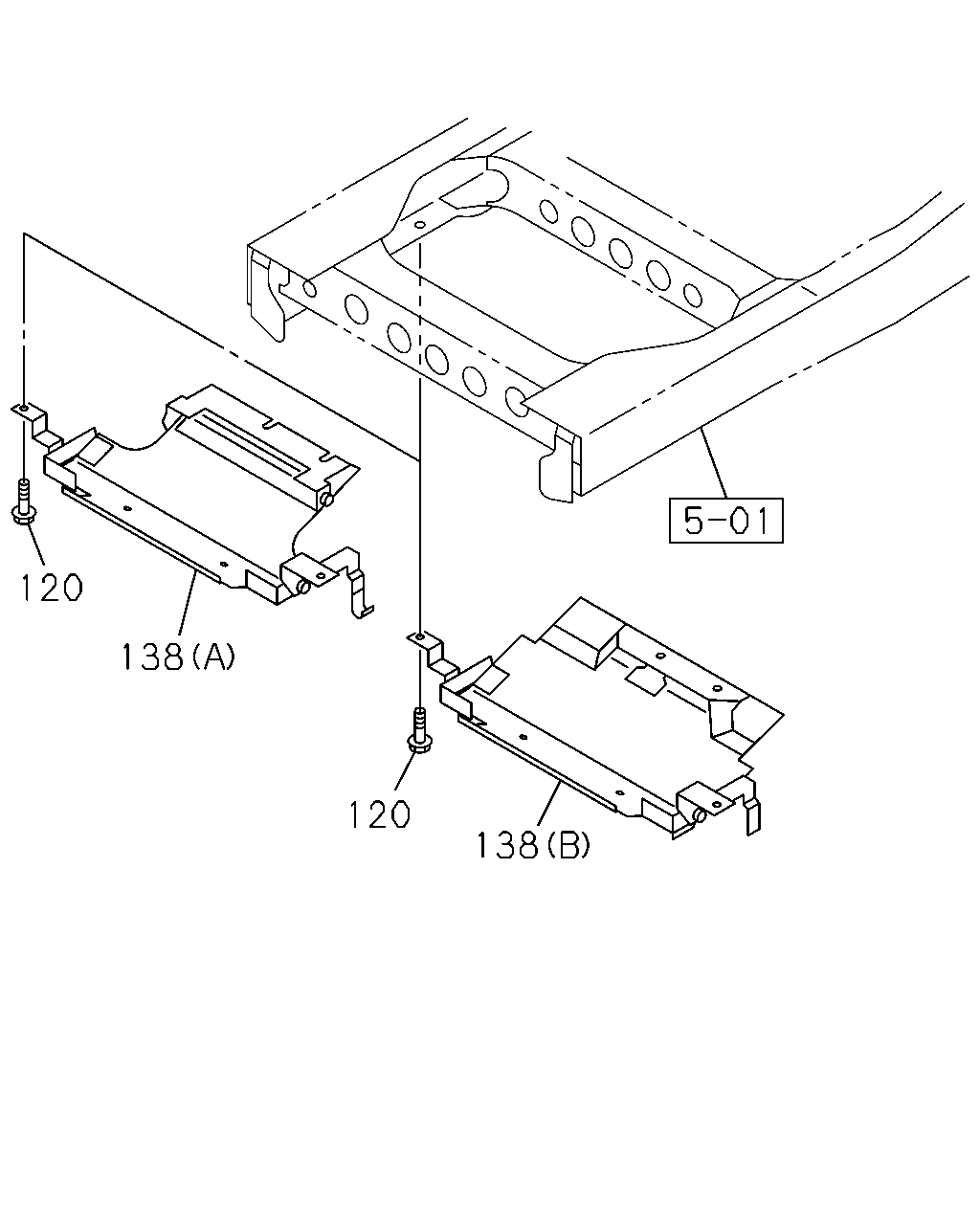

çizim 443830
120 138 120 138
BalonParca AdiParca NoAdetTipApplied Date A B C
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1309-1310 ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1311-1408 ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1409- ● ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1309-1310 ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1311-1408 ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1409- ● ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE 		8-98074-570-0 01 1 1309-1310 ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE 		8-98074-570-0 01 1 1311-1408 ● ●
120 01.266 BOLT; AIR GUIDE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE 		8-98074-570-0 01 1 1409- ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98166-330-2 01 1 1309-1310 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EXC. FRT INDEPENDENT SUSPENSION(FF0), PTOMANUAL CONTROL(6WC) (B) 		8-98166-330-2 01 1 1309-1310 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98166-330-2 01 1 1309-1310 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B) 		8-98166-330-2 01 1 1311-1408 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0), PTOMANUAL CONTROL(6WC) (B) 		8-98166-330-2 01 1 1311-1408 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98166-330-2 01 1 1311-1408 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EURO6 SPECIFICATION(NT6) (B) 		8-98166-330-2 01 1 1409- ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRT INDEPENDENT SUSPENSION(FF0), PTOMANUAL CONTROL(6WC) (B) 		8-98166-330-2 01 1 1409- ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98166-330-2 01 1 1409- ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98166-333-2 01 1 1309-1310 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (A) 		8-98166-333-2 01 1 1309-1310 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98166-333-2 01 1 1311-1408 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) PTO MANUAL CONTROL(6WC) (A) 		8-98166-333-2 01 1 1311-1408 ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98166-333-2 01 1 1409- ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) PTO MANUAL CONTROL(6WC) (A) 		8-98166-333-2 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
