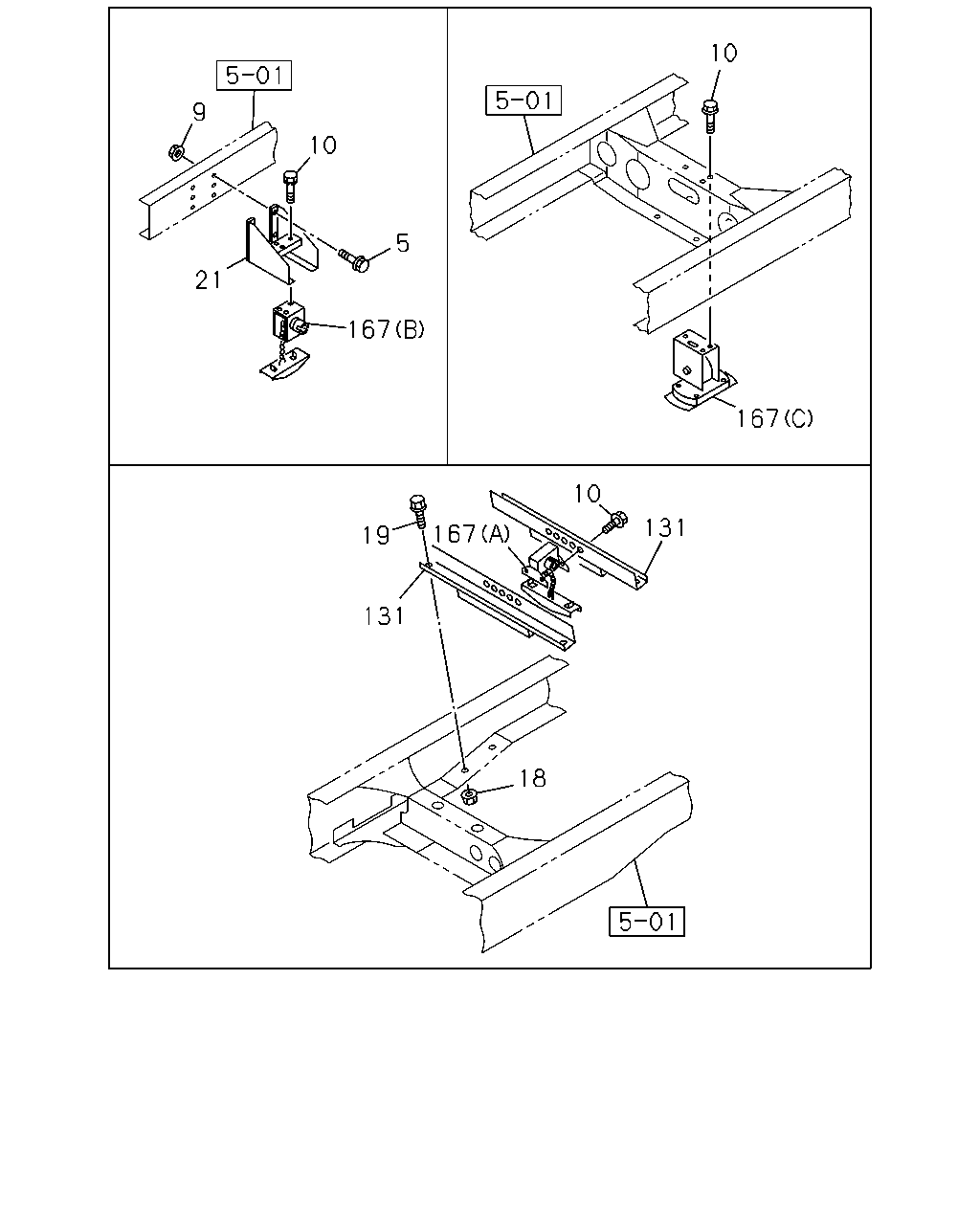

5-30 — SPARE TIRE CARRIER AND COVER (#126586) — 42 parça

10 5 167 21 9 10 167 131 10 167 19 131 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	1311-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	1311-		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE	0-28051-025-0	04	1	1311-			●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	03	1	1311-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	03	1	1311-		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE	0-91180-110-0	03	1	1311-			●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1311-	●		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1311-		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1309-1310	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1309-1310		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1311-1408	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1311-1408		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1311-1408			●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1409-	●		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1409-		●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1310	●	●
18	07.633 NUT; MEMBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408	●	●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408			●
18	07.633 NUT; MEMBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1310	●	●
19	07.632 BOLT; C/MBR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1311-1408	●	●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1311-1408			●
19	07.632 BOLT; C/MBR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1409-	●	●	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD)	8-98223-839-0	01	1	1311-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98223-839-0	01	1	1311-		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10>	8-98223-839-0	01	1	1311-			●
131	07.629 CROSSMEMBER; SPARE TIRE	8-98035-825-3	02	1	1309-1310	●	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98035-825-3	02	1	1311-1408	●	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W)	8-98035-825-3	02	1	1311-1408			●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98035-825-3	02	1	1409-	●	●	●
167	07.629 HANGER; TIRE WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-94382-875-1	01	1	1311-	●
167	07.629 HANGER; TIRE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-94382-875-1	01	1	1311-		●
167	07.629 HANGER; TIRE WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B)	8-94382-875-1	01	1	1311-			●
167	07.629 HANGER; TIRE WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) (C)	8-94380-175-1	01	1	1311-	●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A)	8-98036-384-0	01	1	1309-1310	●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (A)	8-98036-384-0	01	1	1309-1310		●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98036-384-0	01	1	1311-1408	●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (A)	8-98036-384-0	01	1	1311-1408		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A)	8-98036-384-0	01	1	1311-1408			●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98036-384-0	01	1	1409-	●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (A)	8-98036-384-0	01	1	1409-		●
167	07.629 HANGER; TIRE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A)	8-98036-384-0	01	1	1409-			●
