Sayfa 5-15 - Isuzu EPC

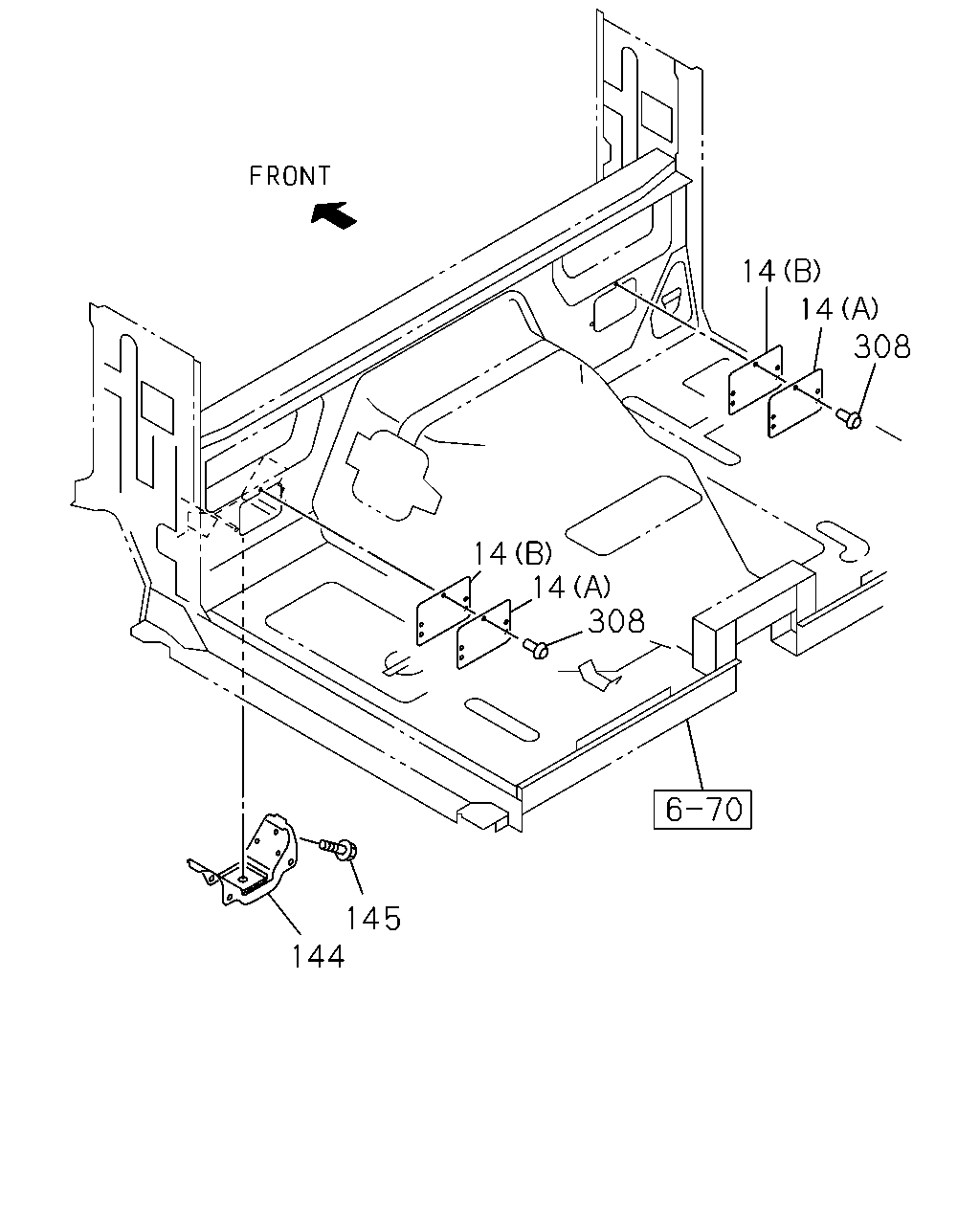

145 144 308 14 14 14 14 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
14	09.009 COVER; MTG,CAB (A)	8-98034-059-0	02	1	1311-	●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1311-	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1311-	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1311-	●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	1311-	●

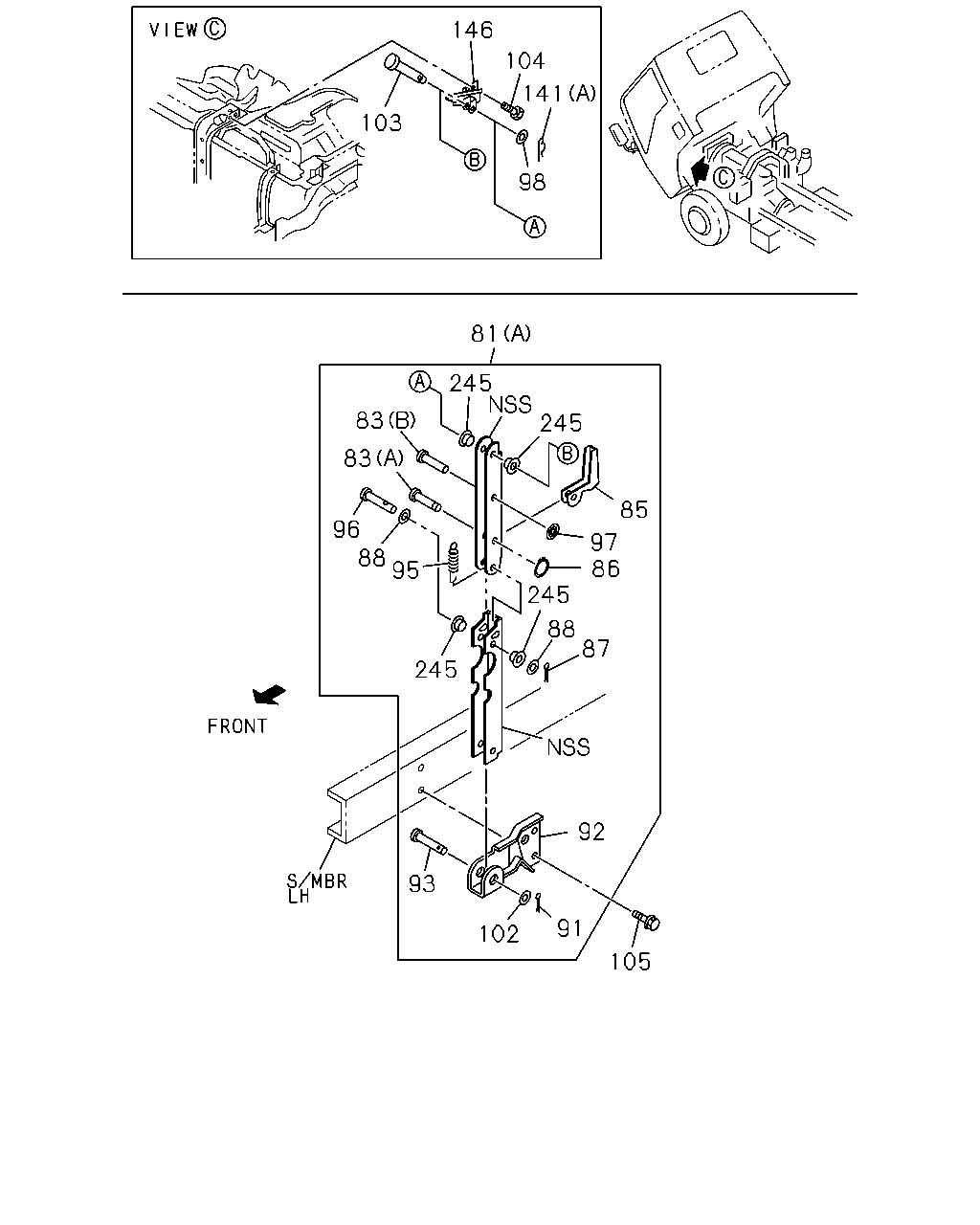

146 104 141 98 103 81 245 245 85 97 86 245 88 87 92 91 105 102 93 245 95 88 96 83 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
81	09.003 STAY ASM; CAB TILT FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> (B)	8-98123-308-0	01	1	1309-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98141-229-2	01	1	1309-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	1309-		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V> (B)	8-98123-313-0	01	1	1309-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1309-	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97231-416-0	01	1	1309-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1309-		●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V>	8-94331-481-0	01	1	1309-	●
85	09.003 LEVER; LOCK,CAB STAY FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1309-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-421-1	01	1	1309-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1309-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1309-	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1309-	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1309-	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1309-	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V>	8-97385-586-1	01	1	1309-	●
92	09.003 BRACKET; CAB STAY TO FRAME FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-97385-586-1	01	1	1309-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98049-333-1	01	1	1309-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1309-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1309-	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1309-	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1309-	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-415-0	01	1	1309-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	1309-		●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1309-	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1309-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1309-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1309-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1309-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-98035-848-1	01	1	1309-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V>	8-98035-848-1	01	1	1309-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98001-523-1	01	1	1309-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1309-		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1309-	●	●

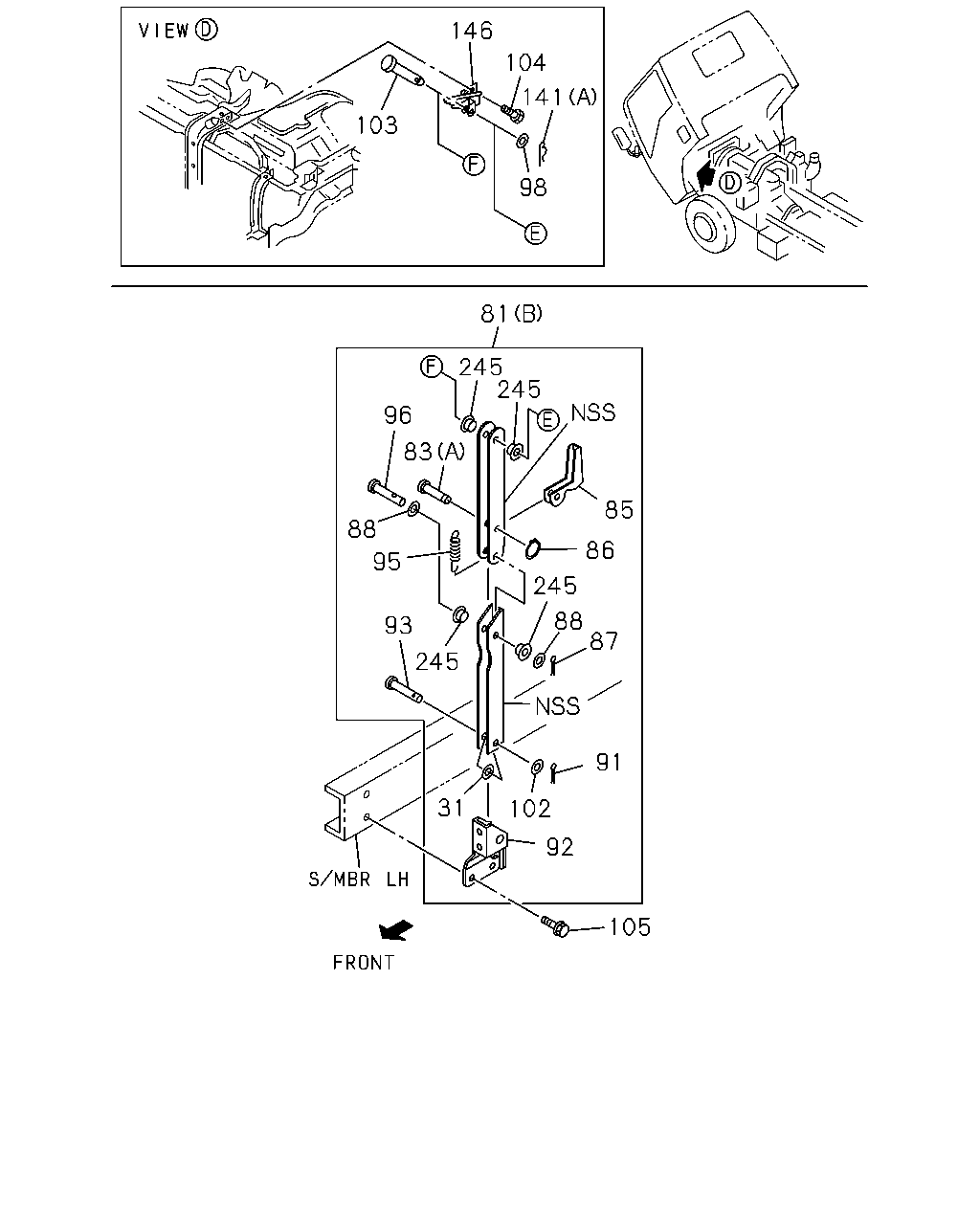

146 141 103 98 81 245 85 86 95 88 83 96 245 93 245 88 87 91 92 102 105 245 31 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
31	09.003 WASHER; WAVE MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V> 09.005 ID=13 OD=22	8-98060-839-0	01	1	1309-	●
31	09.003 WASHER; WAVE FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> 09.005 ID=13 OD=22	8-98060-839-0	01	1	1309-	●
81	09.003 STAY ASM; CAB TILT FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> (B)	8-98123-308-0	01	1	1309-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98141-229-2	01	1	1309-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	1309-		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V> (B)	8-98123-313-0	01	1	1309-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1309-	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97231-416-0	01	1	1309-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1309-		●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V>	8-94331-481-0	01	1	1309-	●
85	09.003 LEVER; LOCK,CAB STAY FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1309-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-421-1	01	1	1309-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1309-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1309-	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1309-	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1309-	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1309-	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V>	8-97385-586-1	01	1	1309-	●
92	09.003 BRACKET; CAB STAY TO FRAME FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-97385-586-1	01	1	1309-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98049-333-1	01	1	1309-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1309-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1309-	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1309-	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1309-	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1309-	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1309-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1309-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1309-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1309-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-98035-848-1	01	1	1309-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SHIMMY DAMPER<S3V>	8-98035-848-1	01	1	1309-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98001-523-1	01	1	1309-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1309-		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1309-	●	●

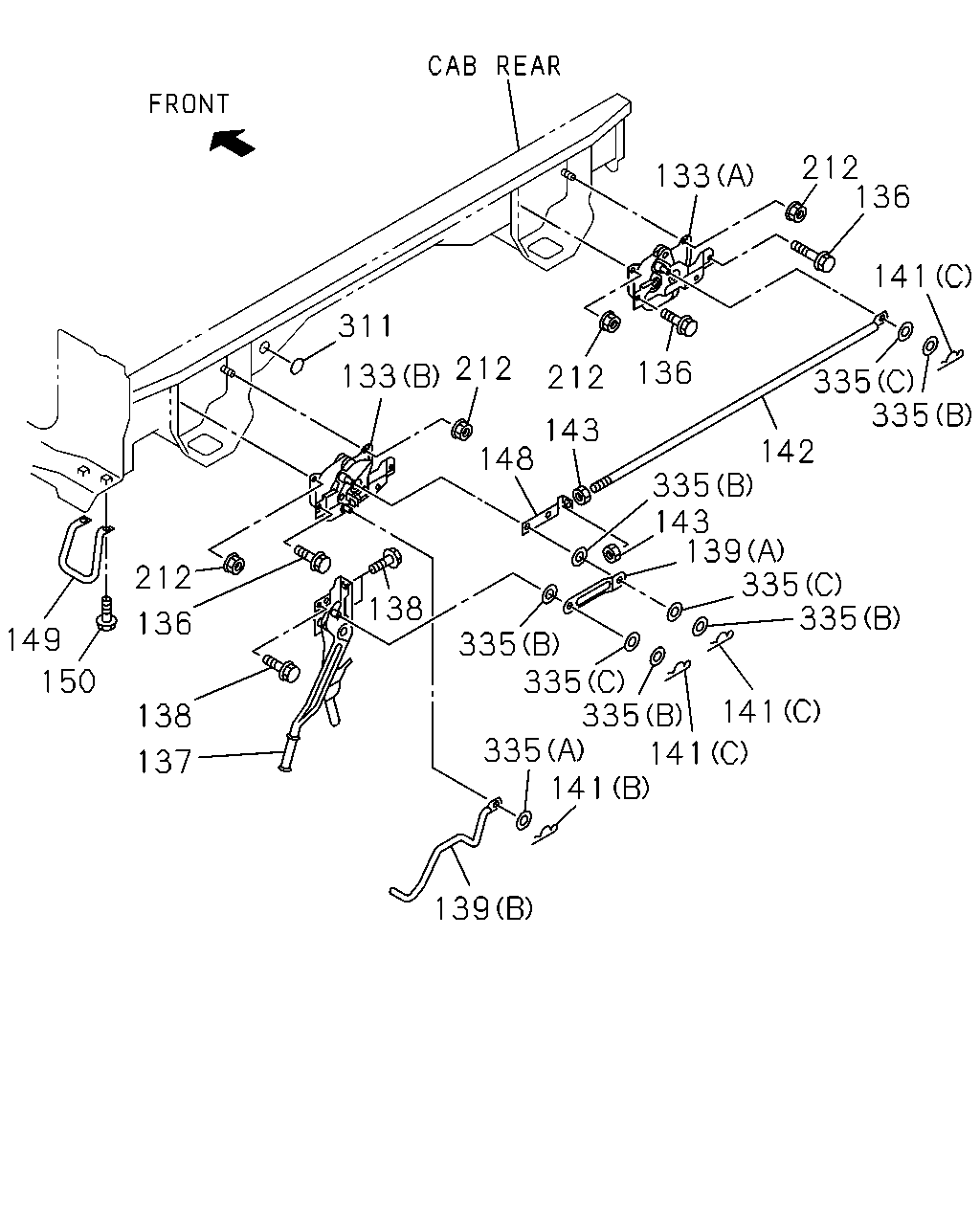

141 335 335 136 212 133 136 142 335 143 139 335 335 141 141 335 335 335 335 141 139 138 137 138 150 149 136 212 148 143 212 212 133 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1309-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1309-	●	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1309-	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	1309-	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1309-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1309-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1309-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1309-	●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	1309-	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1309-	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1309-	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1309-	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-	●	●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1309-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1309-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1309-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1309-	●	●

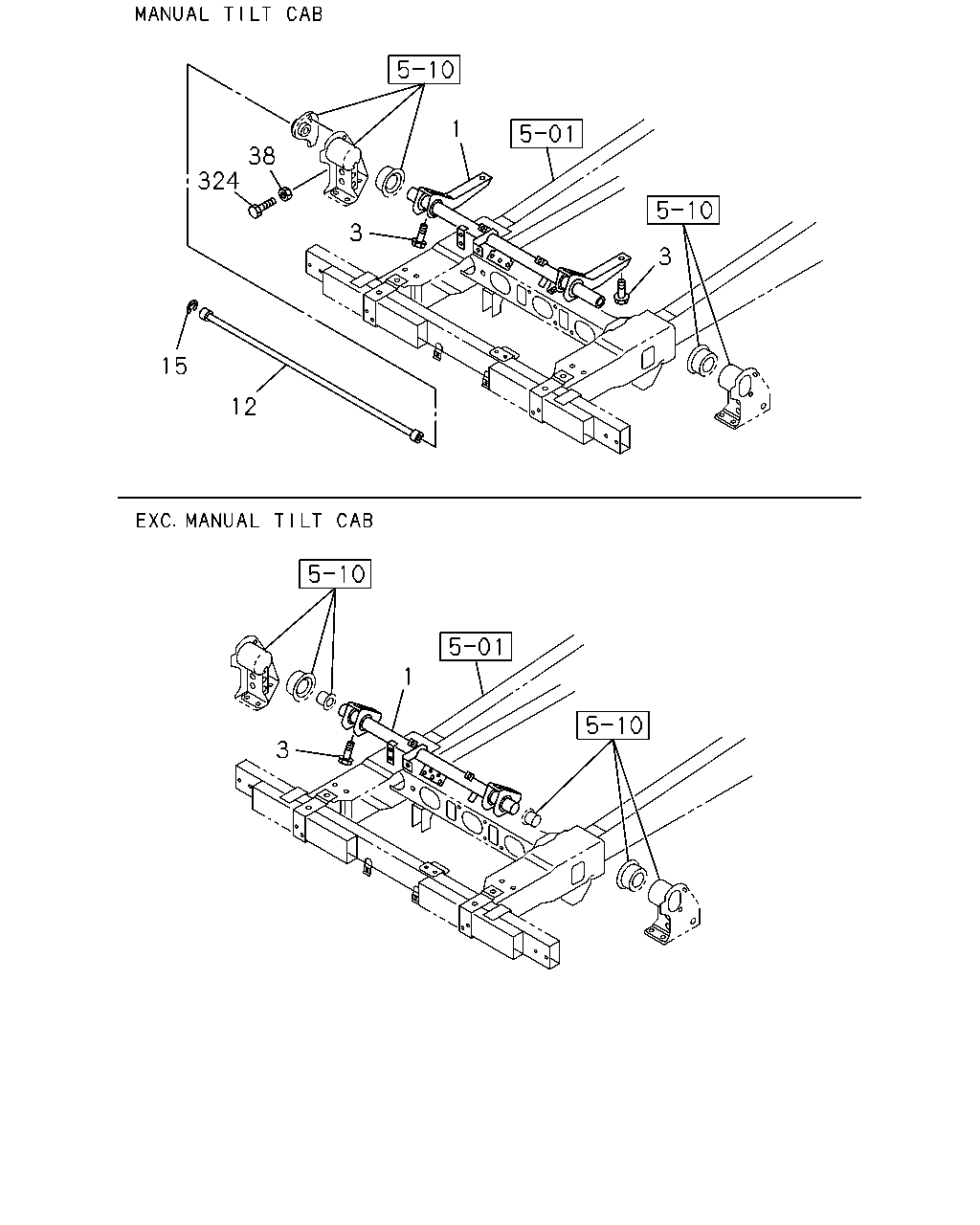

3 1 3 38 324 15 12 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 LEVER; TORSION BAR 4JJ1-TCS ENG(LFB)	8-98285-258-0	01	1	1409-	●
1	09.003 LEVER; TORSION BAR	8-98021-413-2	01	1	1311-1407	●
1	09.003 LEVER; TORSION BAR 4JJ1-TCC ENG(RDU)	8-98021-413-2	01	1	1408-	●
1	09.003 LEVER; TORSION BAR 4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	1309-1310		●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	1311-		●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1311-	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1309-		●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	1309-		●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1309-		●	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1309-		●	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1309-		●	●

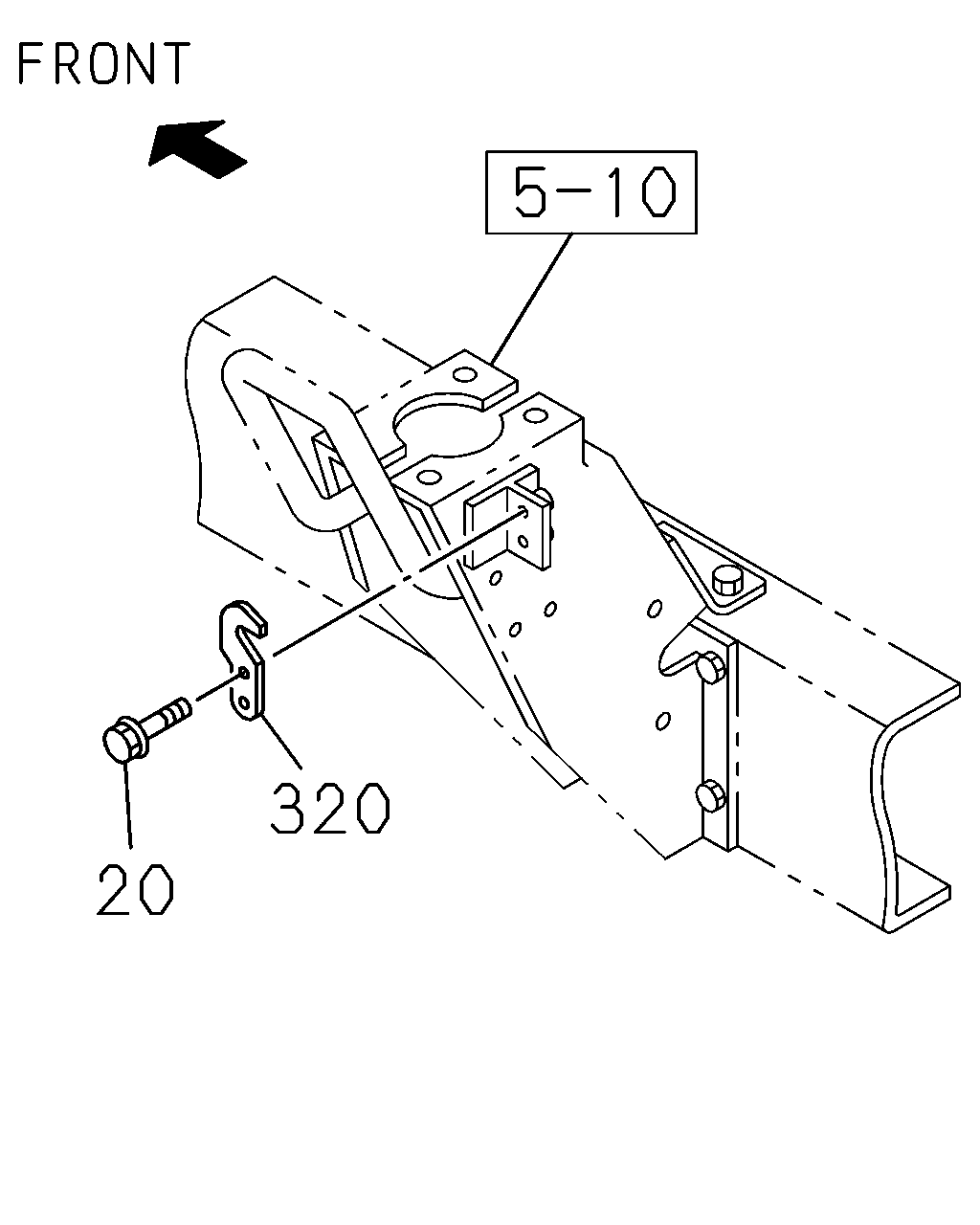

320 20

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	20	09.003 BOLT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1309-		●	●
	320	09.001 ANCHOR; CAB RR MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1309-		●	●
