Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#126582) — 365 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

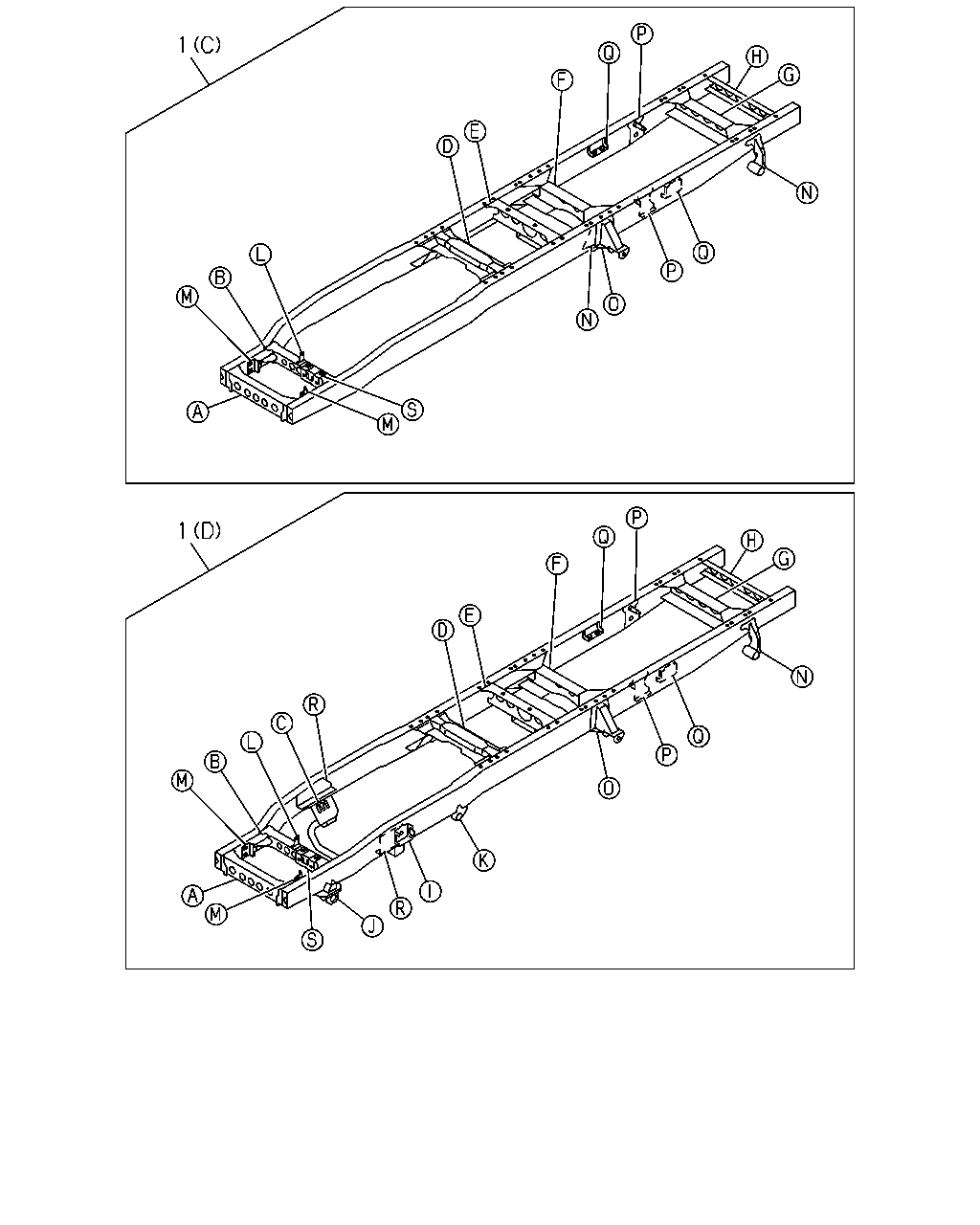

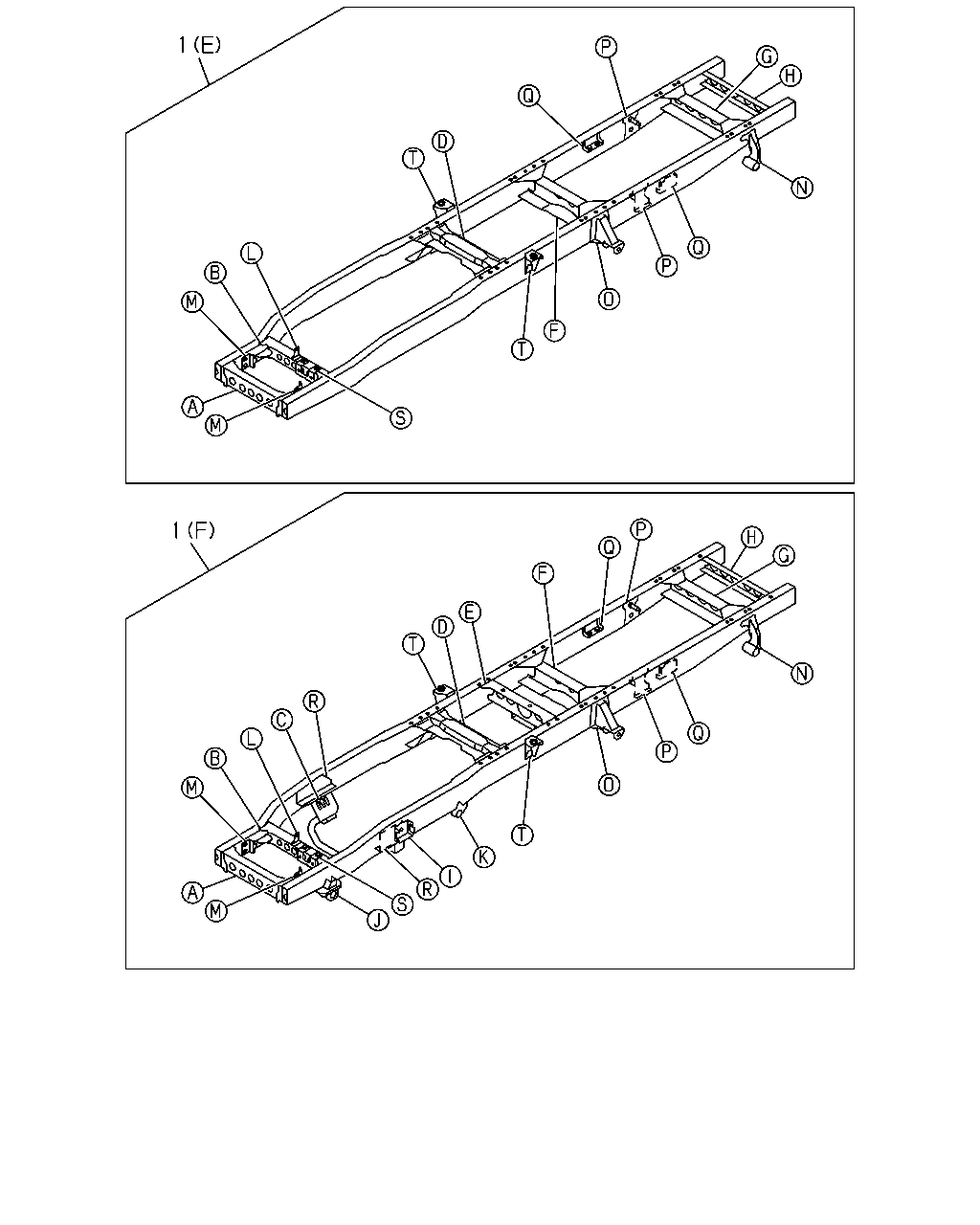

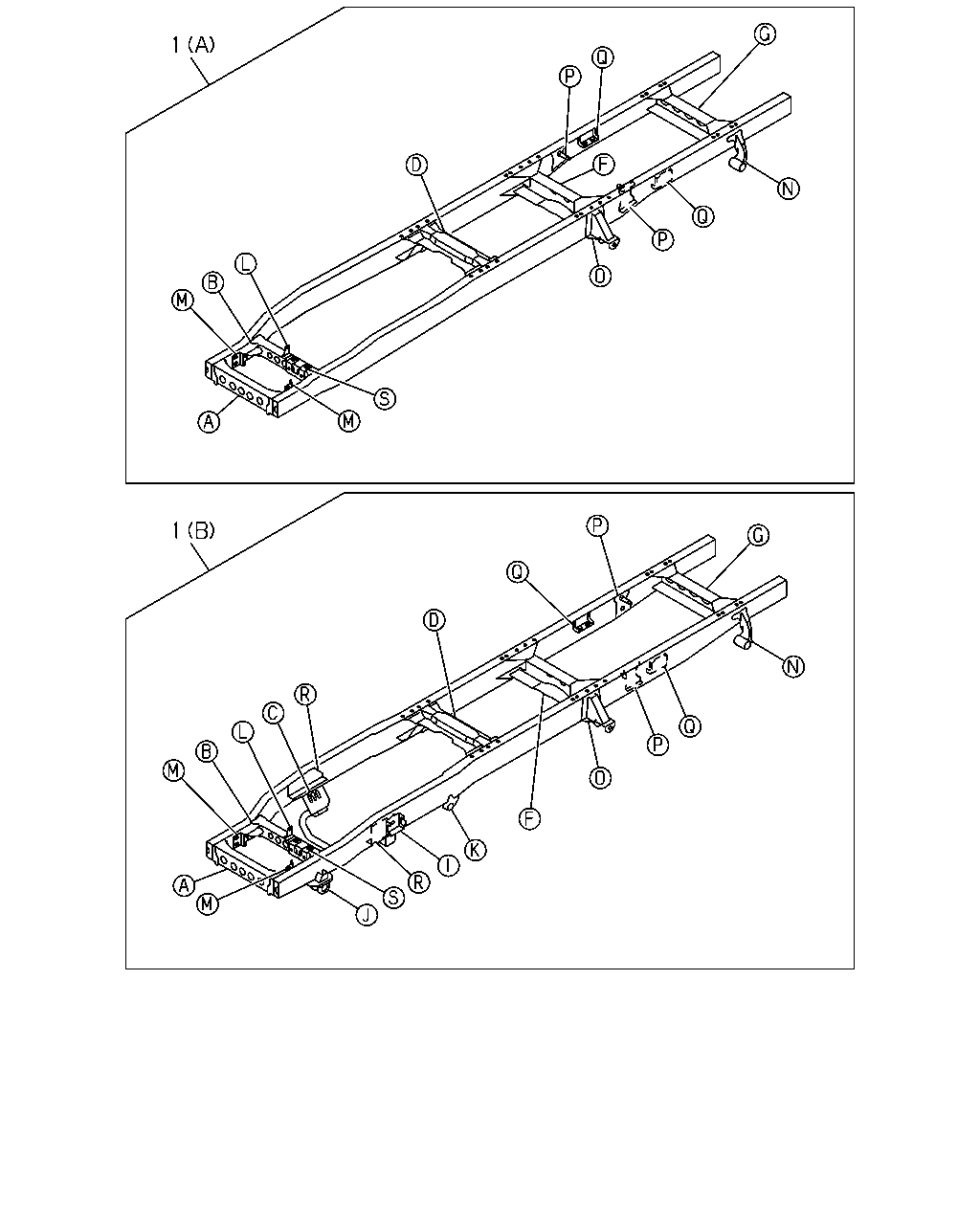

1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-647-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-648-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-674-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98231-675-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-645-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-646-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98271-864-1	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98271-863-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR WIDE TREAD(V4T) (A)	8-98271-862-1	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98271-865-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98271-860-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98271-859-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98271-861-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98271-853-1	01	1	1402-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98271-852-1	01	1	1402-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-857-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-857-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-856-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-856-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-858-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-858-0	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98273-803-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-802-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98273-540-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-539-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98204-440-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98204-447-2	01	1	1311-		●
1	07.003 FRAME ASM SINGLE RR TIRE(6TD) (A)	8-98204-442-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98204-441-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-644-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-673-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-642-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-640-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98204-443-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-671-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C)	8-98204-448-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-638-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98204-444-3	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98231-657-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-661-2	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98231-659-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98231-662-1	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98231-676-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-676-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98231-676-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-643-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-643-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98231-672-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-672-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-641-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-641-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-639-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-639-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98231-670-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-670-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-637-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-637-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98231-660-2	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98231-660-2	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (D)	8-98231-658-1	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98231-658-1	01	1	1311-			●

534 2 534 20 148 148 42 34 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

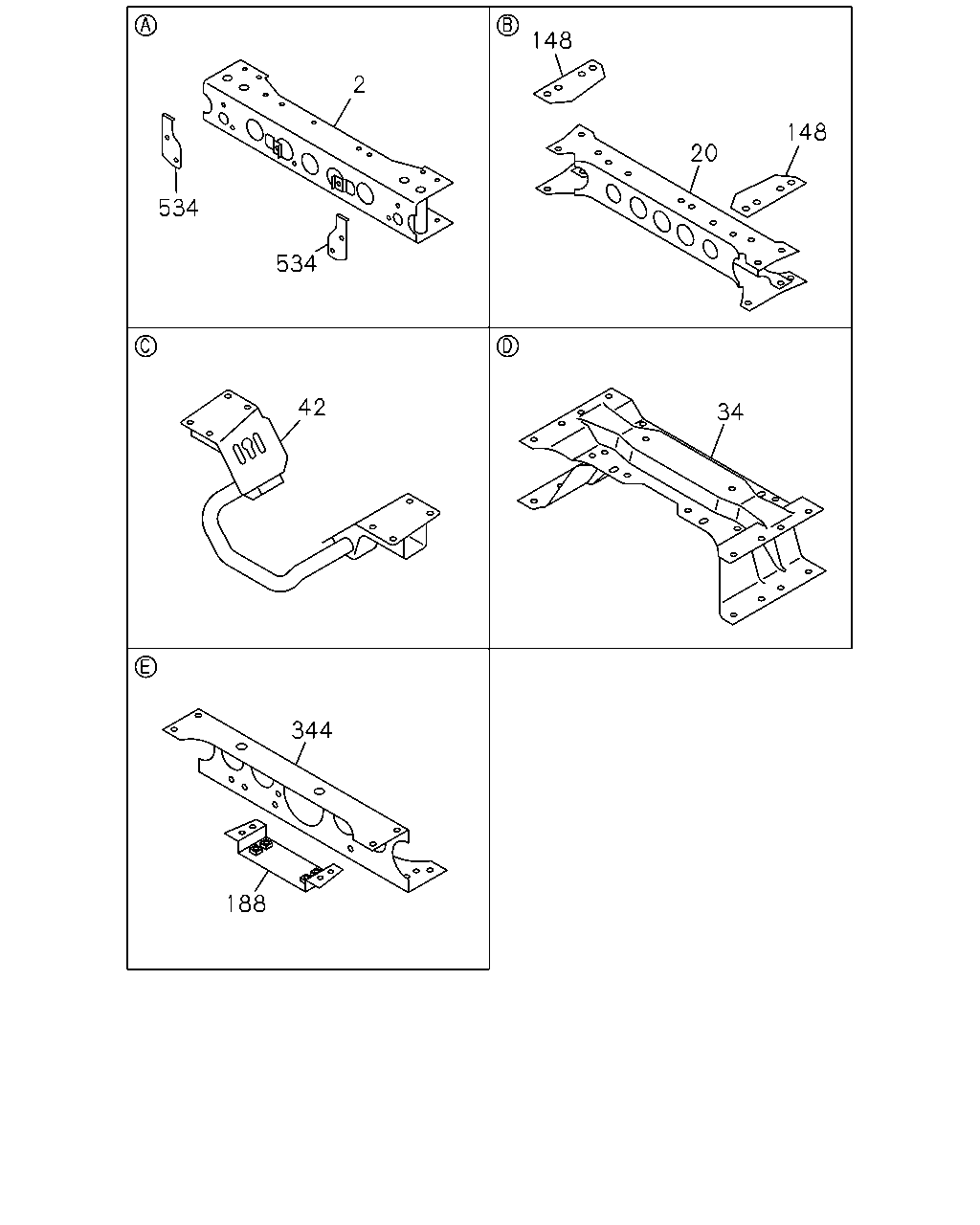

2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1309-1310		●	●
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1311-	●	●	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1309-1310		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1309-1310		●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1309-1310			●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1311-	●	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1311-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1311-			●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1309-1310		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1311-	●	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1309-1310		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1309-1310		●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1309-1310			●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1311-	●	●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1311-	●	●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1311-			●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1309-1310		●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1311-	●	●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1309-1310		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1309-1310			●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1311-	●	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1311-			●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1309-1310		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1311-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1309-1310		●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1311-		●	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	1311-	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1309-1310		●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1311-		●	●
344	07.012 MEMBER; CROSS,4TH	8-98005-959-1	01	1	1311-	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1309-1310		●	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1311-	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1309-1310		●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1311-	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-647-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-648-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-674-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98231-675-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-645-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-646-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98271-864-1	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98271-863-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR WIDE TREAD(V4T) (A)	8-98271-862-1	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98271-865-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98271-860-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98271-859-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98271-861-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98271-853-1	01	1	1402-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98271-852-1	01	1	1402-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-857-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-857-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-856-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-856-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-858-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-858-0	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98273-803-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-802-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98273-540-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-539-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98204-440-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98204-447-2	01	1	1311-		●
1	07.003 FRAME ASM SINGLE RR TIRE(6TD) (A)	8-98204-442-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98204-441-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-644-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-673-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-642-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-640-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98204-443-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-671-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C)	8-98204-448-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-638-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98204-444-3	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98231-657-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-661-2	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98231-659-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98231-662-1	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98231-676-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-676-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98231-676-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-643-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-643-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98231-672-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-672-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-641-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-641-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-639-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-639-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98231-670-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-670-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-637-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-637-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98231-660-2	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98231-660-2	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (D)	8-98231-658-1	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98231-658-1	01	1	1311-			●

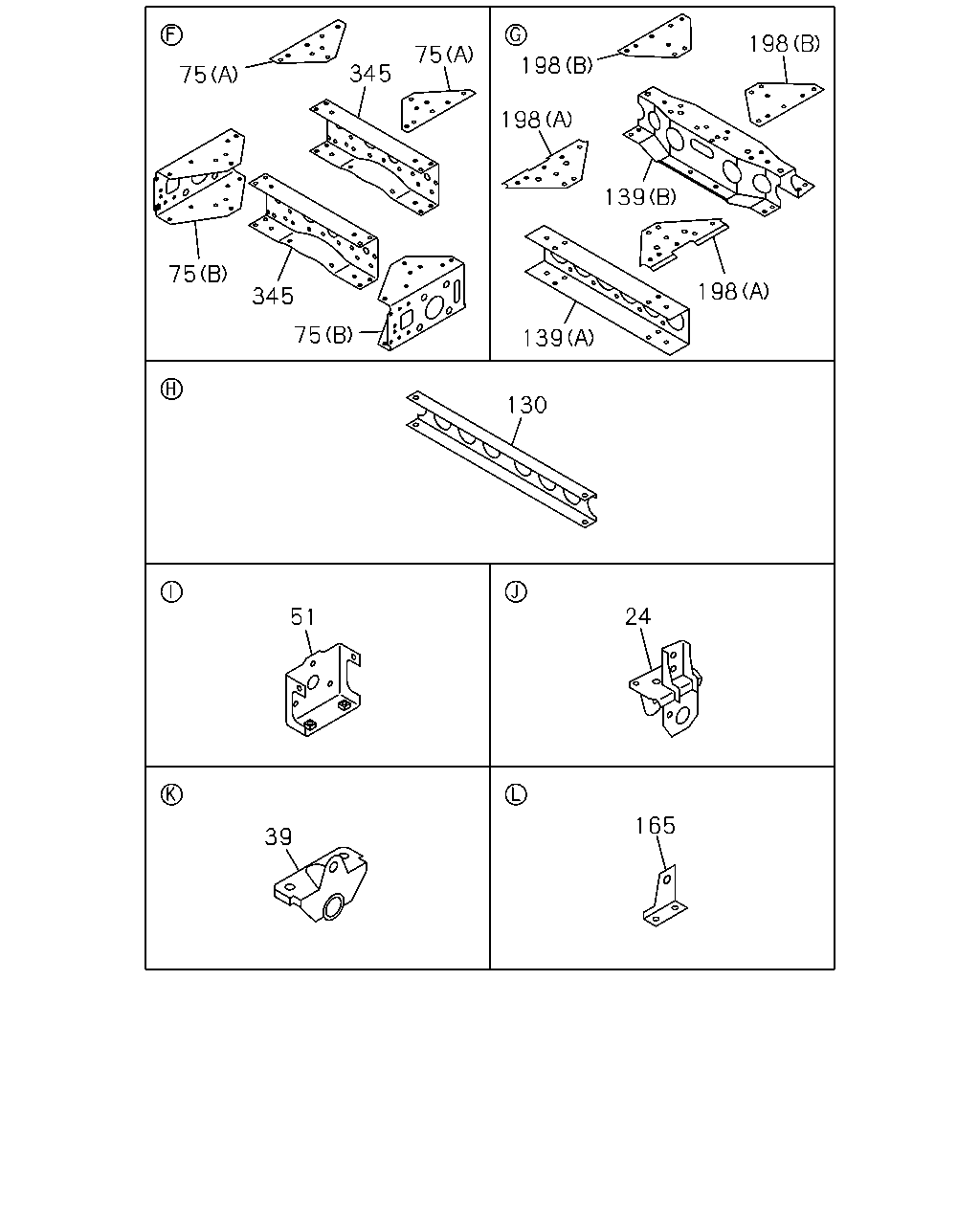

130 139 198 139 198 198 198 75 345 75 75 75 345 24 51 39 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1309-1310		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1309-1310			●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1311-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1311-			●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1309-1310		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1309-1310			●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1311-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1311-			●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1309-1310		●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1309-1310			●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1311-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1311-			●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1309-1310		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1309-1310			●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1311-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1311-			●
75	07.039 GUSSET; 5TH C/MBR SINGLE RR TIRE(6TD) (B)	8-98006-124-1	01	1	1311-		●
75	07.039 GUSSET; 5TH C/MBR SINGLE RR TIRE(6TD) (B)	8-98011-312-1	01	1	1311-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	1309-1310		●	●
75	07.039 GUSSET; 5TH C/MBR EXC. SINGLE RR TIRE(6TD) (A)	8-98011-863-0	04	1	1311-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	1311-	●		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-0	01	1	1309-1310		●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	1311-		●	●
130	07.014 MEMBER; CROSS,END	8-98041-239-1	01	1	1311-	●
139	07.012 MEMBER; CROSS,6TH SINGLE RR TIRE(6TD) (B)	8-98006-168-1	01	1	1311-		●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1309-1310		●	●
139	07.012 MEMBER; CROSS,6TH EXC. SINGLE RR TIRE(6TD) (A)	8-97384-745-0	01	1	1311-		●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1311-	●		●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1309-1310		●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1311-	●	●	●
198	07.039 GUSSET; 6TH C/MBR SINGLE RR TIRE(6TD) (B)	8-98011-865-0	02	1	1311-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1309-1310		●	●
198	07.039 GUSSET; 6TH C/MBR EXC. SINGLE RR TIRE(6TD) (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1311-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1311-	●		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1309-1310		●	●
198	07.039 GUSSET; 6TH C/MBR EXC. SINGLE RR TIRE(6TD) (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1311-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1311-	●		●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	1309-1310		●	●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	1311-	●	●	●

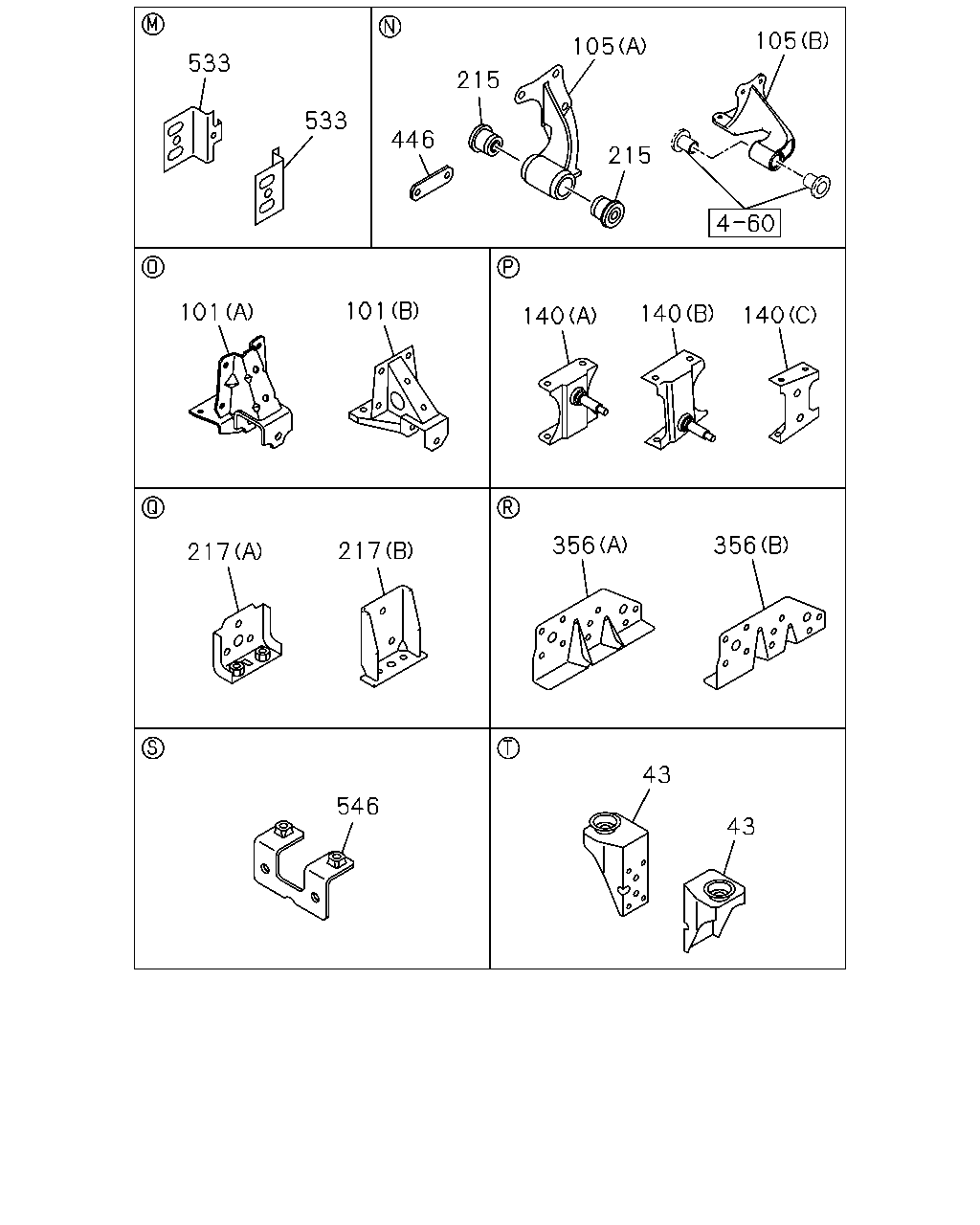

43 43 356 356 140 140 140 215 105 105 215 446 101 101 533 533 217 217 546

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98288-560-1	01	1	1409-	●
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98288-561-1	01	1	1409-	●
43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	1311-1408	●
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD(8JM)	8-98035-851-1	01	1	1409-	●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	1311-1408	●
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD(8JM)	8-98035-852-1	01	1	1409-	●
101	07.112 BRACKET; RR SPR,FRT SINGLE RR TIRE(6TD) (B)	8-98034-042-0	02	1	1311-		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1309-1310		●	●
101	07.112 BRACKET; RR SPR,FRT EXC. SINGLE RR TIRE(6TD) (A)	8-98243-604-0	02	1	1311-		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1311-	●		●
105	07.112 BRACKET; RR SPR,RR SINGLE RR TIRE(6TD) (B)	8-98031-058-0	01	1	1311-		●
105	07.112 BRACKET; RR SPR,RR SINGLE RR TIRE(6TD) (B)	8-98031-059-0	01	1	1311-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	1309-1310		●	●
105	07.112 BRACKET; RR SPR,RR EXC. SINGLE RR TIRE(6TD) (A)	8-98032-488-0	01	1	1311-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	1311-	●		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	1309-1310		●	●
105	07.112 BRACKET; RR SPR,RR EXC. SINGLE RR TIRE(6TD) (A)	8-98032-489-0	01	1	1311-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	1311-	●		●
140	07.112 BRACKET; S/ABS,RR SINGLE RR TIRE(6TD) (C)	8-98006-174-0	02	1	1311-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1309-1310		●	●
140	07.112 BRACKET; S/ABS,RR EXC. SINGLE RR TIRE(6TD) (B)	8-98006-176-0	01	1	1311-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1311-	●		●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	1309-1310		●	●
140	07.112 BRACKET; S/ABS,RR EXC. SINGLE RR TIRE(6TD) (A)	8-98006-180-0	01	1	1311-		●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	1311-	●		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1309-1310		●	●
215	07.524 BUSHING; BRKT,RR SPRING EXC. SINGLE RR TIRE(6TD)	8-97184-699-1	04	1	1311-		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1311-	●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING SINGLE RR TIRE(6TD) (B)	8-97163-899-1	02	1	1311-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1309-1310		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. SINGLE RR TIRE(6TD) (A)	8-97202-417-0	02	1	1311-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1311-	●		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1309-1310		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1311-	●	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1309-1310		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1311-	●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD)	8-98060-184-1	01	1	1311-1407		●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM)	8-98060-184-1	01	1	1408-		●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	03	1	1309-1310		●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98060-184-1	03	1	1311-		●	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1309-1310		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1309-1310		●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1309-1310			●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1311-	●	●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1311-	●	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1311-			●
546	03.671 BRACKET; ECM	8-98119-084-0	01	1	1309-1310		●	●
546	03.671 BRACKET; ECM	8-98119-084-0	01	1	1311-	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-647-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-648-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-674-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98231-675-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-645-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-646-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98271-864-1	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98271-863-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR WIDE TREAD(V4T) (A)	8-98271-862-1	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98271-865-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98271-860-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98271-859-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98271-861-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98271-853-1	01	1	1402-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98271-852-1	01	1	1402-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-857-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-857-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-856-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-856-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-858-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-858-0	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98273-803-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-802-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98273-540-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-539-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98204-440-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98204-447-2	01	1	1311-		●
1	07.003 FRAME ASM SINGLE RR TIRE(6TD) (A)	8-98204-442-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98204-441-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-644-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-673-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-642-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-640-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98204-443-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-671-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C)	8-98204-448-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-638-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98204-444-3	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98231-657-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-661-2	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98231-659-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98231-662-1	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-650-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98231-676-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-676-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98231-676-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-649-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-643-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-643-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98231-672-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-672-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-641-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-641-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-639-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-639-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98231-670-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-670-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-637-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-637-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98231-660-2	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98231-660-2	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (D)	8-98231-658-1	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98231-658-1	01	1	1311-			●

376 376 376 376 376 376 376 376 376 376 376 376 40 106 60 176 62 67 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	08.155 BOLT; BRKT TO FRAME EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1309-1310		●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1309-1310			●
40	08.155 BOLT; BRKT TO FRAME EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1311-	●	●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1311-			●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1309-1310		●	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1311-	●	●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310		●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-	●	●	●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310			●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-	●	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-			●
106	07.529 BOLT; BRKT CATALYSIS CONTROL WITH DPD & SCR(JCQ) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1409-1409	●
106	07.529 BOLT; BRKT CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1410-	●
127	07.529 NUT; BRKT CATALYSIS CONTROL WITH DPD & SCR(JCQ) 04.085 M10 FLANGE	0-91180-210-0	02	1	1409-	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1309-1310		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1309-1310			●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1311-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1311-			●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME 07.428 (L) D12X36 TAPER END	9-06751-236-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.428 (L) D12X36 TAPER END	9-06751-236-0	AR	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
