◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#126581) — 163 parça

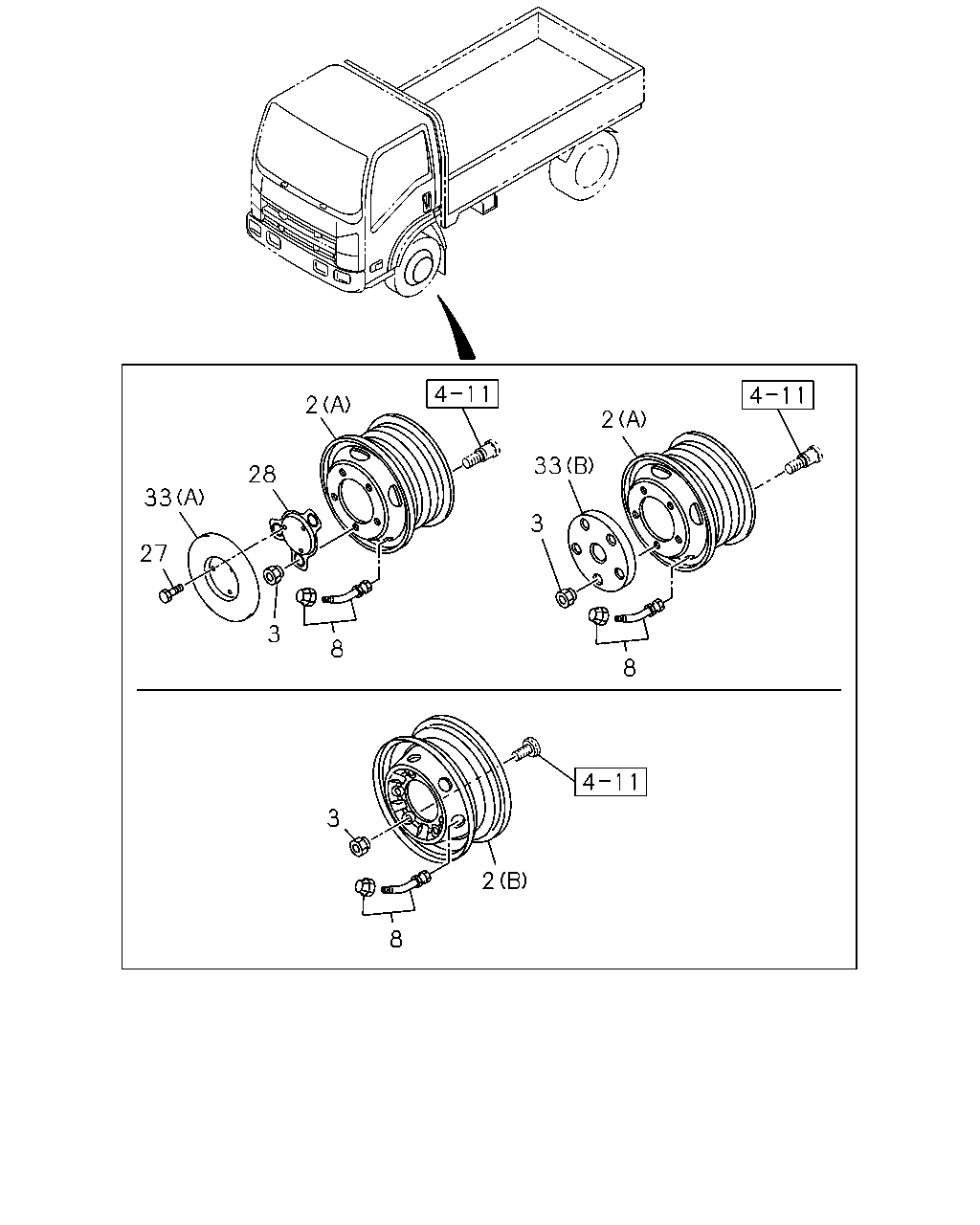

çizim 373368
2 28 33 27 3 33 2 3 8 2 8 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1402- ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1311- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1311- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 1309-1310 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 RH THREAD 		8-98007-907-0 05 1 1311- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 1311- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 1309-1310 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 LH THREAD 		8-98007-908-0 05 1 1311- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 1311- ● ●
8 05.875 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1402- ● ●
8 05.875 VALVE; TIRE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1402- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-106-0 01 1 1309-1310 ● ●
8 05.875 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1311- ● ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-106-0 01 1 1311- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) FRONT,REAR 		8-98221-106-0 04 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),F&R 205/75R16C L.R.R RIB 16 X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.RRIB 16X5.5J-85 SILVER(CYR) FRONT,REAR 		8-98221-106-0 04 1 1402- ●
27 05.871 BOLT; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1309-1310 ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1309-1310 ●
27 05.871 BOLT; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1311- ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 1311- ●
28 05.864 BRACKET; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97169-249-0 02 1 1309-1310 ●
28 05.864 BRACKET; COVER 8-97169-249-0 02 1 1309-1310 ●
28 05.864 BRACKET; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 		8-97169-249-0 02 1 1311- ● ●
28 05.864 BRACKET; COVER 8-97169-249-0 02 1 1311- ●
33 05.858 COVER; WHEEL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98083-921-0 02 1 1309-1310 ●
33 05.858 COVER; WHEEL
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) (B) 		8-98083-921-0 02 1 1311- ●
33 05.858 COVER; WHEEL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98083-921-0 02 1 1311- ●
33 05.858 COVER; WHEEL
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97167-658-0 02 1 1309-1310 ●
33 05.858 COVER; WHEEL
(A) 		8-97167-658-0 02 1 1309-1310 ●
33 05.858 COVER; WHEEL
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (A) 		8-97167-658-0 02 1 1311- ● ●
33 05.858 COVER; WHEEL
(A) 		8-97167-658-0 02 1 1311- ●

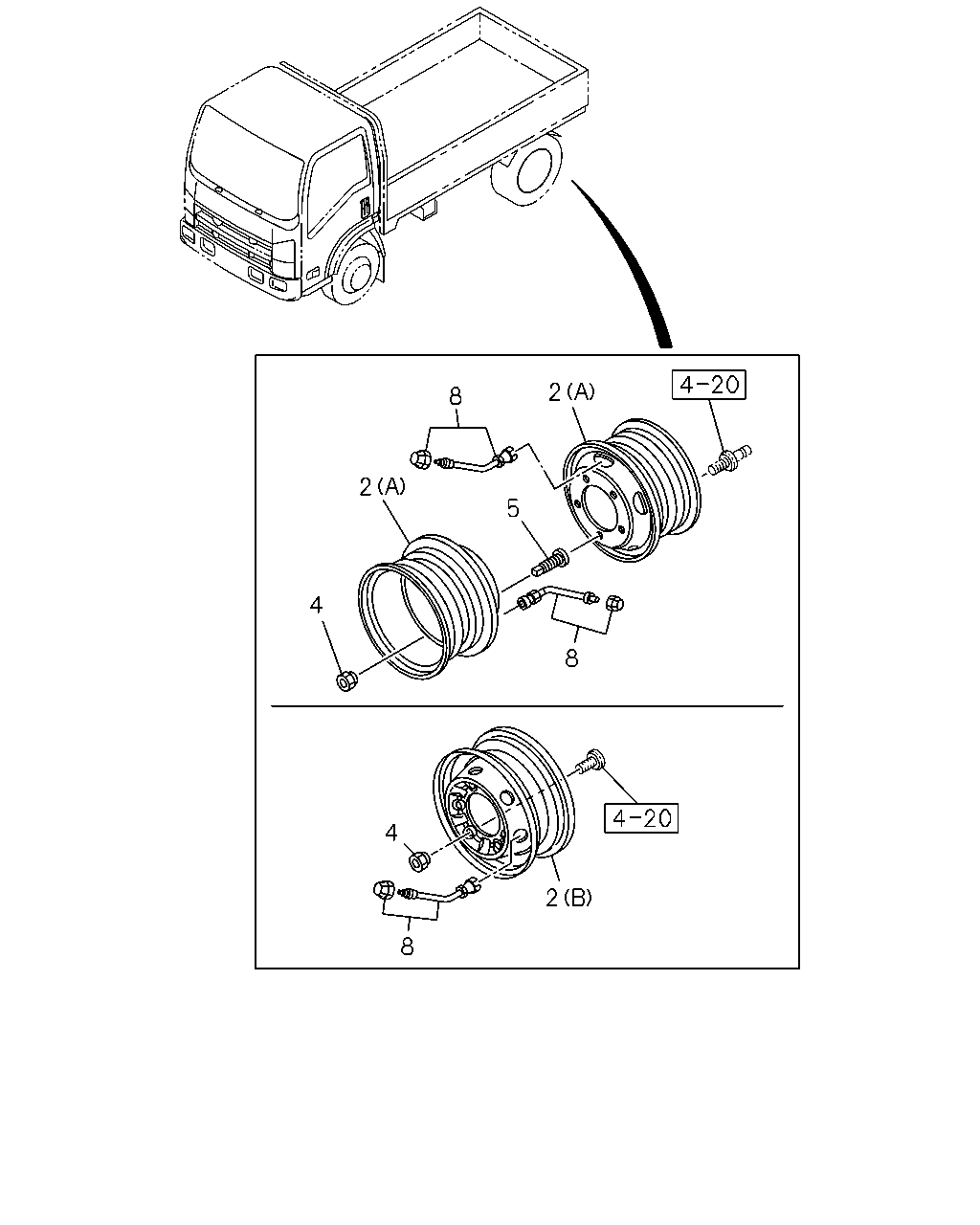

çizim 373369
8 2 4 5 2 8 2 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1402- ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1311- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1311- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 1309-1310 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 RH THREAD 		8-98007-824-0 05 1 1311- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 1311- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 1309-1310 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 LH THREAD 		8-98007-825-0 05 1 1311- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 1311- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1309-1310 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1311- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1311- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1309-1310 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1311- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1311- ● ●
8 05.875 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1402- ● ●
8 05.875 VALVE; TIRE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1402- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-106-0 01 1 1309-1310 ● ●
8 05.875 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1311- ● ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-106-0 01 1 1311- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) FRONT,REAR 		8-98221-106-0 04 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),F&R 205/75R16C L.R.R RIB 16 X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.RRIB 16X5.5J-85 SILVER(CYR) FRONT,REAR 		8-98221-106-0 04 1 1402- ●

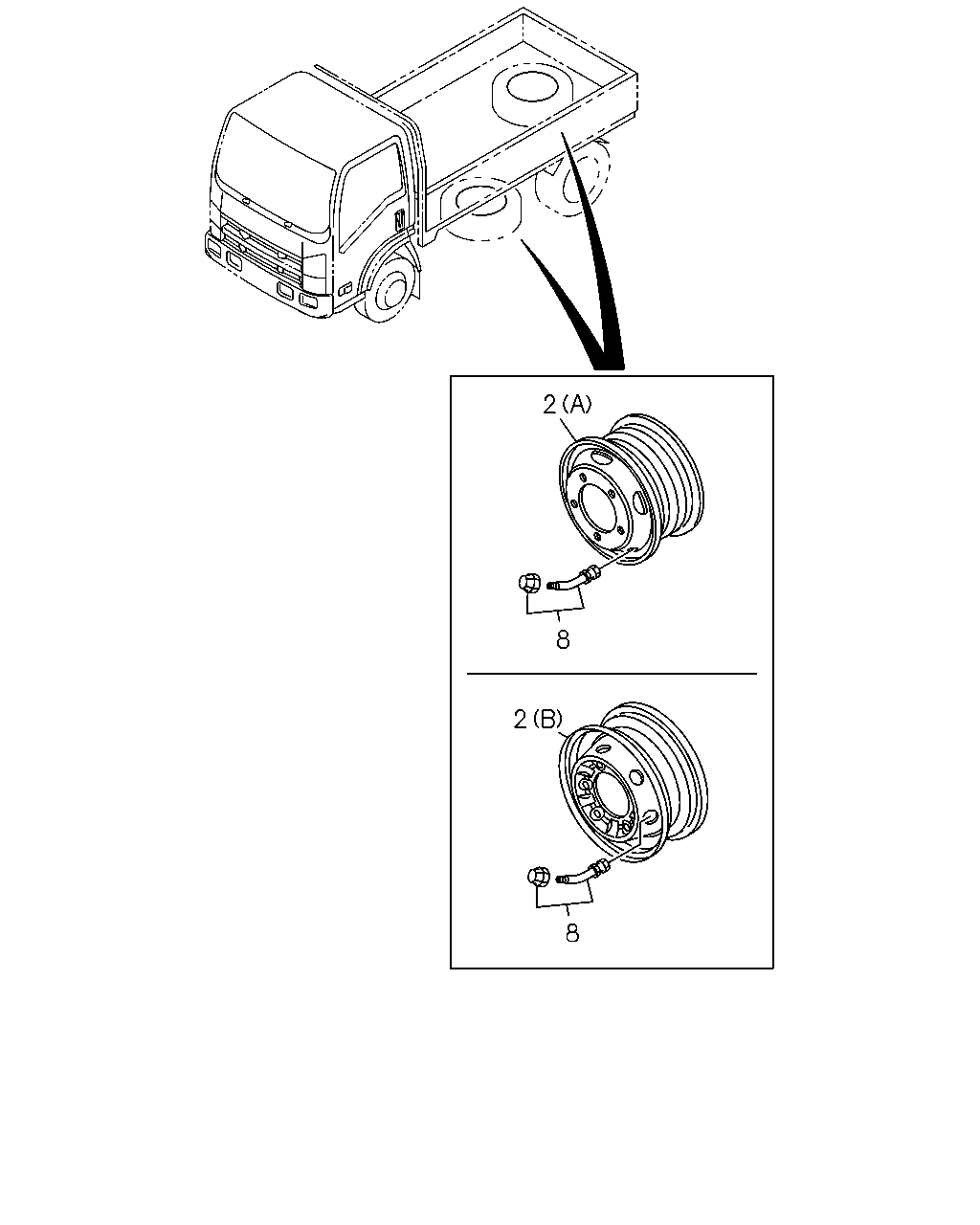

çizim 374413
2 8 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ) (B) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) (B) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 1402- ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS),F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER(CYR) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (B) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1402- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1309-1310 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1311-1401 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1402- ●
8 05.875 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 1309-1310 ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ● ●
8 05.875 VALVE; TIRE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1402- ● ●
8 05.875 VALVE; TIRE
FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB16X5.5J-116.5 SILVER(CYS),F&R 205/75R16 C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) FRONT,REAR 		8-98221-106-0 06 1 1402- ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-106-0 01 1 1309-1310 ● ●
8 05.875 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 1311- ● ●
8 05.875 VALVE; TIRE
SPARE 		8-98221-106-0 01 1 1311- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) FRONT,REAR 		8-98221-106-0 04 1 1311-1401 ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),F&R 205/75R16C L.R.R RIB 16 X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.RRIB 16X5.5J-85 SILVER(CYR) FRONT,REAR 		8-98221-106-0 04 1 1402- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
