Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#126575) — 259 parça

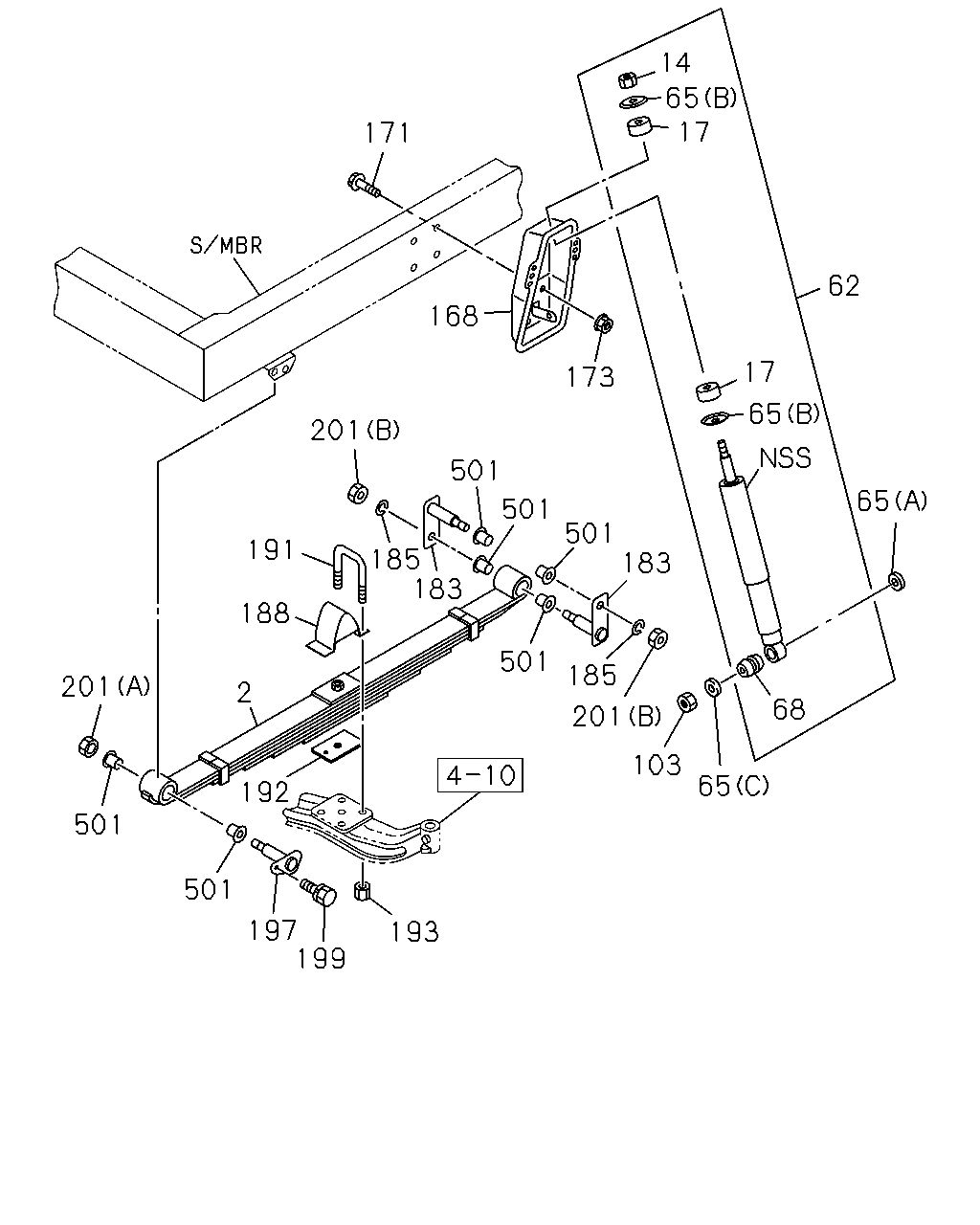

501 183 501 501 201 191 188 2 192 193 199 197 501 501 201 185 183 501 201 185 103 65 68 65 17 62 168 173 65 171 17 65 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 2-LEAF	8-98185-967-0	01	1	1311-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98185-967-0	01	1	1311-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 2-LEAF	8-98185-969-0	01	1	1311-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98185-969-0	01	1	1311-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98233-165-0	01	1	1309-1310	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 2-LEAF	8-98233-165-0	01	1	1311-1408	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98233-165-0	01	1	1311-1408		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 2-LEAF	8-98233-165-0	01	1	1409-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98233-165-0	01	1	1409-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98233-166-0	01	1	1309-1310	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 2-LEAF	8-98233-166-0	01	1	1311-1408	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98233-166-0	01	1	1311-1408		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 2-LEAF	8-98233-166-0	01	1	1409-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98233-166-0	01	1	1409-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98001-530-0	01	1	1309-1310			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. REAR WIDE TREAD(V4T) 2-LEAF	8-98001-530-0	01	1	1311-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98001-531-0	01	1	1309-1310			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. REAR WIDE TREAD(V4T) 2-LEAF	8-98001-531-0	01	1	1311-			●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10	8-94317-772-0	02	1	1309-1310	●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	1309-1310			●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10	8-94317-772-0	02	1	1311-	●	●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	1311-			●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1309-1310	●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1311-1509	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1309-1310	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1309-1310			●
17	07.388 BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1311-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1311-			●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-651-0	02	1	1309-1310	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-651-0	02	1	1311-1509	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98270-983-1	02	1	1510-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-1	02	1	1309-1310	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98085-708-1	02	1	1309-1310			●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-1	02	1	1311-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98085-708-1	02	1	1311-			●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (A) ID=21 OD=40	0-91614-620-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (A) ID=21 OD=40	0-91614-620-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (B) ID=15	8-97360-056-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (B) ID=15	8-97360-056-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (C) ID=20.0	8-97360-057-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (C) ID=20.0	8-97360-057-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10.5	8-97360-058-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10.5	8-97360-058-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1309-1310			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1311-			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1309-1310	●
65	07.347 WASHER; S/ABS 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1309-1310			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1311-	●	●
65	07.347 WASHER; S/ABS 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1311-			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	1309-1310			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	1311-			●
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1309-1310	●
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1311-1509	●	●
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) KYB	8-98273-083-0	04	1	1510-	●	●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO	8-94224-694-0	02	1	1309-1310	●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	1309-1310			●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO	8-94224-694-0	02	1	1311-	●	●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	1311-			●
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1309-1310	●
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1311-	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	02	1	1309-1310	●
103	07.347 NUT; S/ABS TO LWR LINK 04.439 M12	0-91111-512-0	02	1	1309-1310			●
103	07.347 NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	02	1	1311-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 04.439 M12	0-91111-512-0	02	1	1311-			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98002-080-1	01	1	1311-	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98002-081-0	01	1	1311-	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-082-1	01	1	1309-1310	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98002-082-1	01	1	1309-1310			●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-082-1	01	1	1311-	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98002-082-1	01	1	1311-			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-082-1	01	1	1311-		●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-083-0	01	1	1309-1310	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98002-083-0	01	1	1309-1310			●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-083-0	01	1	1311-	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98002-083-0	01	1	1311-			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-083-0	01	1	1311-		●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1309-1310	●
171	07.395 BOLT; S/ABS BRKT 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1309-1310			●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1311-	●	●
171	07.395 BOLT; S/ABS BRKT 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1311-			●
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1310	●
173	07.395 NUT; S/ABS 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1310			●
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	08	1	1311-	●	●
173	07.395 NUT; S/ABS 03.162 M10 FLANGE	0-91180-110-0	08	1	1311-			●
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98034-341-0	04	1	1309-1310	●
183	07.436 SHACKLE; FRT SUSP	8-98034-341-0	04	1	1309-1310			●
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98034-341-0	04	1	1311-	●	●
183	07.436 SHACKLE; FRT SUSP	8-98034-341-0	04	1	1311-			●
185	07.427 WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5	8-98011-489-0	04	1	1309-1310	●
185	07.427 WASHER; LK,PIN ID=16.5	8-98011-489-0	04	1	1309-1310			●
185	07.427 WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5	8-98011-489-0	04	1	1311-	●	●
185	07.427 WASHER; LK,PIN ID=16.5	8-98011-489-0	04	1	1311-			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1309-1310	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1311-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1309-1310	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	1309-1310			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1311-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	1311-			●
191	07.417 U-BOLT; FRT SPR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=105	8-97304-074-1	04	1	1311-	●	●
191	07.417 U-BOLT; FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0) L=115	8-97304-075-1	04	1	1309-1310	●
191	07.417 U-BOLT; FRT SPR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=115	8-97304-075-1	04	1	1311-1408	●
191	07.417 U-BOLT; FRT SPR WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=115	8-97304-075-1	04	1	1311-1408		●
191	07.417 U-BOLT; FRT SPR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=115	8-97304-075-1	04	1	1409-	●	●
191	07.417 U-BOLT; FRT SPR REAR L=105	8-97304-074-1	02	1	1309-			●
191	07.417 U-BOLT; FRT SPR FRONT L=115	8-97304-075-1	02	1	1309-			●
192	07.436 PIECE; DIST EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-704-0	02	1	1309-1310	●
192	07.436 PIECE; DIST WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-704-0	02	1	1311-1408	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-704-0	02	1	1311-1408		●
192	07.436 PIECE; DIST WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-704-0	02	1	1409-	●	●
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE	8-97360-124-0	08	1	1309-1310	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1309-1310			●
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE	8-97360-124-0	08	1	1311-	●	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1311-			●
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94117-900-1	02	1	1309-1310	●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	1309-1310			●
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94117-900-1	02	1	1311-	●	●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	1311-			●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1309-1310	●
199	07.427 BOLT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1309-1310			●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1311-	●	●
199	07.427 BOLT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1311-			●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M16	0-91110-516-0	04	1	1309-1310	●
201	07.427 NUT; PIN LK 06.509 (B) M16	0-91110-516-0	04	1	1309-1310			●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M16	0-91110-516-0	04	1	1311-	●	●
201	07.427 NUT; PIN LK 06.509 (B) M16	0-91110-516-0	04	1	1311-			●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE	8-97360-125-0	02	1	1309-1310	●
201	07.427 NUT; PIN LK (A) M16 FLANGE	8-97360-125-0	02	1	1309-1310			●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE	8-97360-125-0	02	1	1311-	●	●
201	07.427 NUT; PIN LK (A) M16 FLANGE	8-97360-125-0	02	1	1311-			●
501	07.413 BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105	8-97081-531-0	12	1	1309-1310	●
501	07.413 BUSHING; LEAF SPR,FRT 07.105	8-97081-531-0	12	1	1309-1310			●
501	07.413 BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105	8-97081-531-0	12	1	1311-	●	●
501	07.413 BUSHING; LEAF SPR,FRT 07.105	8-97081-531-0	12	1	1311-			●

5 25 161 4 45 100 3 1 19 161 45 346 394 346 77 77 88 526 84 58 149 80 48 188 441 47 442 7 4 19 62 54 65 68 17 68 65 60 65 88 60 526 58 346 65 103 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

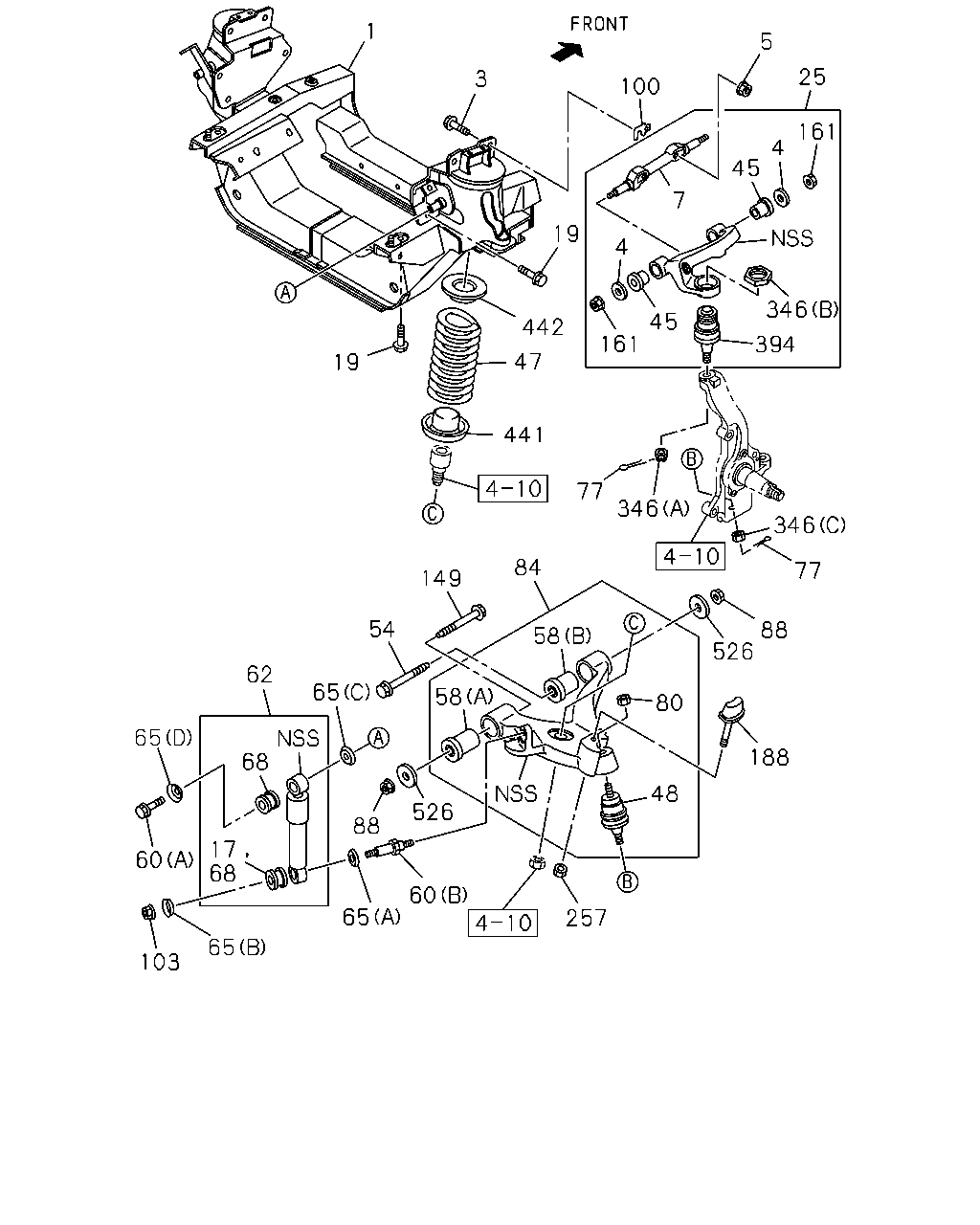

1	07.010 MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98247-588-0	01	1	1309-1310	●
1	07.010 MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98247-588-0	01	1	1311-	●	●
3	06.164 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.178 M16X70 FLANGE	0-28861-670-0	04	1	1309-1310	●
3	06.164 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.178 M16X70 FLANGE	0-28861-670-0	04	1	1311-	●	●
4	06.164 WASHER; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98021-786-0	04	1	1309-1310	●
4	06.164 WASHER; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98021-786-0	04	1	1311-	●	●
5	06.164 NUT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	1309-1310	●
5	06.164 NUT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	1311-	●	●
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-654-0	02	1	1309-1310	●
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-654-0	02	1	1311-	●	●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1309-1310	●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1311-1509	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1309-1310	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1309-1310			●
17	07.388 BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1311-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1311-			●
19	07.425 BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE	0-28661-230-0	14	1	1309-1310	●
19	07.425 BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE	0-28661-230-0	14	1	1311-	●	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-652-0	01	1	1309-1310	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-652-0	01	1	1311-	●	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-653-0	01	1	1309-1310	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-653-0	01	1	1311-	●	●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97188-369-0	04	1	1309-1310	●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97188-369-0	04	1	1311-	●	●
47	07.412 SPRING; COIL,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-97357-109-1	02	1	1309-1310	●
47	07.412 SPRING; COIL,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-97357-109-1	02	1	1311-	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-97142-452-1	02	1	1309-1310	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-97142-452-1	02	1	1311-	●	●
54	06.174 PIN; FULCRUM,LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 06.172	8-98021-825-1	02	1	1309-1310	●
54	06.174 PIN; FULCRUM,LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 06.172	8-98021-825-1	02	1	1311-	●	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94336-509-1	02	1	1309-1310	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94336-509-1	02	1	1311-	●	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-049-1	02	1	1309-1310	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-049-1	02	1	1311-	●	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M10X20 FLANGE	0-28651-020-0	02	1	1309-1310	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M10X20 FLANGE	0-28651-020-0	02	1	1311-	●	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98003-210-0	02	1	1309-1310	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98003-210-0	02	1	1311-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-651-0	02	1	1309-1310	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-651-0	02	1	1311-1509	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98270-983-1	02	1	1510-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-1	02	1	1309-1310	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98085-708-1	02	1	1309-1310			●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-1	02	1	1311-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98085-708-1	02	1	1311-			●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (A) ID=21 OD=40	0-91614-620-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (A) ID=21 OD=40	0-91614-620-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (B) ID=15	8-97360-056-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (B) ID=15	8-97360-056-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (C) ID=20.0	8-97360-057-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (C) ID=20.0	8-97360-057-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10.5	8-97360-058-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10.5	8-97360-058-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1309-1310			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1311-			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1309-1310	●
65	07.347 WASHER; S/ABS 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1309-1310			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1311-	●	●
65	07.347 WASHER; S/ABS 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1311-			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1309-1310	●
65	07.347 WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	1309-1310			●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1311-	●	●
65	07.347 WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	1311-			●
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1309-1310	●
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1311-1509	●	●
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) KYB	8-98273-083-0	04	1	1510-	●	●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO	8-94224-694-0	02	1	1309-1310	●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	1309-1310			●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO	8-94224-694-0	02	1	1311-	●	●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	1311-			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 05.812 OD=3.7 L=30	0-81124-030-0	04	1	1309-1310	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 05.812 OD=3.7 L=30	0-81124-030-0	04	1	1311-	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 00.785 M16	0-91111-516-0	02	1	1309-1310	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 00.785 M16	0-91111-516-0	02	1	1311-	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98111-717-2	01	1	1309-1310	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98111-717-2	01	1	1311-1508	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98322-934-0	01	1	1509-	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98111-718-2	01	1	1309-1310	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98111-718-2	01	1	1311-1508	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98322-935-0	01	1	1509-	●	●
88	06.174 NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.172 M22	0-91110-522-0	04	1	1309-1310	●
88	06.174 NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.172 M22	0-91110-522-0	04	1	1311-	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=1.2	8-98029-250-0	AR	1	1309-1310	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=1.2	8-98029-250-0	AR	1	1311-	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=2.3	8-98029-251-0	AR	1	1309-1310	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=2.3	8-98029-251-0	AR	1	1311-	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=4.5	8-98029-252-0	AR	1	1309-1310	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=4.5	8-98029-252-0	AR	1	1311-	●	●
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1309-1310	●
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1311-	●	●
103	07.347 NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	02	1	1309-1310	●
103	07.347 NUT; S/ABS TO LWR LINK 04.439 M12	0-91111-512-0	02	1	1309-1310			●
103	07.347 NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	02	1	1311-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 04.439 M12	0-91111-512-0	02	1	1311-			●
149	06.172 BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0) 06.174	8-98021-826-1	02	1	1309-1310	●
149	06.172 BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0) 06.174	8-98021-826-1	02	1	1311-	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.164 M16 FLANGE	0-91180-216-0	04	1	1309-1310	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.164 M16 FLANGE	0-91180-216-0	04	1	1311-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1309-1310	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1311-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1309-1310	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	1309-1310			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1311-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	1311-			●
257	07.346 NUT; CUSHION RUBBER FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	02	1	1309-1310	●
257	07.346 NUT; CUSHION RUBBER FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	02	1	1311-	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) 06.861 (C) M22	0-91111-522-0	02	1	1309-1310	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) 06.861 (C) M22	0-91111-522-0	02	1	1311-	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (A) M18 SLOTTED	8-97245-632-0	02	1	1309-1310	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (A) M18 SLOTTED	8-97245-632-0	02	1	1311-	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M52	8-98158-133-0	02	1	1309-1310	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M52	8-98158-133-0	02	1	1311-	●	●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97327-369-5	02	1	1309-1310	●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97327-369-5	02	1	1311-	●	●
441	07.420 SEAT; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-580-2	02	1	1309-1310	●
441	07.420 SEAT; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-580-2	02	1	1311-	●	●
442	07.420 INSULATOR; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-550-1	02	1	1309-1310	●
442	07.420 INSULATOR; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-550-1	02	1	1311-	●	●
526	06.172 WASHER; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 06.174 ID=23	0-91614-522-0	04	1	1309-1310	●
526	06.172 WASHER; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 06.174 ID=23	0-91614-522-0	04	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
