Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#126565) — 202 parça

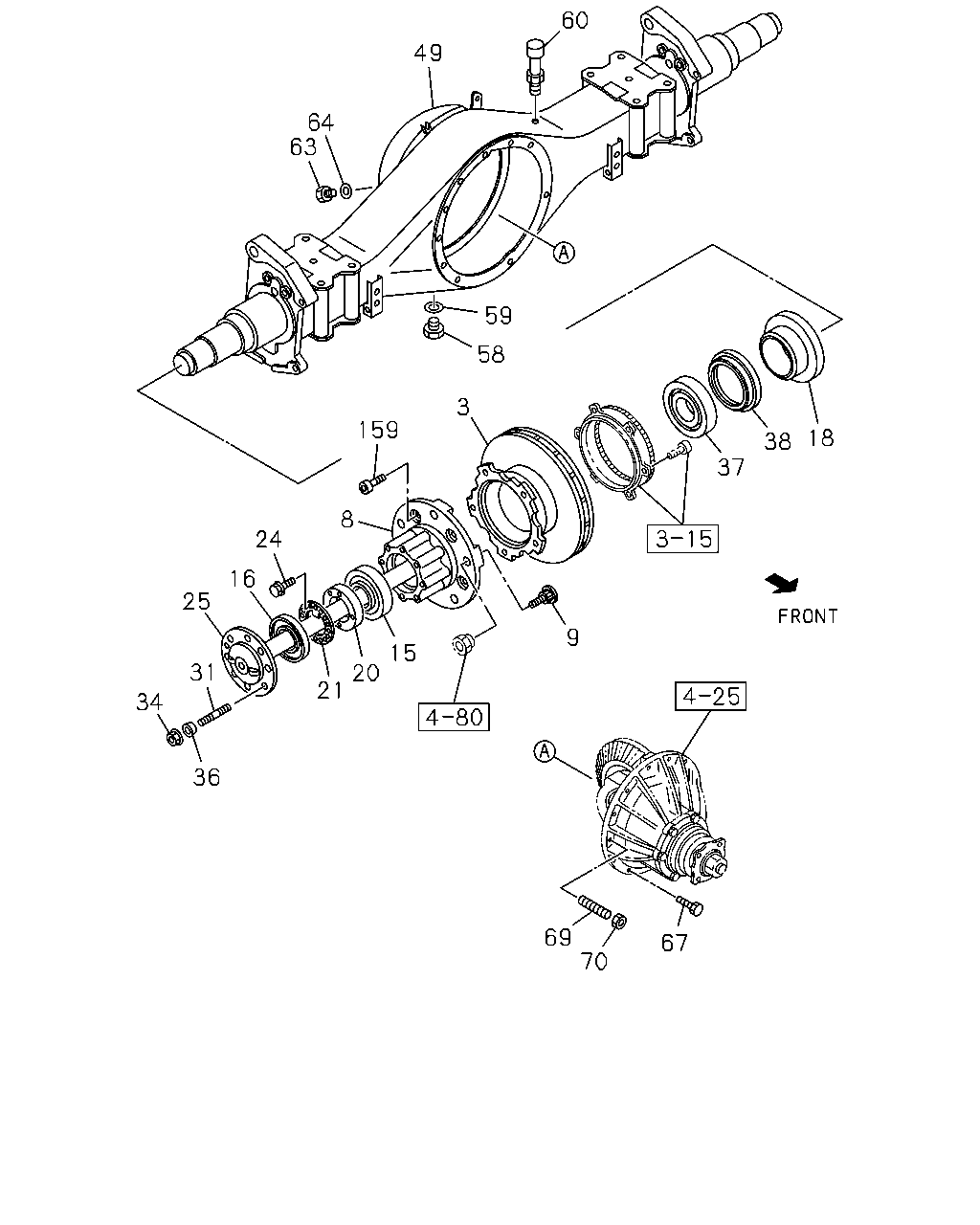

9 37 38 18 67 70 3 159 58 59 63 64 49 60 15 20 21 24 8 16 25 31 34 36 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	05.809 ROTOR; DISC BRK,RR	8-98248-897-0	02	1	1309-1310	●
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98248-897-0	02	1	1311-	●
3	05.809 ROTOR; DISC BRK,RR	8-98248-897-0	02	1	1311-		●
3	05.809 ROTOR; DISC BRK,RR	8-98209-261-2	02	1	1309-			●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	1311-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1309-1310	●		●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1311-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1311-		●	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 RH THREAD	9-42331-605-5	06	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 LH THREAD	9-42332-605-5	06	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1309-1310	●		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1311-		●	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1309-1310	●		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1311-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1309-1310	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1311-	●	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1309-1310	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1311-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1309-1310	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1311-	●	●	●
18	05.822 RETAINER; RR AXLE	8-98232-252-0	02	1	1309-1310	●		●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98232-252-0	02	1	1311-	●
18	05.822 RETAINER; RR AXLE	8-98232-252-0	02	1	1311-		●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1309-1310	●		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1311-	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1309-1310	●		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1311-	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1309-1310	●		●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1311-1508	●	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●
25	05.420 SHAFT; AXLE,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98175-444-0	02	1	1311-	●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-273-0	02	1	1311-1408	●
25	05.420 SHAFT; AXLE,RR	8-98232-273-0	02	1	1311-1408		●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-273-0	02	1	1409-	●	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1309-1310	●		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-97032-496-0	02	1	1311-1408	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1311-1408			●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-97032-496-0	02	1	1409-	●	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1409-			●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	12	1	1311-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1309-1310	●		●
31	05.422 STUD; AXLE SHAFT TO HUB 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	16	1	1311-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1311-		●	●
34	05.387 NUT; AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	12	1	1311-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1309-1310	●		●
34	05.387 NUT; AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	16	1	1311-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1311-		●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	12	1	1311-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1309-1310	●		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	16	1	1311-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1311-		●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1309-1310	●		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1311-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1309-1310	●		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1311-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1311-	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1311-	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1309-1310	●		●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1311-	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1311-		●	●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-98175-439-1	01	1	1311-	●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-187-1	01	1	1311-1408	●
49	05.387 CASE; RR AXLE	8-98232-187-1	01	1	1311-1408		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-187-1	01	1	1409-	●	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	1309-1310	●		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1311-1408	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	1311-1408			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1409-	●	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	1409-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1309-1310	●		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1311-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1309-1310	●		●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1311-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1309-1310	●		●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1311-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1309-1310	●		●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1311-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1309-1310	●		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1311-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1311-1408		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1409-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1409-	●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X90	0-28061-090-0	01	1	1311-1408		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1409-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1409-	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1309-1310	●		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1311-1408			●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1409-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1409-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1309-1310	●		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1311-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1309-1310	●		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1311-	●	●	●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	10	1	1309-1310	●		●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	10	1	1311-	●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	10	1	1311-		●	●

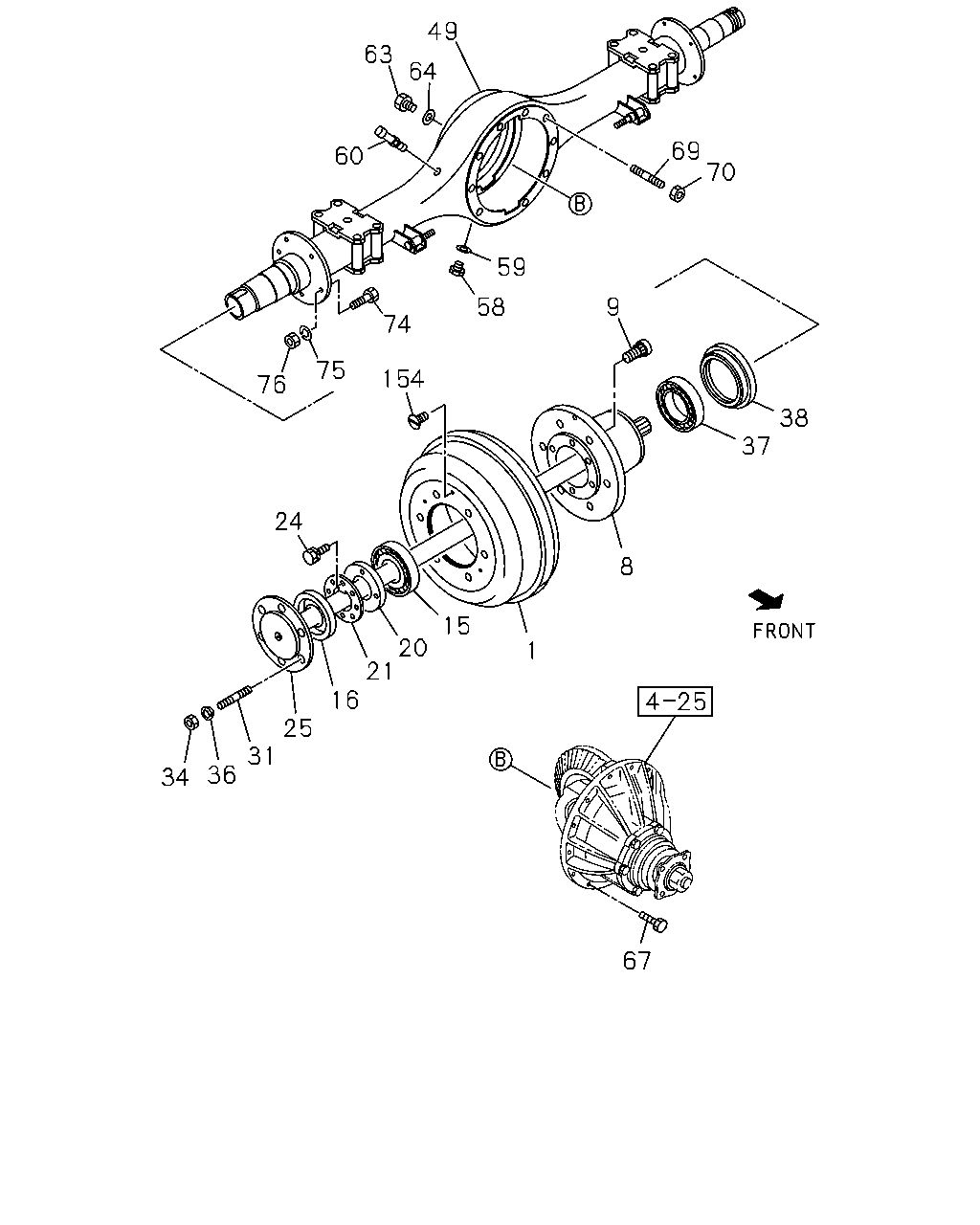

8 1 15 20 21 16 25 31 36 24 75 154 76 74 37 38 70 69 59 58 64 49 63 60 34 67 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98248-899-0	02	1	1311-	●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	1311-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1309-1310	●		●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1311-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1311-		●	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 RH THREAD	9-42331-605-5	06	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 LH THREAD	9-42332-605-5	06	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1309-1310	●		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1311-		●	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1309-1310	●		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	1311-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1311-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1309-1310	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1311-	●	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1309-1310	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1311-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1309-1310	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1311-	●	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1309-1310	●		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1311-	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1309-1310	●		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1311-	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1309-1310	●		●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1311-1508	●	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●
25	05.420 SHAFT; AXLE,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98175-444-0	02	1	1311-	●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-273-0	02	1	1311-1408	●
25	05.420 SHAFT; AXLE,RR	8-98232-273-0	02	1	1311-1408		●
25	05.420 SHAFT; AXLE,RR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-273-0	02	1	1409-	●	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1309-1310	●		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-97032-496-0	02	1	1311-1408	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1311-1408			●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-97032-496-0	02	1	1409-	●	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1409-			●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	12	1	1311-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1309-1310	●		●
31	05.422 STUD; AXLE SHAFT TO HUB 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	16	1	1311-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1311-		●	●
34	05.387 NUT; AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	12	1	1311-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1309-1310	●		●
34	05.387 NUT; AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	16	1	1311-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1311-		●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	12	1	1311-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1309-1310	●		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	16	1	1311-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1311-		●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1309-1310	●		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1311-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1309-1310	●		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1311-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1311-	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1311-	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1309-1310	●		●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1311-	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1311-		●	●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-98175-439-1	01	1	1311-	●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-187-1	01	1	1311-1408	●
49	05.387 CASE; RR AXLE	8-98232-187-1	01	1	1311-1408		●
49	05.387 CASE; RR AXLE AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9>	8-98232-187-1	01	1	1409-	●	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	1309-1310	●		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1311-1408	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	1311-1408			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1409-	●	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	1409-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1309-1310	●		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1311-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1309-1310	●		●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1311-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1309-1310	●		●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1311-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1309-1310	●		●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1311-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1309-1310	●		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1311-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1311-1408		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1409-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10X30 FLANGE	0-28061-030-0	07	1	1409-	●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X90	0-28061-090-0	01	1	1311-1408		●
67	05.387 BOLT; FINAL DRIVE SETTING AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1409-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M10X90	0-28061-090-0	01	1	1409-	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1309-1310	●		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1311-1408	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1311-1408			●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1409-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1409-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1309-1310	●		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1311-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1309-1310	●		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1311-	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>	8-98007-877-0	12	1	1311-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 02.277 ID=10.2	0-91510-810-0	12	1	1311-	●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 00.833 M10	0-91110-510-0	12	1	1311-	●
154	04.665 SCREW; SLOTTED EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1311-1402	●
154	04.665 SCREW; SLOTTED EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1409-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
