Sayfa 3-60 - Isuzu EPC

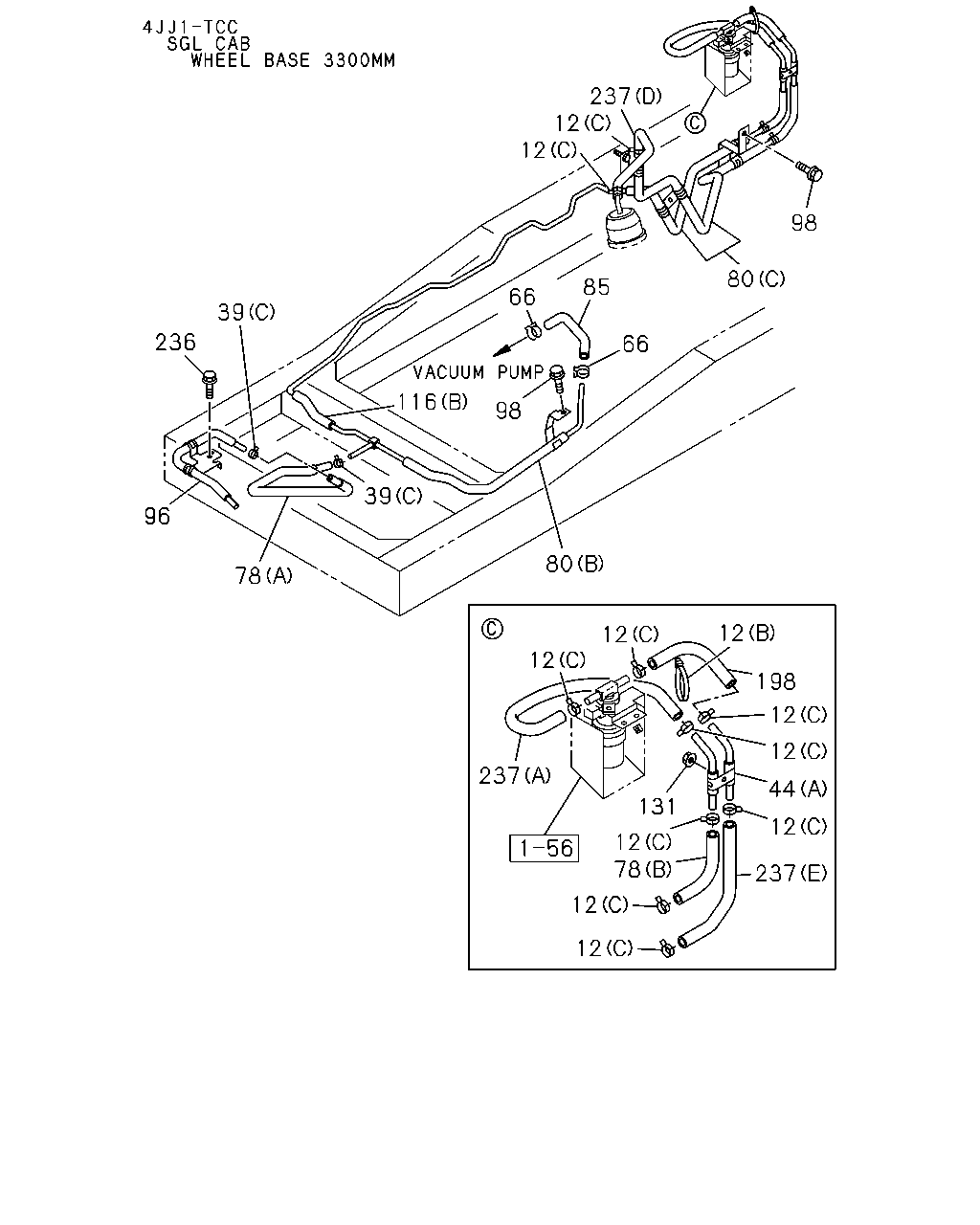

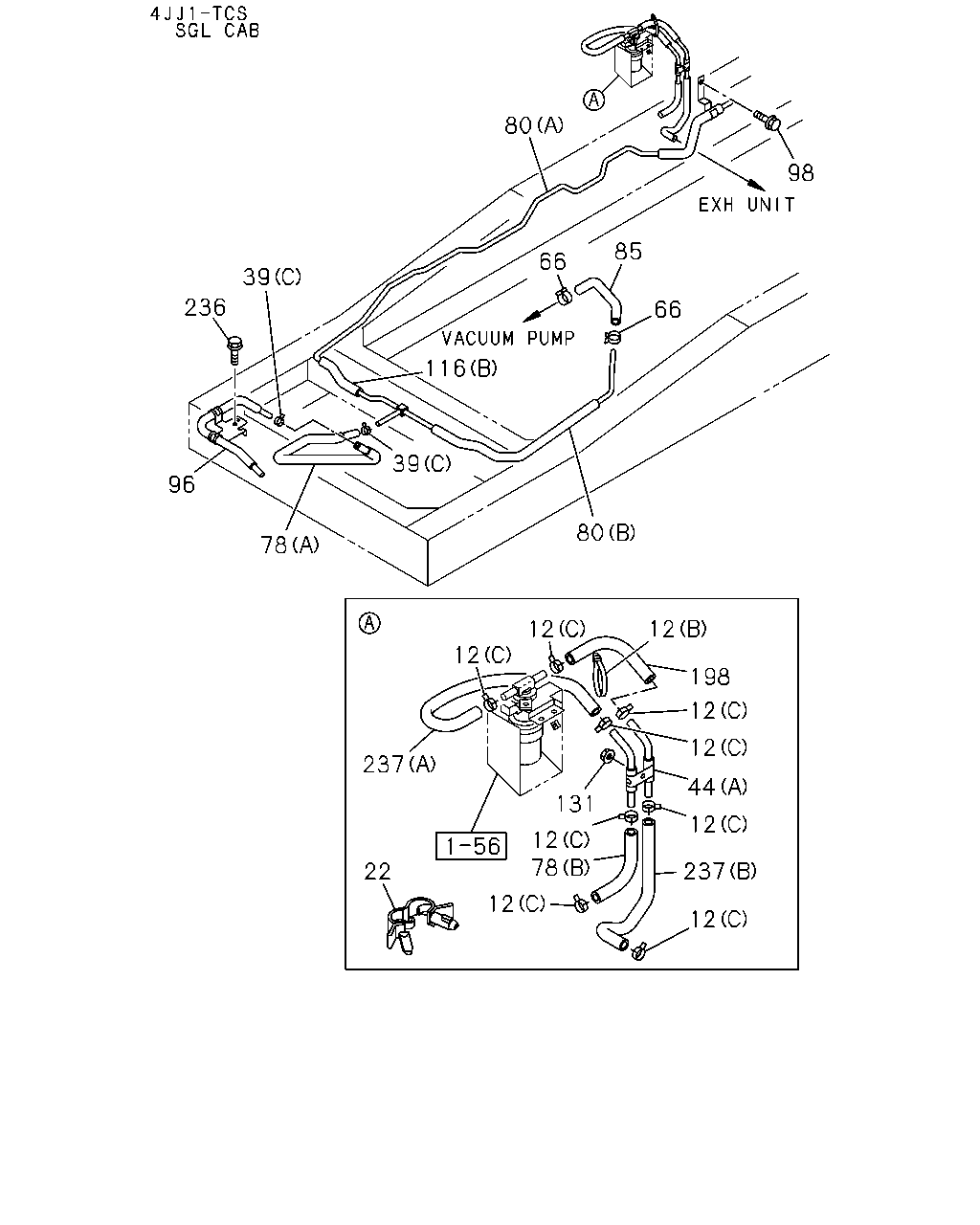

3-60 — BRAKE PIPING; VACUUM (#126561) — 979 parça

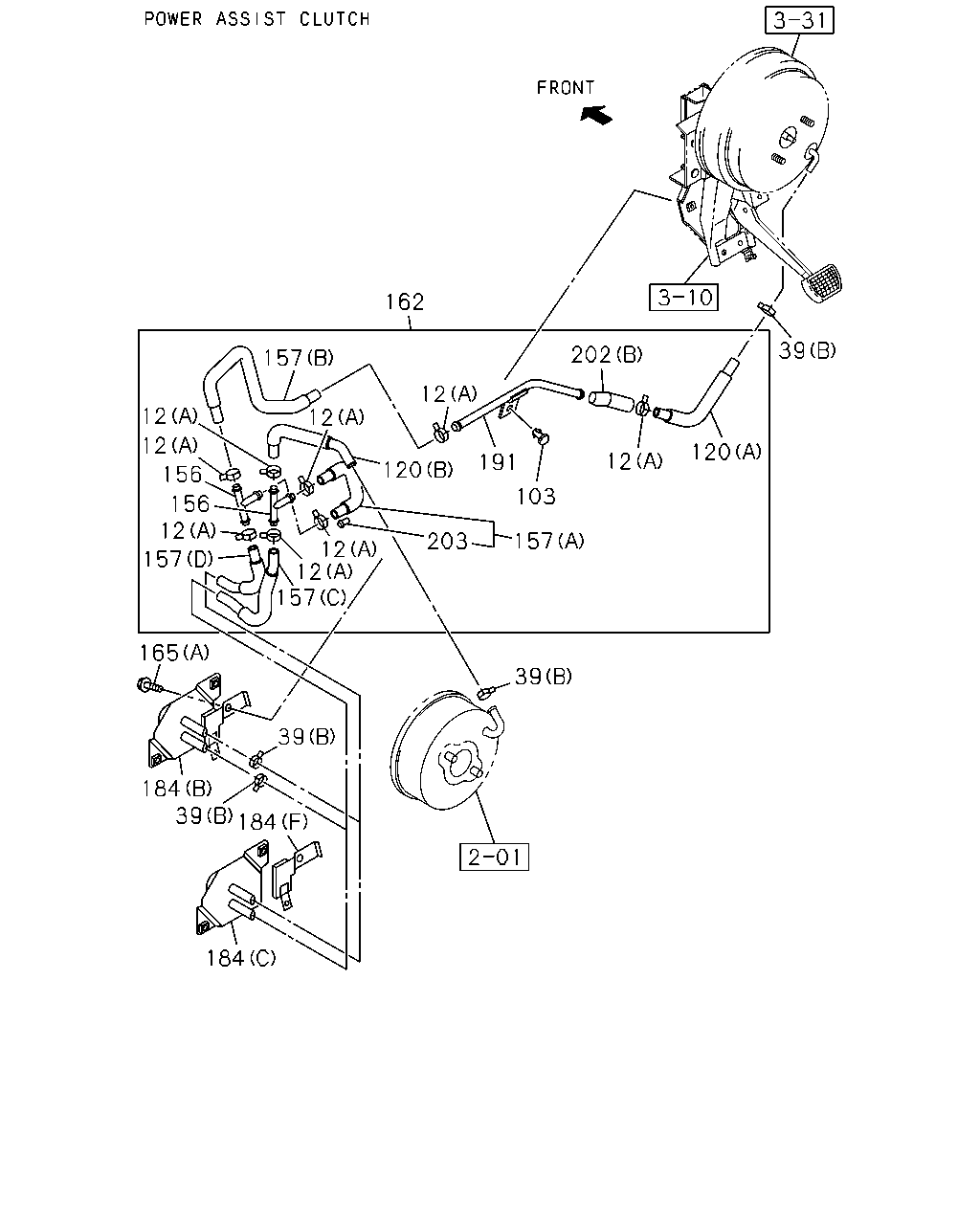

39 202 12 120 191 157 203 120 12 162 103 157 12 12 156 12 12 156 157 157 12 12 39 184 165 39 184 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1309-1310	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1311-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1309-1310	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1311-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1309-1310	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1311-	●	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1309-1310	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1311-	●	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1309-1310	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1311-	●	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1309-1310	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1311-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1309-1310	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1309-1310	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1311-1311	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1311-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1309-1310	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1311-	●	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1309-1310	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1311-	●	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1309-1310	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1311-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1309-1310	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1311-	●	●	●

184 20 234 165 234 173 173 234 13 12 116 234 12 202 39 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1309-1310	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1311-	●	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●
22	04.681 CLIP; HOSE,VAC TANK ID=18-24 L=14.5	1-09709-298-0	01	1	1309-1310	●	●
22	04.681 CLIP; HOSE,VAC TANK ID=18-24 L=14.5	1-09709-298-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1311-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1309-1310	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1309-1310	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1311-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1309-1310	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1311-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1309-1310	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1311-1311	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1311-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1309-1310	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1311-	●	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1309-1310	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1311-	●	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1309-1310	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1311-	●	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1309-1310	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1311-	●	●	●

39 236 96 78 39 80 116 66 80 85 66 98 12 12 237 22 12 78 12 131 12 198 12 12 44 12 237 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
22	04.681 CLIP; HOSE,VAC TANK ID=18-24 L=14.5	1-09709-298-0	01	1	1309-1310	●	●
22	04.681 CLIP; HOSE,VAC TANK ID=18-24 L=14.5	1-09709-298-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98271-263-0	01	1	1402-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-597-0	01	1	1311-1401			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98227-597-0	01	1	1402-			●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98042-654-0	01	1	1309-1310	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1401-1401	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98042-654-0	01	1	1401-1401	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1402-1403	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1404-1408	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1404-1408	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1309-1310	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1311-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98281-196-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-226-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1402-1403	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1311-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-142-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-143-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-143-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1401-1403		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1401-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1309-1310	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1311-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1309-1310	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1311-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1309-1310	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1311-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312			●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1409-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1311-	●	●	●
131	04.930 NUT; VAC PIPE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1312	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1312	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1312	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1401-1401	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1401-1401	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1402-1403	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1404-1408	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1404-1408	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1401-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98076-068-1	01	1	1311-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98076-068-1	01	1	1402-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98064-717-1	01	1	1311-1401			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98064-717-1	01	1	1402-1402			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98064-717-1	01	1	1402-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98189-222-0	01	1	1309-1310	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1402-1403	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1309-1310	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1311-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98260-455-2	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G)	8-98271-264-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98227-652-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98227-652-1	01	1	1402-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98227-654-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-653-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F)	8-98227-655-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98227-655-0	01	1	1402-1402			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F)	8-98227-655-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G)	8-98227-656-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98227-656-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98189-224-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98231-606-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1401-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1409-	●	●	●

165 39 184 184 184 191 202 120 12 12 103 157 39 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1309-1310	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1311-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1309-1310	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98194-488-0	01	1	1311-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1309-1310	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-98191-454-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98191-452-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98191-453-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98191-458-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98194-489-0	01	1	1311-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1309-1310	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98191-466-0	01	1	1311-	●	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1309-1310	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T)	8-98191-457-0	01	1	1311-	●	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1309-1310	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98191-465-1	01	1	1311-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1309-1310	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1309-1310	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-468-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1311-1311	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-536-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98183-469-1	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1311-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1309-1310	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1311-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1309-1310	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1311-	●	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1309-1310	●	●
202	04.686 SEAL (B)	1-72447-923-0	01	1	1311-	●	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1309-1310	●	●
202	04.686 SEAL 08.845 (A)	8-97856-616-0	02	1	1311-	●	●	●

12 12 237 80 98 85 66 66 116 39 78 96 236 39 237 12 12 12 12 198 12 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1309-1310	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1311-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98281-196-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-226-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1402-1403	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1311-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-142-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-143-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-143-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1401-1403		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1401-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1309-1310	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1311-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1309-1310	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1311-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1309-1310	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1311-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312			●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1409-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1311-	●	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1401-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98076-068-1	01	1	1311-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98076-068-1	01	1	1402-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98064-717-1	01	1	1311-1401			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98064-717-1	01	1	1402-1402			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98064-717-1	01	1	1402-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98189-222-0	01	1	1309-1310	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1402-1403	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1309-1310	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1311-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98260-455-2	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G)	8-98271-264-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98227-652-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98227-652-1	01	1	1402-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98227-654-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-653-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F)	8-98227-655-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98227-655-0	01	1	1402-1402			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F)	8-98227-655-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G)	8-98227-656-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98227-656-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98189-224-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98231-606-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1401-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1409-	●	●	●

237 12 12 39 236 96 39 78 116 66 85 80 98 66 68 80 12 12 237 12 198 12 12 44 12 237 131 12 78 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98271-263-0	01	1	1402-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-597-0	01	1	1311-1401			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98227-597-0	01	1	1402-			●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98042-654-0	01	1	1309-1310	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1401-1401	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98042-654-0	01	1	1401-1401	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1402-1403	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1404-1408	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1404-1408	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1309-1310	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1311-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98281-196-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-226-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1402-1403	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1311-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-142-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-143-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-143-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1401-1403		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1401-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1309-1310	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1311-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1309-1310	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1311-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1309-1310	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1311-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312			●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1409-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1311-	●	●	●
131	04.930 NUT; VAC PIPE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1312	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1312	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1312	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1401-1401	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1401-1401	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1402-1403	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1404-1408	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1404-1408	●	●
131	04.930 NUT; VAC PIPE FIX WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●
131	04.930 NUT; VAC PIPE FIX 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1401-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98076-068-1	01	1	1311-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98076-068-1	01	1	1402-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98064-717-1	01	1	1311-1401			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98064-717-1	01	1	1402-1402			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98064-717-1	01	1	1402-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98189-222-0	01	1	1309-1310	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1402-1403	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1309-1310	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1311-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98260-455-2	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G)	8-98271-264-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98227-652-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98227-652-1	01	1	1402-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98227-654-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-653-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F)	8-98227-655-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98227-655-0	01	1	1402-1402			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F)	8-98227-655-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G)	8-98227-656-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98227-656-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98189-224-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98231-606-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1401-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1409-	●	●	●

236 39 80 85 66 66 98 116 39 80 78 96 237 12 12 198 235 80 108 12 12 12 127 44 98 12 98 44 237 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1402-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.846 (E) ID=24 L=32	1-09700-766-1	01	1	1402-			●
12	04.681 CLIP; HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1401	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1402-1403	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1404-1408	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) L=140	5-09707-031-1	01	1	1409-			●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	06	1	1309-1310	●	●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 (C) ID=16	8-98008-098-0	06	1	1311-1401			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1402			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1402-1403			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1404-1408			●
12	04.681 CLIP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) ID=16	8-98008-098-0	06	1	1409-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1309-1310	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1311-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1309-1310	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1311-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1309-1310	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1311-	●	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98271-263-0	01	1	1402-			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98227-597-0	01	1	1311-1401			●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98227-597-0	01	1	1402-			●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98042-654-0	01	1	1309-1310	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1311-1312	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1401-1401	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98042-654-0	01	1	1401-1401	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1402-1403	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1404-1408	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1404-1408	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98042-654-0	01	1	1409-			●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1309-1310	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1311-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98281-196-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-226-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1311-1312	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98189-226-0	01	1	1401-1401	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1402-1403	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1404-1408	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98189-226-0	01	1	1409-			●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1309-1310	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98207-005-0	01	1	1311-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-142-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-142-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98272-143-0	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98272-143-0	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-591-1	01	1	1401-1403	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1401-1403		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-591-1	01	1	1404-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1311-1312	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1311-1312		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98227-592-1	01	1	1401-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98227-592-1	01	1	1401-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1401-1405			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98071-771-0	01	1	1406-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1311-1312			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98066-971-0	01	1	1401-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1309-1408	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1409-	●		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1309-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98065-063-2	01	1	1409-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1309-1310	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1311-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1309-1310	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1311-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1309-1310	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1311-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-1312			●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1401-1403			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408	●	●
98	04.931 BOLT; VAC PIPE FIX WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1404-1408			●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1409-	●	●	●
108	04.931 GROMMET; PIPE 02.343 ID=17	8-94128-319-2	01	1	1311-			●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1311-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1309-1310	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1311-	●	●	●
127	04.930 BOLT; CLIP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1401			●
127	04.930 BOLT; CLIP 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1402-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98260-453-0	01	1	1401-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98076-068-1	01	1	1311-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98076-068-1	01	1	1402-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98064-717-1	01	1	1311-1401			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98064-717-1	01	1	1402-1402			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98064-717-1	01	1	1402-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98189-222-0	01	1	1309-1310	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1311-1312	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-222-0	01	1	1401-1401	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1402-1403	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1404-1408	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98189-222-0	01	1	1409-			●
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1311-			●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1309-1310	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1311-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98260-455-2	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (G)	8-98271-264-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98260-454-0	01	1	1401-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98227-652-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C)	8-98227-652-1	01	1	1402-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98227-654-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (D)	8-98227-654-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98227-653-1	01	1	1311-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (E)	8-98227-653-1	01	1	1404-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (F)	8-98227-655-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98227-655-0	01	1	1402-1402			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F)	8-98227-655-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (G)	8-98227-656-0	01	1	1311-1401			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98227-656-0	01	1	1402-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98189-224-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98189-224-0	01	1	1401-1401	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1402-1403	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1404-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98189-224-0	01	1	1409-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98231-606-0	01	1	1309-1310	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1311-1312	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1401-1408	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-606-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
