3-55 — BRAKE PIPING; OIL,REAR (#126559) — 154 parça

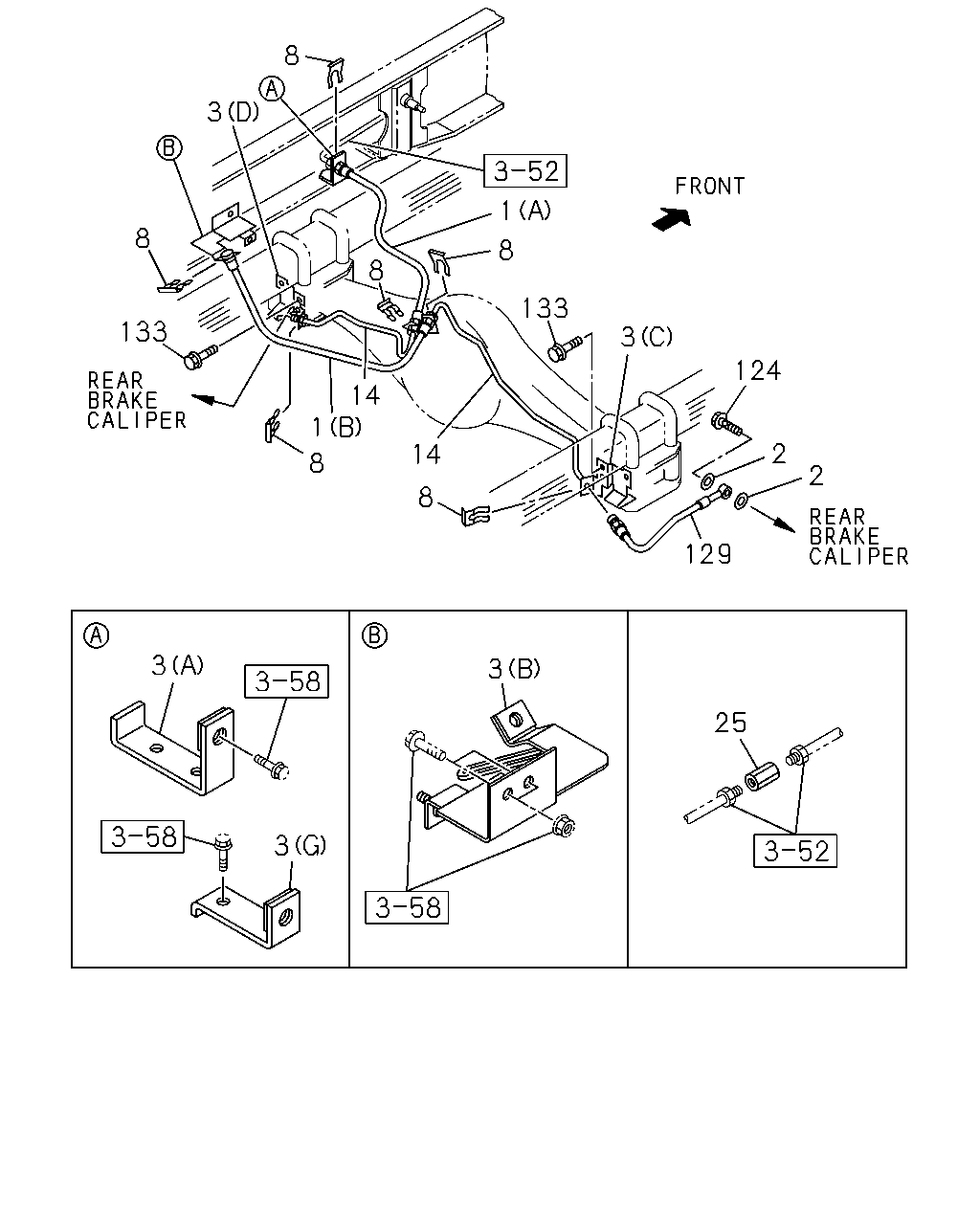

çizim 373926
3 3 3 25 129 2 2 124 3 133 8 1 8 3 14 8 8 1 14 133 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1309-1310 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1311- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1309-1310 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1311- ● ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1309-1310 ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1311- ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1311- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E) 		8-97251-436-0 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F) 		8-98117-513-0 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1311-1408 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1311-1408 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(G) 		8-98135-875-0 01 1 1311-1408 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1409- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1409- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) (G) 		8-98135-875-0 01 1 1409- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-625-3 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-625-3 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-625-3 01 1 1311- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 1311- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1311-1403 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1311-1403 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1404-1408 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1404-1408 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1409- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1409- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98153-296-0 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1311-1403 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1311-1403 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1404-1408 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1404-1408 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1409- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1409- ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1309-1310 ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1311- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1311- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1309-1310 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1311- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-597-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-597-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-597-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 		8-98232-597-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-598-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-598-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-598-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 		8-98232-598-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98175-406-0 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98175-407-1 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-876-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-876-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-880-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-880-0 01 1 1409- ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 04 1 1309-1310 ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 04 1 1311- ● ●
25 04.686 CONNECTOR
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1309-1310 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1309-1310 ●
25 04.686 CONNECTOR
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1311- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1311- ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1309-1310 ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1311- ● ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1309-1310 ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1311- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1311- ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1309-1310 ● ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1311- ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1311- ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1309-1310 ● ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1311- ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1311- ● ●

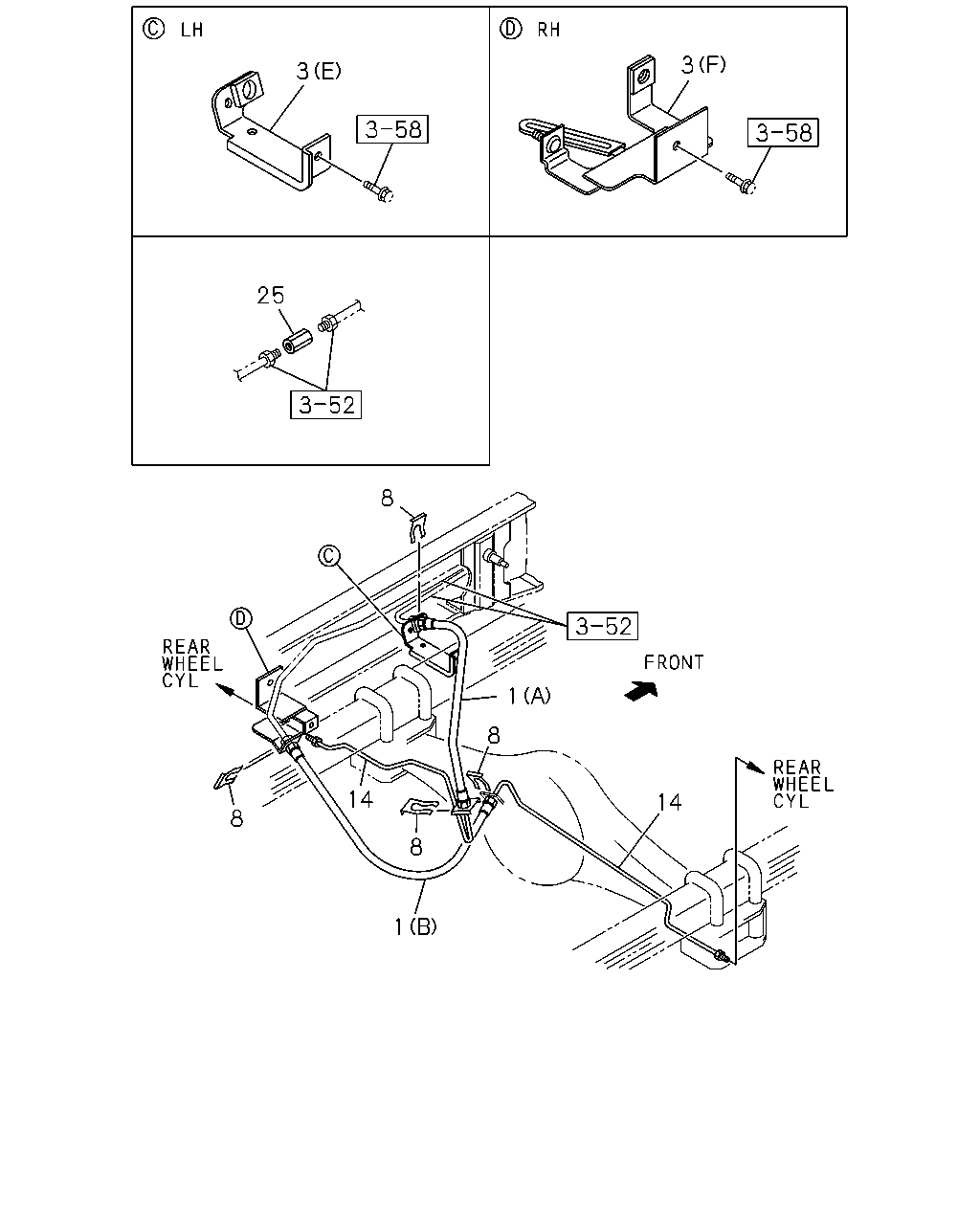

çizim 388475
3 3 25 8 1 8 14 1 8 14 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1309-1310 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1311- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1309-1310 ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1311- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E) 		8-97251-436-0 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F) 		8-98117-513-0 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1311-1408 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1311-1408 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(G) 		8-98135-875-0 01 1 1311-1408 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1409- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (G) 		8-98135-875-0 01 1 1409- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
AXLE REAR - LIGHT DUTY(8PB) (G) 		8-98135-875-0 01 1 1409- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-625-3 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-625-3 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-625-3 01 1 1311- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1311- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 1311- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1311-1403 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1311-1403 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1404-1408 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1404-1408 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1409- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1409- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98153-296-0 01 1 1309-1310 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1311-1403 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1311-1403 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1404-1408 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1404-1408 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1409- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 		8-98153-296-0 01 1 1409- ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1309-1310 ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1311- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1311- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1309-1310 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1311- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-597-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-597-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-597-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 		8-98232-597-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-598-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98232-598-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98232-598-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) 		8-98232-598-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98175-406-0 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
AXLE REAR - LIGHT DUTY(8PB) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98175-407-1 01 1 1311- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-876-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-876-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-876-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-880-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1309-1310 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1311-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-880-0 01 1 1409- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-880-0 01 1 1409- ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 04 1 1309-1310 ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 04 1 1311- ● ●
25 04.686 CONNECTOR
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1309-1310 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1309-1310 ●
25 04.686 CONNECTOR
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 1311- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1311- ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1309-1310 ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) M10 STRAIGHT 		0-92107-005-0 01 1 1311- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
