3-52 — BRAKE PIPING; OIL,FRONT (#126558) — 182 parça

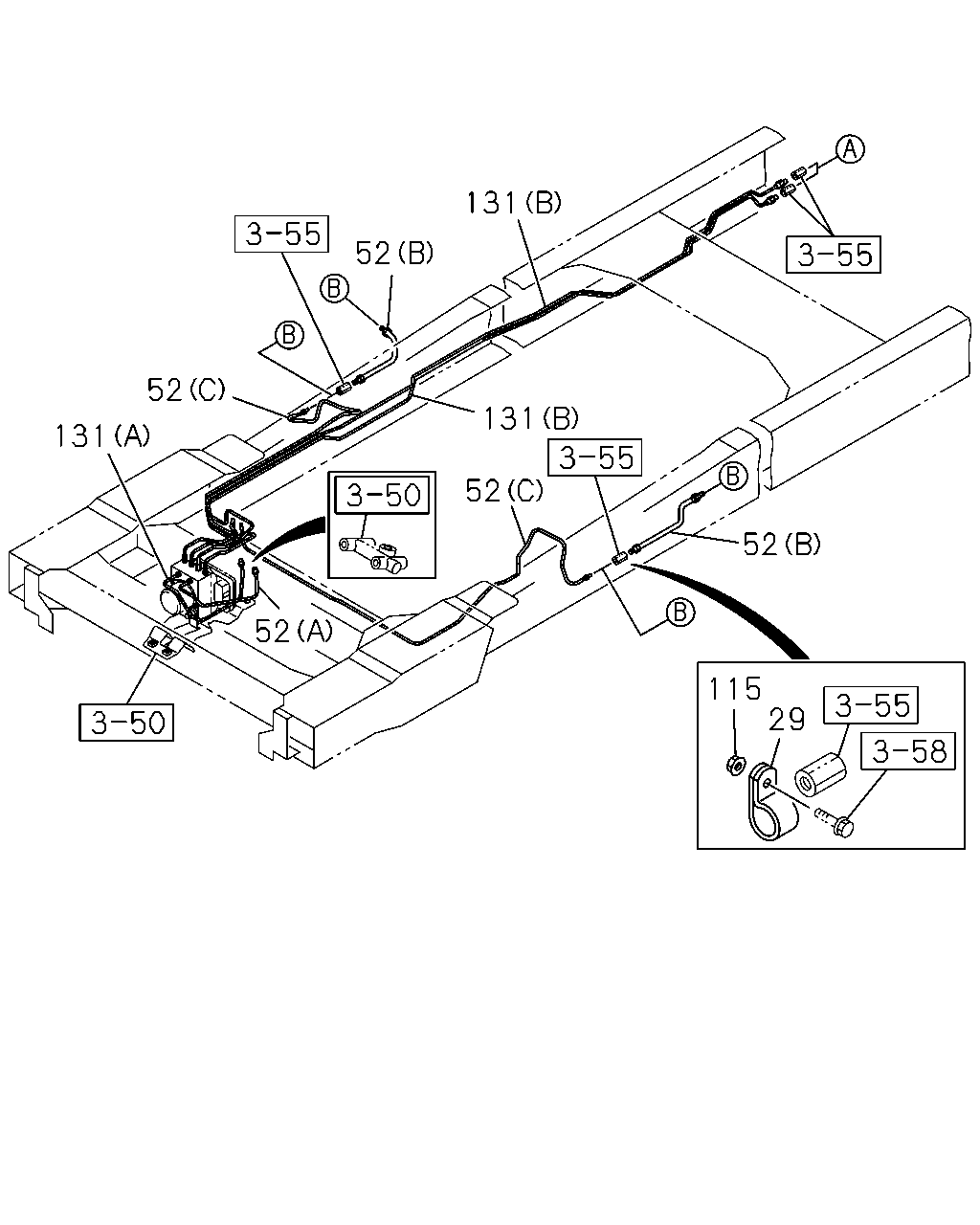

çizim 373315
115 29 52 52 131 131 52 52 131 52
BalonParca AdiParca NoAdetTipApplied Date A B C
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1309-1310 ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20 		0-95235-532-0 02 1 1311- ● ●
52 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1402- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1309-1310 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1311-1408 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1409- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1409- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1409- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-253-0 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1311-1408 ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1409- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1409- ●
52 04.685 PIPE; BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-254-0 01 1 1409- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1309-1310 ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1311-1401 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1311-1401 ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1311-1401 ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1402-1408 ●
52 04.685 PIPE; BRK
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1409- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1409- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98206-900-3 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1311-1401 ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1311-1401 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1311-1401 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1409- ●
52 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98206-255-0 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1309-1310 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1311-1401 ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1311-1401 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1311-1401 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1402-1408 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1409- ●
52 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1409- ●
52 04.685 PIPE; BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98206-256-0 01 1 1409- ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ●
115 04.680 NUT; CLIP
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,REAR 		8-98254-348-0 01 1 1402- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1311- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1311- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1311- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1311- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH 		8-98206-264-0 01 1 1311-1401 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),VEHICLE LOW COST PACKAGE VARIAN T 1<6NX> (B) BRAKE SYSTEM,RR RH 		8-98206-264-0 01 1 1402- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH 		8-98206-267-0 01 1 1311-1401 ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),VEHICLE LOW COST PACKAGE VARIAN T 1<6NX> (B) BRAKE SYSTEM,RR LH 		8-98206-267-0 01 1 1402- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1309-1310 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1311-1401 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1311-1401 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1311-1401 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1402-1408 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1402-1408 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1402-1408 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1402-1408 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL DISC BRAKE<JF9> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1409- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1409- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1409- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-98206-901-2 01 1 1409- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1309-1310 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1309-1310 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1311-1408 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1311-1408 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1409- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-259-0 01 1 1409- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1309-1310 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1309-1310 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1311-1408 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1311-1408 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1409- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-261-0 01 1 1409- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-262-0 01 1 1309-1310 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-262-0 01 1 1311-1401 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),VEHICLE LOW COST PACKAGE VARIAN T 1<6NX> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-262-0 01 1 1402-1408 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),VEHICLE LOW COST PACKAGE VARIAN T 1<6NX> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98206-262-0 01 1 1409- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-263-0 01 1 1309-1310 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-263-0 01 1 1311-1401 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),VEHICLE LOW COST PACKAGE VARIAN T 1<6NX> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-263-0 01 1 1402-1408 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),VEHICLE LOW COST PACKAGE VARIAN T 1<6NX> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98206-263-0 01 1 1409- ● ● ●

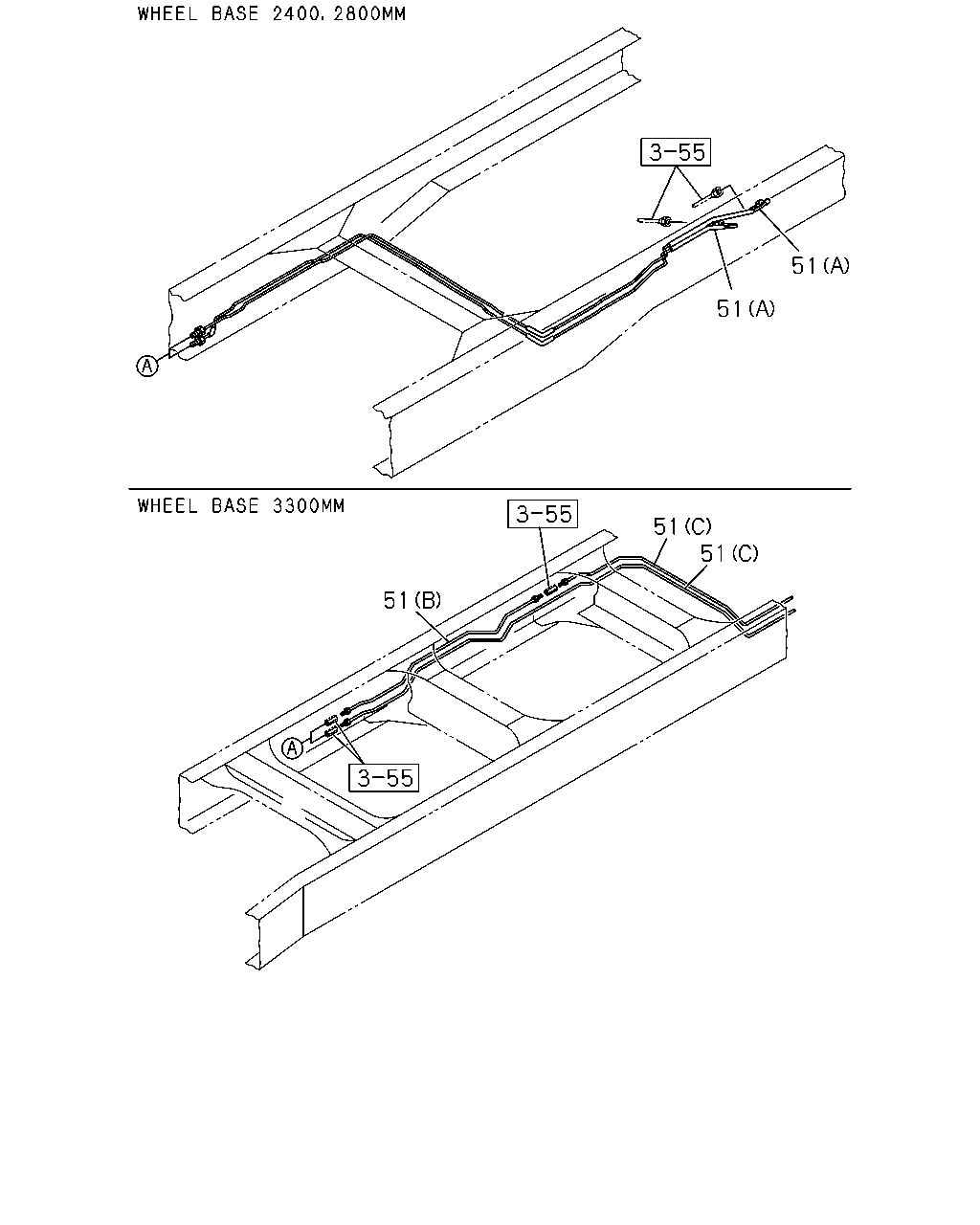

çizim 373342
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1404-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1404-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1409- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-516-1 01 1 1409- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1404-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1404-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1409- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-529-1 01 1 1409- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98010-306-1 01 1 1311- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98010-307-1 01 1 1311- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1311- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1311- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1311- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1311- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1311- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1311- ● ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1311- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1311- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98209-961-1 01 1 1309-1310 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98209-961-1 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98209-961-1 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98209-961-1 01 1 1409- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98209-961-1 01 1 1409- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98209-962-0 01 1 1309-1310 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98209-962-0 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98209-962-0 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98209-962-0 01 1 1409- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98209-962-0 01 1 1409- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98217-108-0 01 1 1309-1310 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98217-108-0 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98217-108-0 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO 2WAY 		8-98217-108-0 01 1 1409- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) 2WAY TO 2WAY 		8-98217-108-0 01 1 1409- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98217-109-0 01 1 1309-1310 ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98217-109-0 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98217-109-0 01 1 1311-1408 ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98217-109-0 01 1 1409- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98217-109-0 01 1 1409- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1309-1310 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (C) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1311- ● ● ●

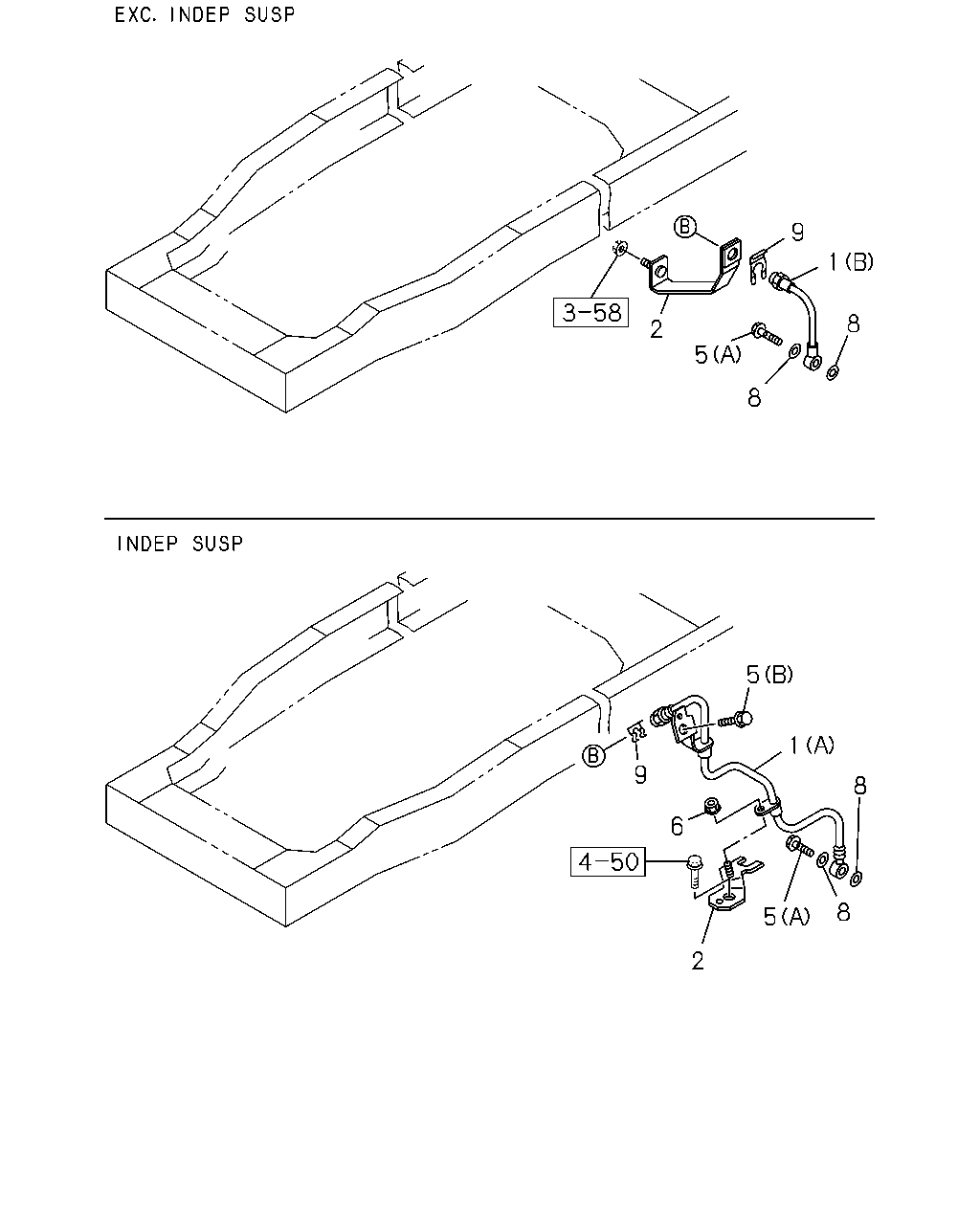

çizim 373889
1 8 9 6 2 8 5 8 8 1 5 2 9 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97366-925-1 02 1 1309-1310 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-1 02 1 1309-1310 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97366-925-1 02 1 1311- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-1 02 1 1311- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-770-3 01 1 1309-1310 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-770-3 01 1 1311- ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-771-3 01 1 1309-1310 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97358-771-3 01 1 1311- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-635-1 01 1 1309-1310 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-635-1 01 1 1311- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-636-1 01 1 1309-1310 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 04.686 		8-97369-636-1 01 1 1311- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1309-1310 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1309-1310 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-691-1 01 1 1311- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 1311- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1309-1310 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1309-1310 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-692-1 01 1 1311- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 1311- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1309-1310 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1311- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1309-1310 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
6 04.686 NUT; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1309-1310 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1311- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1309-1310 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1311- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
