◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#126557) — 153 parça

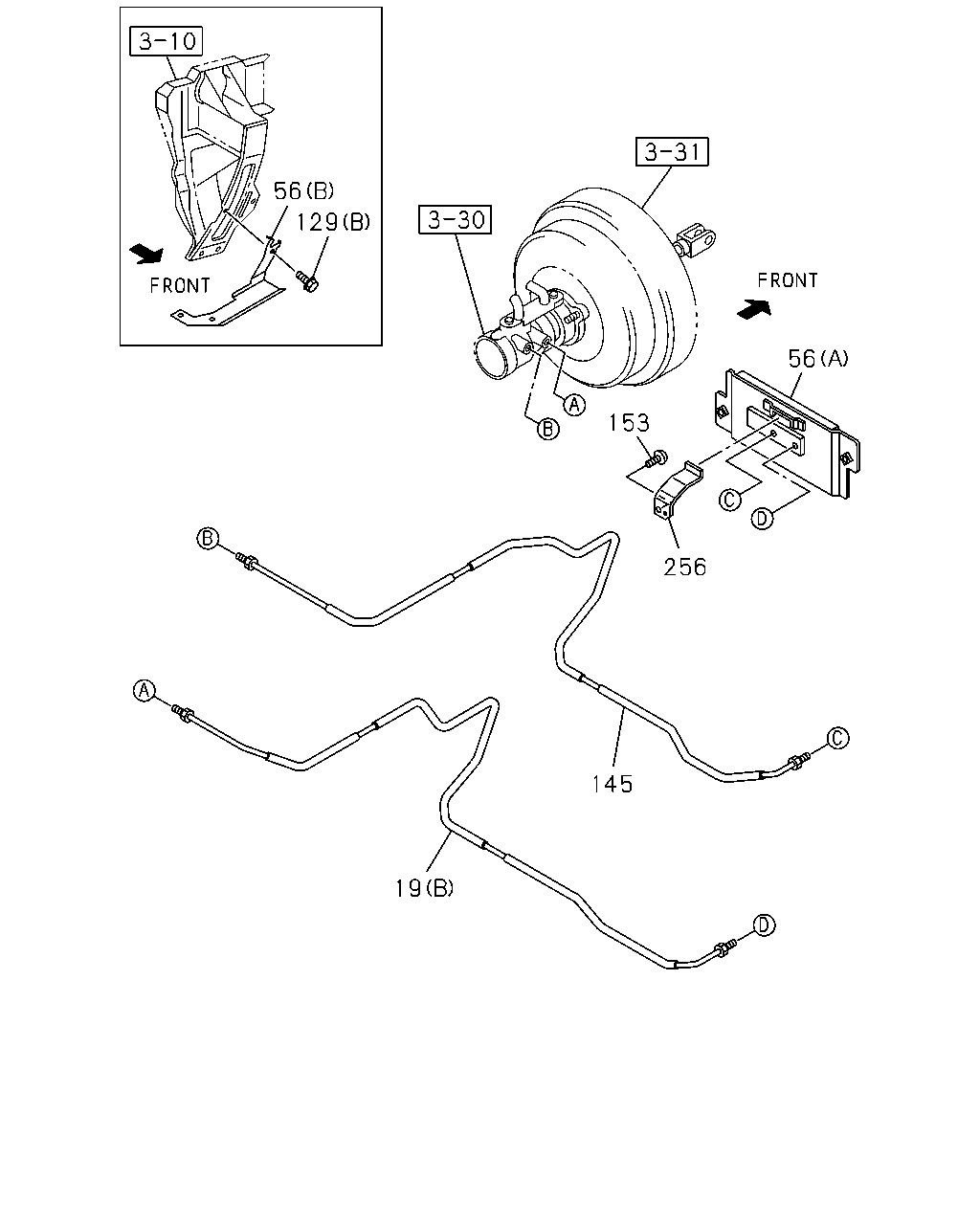

çizim 373260
56 129 56 153 256 145 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98047-210-2 02 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98197-655-2 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1309-1310 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1311-1401 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98191-449-0 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-899-0 02 1 1309-1310 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-899-0 02 1 1311-1401 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-899-0 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98206-899-0 02 1 1402- ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-268-1 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98154-269-1 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1311-1401 ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1402 ● ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98196-285-0 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1311-1401 ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402-1402 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98196-284-0 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1311- ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1309-1310 ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1311- ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98197-658-1 01 1 1402- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1309-1310 ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1311-1401 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98191-450-0 01 1 1402- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98191-450-0 01 1 1402- ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1309-1310 ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1311- ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1309-1310 ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1311- ● ● ●

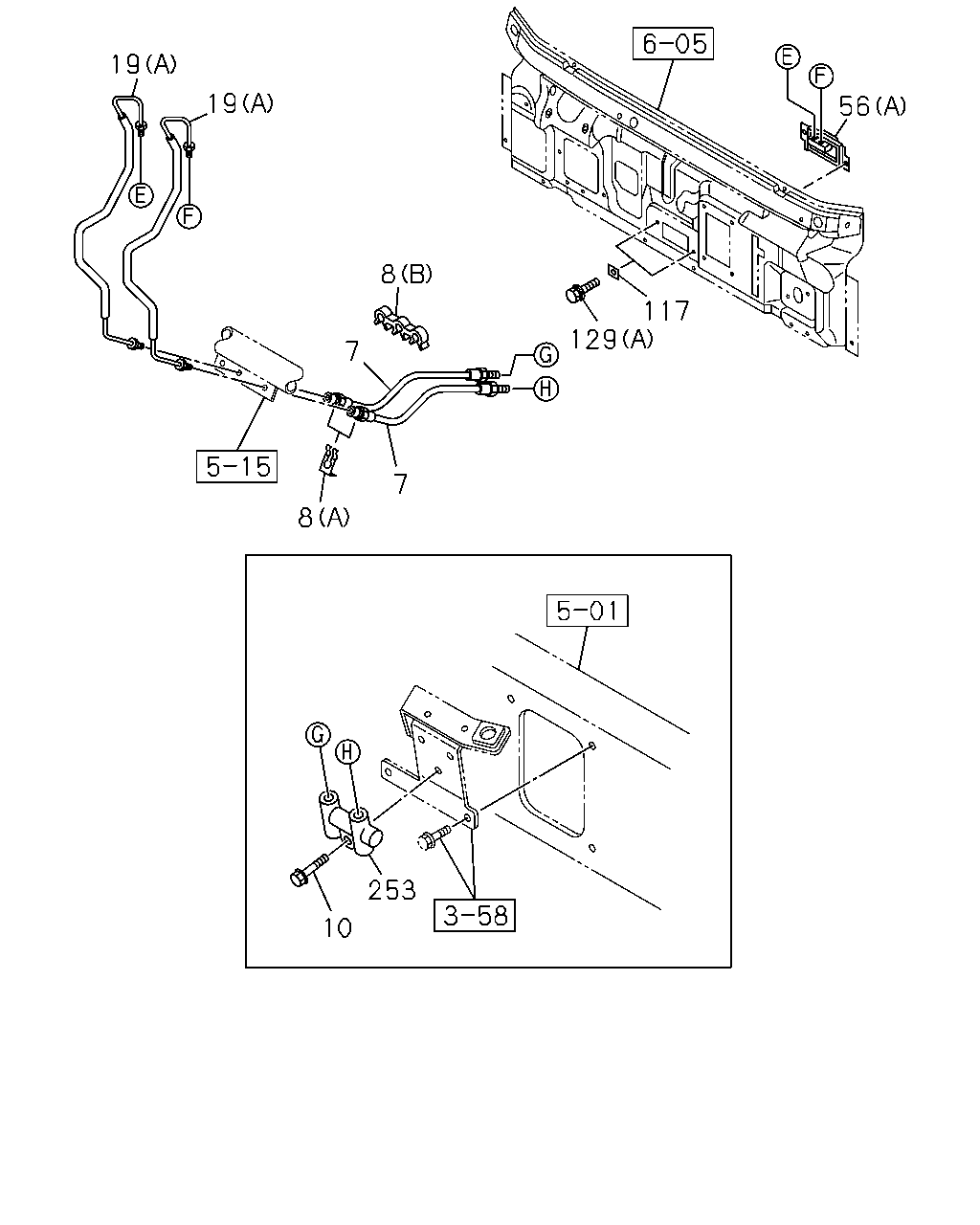

çizim 373262
19 19 8 7 8 7 129 117 56 253 10
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98033-732-0 02 1 1402- ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98206-868-0 02 1 1309-1310 ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98206-868-0 02 1 1311-1401 ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98206-868-0 02 1 1402- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98206-868-0 02 1 1402- ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1309-1310 ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1311- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1309-1310 ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1311- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1309-1310 ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1311- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98047-210-2 02 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98197-655-2 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1309-1310 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1311-1401 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98191-449-0 01 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) 		8-98191-449-0 01 1 1402- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-899-0 02 1 1309-1310 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-899-0 02 1 1311-1401 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-899-0 02 1 1402- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98206-899-0 02 1 1402- ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98154-268-1 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98154-269-1 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1311-1401 ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402-1402 ● ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98196-285-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98196-285-0 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1311-1401 ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98196-284-0 01 1 1311-1401 ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402-1402 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98196-284-0 01 1 1402- ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (A) 		8-98196-284-0 01 1 1402- ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1309-1310 ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1311- ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1309-1310 ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1311- ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1309-1310 ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1311- ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ● ●
253 04.840 JOINT
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-97038-940-1 01 1 1402- ●
253 04.840 JOINT 8-98192-436-0 01 1 1309-1310 ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1311-1401 ● ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1402- ● ●
253 04.840 JOINT
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98192-436-0 01 1 1402- ●

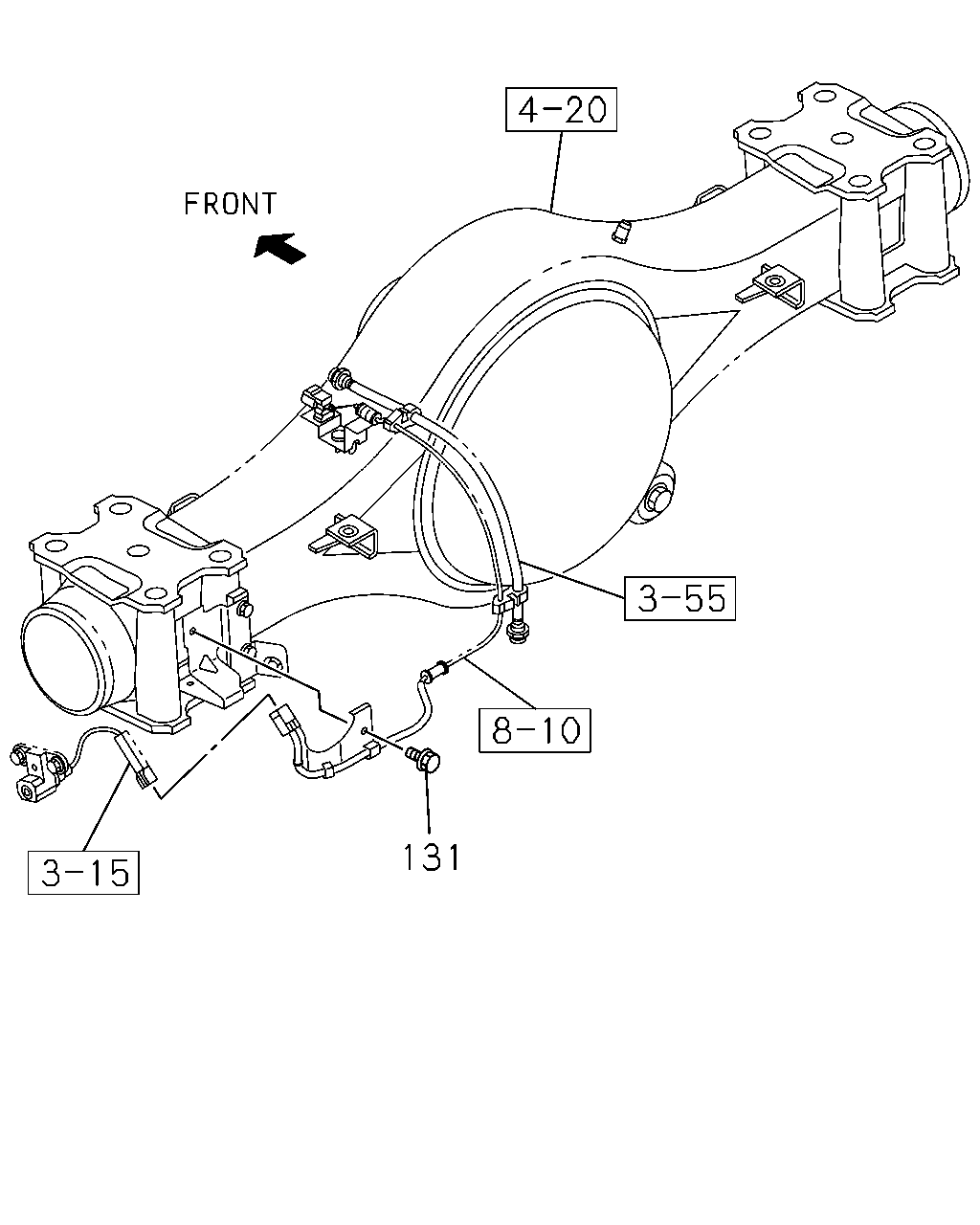

çizim 373313
131
BalonParca AdiParca NoAdetTipApplied Date A B C
131 04.710 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1309-1310 ●
131 04.710 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1309-1310 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1311- ● ● ●

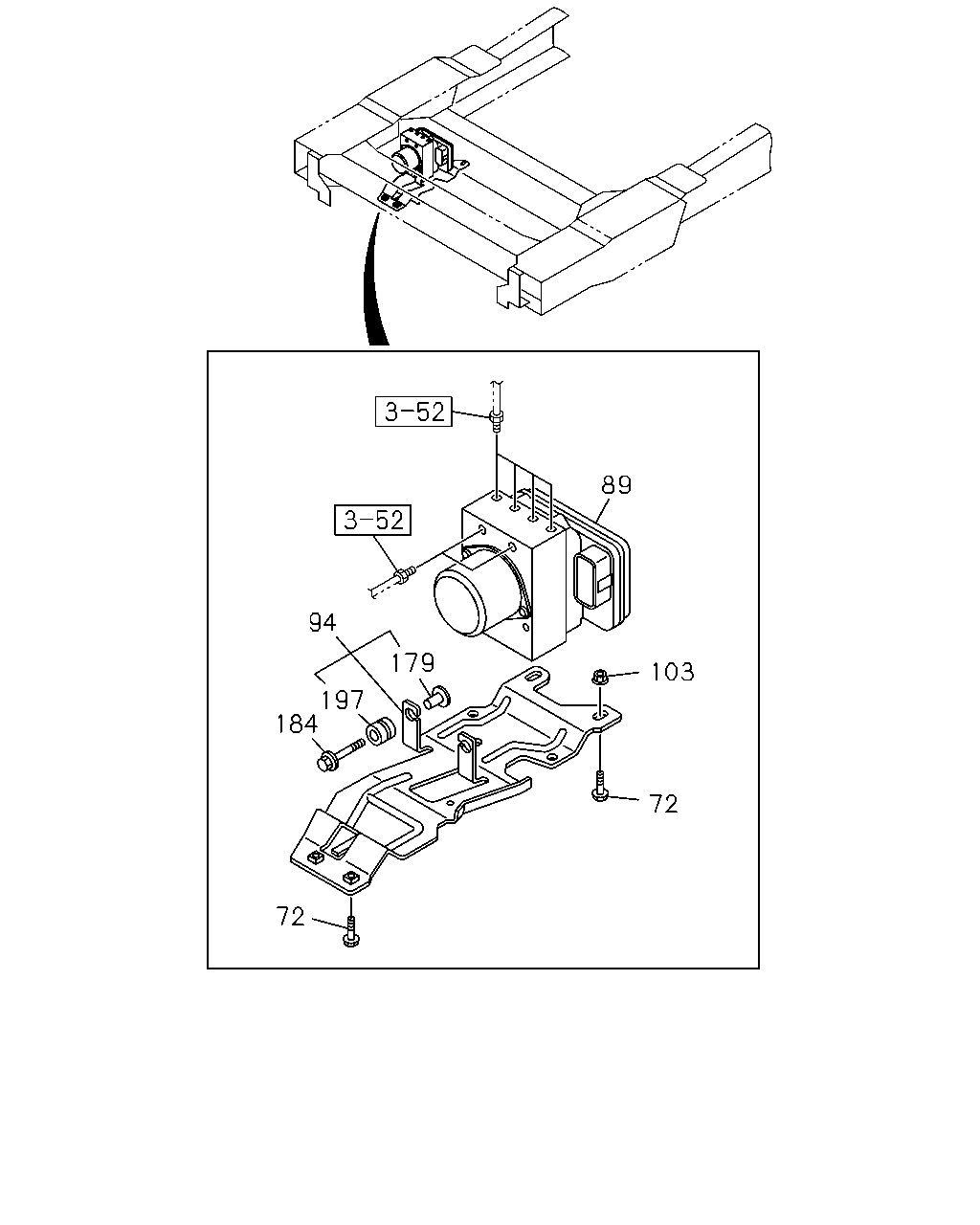

çizim 374255
89 94 179 197 184 103 72 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1309-1310 ● ●
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1311- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-235-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98270-234-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98274-287-0 01 1 1404-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98274-287-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98274-287-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98274-288-0 01 1 1404-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98274-288-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98274-288-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 		8-98252-558-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-558-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98252-555-0 01 1 1309-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-555-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-566-0 01 1 1309-1310 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98252-566-0 01 1 1311-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98252-566-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-566-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-576-0 01 1 1309-1310 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-576-0 01 1 1311-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-576-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-576-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-563-0 01 1 1309-1310 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98252-563-0 01 1 1311-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98252-563-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-563-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-573-0 01 1 1309-1310 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-573-0 01 1 1311-1408 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-573-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-573-0 01 1 1409- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98252-568-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-568-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> 		8-98252-570-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-578-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-578-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9> 		8-98252-562-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-562-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-572-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98252-572-0 01 1 1311- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 		8-98252-560-0 01 1 1311-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-560-0 01 1 1402- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98252-554-0 01 1 1311-1401 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98252-554-0 01 1 1402- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-871-2 01 1 1309-1310 ● ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-871-2 01 1 1311- ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1310 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311-1401 ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1311-1401 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1402- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1402- ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1309-1310 ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1311- ● ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1309-1310 ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1311- ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1309-1310 ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1311- ● ● ●
çizim 374669
130 131 130 131
BalonParca AdiParca NoAdetTipApplied Date A B C
130 04.686 BRACKET; SPEED SENSOR
DISC BRAKE FRT<J52> (B) 		8-97080-060-2 02 1 1311- ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98035-633-0 01 1 1309-1310 ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98035-633-0 01 1 1311- ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98035-633-0 01 1 1311- ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98035-634-0 01 1 1309-1310 ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98035-634-0 01 1 1311- ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98035-634-0 01 1 1311- ●
131 04.710 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1309-1310 ●
131 04.710 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1309-1310 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1311- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
