◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#126555) — 10 parça

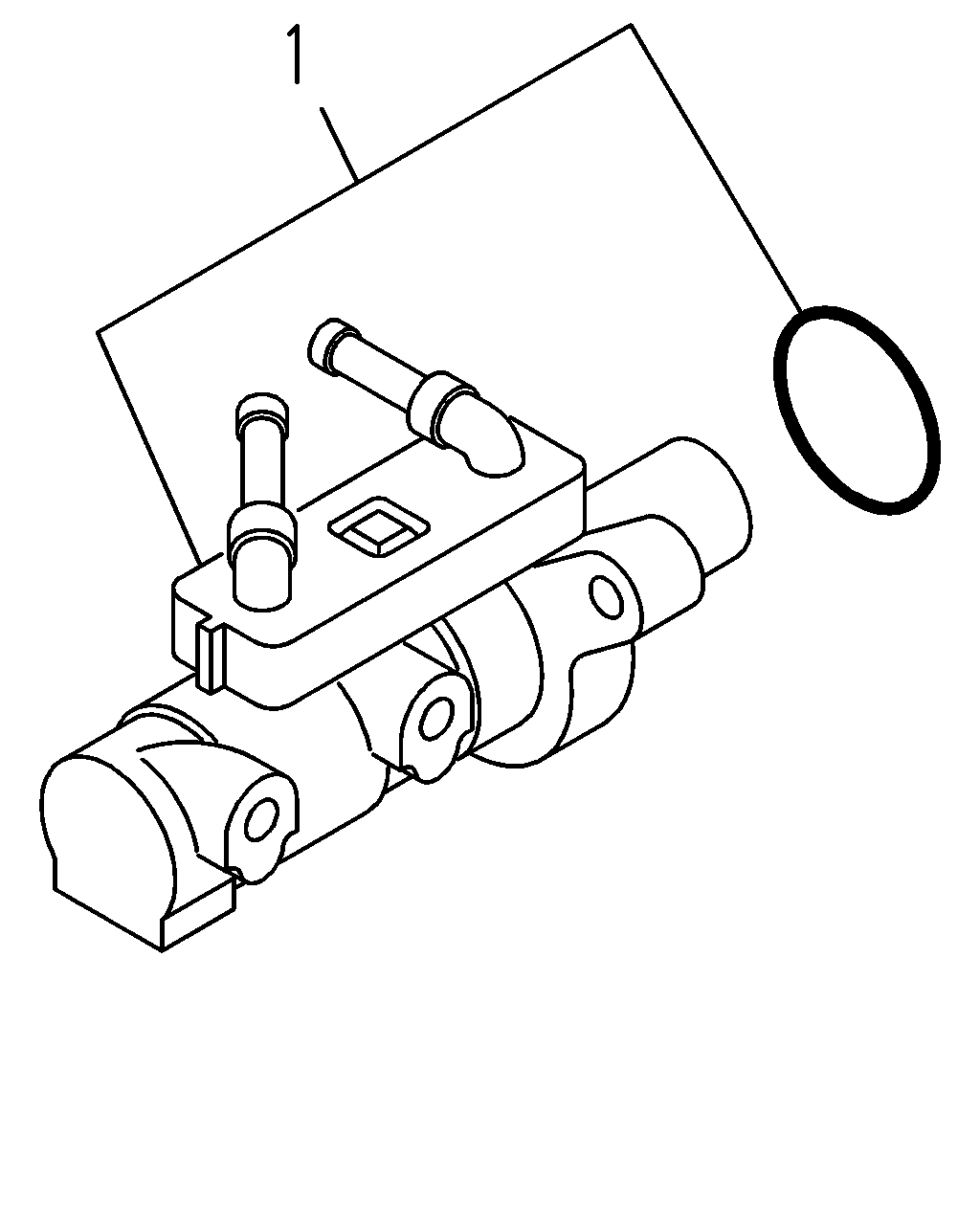

çizim 374695
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98201-096-3 01 1 1402- ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 		8-98206-648-3 01 1 1311- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-2 01 1 1309-1310 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98191-786-2 01 1 1311-1401 ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98191-786-2 01 1 1311-1401 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-2 01 1 1311-1401 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 		8-98191-786-3 01 1 1402- ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98191-786-3 01 1 1402- ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98191-786-3 01 1 1402- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-3 01 1 1402- ●
