3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#126553) — 152 parça

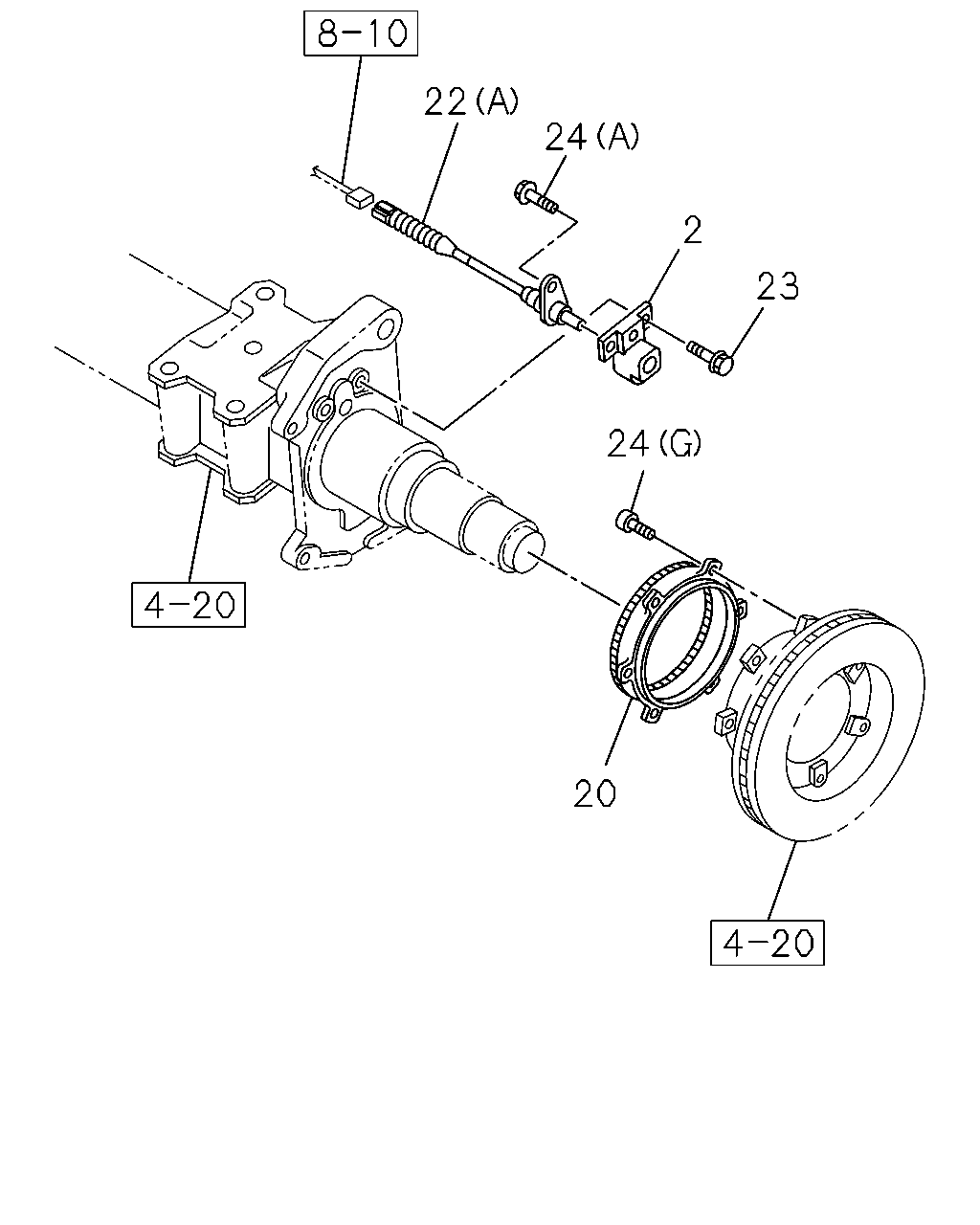

24 24 24 22 24 22 24 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-97388-899-1	02	1	1311-1401	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-98219-351-0	02	1	1402-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1309-1310	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (A)	8-98012-753-1	02	1	1311-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1311-		●	●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED (B)	8-98001-127-1	01	1	1309-1310		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED (B)	8-98001-127-1	01	1	1311-		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED (B)	8-98001-128-1	01	1	1309-1310		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED (B)	8-98001-128-1	01	1	1311-		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-470-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-470-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-471-2	01	1	1309-1310	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-471-2	01	1	1311-	●		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310	●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1311-1401	●	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●	●	●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1311-		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 02.343 (E) M8X12 FLANGE	0-28050-812-0	04	1	1309-1310	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 02.343 (E) M8X12 FLANGE	0-28050-812-0	04	1	1311-	●		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE	0-28050-612-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1309-1310	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1311-	●
24	04.730 BOLT; SENSOR 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1311-		●	●

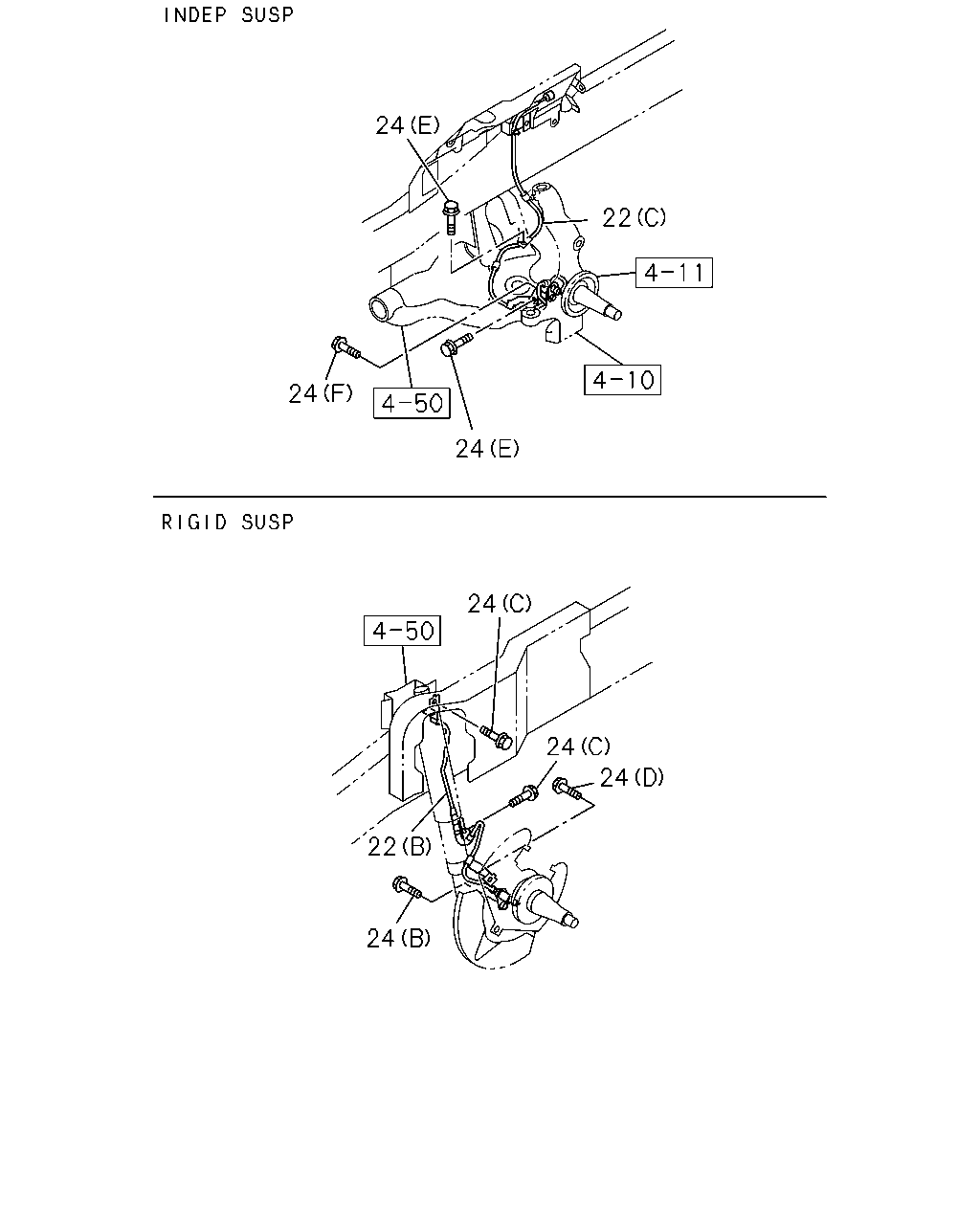

20 24 23 2 24 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98002-436-1	02	1	1311-	●
2	04.730 BRACKET; SENSOR	8-98045-222-0	02	1	1309-1310	●	●
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98045-222-0	02	1	1311-	●
2	04.730 BRACKET; SENSOR	8-98045-222-0	02	1	1311-		●	●
20	04.710 ROTOR; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98113-174-0	02	1	1311-	●
20	04.710 ROTOR; SENSOR 05.809	8-98187-136-0	02	1	1309-1310	●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> 05.809	8-98187-136-0	02	1	1311-1511	●
20	04.710 ROTOR; SENSOR 05.809	8-98187-136-0	02	1	1311-1511		●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98312-785-0	02	1	1512-	●
20	04.710 ROTOR; SENSOR	8-98312-785-0	02	1	1512-		●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-97388-899-1	02	1	1311-1401	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-98219-351-0	02	1	1402-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1309-1310	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (A)	8-98012-753-1	02	1	1311-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1311-		●	●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED (B)	8-98001-127-1	01	1	1309-1310		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED (B)	8-98001-127-1	01	1	1311-		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED (B)	8-98001-128-1	01	1	1309-1310		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED (B)	8-98001-128-1	01	1	1311-		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-470-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-470-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-471-2	01	1	1309-1310	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-471-2	01	1	1311-	●		●
23	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1309-1310	●	●
23	04.710 BOLT; BRKT 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1311-	●
23	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1311-		●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310	●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1311-1401	●	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●	●	●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1311-		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 02.343 (E) M8X12 FLANGE	0-28050-812-0	04	1	1309-1310	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 02.343 (E) M8X12 FLANGE	0-28050-812-0	04	1	1311-	●		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE	0-28050-612-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1309-1310	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1311-	●
24	04.730 BOLT; SENSOR 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1311-		●	●

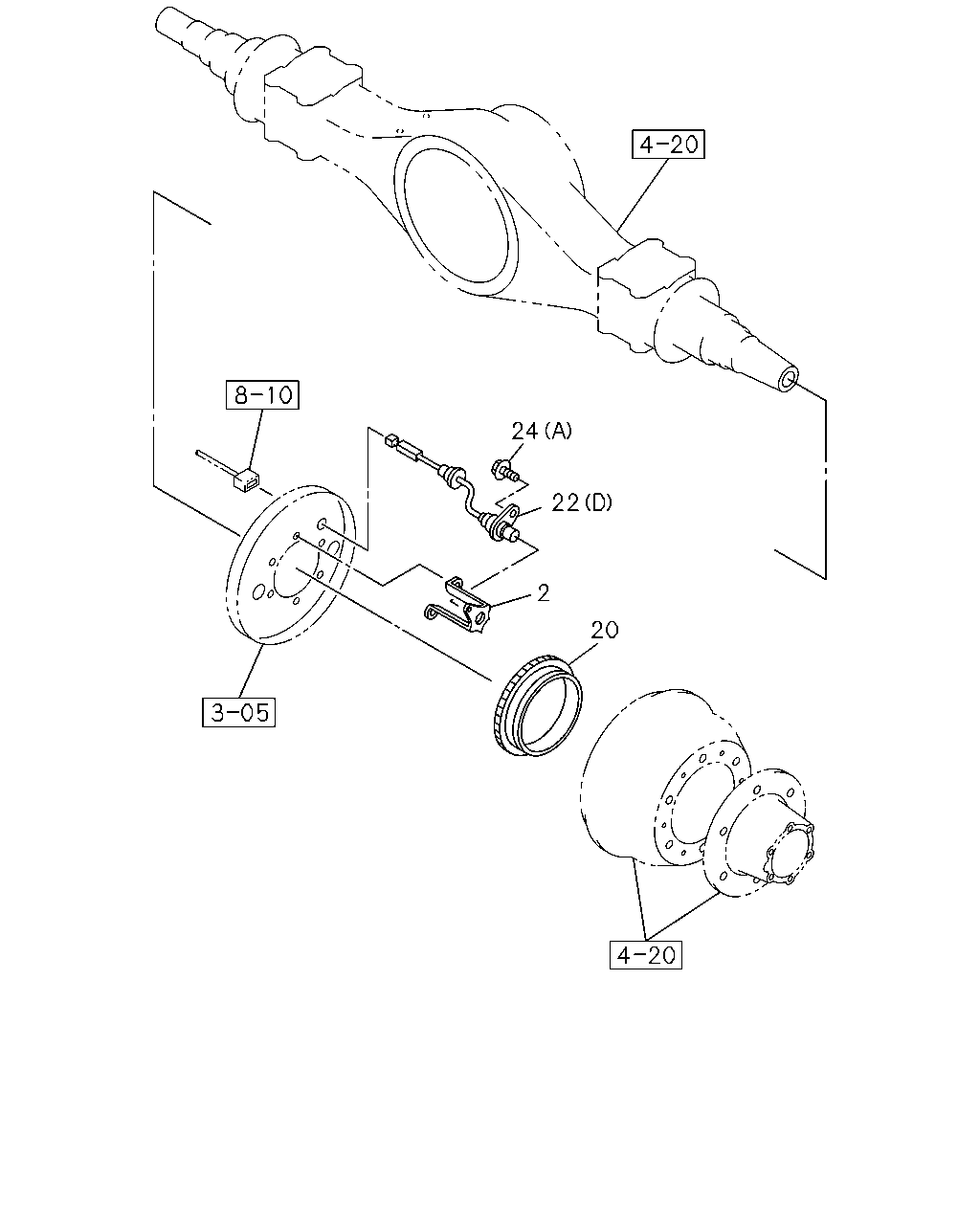

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98002-436-1	02	1	1311-	●
2	04.730 BRACKET; SENSOR	8-98045-222-0	02	1	1309-1310	●	●
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98045-222-0	02	1	1311-	●
2	04.730 BRACKET; SENSOR	8-98045-222-0	02	1	1311-		●	●
20	04.710 ROTOR; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98113-174-0	02	1	1311-	●
20	04.710 ROTOR; SENSOR 05.809	8-98187-136-0	02	1	1309-1310	●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> 05.809	8-98187-136-0	02	1	1311-1511	●
20	04.710 ROTOR; SENSOR 05.809	8-98187-136-0	02	1	1311-1511		●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98312-785-0	02	1	1512-	●
20	04.710 ROTOR; SENSOR	8-98312-785-0	02	1	1512-		●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-97388-899-1	02	1	1311-1401	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-98219-351-0	02	1	1402-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1309-1310	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (A)	8-98012-753-1	02	1	1311-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1311-		●	●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED (B)	8-98001-127-1	01	1	1309-1310		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-127-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED (B)	8-98001-127-1	01	1	1311-		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED (B)	8-98001-128-1	01	1	1309-1310		●
22	04.710 SENSOR; SPEED EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98001-128-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED (B)	8-98001-128-1	01	1	1311-		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-470-1	01	1	1309-1310	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-470-1	01	1	1311-	●		●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-471-2	01	1	1309-1310	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C)	8-98001-471-2	01	1	1311-	●		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310	●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1311-1401	●	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●	●	●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1309-1310		●
24	04.730 BOLT; SENSOR EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1311-		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 02.343 (E) M8X12 FLANGE	0-28050-812-0	04	1	1309-1310	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 02.343 (E) M8X12 FLANGE	0-28050-812-0	04	1	1311-	●		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE	0-28050-612-0	02	1	1309-1310	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1309-1310	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1311-	●
24	04.730 BOLT; SENSOR 01.251 (G) M6X12 HEX SOCKET	0-58330-612-0	12	1	1311-		●	●
