◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#126550) — 40 parça

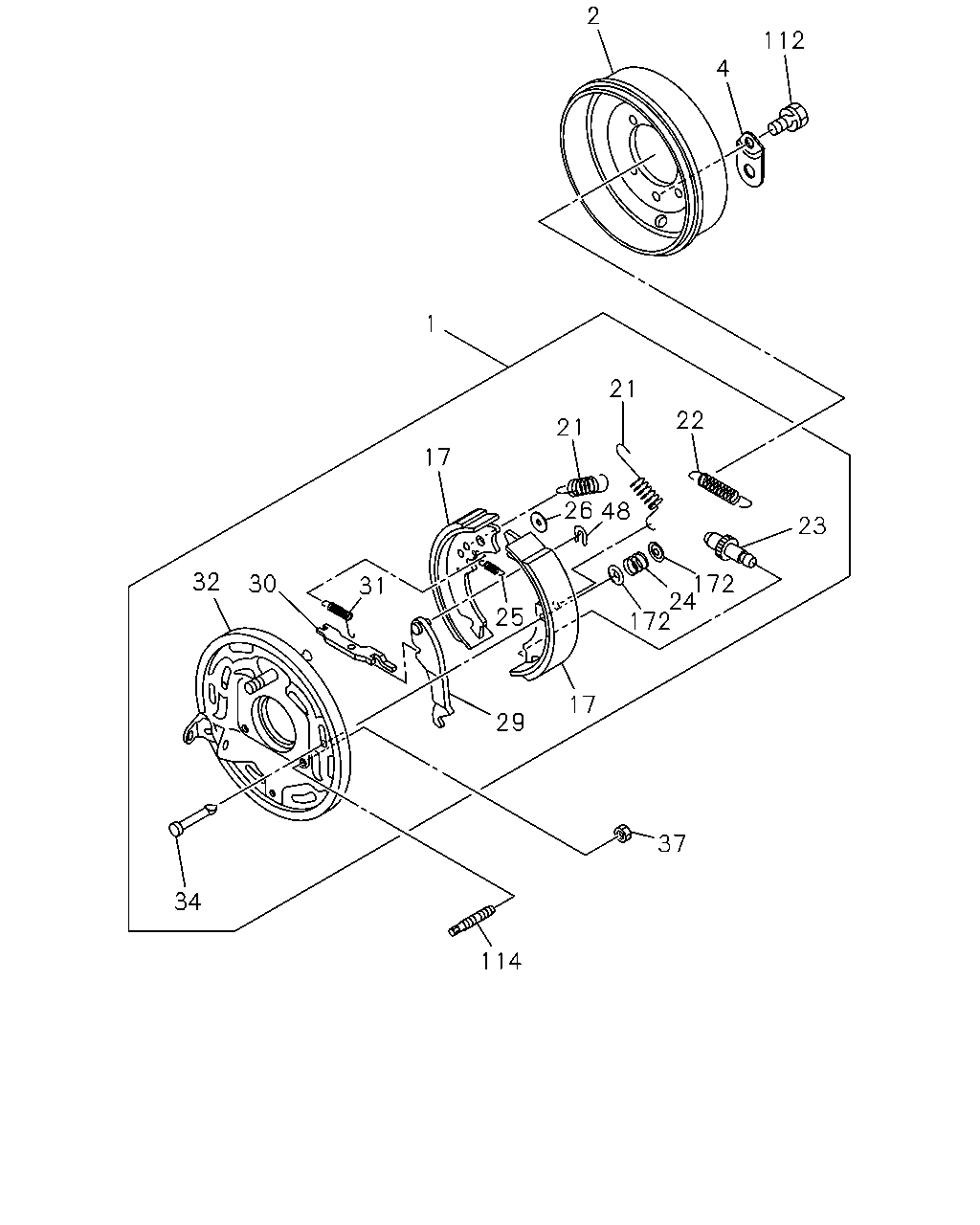

çizim 373925
112 4 2 22 23 21 21 1 17 26 48 172 24 172 17 29 25 37 114 31 30 32 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1309-1310 ● ●
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1311- ● ● ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1309-1310 ● ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 1311- ● ● ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1309-1310 ● ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1311- ● ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1309-1310 ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1311- ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1309-1310 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1311- ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1309-1310 ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1311- ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1309-1310 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1311- ● ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1309-1310 ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1311- ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1309-1310 ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1311- ● ● ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1309-1310 ● ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1311- ● ● ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1309-1310 ● ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1311- ● ● ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1309-1310 ● ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1311- ● ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1309-1310 ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1311- ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1309-1310 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1311- ● ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1309-1310 ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1311- ● ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1309-1310 ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1311- ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1309-1310 ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1311- ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1309-1310 ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1311- ● ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1309-1310 ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1311- ● ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1309-1310 ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1311- ● ● ●
