2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#126545) — 86 parça

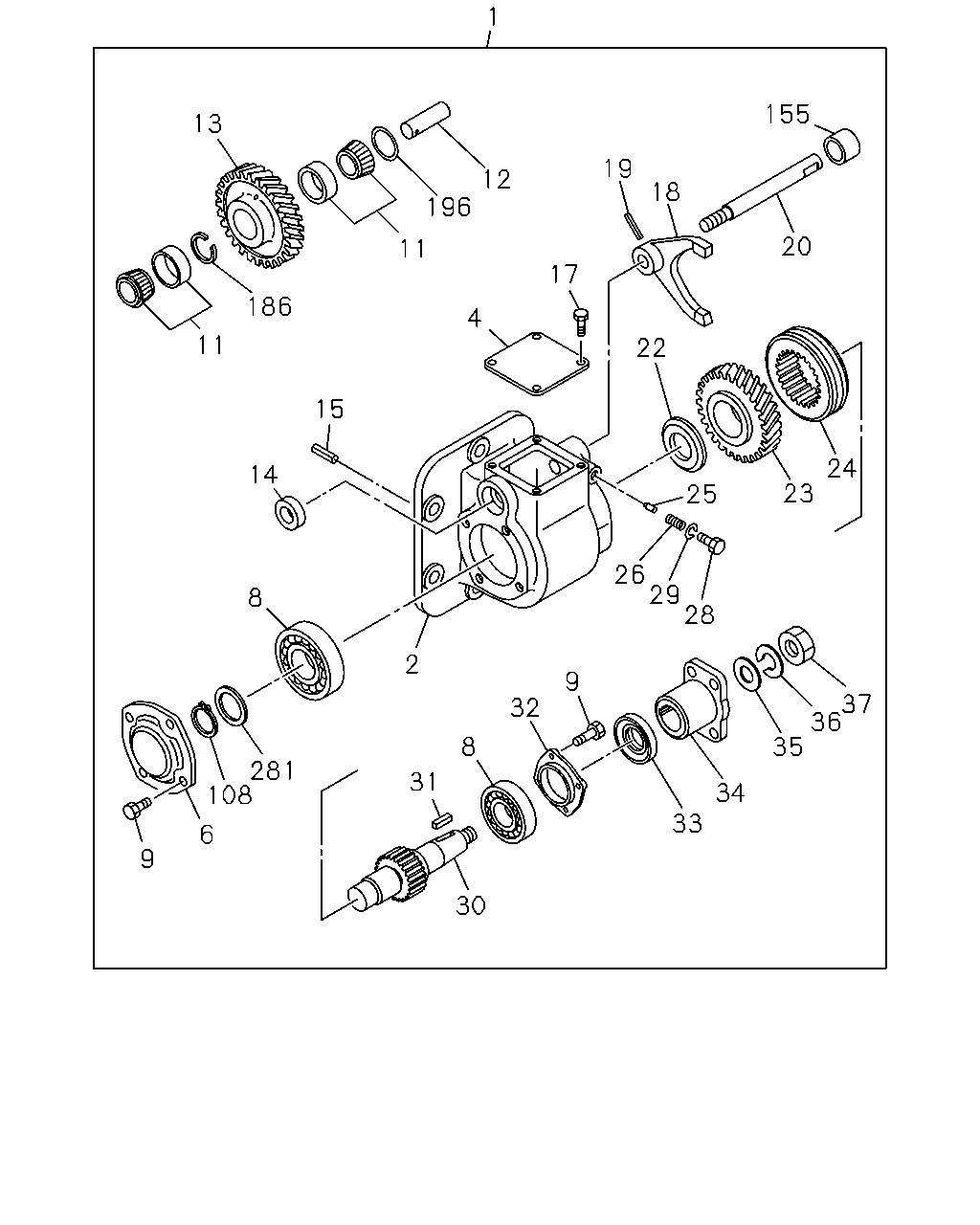

çizim 374564
1 12 17 155 20 18 19 196 22 25 23 24 29 28 26 15 4 11 186 11 14 13 281 108 6 9 31 30 8 2 8 32 33 37 36 35 34 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YG 		8-98233-783-1 01 1 1311- ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YC 		8-98233-784-0 01 1 1309-1310 ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YC 		8-98233-784-1 01 1 1311- ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-689-2 01 1 1311-1409 ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98282-381-0 01 1 1410- ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-688-1 01 1 1309-1310 ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-688-1 01 1 1311-1409 ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98282-382-0 01 1 1410- ●
4 04.439 COVER; UPR,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-613-0 01 1 1309-1310 ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-613-0 01 1 1311- ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-778-0 01 1 1309-1310 ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-778-0 01 1 1311- ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62 		8-94343-031-1 02 1 1309-1310 ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62 		8-94343-031-1 02 1 1311- ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE 		0-28050-820-0 08 1 1309-1310 ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE 		0-28050-820-0 08 1 1311- ● ●
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK 		8-97106-734-0 02 1 1309-1310 ●
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK 		8-97106-734-0 02 1 1311- ● ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38211-606-0 01 1 1309-1310 ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38211-606-0 01 1 1311- ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31 		8-97308-700-0 01 1 1311- ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=28 		8-97308-698-0 01 1 1309-1310 ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=28 		8-97308-698-0 01 1 1311- ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98028-789-0 01 1 1309-1310 ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98028-789-0 01 1 1311- ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16 		9-09878-613-0 01 1 1309-1310 ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16 		9-09878-613-0 01 1 1311- ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1309-1310 ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1311- ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97224-702-0 01 1 1309-1310 ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97224-702-0 01 1 1311- ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5 		8-94135-771-0 01 1 1309-1310 ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5 		8-94135-771-0 01 1 1311- ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-623-0 01 1 1309-1310 ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-623-0 01 1 1311- ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38245-603-1 01 1 1309-1310 ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38245-603-1 01 1 1311- ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-609-0 01 1 1311- ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-610-0 01 1 1309-1310 ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-610-0 01 1 1311- ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97231-316-1 01 1 1309-1310 ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97231-316-1 01 1 1311- ● ●
25 04.439 PIN; LK,SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-94169-071-0 01 1 1309-1310 ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-94169-071-0 01 1 1311- ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-09940-380-0 01 1 1309-1310 ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-09940-380-0 01 1 1311- ● ●
28 04.439 BOLT; SPRING,SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 		8-98038-424-0 01 1 1309-1310 ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 		8-98038-424-0 01 1 1311- ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2 		0-91510-808-0 01 1 1309-1310 ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2 		0-91510-808-0 01 1 1311- ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-777-0 01 1 1309-1310 ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-777-0 01 1 1311- ● ●
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 		8-98068-088-0 01 1 1309-1310 ●
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 		8-98068-088-0 01 1 1311- ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97305-794-0 01 1 1309-1310 ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97305-794-0 01 1 1311- ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		1-38159-007-0 01 1 1309-1310 ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		1-38159-007-0 01 1 1311- ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98223-519-0 01 1 1309-1310 ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98223-519-0 01 1 1311- ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15 		0-91610-514-0 01 1 1309-1310 ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15 		0-91610-514-0 01 1 1311- ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.174 ID=14.2 		0-91510-814-0 01 1 1309-1310 ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.174 ID=14.2 		0-91510-814-0 01 1 1311- ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.515 M14 		0-91111-514-0 01 1 1309-1310 ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.515 M14 		0-91111-514-0 01 1 1311- ● ●
108 04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 08.934 ID=23.2 		9-09180-025-0 01 1 1309-1310 ●
108 04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 08.934 ID=23.2 		9-09180-025-0 01 1 1311- ● ●
155 04.439 PLUG; SHIFTER ROD
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98037-770-0 01 1 1309-1310 ●
155 04.439 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98037-770-0 01 1 1311- ● ●
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97106-730-0 01 1 1309-1310 ●
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97106-730-0 01 1 1311- ● ●
196 04.439 PIECE; THRUST
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50 		8-97106-724-0 02 1 1309-1310 ●
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50 		8-97106-724-0 02 1 1311- ● ●
196 04.439 PIECE; THRUST
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60 		8-97106-725-0 02 1 1309-1310 ●
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60 		8-97106-725-0 02 1 1311- ● ●
196 04.439 PIECE; THRUST
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65 		8-97106-726-0 02 1 1309-1310 ●
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65 		8-97106-726-0 02 1 1311- ● ●
196 04.439 PIECE; THRUST
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70 		8-97106-727-0 02 1 1309-1310 ●
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70 		8-97106-727-0 02 1 1311- ● ●
196 04.439 PIECE; THRUST
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80 		8-97106-728-0 02 1 1309-1310 ●
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80 		8-97106-728-0 02 1 1311- ● ●
196 04.439 PIECE; THRUST
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 02 1 1309-1310 ●
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 02 1 1311- ● ●
281 04.439 SHIM; OUTPUT SHAFT
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 01 1 1309-1310 ●
281 04.439 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 01 1 1311- ● ●
