◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#126541) — 302 parça

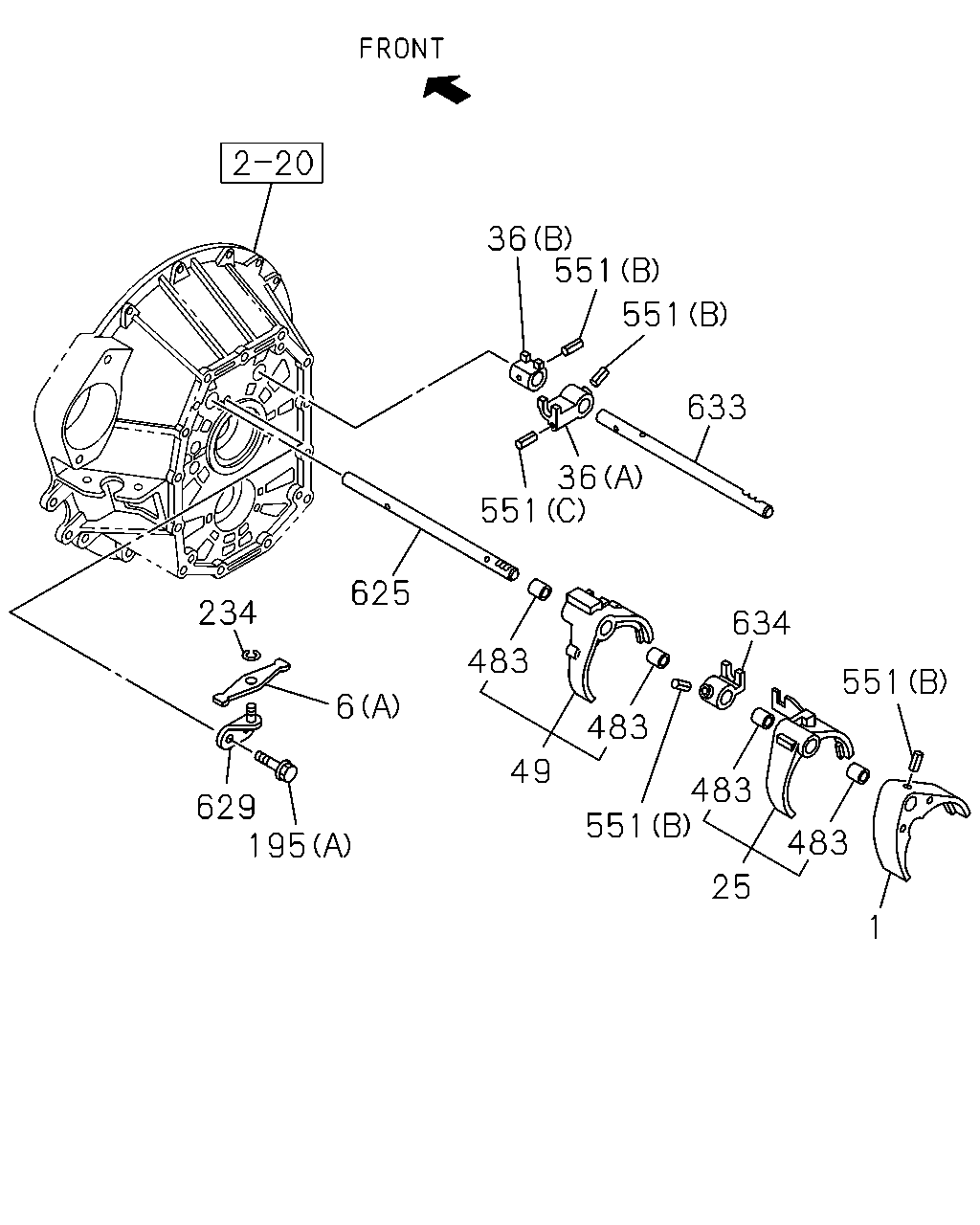

çizim 373959
36 551 551 633 36 551 625 234 629 195 49 6 551 25 483 483 1 551 634 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1309-1310 ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1311- ● ●
6 04.302 LEVER; RELAY
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1311-1401 ●
6 04.302 LEVER; RELAY
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1402- ● ●
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1309-1310 ●
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1311- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1309-1310 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1311-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1309-1310 ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1311- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1309-1310 ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1311- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1309-1310 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1311- ● ●
195 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1311-1401 ●
195 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1402- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1309-1310 ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1311- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1309-1310 ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1311- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1309-1310 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1311- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1402- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1402- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1402- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1309-1310 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1311- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1309-1310 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1311- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1309-1310 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1311- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1309-1310 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1311- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1309-1310 ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1311- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
SMOOTHER-EX(TYPE2)(8NS) 		8-98206-518-0 01 1 1311-1401 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
SMOOTHER-EX(TYPE2)(8NS) 		8-98206-518-0 01 1 1402- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1309-1310 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-743-0 01 1 1311- ● ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1309-1310 ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1311- ● ●

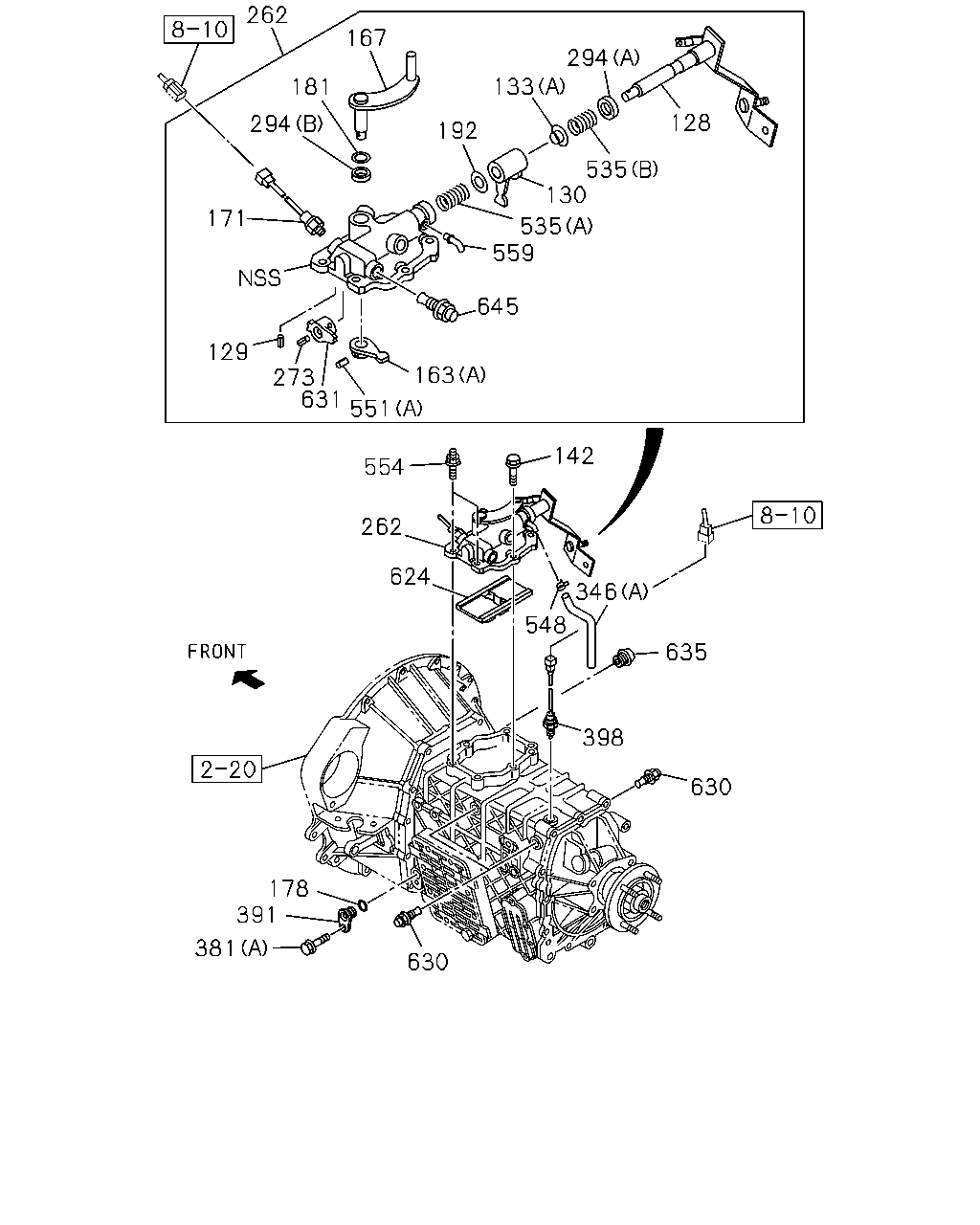

çizim 374006
128 535 130 645 559 535 133 294 192 294 181 167 262 171 129 631 163 551 554 624 262 142 346 635 398 630 630 381 178 391 548 273
BalonParca AdiParca NoAdetTipApplied Date A B
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1309-1310 ●
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-725-0 01 1 1311- ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1309-1310 ●
129 04.027 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1311- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1309-1310 ●
130 04.302 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1311- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1311-1401 ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1402- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1311-1401 ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1402- ● ●
133 04.027 SEAT; SPR
(A) 		8-97305-667-0 01 1 1309-1310 ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 1311- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1311-1401 ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1402- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1311-1401 ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1402- ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1309-1310 ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1311- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1311-1401 ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1402- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1311-1401 ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1402- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1309-1310 ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1311- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1311-1401 ●
167 04.302 LEVER; SELECT,EXTERNAL
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1402- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1309-1310 ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1311- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1309-1310 ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1311-1312 ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1309-1310 ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1311- ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1309-1310 ●
181 04.302 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1311- ● ●
192 04.309 WASHER; PL
SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1311-1401 ●
192 04.309 WASHER; PL
SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1402- ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1309-1310 ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1311- ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-435-1 01 1 1311-1312 ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98241-121-0 01 1 1401-1401 ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98241-121-1 01 1 1402-1411 ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98296-529-0 01 1 1412-1509 ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1510- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-753-2 01 1 1309-1310 ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-753-2 01 1 1311-1312 ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1401- ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1309-1310 ●
273 04.309 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 1311- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1311-1401 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1402- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1309-1310 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1311- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1309-1310 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1311- ● ●
346 04.545 HOSE; AIR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1311-1401 ●
346 04.545 HOSE; AIR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1402- ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1309-1310 ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1311- ● ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1311-1401 ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1402- ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1309-1310 ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1311- ● ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98023-050-0 01 1 1311-1312 ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-0 01 1 1401-1401 ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1402- ● ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1309-1310 ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1311-1311 ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1309-1310 ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97323-771-0 01 1 1311- ● ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1309-1310 ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97323-772-0 01 1 1311- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1309-1310 ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1311- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1402- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1402- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1402- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1309-1310 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1311- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1309-1310 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1311- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1309-1310 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1311- ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1309-1310 ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1311- ● ●
559 04.302 PIPE; BREATHER
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1311-1401 ●
559 04.302 PIPE; BREATHER
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1402- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1309-1310 ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1311- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1309-1310 ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1311- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1309-1310 ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1311- ● ●
631 04.105 STOPPER; SPRING
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1311-1401 ●
631 04.105 STOPPER; SPRING
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1402- ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1309-1310 ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1311- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1309-1310 ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1311- ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1309-1310 ●
645 04.311 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 		8-98019-536-0 01 1 1311- ● ●

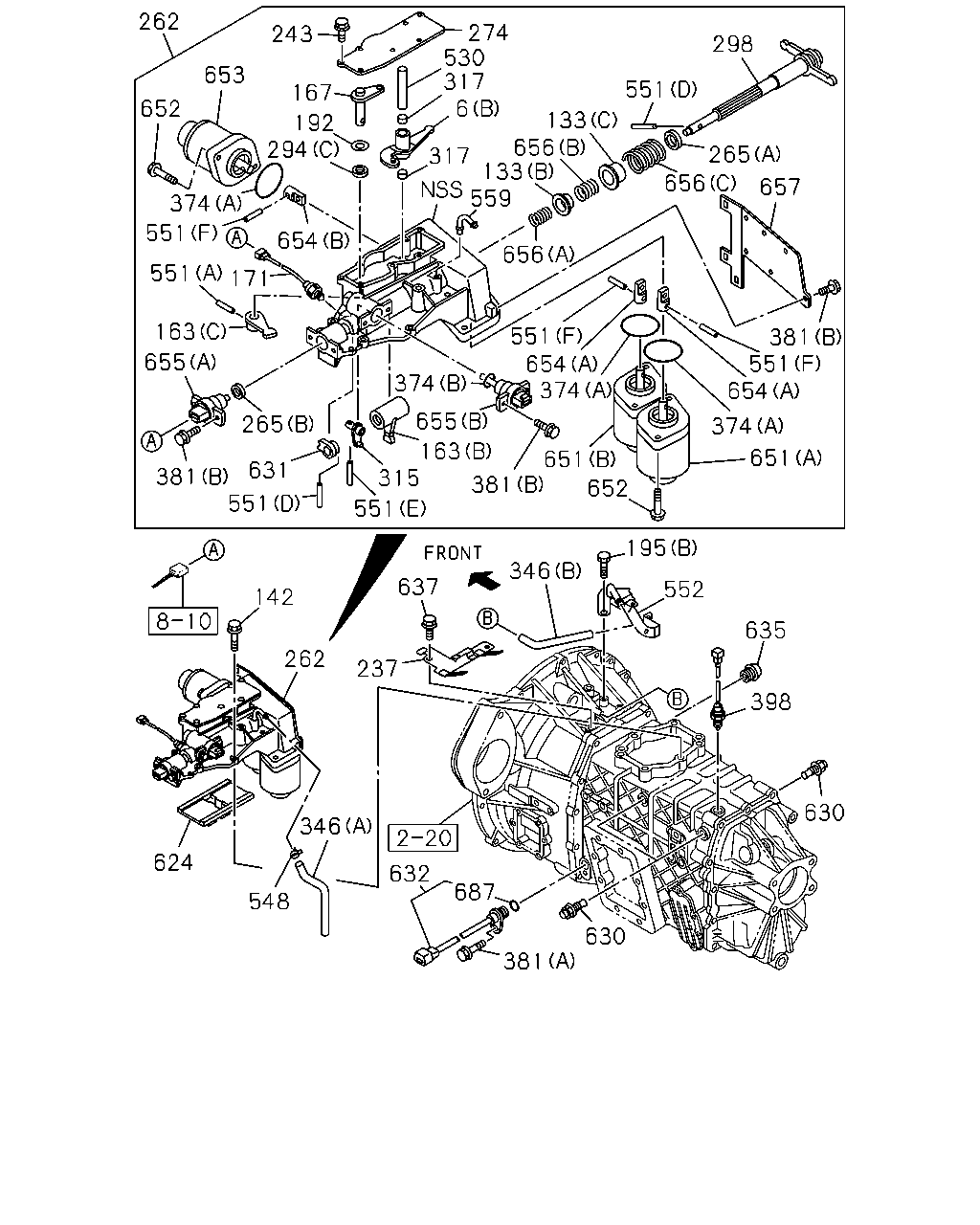

çizim 389064
657 381 654 651 374 551 374 654 551 656 559 133 656 133 551 6 317 294 654 171 265 315 551 551 381 381 652 651 163 655 374 631 655 163 551 551 374 652 653 262 243 192 167 317 530 274 298 265 656 398 635 552 195 346 637 237 262 142 624 346 632 687 548 630 630 381
BalonParca AdiParca NoAdetTipApplied Date A B
6 04.302 LEVER; RELAY
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1311-1401 ●
6 04.302 LEVER; RELAY
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1402- ● ●
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1309-1310 ●
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1311- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1311-1401 ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1402- ● ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1311-1401 ●
133 04.027 SEAT; SPR
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1402- ● ●
133 04.027 SEAT; SPR
(A) 		8-97305-667-0 01 1 1309-1310 ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 1311- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1311-1401 ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1402- ● ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1311-1401 ●
142 04.012 BOLT; QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1402- ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1309-1310 ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1311- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1311-1401 ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1402- ● ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1311-1401 ●
163 04.302 LEVER; SELECT,INTERNAL
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1402- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1309-1310 ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1311- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1311-1401 ●
167 04.302 LEVER; SELECT,EXTERNAL
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1402- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1309-1310 ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1311- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1309-1310 ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1311-1312 ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
192 04.309 WASHER; PL
SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1311-1401 ●
192 04.309 WASHER; PL
SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1402- ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1309-1310 ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1311- ● ●
195 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1311-1401 ●
195 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1402- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1309-1310 ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1311- ● ●
237 04.057 BRACKET; CABLE,TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98018-905-1 01 1 1311-1401 ●
237 04.057 BRACKET; CABLE,TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98018-905-1 01 1 1402- ● ●
243 04.105 BOLT; COVER
SMOOTHER-EX(TYPE2)(8NS) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1311-1401 ●
243 04.105 BOLT; COVER
SMOOTHER-EX(TYPE2)(8NS) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1402- ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98109-435-1 01 1 1311-1312 ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98241-121-0 01 1 1401-1401 ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98241-121-1 01 1 1402-1411 ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98296-529-0 01 1 1412-1509 ● ●
262 04.105 BOX ASM; SHIFT CONT
SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1510- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-753-2 01 1 1309-1310 ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-753-2 01 1 1311-1312 ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1401- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97363-225-0 01 1 1311-1401 ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97363-225-0 01 1 1402- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-981-0 01 1 1311-1401 ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-981-0 01 1 1402- ● ●
274 04.105 COVER; SHAFT,QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-711-0 01 1 1311-1401 ●
274 04.105 COVER; SHAFT,QUAD BOX
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-711-0 01 1 1402- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1311-1401 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1402- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1309-1310 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1311- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1309-1310 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1311- ● ●
298 04.309 SHAFT; SHIFT LEVER
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-978-0 01 1 1311-1401 ●
298 04.309 SHAFT; SHIFT LEVER
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-978-0 01 1 1402- ● ●
315 04.302 LEVER; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-998-0 01 1 1311-1401 ●
315 04.302 LEVER; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-998-0 01 1 1402-1411 ● ●
315 04.302 LEVER; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-98296-526-0 01 1 1412- ● ●
317 04.302 BUSHING; LEVER
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-997-0 02 1 1311-1401 ●
317 04.302 BUSHING; LEVER
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-997-0 02 1 1402- ● ●
346 04.545 HOSE; AIR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1311-1401 ●
346 04.545 HOSE; AIR
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1402- ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1309-1310 ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1311- ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-571-0 03 1 1311-1401 ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-571-0 03 1 1402- ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-573-0 01 1 1311-1401 ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-573-0 01 1 1402- ● ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1311-1401 ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1402- ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1309-1310 ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98023-050-0 01 1 1311-1312 ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-0 01 1 1401-1401 ●
398 02.698 SWITCH; REV LAMP
SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1402- ● ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1309-1310 ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1311-1311 ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312- ● ●
530 04.302 SHAFT; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-996-0 01 1 1311-1401 ●
530 04.302 SHAFT; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-996-0 01 1 1402- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1309-1310 ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1311- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1402- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1402- ● ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1311-1401 ●
551 04.303 PIN; SPRING
SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1402- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1309-1310 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1311- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1309-1310 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1311- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1309-1310 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1311- ● ●
552 04.105 BRACKET
SMOOTHER-EX(TYPE2)(8NS) 		8-97349-914-1 01 1 1311-1401 ●
552 04.105 BRACKET
SMOOTHER-EX(TYPE2)(8NS) 		8-97349-914-1 01 1 1402- ● ●
559 04.302 PIPE; BREATHER
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1311-1401 ●
559 04.302 PIPE; BREATHER
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1402- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1309-1310 ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1311- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1309-1310 ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1311- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1309-1310 ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1311- ● ●
631 04.105 STOPPER; SPRING
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1311-1401 ●
631 04.105 STOPPER; SPRING
SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1402- ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1309-1310 ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1311- ● ●
632 04.054 SENSOR; TRANS,REV
SMOOTHER-EX(TYPE2)(8NS) 		8-97315-604-1 01 1 1311-1401 ●
632 04.054 SENSOR; TRANS,REV
SMOOTHER-EX(TYPE2)(8NS) 		8-97315-604-1 01 1 1402- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1309-1310 ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1311- ● ●
637 04.105 BOLT; BRACKET
SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1311-1401 ●
637 04.105 BOLT; BRACKET
SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1402- ● ●
651 04.309 SOLENOID ASM; SHIFT
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98002-759-0 01 1 1311-1401 ●
651 04.309 SOLENOID ASM; SHIFT
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98002-759-0 01 1 1402- ● ●
651 04.309 SOLENOID ASM; SHIFT
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98002-760-0 01 1 1311-1401 ●
651 04.309 SOLENOID ASM; SHIFT
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98002-760-0 01 1 1402- ● ●
652 04.309 BOLT; SORENOID
SMOOTHER-EX(TYPE2)(8NS) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1311-1401 ●
652 04.309 BOLT; SORENOID
SMOOTHER-EX(TYPE2)(8NS) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1402- ● ●
653 04.309 SOLENOID ASM; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-98002-761-0 01 1 1311-1401 ●
653 04.309 SOLENOID ASM; SELECT
SMOOTHER-EX(TYPE2)(8NS) 		8-98002-761-0 01 1 1402- ● ●
654 04.309 JOINT; SOLENOID,CASE
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-473-0 02 1 1311-1401 ●
654 04.309 JOINT; SOLENOID,CASE
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-473-0 02 1 1402- ● ●
654 04.309 JOINT; SOLENOID,CASE
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97380-419-0 01 1 1311-1401 ●
654 04.309 JOINT; SOLENOID,CASE
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97380-419-0 01 1 1402- ● ●
655 04.309 SENSOR; STROKE
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98107-823-0 01 1 1311-1401 ●
655 04.309 SENSOR; STROKE
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98107-823-0 01 1 1402- ● ●
655 04.309 SENSOR; STROKE
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98107-824-0 01 1 1311-1401 ●
655 04.309 SENSOR; STROKE
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98107-824-0 01 1 1402- ● ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-985-0 01 1 1311-1401 ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-985-0 01 1 1402- ● ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-986-0 01 1 1311-1401 ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-986-0 01 1 1402- ● ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-987-0 01 1 1311-1401 ●
656 04.307 SPRING; SHAFT
SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-987-0 01 1 1402- ● ●
657 04.105 PLATE; SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-712-0 01 1 1311-1401 ●
657 04.105 PLATE; SIDE
SMOOTHER-EX(TYPE2)(8NS) 		8-98020-712-0 01 1 1402- ● ●
687 04.075 GASKET; SENSOR
SMOOTHER-EX(TYPE2)(8NS) 04.307 		9-09567-113-0 01 1 1311-1401 ●
687 04.075 GASKET; SENSOR
SMOOTHER-EX(TYPE2)(8NS) 04.307 		9-09567-113-0 01 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
