2-26 — MANUAL TRANSMISSION GEAR (#126540) — 154 parça

93 507 511 268 408 510 108 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1309-1310	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1311-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1309-1310	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1311-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1309-1310	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1311-	●	●
108	04.428 SHAFT; COUNTER SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-20	8-97326-590-1	01	1	1402-		●
108	04.428 SHAFT; COUNTER SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-21	8-97252-641-1	01	1	1311-	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1311-		●
108	04.428 SHAFT; COUNTER Z=45-49-33-21	8-97380-629-1	01	1	1309-1310	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-21	8-97380-629-1	01	1	1311-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1309-1310	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1311-	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1309-1310	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1311-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1309-1310	●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. SMOOTHER-EX(TYPE2)(8NS)	8-97257-300-1	01	1	1311-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1309-1310	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1311-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1309-1310	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1311-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1309-1310	●
408	04.384 SPRING EXC. SMOOTHER-EX(TYPE2)(8NS) 04.422 (B)	8-94148-196-0	03	1	1311-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1309-1310	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1311-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1309-1310	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1311-	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1309-1310	●
510	04.540 PIN; STRAIGHT,ANTI LASH EXC. SMOOTHER-EX(TYPE2)(8NS) 00.862	9-08160-825-0	03	1	1311-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1309-1310	●
511	04.416 RING; SNAP,ANTI LASH PLATE EXC. SMOOTHER-EX(TYPE2)(8NS)	8-97254-767-0	01	1	1311-	●	●

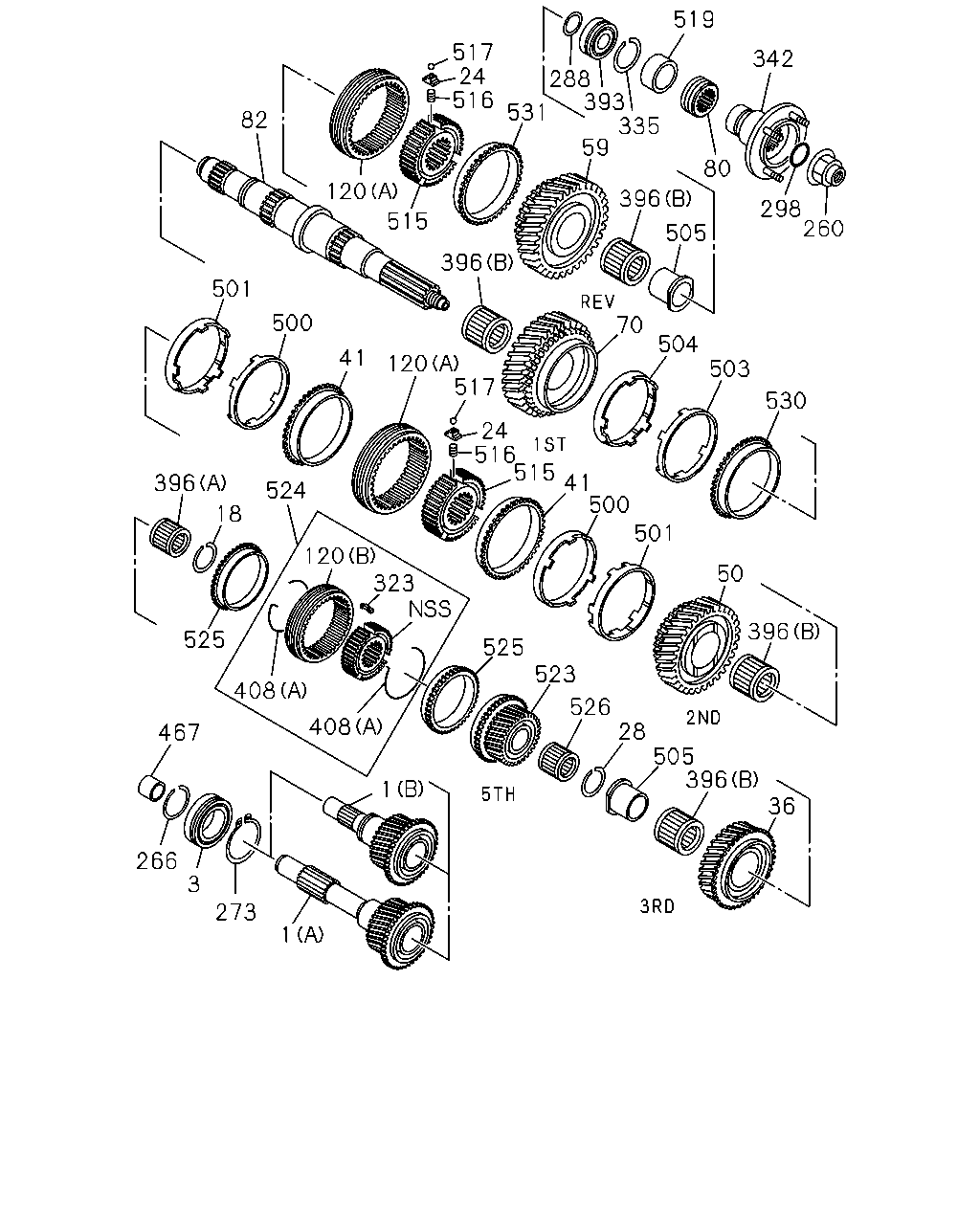

517 24 516 288 335 393 519 342 298 80 396 260 505 59 531 120 82 515 396 70 503 504 530 50 501 500 41 515 516 24 517 120 41 500 501 396 524 120 323 525 523 526 28 505 396 36 1 408 408 525 467 266 3 273 18 1 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS SMOOTHER-EX(TYPE2)(8NS) (B) Z=28	8-98031-849-0	01	1	1311-1401	●
1	04.351 SHAFT; TOP GEAR,TRANS SMOOTHER-EX(TYPE2)(8NS) (B) Z=28	8-98031-849-0	01	1	1402-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1309-1310	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	1311-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1309-1310	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1311-	●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1309-1310	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1311-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1309-1310	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1311-	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1311-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1309-1310	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1311-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1311-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=32	8-97241-235-0	01	1	1309-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1309-1310	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1311-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1311-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-239-1	01	1	1309-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1309-1310	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1311-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT SMOOTHER-EX(TYPE2)(8NS) Z=43	8-97352-815-0	01	1	1311-1401	●
70	04.417 GEAR; 1ST,MAINSHAFT SMOOTHER-EX(TYPE2)(8NS) Z=43	8-97352-815-0	01	1	1402-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1309-1310	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1311-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1309-1310	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1311-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1309-1310	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1311-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1310	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	1311-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	1311-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1309-1310	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1311-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1309-1310	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1311-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1309-1310	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1311-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1309-1310	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1311-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1309-1310	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1311-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1309-1310	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1311-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1309-1310	●
323	04.384 INSERT	8-94448-202-2	03	1	1311-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1309-1310	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1311-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1309-1310	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1311-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1309-1310	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1311-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1309-1310	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1311-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1309-1310	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1311-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1309-1310	●
408	04.384 SPRING EXC. SMOOTHER-EX(TYPE2)(8NS) 04.422 (B)	8-94148-196-0	03	1	1311-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1309-1310	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1311-	●	●
467	04.317 COLLAR; SHAFT SMOOTHER-EX(TYPE2)(8NS)	8-97255-183-1	01	1	1311-1401	●
467	04.317 COLLAR; SHAFT SMOOTHER-EX(TYPE2)(8NS)	8-97255-183-1	01	1	1402-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1309-1310	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1311-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1309-1310	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1311-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1309-1310	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1311-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1309-1310	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1311-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1309-1310	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1311-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1309-1310	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1311-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1311-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1309-1310	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1311-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1311-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1309-1310	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1311-	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1311-	●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1309-1310	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1311-	●	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1309-1310	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1311-	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1309-1310	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1311-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1309-1310	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1311-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1309-1310	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1311-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1309-1310	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1311-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1309-1310	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1311-	●	●
