2-05 — CLUTCH PIPING (#126533) — 38 parça

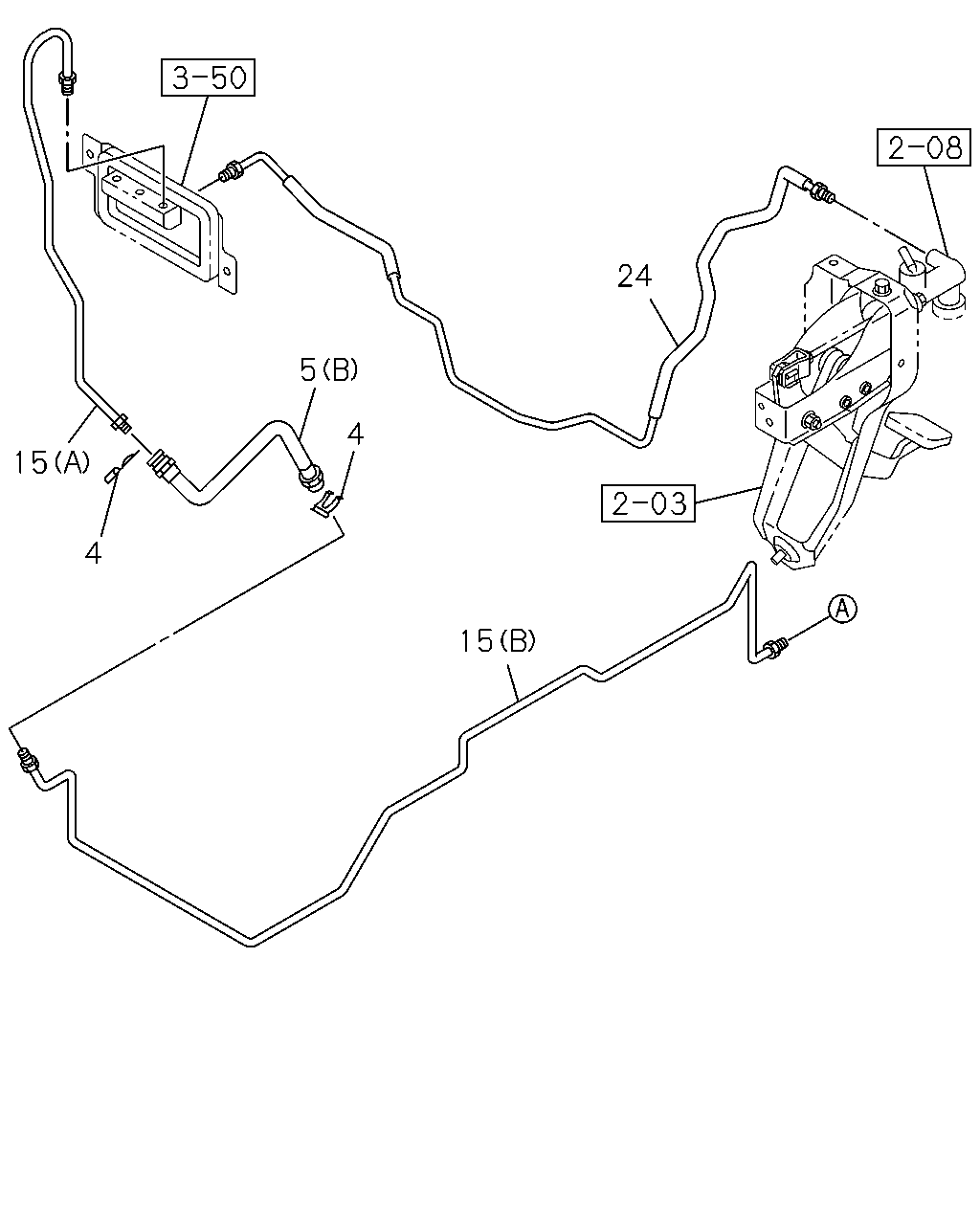

15 4 5 15 24 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	02	1	1309-1310	●
4	00.785 CLIP; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-97365-304-0	02	1	1311-	●	●
5	00.785 HOSE; FLEX,CLU PIPE CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98098-575-1	01	1	1309-1310	●
5	00.785 HOSE; FLEX,CLU PIPE CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-575-1	01	1	1311-	●	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	1309-1310	●
5	00.785 HOSE; FLEX,CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98083-907-0	01	1	1311-	●	●
5	00.785 HOSE; FLEX,CLU PIPE EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98077-611-2	01	1	1309-1310	●
5	00.785 HOSE; FLEX,CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98077-611-2	01	1	1311-	●	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-98047-211-1	01	1	1309-1310	●
15	00.785 PIPE; CLU,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98047-211-1	01	1	1311-	●	●
15	00.785 PIPE; CLU,FLEX HOSE (B)	8-98110-845-0	01	1	1309-1310	●
15	00.785 PIPE; CLU,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98110-845-0	01	1	1311-	●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T)	8-98250-075-0	01	1	1309-1310	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98250-075-0	01	1	1311-	●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH(S2T)	8-98250-071-0	01	1	1309-1310	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98250-071-0	01	1	1311-	●	●

3 2 3 5 3 18 7 2 3 20 17 42 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.782 BOLT; EYE,SLAVE CYL 04.681 M10X22	8-98014-005-0	02	1	1309-1310	●
2	00.782 BOLT; EYE,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22	8-98014-005-0	02	1	1311-	●	●
3	00.785 GASKET; FLEX HOSE,CLU 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1309-1310	●
3	00.785 GASKET; FLEX HOSE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1311-	●	●
5	00.785 HOSE; FLEX,CLU PIPE CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98098-575-1	01	1	1309-1310	●
5	00.785 HOSE; FLEX,CLU PIPE CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-575-1	01	1	1311-	●	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	1309-1310	●
5	00.785 HOSE; FLEX,CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98083-907-0	01	1	1311-	●	●
5	00.785 HOSE; FLEX,CLU PIPE EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98077-611-2	01	1	1309-1310	●
5	00.785 HOSE; FLEX,CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98077-611-2	01	1	1311-	●	●
7	00.785 NUT; FLEX HOSE,CLU CONT 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1310	●
7	00.785 NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-	●	●
17	00.785 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●
17	00.785 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
18	00.830 DAMPER ASM; CLU OIL	8-98077-610-1	01	1	1309-1310	●
18	00.830 DAMPER ASM; CLU OIL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98077-610-1	01	1	1311-	●	●
20	00.837 NUT; CLU OIL DAMPER 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
20	00.837 NUT; CLU OIL DAMPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT	8-98041-335-1	01	1	1309-1310	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-335-1	01	1	1311-	●	●
183	00.785 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T)	8-98047-185-0	01	1	1309-1310	●
183	00.785 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T)	8-98047-185-0	01	1	1311-	●	●
