2-03 — CLUTCH PEDAL AND CONTROL (#126532) — 224 parça

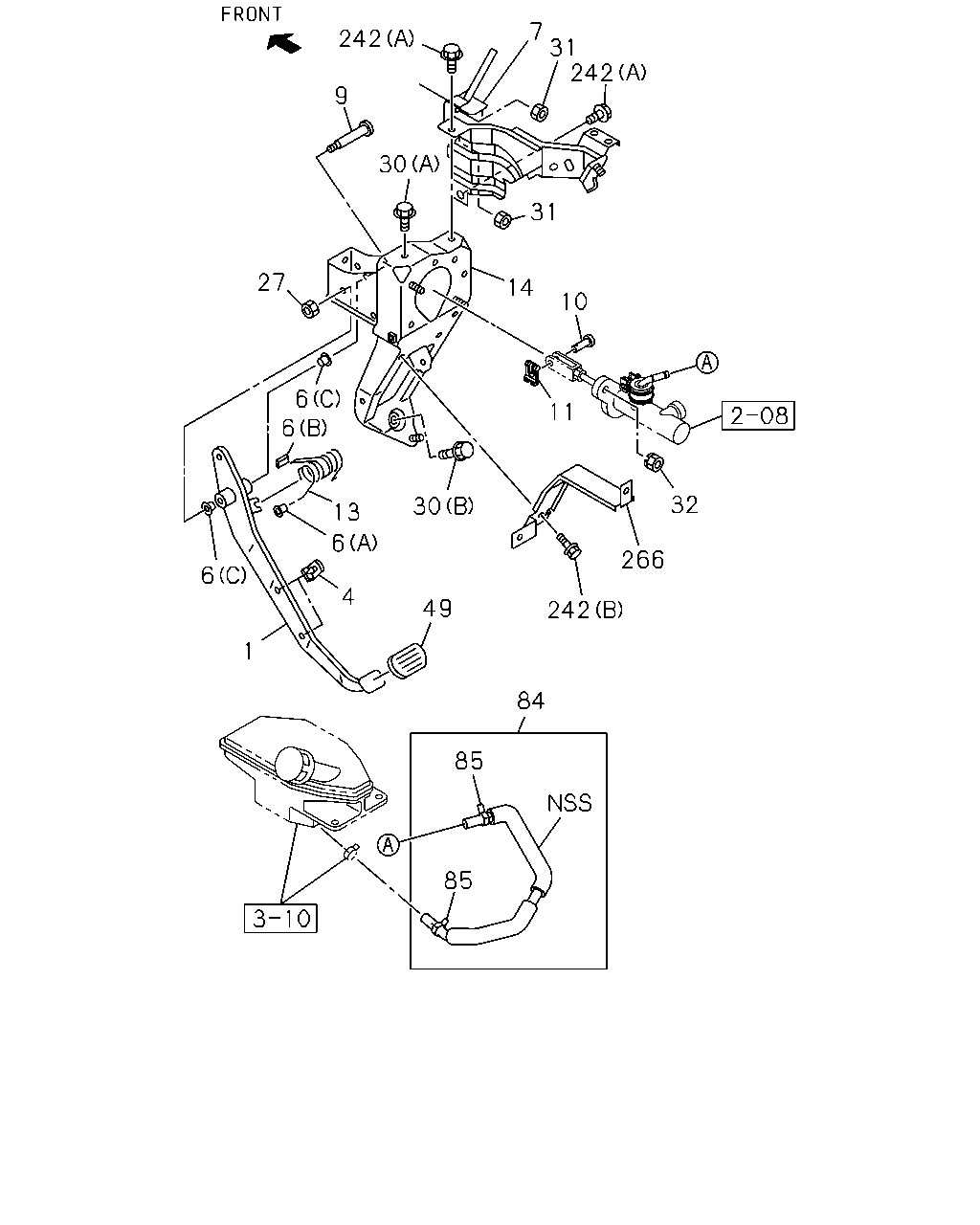

çizim 373720
242 7 9 30 31 31 14 27 10 11 6 13 6 4 6 1 6 30 49 242 32 242 266 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1309-1310 ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1311- ● ● ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 1309-1310 ● ●
1 00.830 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 1311- ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1309-1310 ● ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1311-1401 ● ●
4 00.829 STOPPER; CLU PEDAL
4JJ1-TCC ENG(RDU) 		8-97853-534-1 02 1 1311-1401 ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1402-1408 ● ●
4 00.829 STOPPER; CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1402-1408 ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1409- ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1309-1310 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1311-1401 ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1-TCC ENG(RDU) 04.792 (C) 		8-94238-596-0 02 1 1311-1401 ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1402-1408 ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1402-1408 ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1409- ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1309-1310 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1311- ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1309-1310 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1311- ● ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98222-746-0 01 1 1309-1310 ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-746-0 01 1 1311- ● ● ●
7 00.829 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1309-1310 ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1311- ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1309-1310 ● ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1311-1401 ● ●
9 00.833 PIN; CLU PEDAL
4JJ1-TCC ENG(RDU) 04.634 		8-97866-667-0 01 1 1311-1401 ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1402-1408 ● ●
9 00.833 PIN; CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1402-1408 ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1409- ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1309-1310 ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1311-1401 ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1311-1401 ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1402- ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1309-1310 ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1311-1401 ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1311-1401 ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1402- ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1309-1310 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1311- ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1309-1310 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1311- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1309-1310 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-876-0 01 1 1311- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 1309-1310 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 1311- ● ● ●
27 00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1309-1310 ● ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1311-1401 ● ●
27 00.833 NUT; FULCRUM PIN
4JJ1-TCC ENG(RDU) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1311-1401 ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1402-1408 ● ●
27 00.833 NUT; FULCRUM PIN
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1402-1408 ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1409- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1309-1310 ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1311-1401 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1311-1401 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1402-1408 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1402-1408 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1409- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1309-1310 ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1309-1310 ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ● ●
31 01.153 NUT; MTG BRKT TO BODY
4JJ1-TCC ENG(RDU) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ● ●
31 01.153 NUT; MTG BRKT TO BODY
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1409- ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1309-1310 ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1402- ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1309-1310 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1311-1401 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JJ1-TCC ENG(RDU) 		8-97853-413-2 01 1 1311-1401 ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1402-1408 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1402-1408 ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1409- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1309-1310 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-209-1 01 1 1311-1401 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1311-1401 ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-209-1 01 1 1402- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1309-1310 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1311-1401 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1311-1401 ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1402- ● ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1309-1310 ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1311-1401 ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1311-1401 ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1402- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1311-1401 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1311-1401 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1402-1408 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1402-1408 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1409- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1309-1310 ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1311-1401 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1311-1401 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1402-1408 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1402-1408 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1409- ● ● ●
266 04.054 BRACKET; CLU SWITCH 8-98078-745-4 01 1 1309-1310 ● ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1311-1401 ● ●
266 04.054 BRACKET; CLU SWITCH
4JJ1-TCC ENG(RDU) 		8-98078-745-4 01 1 1311-1401 ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1402-1408 ● ●
266 04.054 BRACKET; CLU SWITCH
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1402-1408 ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1409- ● ● ●

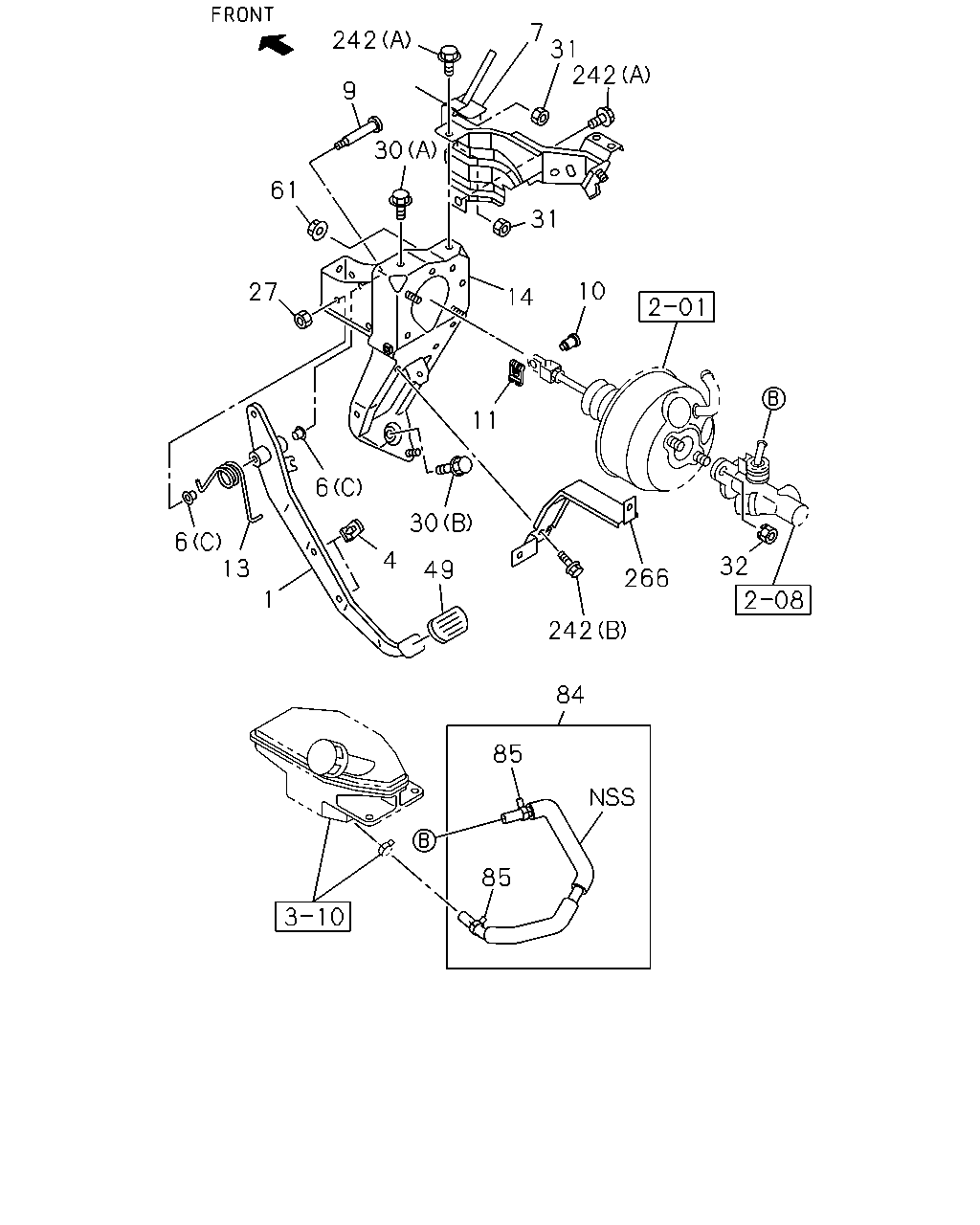

çizim 373746
242 7 9 30 61 27 31 31 242 10 14 6 13 1 6 4 49 242 11 30 266 32 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1309-1310 ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1311- ● ● ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 1309-1310 ● ●
1 00.830 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 1311- ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1309-1310 ● ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1311-1401 ● ●
4 00.829 STOPPER; CLU PEDAL
4JJ1-TCC ENG(RDU) 		8-97853-534-1 02 1 1311-1401 ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1402-1408 ● ●
4 00.829 STOPPER; CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1402-1408 ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1409- ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1309-1310 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1311-1401 ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1-TCC ENG(RDU) 04.792 (C) 		8-94238-596-0 02 1 1311-1401 ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1402-1408 ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1402-1408 ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1409- ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1309-1310 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1311- ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1309-1310 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1311- ● ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98222-746-0 01 1 1309-1310 ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-746-0 01 1 1311- ● ● ●
7 00.829 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1309-1310 ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1311- ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1309-1310 ● ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1311-1401 ● ●
9 00.833 PIN; CLU PEDAL
4JJ1-TCC ENG(RDU) 04.634 		8-97866-667-0 01 1 1311-1401 ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1402-1408 ● ●
9 00.833 PIN; CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1402-1408 ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1409- ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1309-1310 ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1311-1401 ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1311-1401 ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1402- ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1309-1310 ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1311-1401 ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1311-1401 ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1402- ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1309-1310 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1311- ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1309-1310 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1311- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1309-1310 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-876-0 01 1 1311- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 1309-1310 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 1311- ● ● ●
27 00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1309-1310 ● ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1311-1401 ● ●
27 00.833 NUT; FULCRUM PIN
4JJ1-TCC ENG(RDU) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1311-1401 ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1402-1408 ● ●
27 00.833 NUT; FULCRUM PIN
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1402-1408 ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1409- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1309-1310 ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1311-1401 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1311-1401 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1402-1408 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1402-1408 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1409- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1309-1310 ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1401 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ● ●
30 00.829 BOLT; CLU MTG BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1402-1408 ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1409- ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1309-1310 ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ● ●
31 01.153 NUT; MTG BRKT TO BODY
4JJ1-TCC ENG(RDU) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ● ●
31 01.153 NUT; MTG BRKT TO BODY
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1402-1408 ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1409- ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1309-1310 ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1401 ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1402- ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1309-1310 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1311-1401 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JJ1-TCC ENG(RDU) 		8-97853-413-2 01 1 1311-1401 ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1402-1408 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1402-1408 ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1409- ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 1309-1310 ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 04 1 1311-1401 ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 1311-1401 ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 04 1 1402- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1309-1310 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-209-1 01 1 1311-1401 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1311-1401 ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-209-1 01 1 1402- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1309-1310 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1311-1401 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1311-1401 ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1402- ● ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1309-1310 ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1311-1401 ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1311-1401 ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1402- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1309-1310 ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1311-1401 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1311-1401 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1402-1408 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1402-1408 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1409- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1309-1310 ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1311-1401 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1311-1401 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1402-1408 ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1402-1408 ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1409- ● ● ●
266 04.054 BRACKET; CLU SWITCH 8-98078-745-4 01 1 1309-1310 ● ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1311-1401 ● ●
266 04.054 BRACKET; CLU SWITCH
4JJ1-TCC ENG(RDU) 		8-98078-745-4 01 1 1311-1401 ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1402-1408 ● ●
266 04.054 BRACKET; CLU SWITCH
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1402-1408 ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
