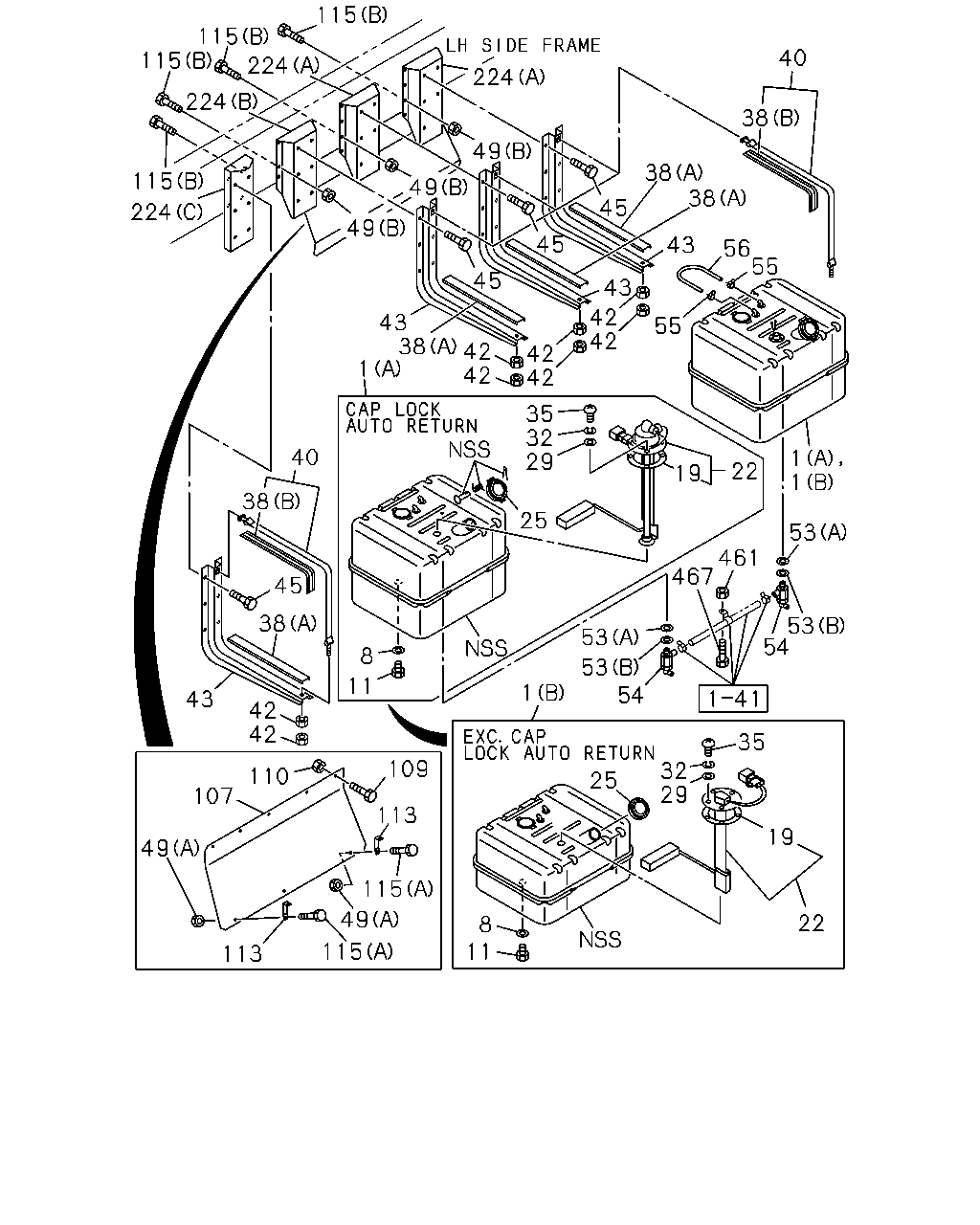

1-40 — FUEL TANK (#12653) — 46 parça

115 115 115 224 40 224 224 38 49 38 38 49 49 115 45 224 45 43 56 55 43 55 45 42 42 43 38 42 42 42 42 1 35 32 29 40 1 1 22 19 38 25 53 461 467 45 38 53 54 53 8 53 54 11 1 43 42 42 35 32 29 109 110 25 107 113 19 49 115 49 22 8 11 115 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0105-0112	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-193-0	02	1	0201-	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0105-0112	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-190-0	02	1	0201-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	0105-0106	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-	●	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	02	1	0105-0106	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	02	1	0107-	●	●
19	GASKET; FUEL TANK UNIT	5-83148-001-0	02	1	0105-	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	0105-	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0105-	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0105-	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0105-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0105-0112	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	0105-	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	0105-	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	0105-	●	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	0105-	●	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	0105-	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	04	1	0105-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	0105-	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	0105-	●	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28681-235-0	24	1	0105-	●	●
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-	●	●
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	0105-	●	●
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	0105-0112	●	●
53	GASKET; COCK,FUEL TANK (A) ID=14.2	8-94462-114-0	02	1	0201-	●	●
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	0105-0112	●	●
53	GASKET; COCK,FUEL TANK (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0201-	●	●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	0105-0112	●	●
54	COCK ASM; FUEL TANK	1-09680-072-0	02	1	0201-	●	●
55	CLIP; FUEL PIPE ID=14	1-09704-102-0	02	1	0105-	●	●
56	PIPE; FUEL SHUTTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●	●
107	PROTECTOR; HEAT,FUEL TANK	1-22159-276-0	01	1	0105-	●	●
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	0105-	●	●
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	0105-	●	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	0105-	●	●
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	0105-	●	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-	●	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	0105-	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	0105-	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	0105-	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	0105-	●	●
461	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-	●	●
467	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0105-	●	●
