Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#126528) — 676 parça

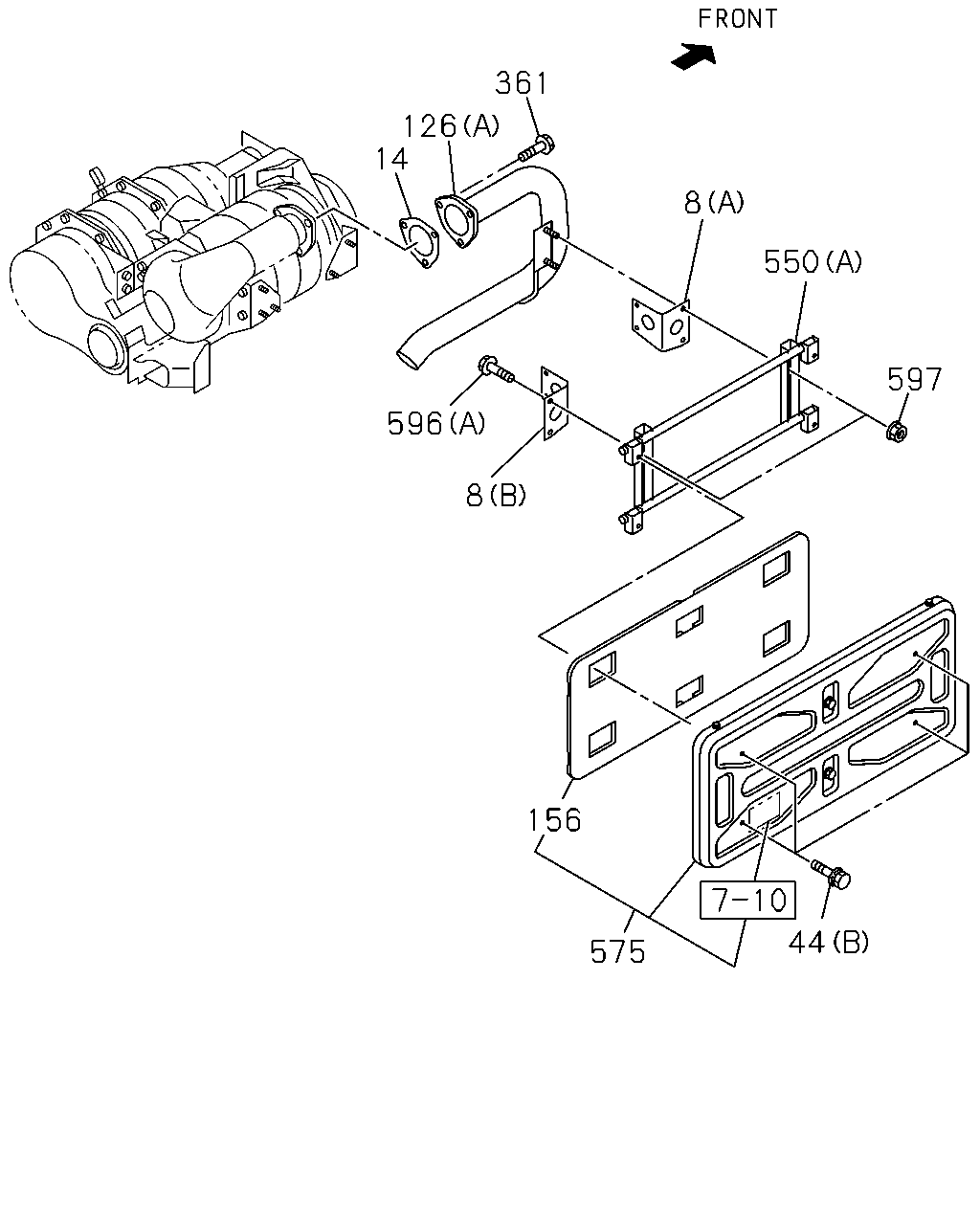

361 126 14 8 550 597 596 8 575 44 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98162-855-0	02	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98162-855-0	02	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-98225-555-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-98225-555-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98225-556-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98225-556-0	01	1	1409-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=65	8-97148-757-1	01	1	1311-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 ID=81	8-98043-481-0	01	1	1309-1408	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 ID=81	8-98043-481-0	01	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1404-1408	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1404-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	06	1	1309-1408	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	06	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-274-0	01	1	1404-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-274-0	01	1	1409-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98228-990-1	01	1	1311-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (D)	8-98228-990-1	01	1	1311-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98228-989-1	01	1	1311-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98228-991-1	01	1	1311-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1309-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1409-	●	●	●
156	03.706 INSULATOR; HEAT PROTECTOR 4JJ1-TCS ENG(LFB)	8-98148-541-1	01	1	1309-1408	●	●
156	03.706 INSULATOR; HEAT PROTECTOR 4JJ1-TCS ENG(LFB)	8-98148-541-1	01	1	1409-	●	●	●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) 09.003 M12X40 FLANGE	0-28651-240-0	03	1	1309-1408	●	●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) 09.003 M12X40 FLANGE	0-28651-240-0	03	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-98113-038-0	01	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-98113-038-0	01	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (D)	8-98144-192-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (D)	8-98144-192-1	02	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (E)	8-98144-205-0	01	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (E)	8-98144-205-0	01	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-98144-207-0	01	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-98144-207-0	01	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-98148-477-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-98148-477-1	02	1	1409-1502	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-98292-852-0	02	1	1503-	●	●
575	03.706 COVER; SIDE,DPD 4JJ1-TCS ENG(LFB)	8-98290-055-0	01	1	1409-			●
575	03.706 COVER; SIDE,DPD 4JJ1-TCS ENG(LFB)	8-98109-502-1	01	1	1309-	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403			●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-			●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	14	1	1309-1408	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	14	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1403	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1403	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	14	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	14	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1310	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●

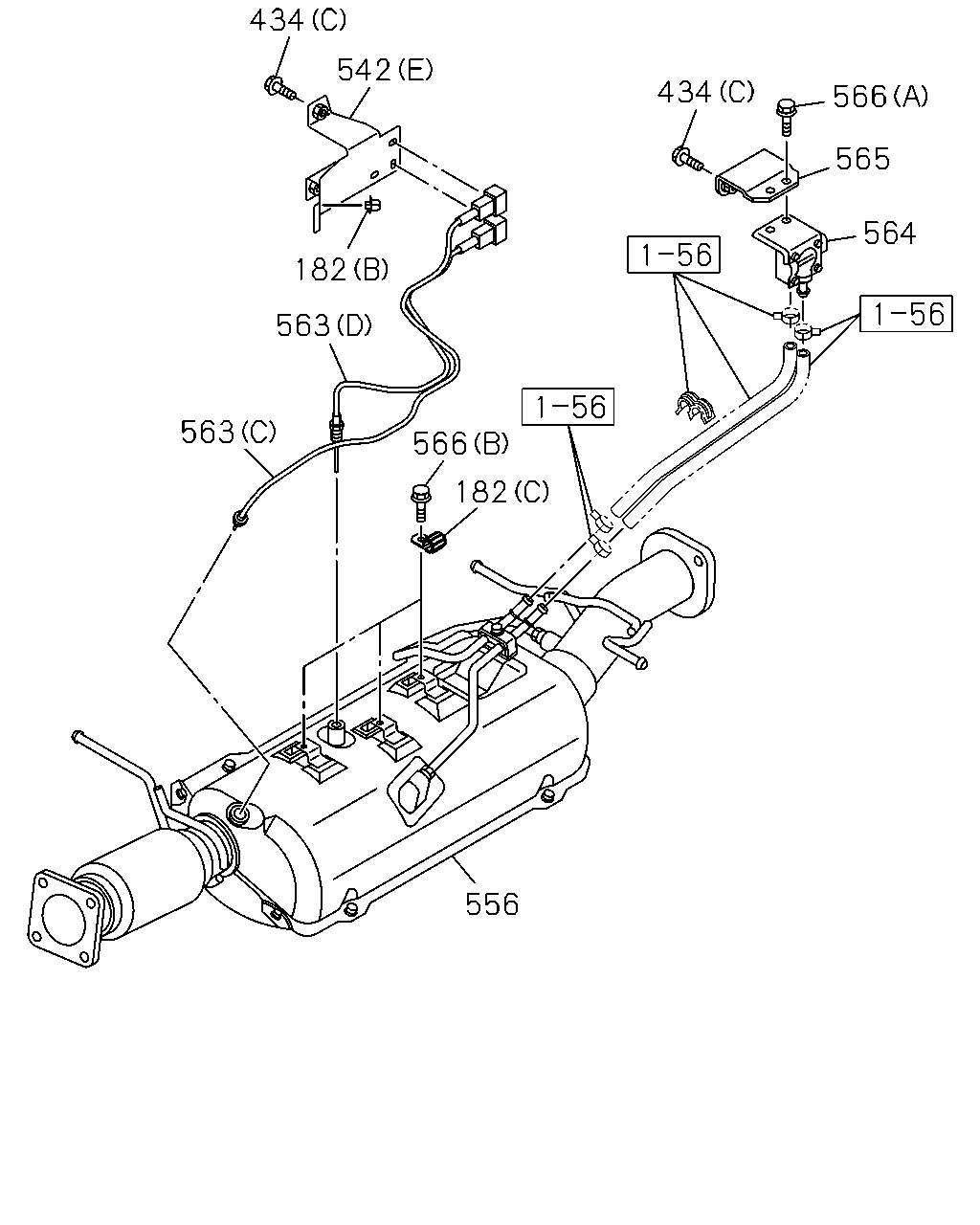

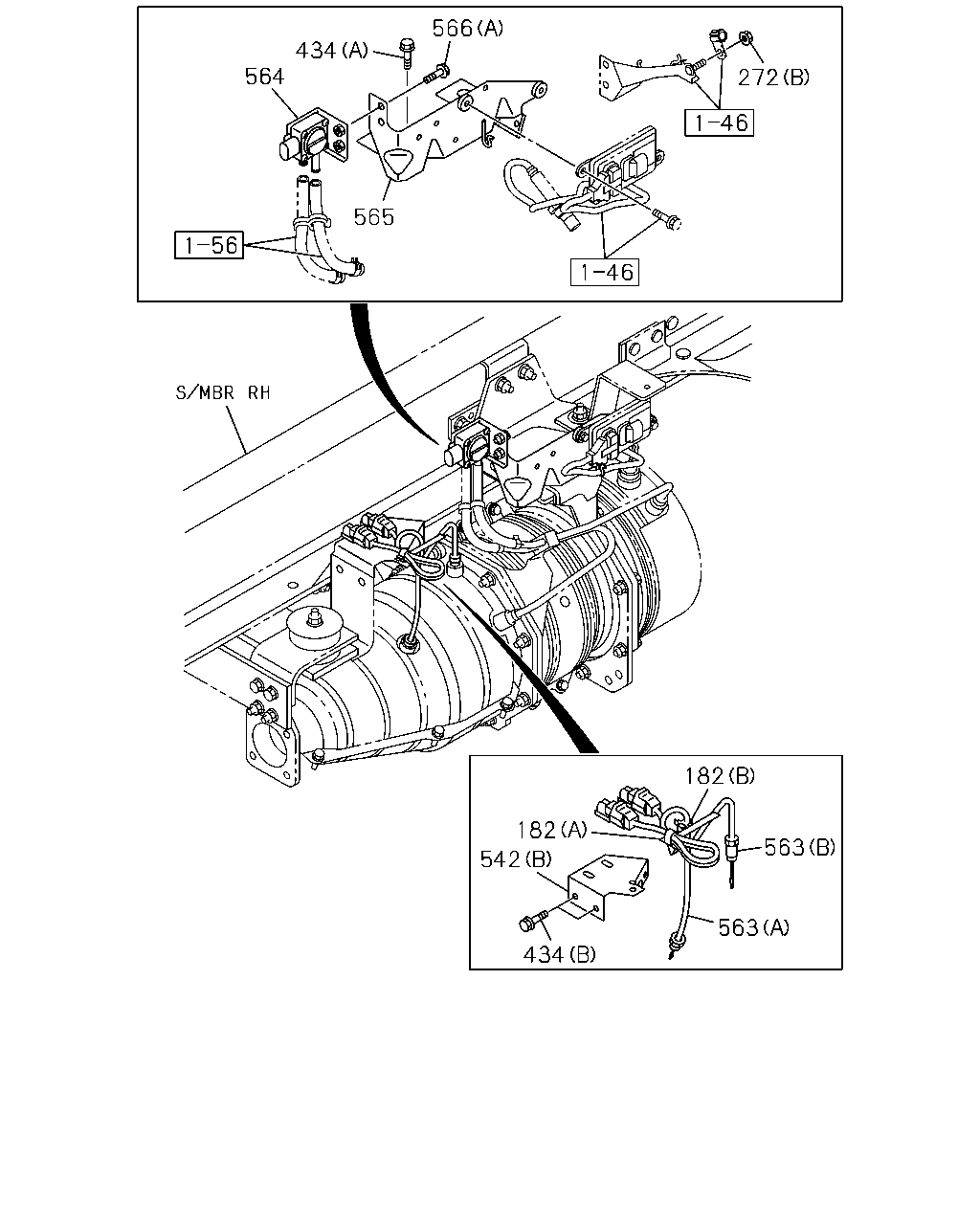

564 434 566 565 272 182 563 563 434 542 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
182	03.682 CLIP; HARNESS 4JJ1-TCC ENG(RDU) (C) ID=7	8-98002-767-0	03	1	1311-	●	●	●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1311-	●	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1311-	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	1309-1310	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1408	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (E)	8-98236-437-2	01	1	1311-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (D)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (D)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98242-537-0	01	1	1409-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98002-572-4	01	1	1406-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) 03.337 (C)	8-98031-605-1	01	1	1311-1405	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C)	8-98031-605-1	01	1	1406-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) (D)	8-98186-762-1	01	1	1311-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-329-0	01	1	1309-1408	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-329-0	01	1	1409-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-98299-541-0	01	1	1502-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-330-0	01	1	1309-1408	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-330-0	01	1	1409-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (B)	8-98299-542-0	01	1	1502-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCC ENG(RDU)	8-97359-985-2	01	1	1311-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1309-1408	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1409-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCC ENG(RDU)	8-98029-347-0	01	1	1311-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1309-1408	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1409-	●	●	●
566	03.706 BOLT; SENSOR 4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE	0-28650-616-0	03	1	1311-	●	●	●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1309-1310	●	●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●	●

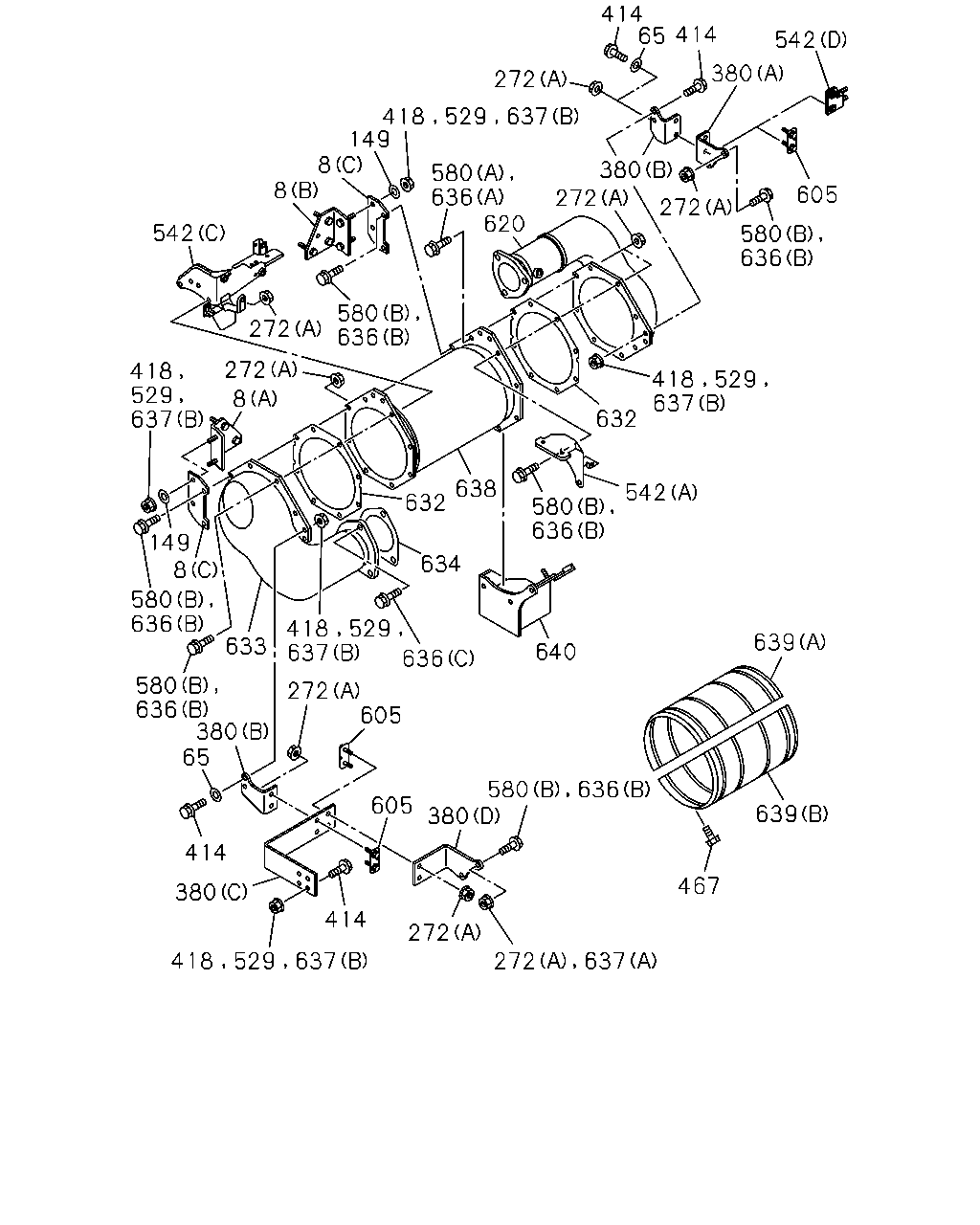

542 380 414 65 414 272 637 529 418 149 8 8 542 272 272 418 529 637 8 580 636 580 636 620 272 380 272 580 605 636 529 418 637 632 542 580 636 638 632 634 640 636 529 418 149 8 580 636 633 580 636 380 65 414 380 418 529 637 414 605 605 272 637 580 380 272 272 636 637 467 639 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98162-855-0	02	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (C)	8-98162-855-0	02	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-98225-555-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-98225-555-0	01	1	1409-	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98225-556-0	01	1	1309-1408	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B)	8-98225-556-0	01	1	1409-	●	●	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1309-1408	●	●
65	03.613 WASHER; PL 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	04	1	1409-	●	●	●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1309-1408	●	●
149	03.613 WASHER; LK,PIPE BRKT 4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26	0-91614-710-0	04	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (A)	8-98118-879-0	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (A)	8-98118-879-0	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (B)	8-98118-880-0	02	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (B)	8-98118-880-0	02	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (C)	8-98127-331-1	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (C)	8-98127-331-1	01	1	1409-	●	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (D)	8-98127-332-0	01	1	1309-1408	●	●
380	03.706 BRACKET; STAY 4JJ1-TCS ENG(LFB) (D)	8-98127-332-0	01	1	1409-	●	●	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 M10X35 FLANGE	0-28051-035-0	08	1	1309-1408	●	●
414	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 04.510 M10X35 FLANGE	0-28051-035-0	08	1	1409-	●	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-1408	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●	●	●
467	03.685 BOLT; PROTECTOR 4JJ1-TCS ENG(LFB) M6X16	8-98019-179-0	06	1	1309-1408	●	●
467	03.685 BOLT; PROTECTOR 4JJ1-TCS ENG(LFB) M6X16	8-98019-179-0	06	1	1409-	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (E)	8-98236-437-2	01	1	1311-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (D)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (D)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98242-537-0	01	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1309-1408	●	●
605	03.690 PLATE; NUT 4JJ1-TCS ENG(LFB)	8-98148-511-0	02	1	1409-	●	●	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB)	8-98118-876-1	01	1	1309-1408	●	●
620	03.440 CHAMBER ASM; RR 4JJ1-TCS ENG(LFB)	8-98118-876-1	01	1	1409-	●	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB)	8-97628-257-0	03	1	1309-1408	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB)	8-97628-257-0	03	1	1409-	●	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB)	8-98127-327-1	01	1	1309-1408	●	●
633	03.440 CHAMBER SUB ASM; DEF,FRONT 4JJ1-TCS ENG(LFB)	8-98127-327-1	01	1	1409-	●	●	●
634	03.611 GASKET; MIXER 4JJ1-TCS ENG(LFB)	8-98118-422-1	01	1	1309-1408	●	●
634	03.611 GASKET; MIXER 4JJ1-TCS ENG(LFB)	8-98118-422-1	01	1	1409-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1409-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1309-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1409-	●	●	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB)	8-98205-063-0	01	1	1309-1408	●	●
638	03.701 CATALYST ASM; DEF 4JJ1-TCS ENG(LFB)	8-98205-063-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (A)	8-98147-069-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (A)	8-98147-069-0	01	1	1409-	●	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (B)	8-98147-070-0	01	1	1309-1408	●	●
639	03.609 PROTECTOR; HEAT,CATALYST ASM DEF 4JJ1-TCS ENG(LFB) (B)	8-98147-070-0	01	1	1409-	●	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-98159-189-2	01	1	1309-1408	●	●
640	03.609 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-98159-189-2	01	1	1409-	●	●	●

548 543 548 568 560 25 212 223 46 36 2 17 43 1

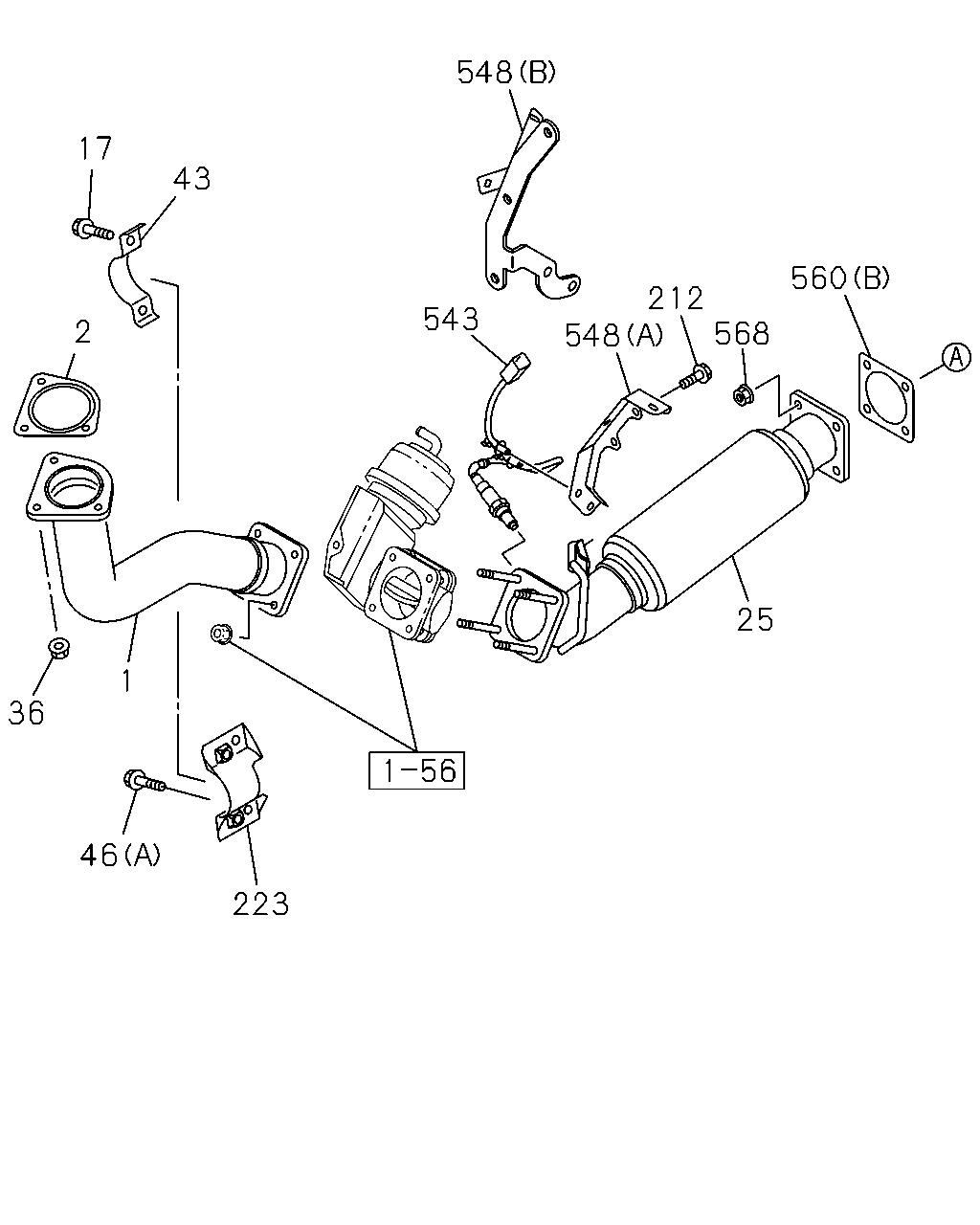

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98228-986-1	01	1	1311-	●	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98231-922-0	01	1	1309-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-98228-985-0	01	1	1311-	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1309-1408	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1409-	●	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-1310	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB)	8-98231-923-0	01	1	1309-	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) M10 FLANGE	8-97096-192-1	02	1	1311-	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) M10 FLANGE	8-97096-192-1	03	1	1309-1408	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) M10 FLANGE	8-97096-192-1	03	1	1409-	●	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1309-1310	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1311-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-	●	●	●
212	03.704 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1309-1310	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1311-1408	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1409-	●	●	●
212	03.704 BOLT; BRKT 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1309-1310	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1311-1408	●	●
212	03.704 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) 00.206 M8X70 FLANGE	0-28050-870-0	01	1	1409-	●	●	●
223	03.706 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1309-1310	●	●
223	03.706 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1311-	●	●	●
543	01.150 SENSOR; O2 4JJ1-TCS ENG(LFB)	8-98088-472-1	01	1	1309-1408	●	●
543	01.150 SENSOR; O2 4JJ1-TCS ENG(LFB)	8-98088-472-1	01	1	1409-	●	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98224-056-1	01	1	1311-1408	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98224-056-1	01	1	1409-	●	●	●
548	03.706 BRACKET; O2 SENSOR (A)	8-98224-055-1	01	1	1309-1310	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (A)	8-98224-055-1	01	1	1311-1408	●	●
548	03.706 BRACKET; O2 SENSOR 4JJ1-TCS ENG(LFB) EXC. SMOOTHER-EX(TYPE2)(8NS) (A)	8-98224-055-1	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1311-	●	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-1310	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1311-	●	●	●

562 562 550 596 597 597 596 596 550 385 574 531 597 550 385 531 597 340 352 352 121 337 166 143 629 44 579 143 579 579 352 631 352 121 629 44 143 578 597 143 44 578 352 596 597 597 596 550 385 574 550 596 385 531 597 550

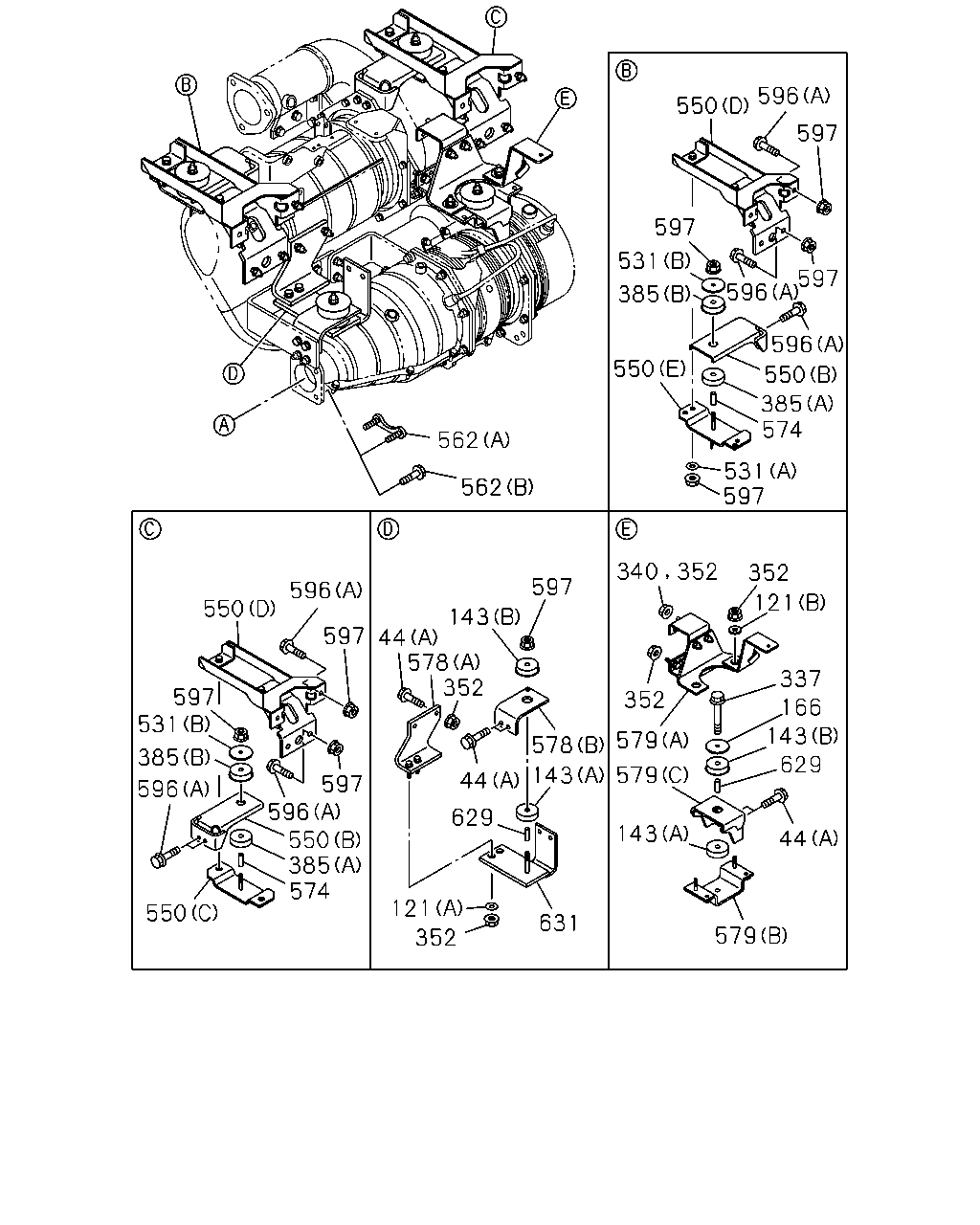

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1404-1408	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1404-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	06	1	1309-1408	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	06	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1309-1408	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1409-	●	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB) (B) ID=10.5	8-98073-091-0	02	1	1309-1408	●	●
121	03.704 WASHER; PL,BRKT 4JJ1-TCS ENG(LFB) (B) ID=10.5	8-98073-091-0	02	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (D)	8-98034-767-0	01	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1409-	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCS ENG(LFB) ID=10.5 OD=70	8-97625-671-0	02	1	1309-1408	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCS ENG(LFB) ID=10.5 OD=70	8-97625-671-0	02	1	1409-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB) M10X70 FLANGE	0-28051-070-0	01	1	1309-1408	●	●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB) M10X70 FLANGE	0-28051-070-0	01	1	1409-	●	●	●
340	03.706 NUT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408	●	●
340	03.706 NUT; RUBBER,SUPPORT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-	●	●	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1408	●	●
352	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	08	1	1409-	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1309-1408	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1409-	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1309-1408	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1409-	●	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1309-1408	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB) 09.008 (A) ID=12.5	1-09503-171-0	02	1	1409-	●	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB) 03.706 (B) ID=10.5 OD=70	8-97625-671-0	02	1	1309-1408	●	●
531	03.704 WASHER; CLAMP 4JJ1-TCS ENG(LFB) 03.706 (B) ID=10.5 OD=70	8-97625-671-0	02	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-98113-038-0	01	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-98113-038-0	01	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (D)	8-98144-192-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (D)	8-98144-192-1	02	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (E)	8-98144-205-0	01	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (E)	8-98144-205-0	01	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-98144-207-0	01	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-98144-207-0	01	1	1409-	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-98148-477-1	02	1	1309-1408	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-98148-477-1	02	1	1409-1502	●	●	●
550	03.704 BRACKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-98292-852-0	02	1	1503-	●	●
562	03.690 PLATE; STUD,BOLT IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1309-1310	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1309-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1409-	●	●	●
574	03.706 SPACER; DPD 4JJ1-TCS ENG(LFB) L=39	8-98060-852-0	02	1	1309-1408	●	●
574	03.706 SPACER; DPD 4JJ1-TCS ENG(LFB) L=39	8-98060-852-0	02	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1311-1403	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1404-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1404-1408			●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-98113-032-1	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-98113-032-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-98207-614-0	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-98207-614-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (F)	8-98228-999-1	01	1	1311-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (D)	8-98229-000-1	01	1	1311-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (G)	8-98232-080-1	01	1	1311-1403	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (G)	8-98232-080-1	01	1	1311-1403	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (G)	8-98232-080-2	01	1	1404-	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (G)	8-98232-080-2	01	1	1404-	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> (G)	8-98232-080-2	01	1	1404-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (E)	8-98232-084-1	01	1	1311-1403	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (E)	8-98232-084-1	01	1	1311-1403			●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (E)	8-98232-084-1	01	1	1404-	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (E)	8-98232-084-1	01	1	1404-			●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-98144-195-2	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-98144-195-2	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (B)	8-98144-196-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (B)	8-98144-196-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-198-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-198-0	01	1	1409-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403			●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-			●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	14	1	1309-1408	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	14	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1403	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1403	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	14	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	14	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1310	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
629	03.706 SPACER; HANGER 4JJ1-TCS ENG(LFB) L=39	8-98060-852-0	02	1	1309-1408	●	●
629	03.706 SPACER; HANGER 4JJ1-TCS ENG(LFB) L=39	8-98060-852-0	02	1	1409-	●	●	●
631	03.706 BRACKET; DPD CENTER 4JJ1-TCS ENG(LFB)	8-98144-193-0	01	1	1309-	●	●

159 589 589 159 534 413 272 637 557 272 589 637 589 561 561 580 636 272 637 632 636 580 623 617 529 418 637 580 636 558 560 547 547

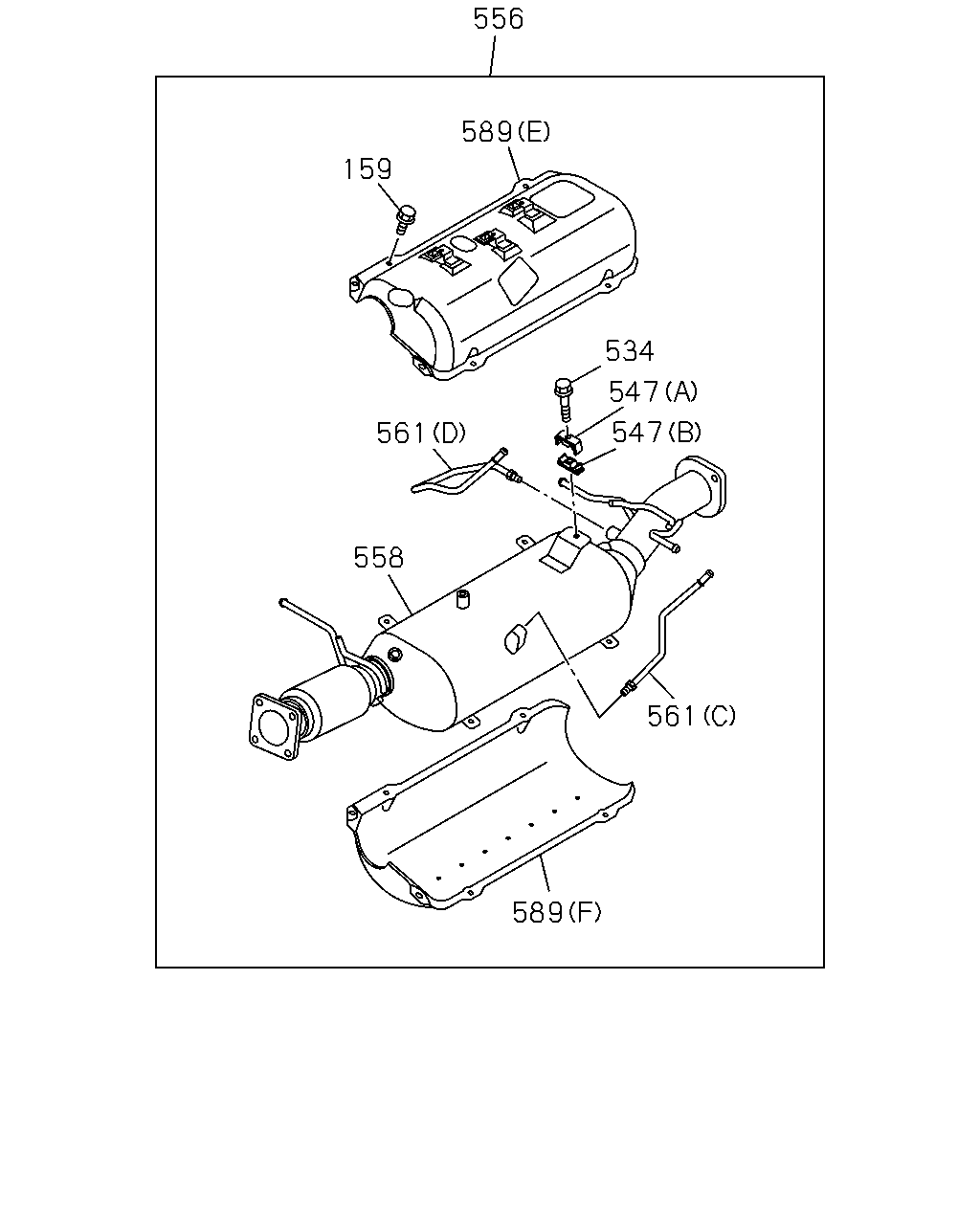

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-	●	●	●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB) 03.685 M6X16	8-98019-179-0	10	1	1309-1408	●	●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB) 03.685 M6X16	8-98019-179-0	10	1	1409-	●	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1309-1408	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1409-	●	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB)	8-98127-336-0	01	1	1309-1408	●	●
413	03.613 BRACKET; EXH PIPE,CONN 4JJ1-TCS ENG(LFB)	8-98127-336-0	01	1	1409-	●	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1309-1408	●	●
418	03.613 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	10	1	1409-	●	●	●

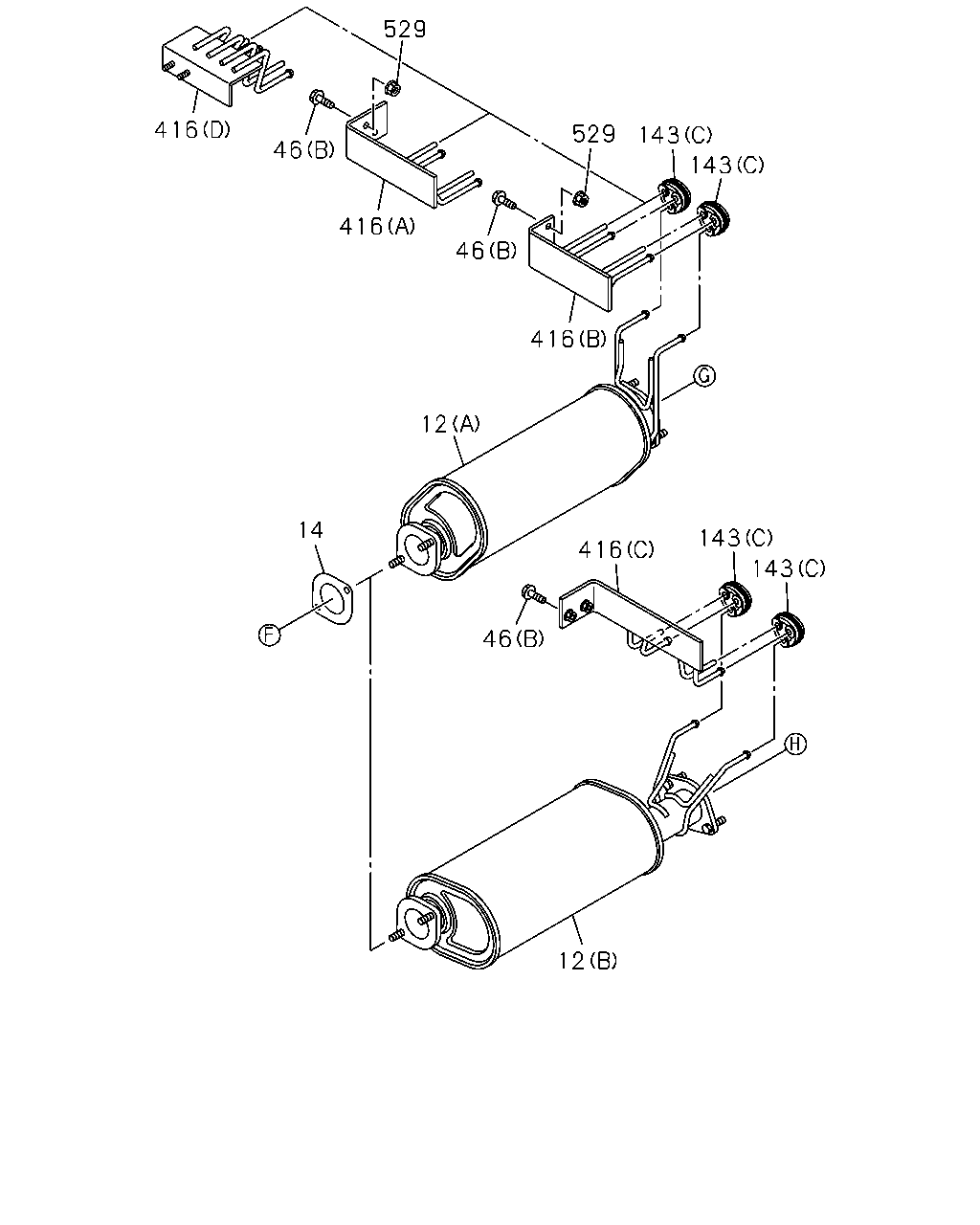

529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCC ENG(RDU)	8-98242-134-0	01	1	1311-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1309-1408	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1409-	●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1309-1310	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1311-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1309-1310	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1311-	●	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1309-1408	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98205-059-1	01	1	1409-	●	●	●
558	03.634 FILTER ASM 4JJ1-TCC ENG(RDU)	8-98233-618-1	01	1	1311-	●	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1309-1408	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1311-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (C)	8-98233-520-1	01	1	1311-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (D)	8-98233-521-1	01	1	1311-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98127-334-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98127-334-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98127-335-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98127-335-0	01	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	10	1	1409-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1309-1408	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	06	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (E)	8-98233-517-1	01	1	1311-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (F)	8-98233-518-0	01	1	1311-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-97383-660-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-97383-660-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-921-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-921-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-98032-923-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-98032-923-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	1409-	●	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB)	8-98204-729-0	01	1	1309-1408	●	●
617	03.440 CHAMBER SUB ASM; MIXER 4JJ1-TCS ENG(LFB)	8-98204-729-0	01	1	1409-	●	●	●
623	03.704 STUD; FLANGE 4JJ1-TCS ENG(LFB) M6	8-98141-351-0	03	1	1309-1408	●	●
623	03.704 STUD; FLANGE 4JJ1-TCS ENG(LFB) M6	8-98141-351-0	03	1	1409-	●	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB)	8-97628-257-0	03	1	1309-1408	●	●
632	03.611 GASKET; FILTER,DEF 4JJ1-TCS ENG(LFB)	8-97628-257-0	03	1	1409-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1309-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	05	1	1409-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1309-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	11	1	1409-	●	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1309-1408	●	●
636	00.010 BOLT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 00.685 (C) M10X40 FLANGE	0-28051-040-0	03	1	1409-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1309-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	13	1	1409-	●	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-1408	●	●
637	00.010 NUT; FLANGE,DEF FRONT 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1409-	●	●	●

579 597 596 596 596 44 143 579 597 579 143 329 556 562 560 17 43 2 143 578 223 46 1 36 579

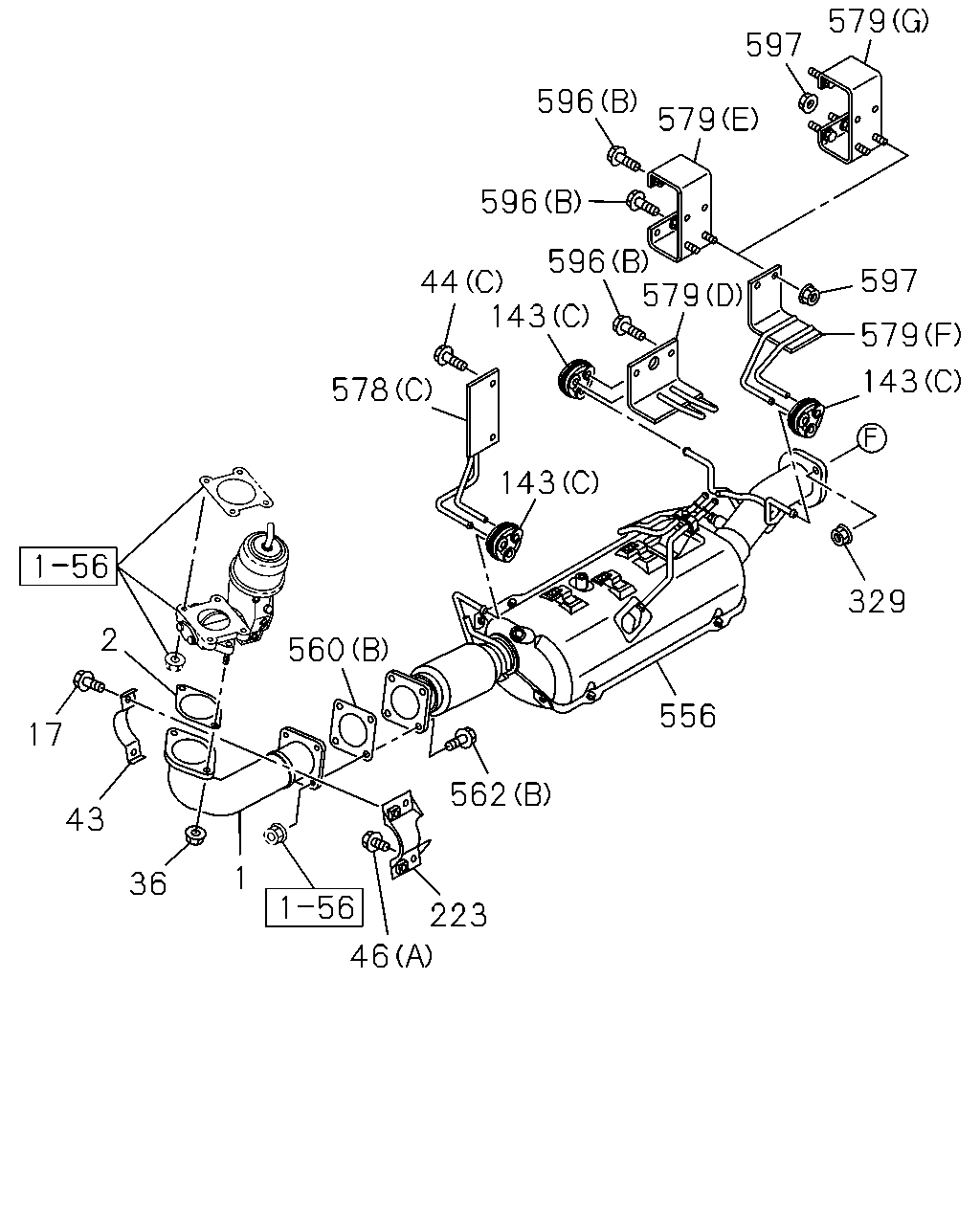

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98228-986-1	01	1	1311-	●	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB)	8-98231-922-0	01	1	1309-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU)	8-98228-985-0	01	1	1311-	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1309-1408	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB)	8-97384-590-0	01	1	1409-	●	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-1310	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) M10 FLANGE	8-97096-192-1	02	1	1311-	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) M10 FLANGE	8-97096-192-1	03	1	1309-1408	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) M10 FLANGE	8-97096-192-1	03	1	1409-	●	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1309-1310	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1311-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER	8-98288-750-0	04	1	1409-			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1404-1408	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1404-1408			●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	06	1	1309-1408	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	06	1	1409-	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	1309-	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (D)	8-98034-767-0	01	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1409-	●	●	●
223	03.706 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1309-1310	●	●
223	03.706 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1311-	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
556	03.701 DPD ASM 4JJ1-TCC ENG(RDU)	8-98227-899-3	01	1	1311-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	01	1	1309-1408	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	01	1	1409-	●	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1309-1310	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1311-	●	●	●
562	03.690 PLATE; STUD,BOLT IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1309-1310	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1311-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCC ENG(RDU) 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1409-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1309-1408	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1311-1403	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1404-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1404-1408			●
578	03.706 BRACKET; DPD FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98228-997-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-98113-032-1	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-98113-032-1	01	1	1409-	●	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-98207-614-0	01	1	1309-1408	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-98207-614-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (F)	8-98228-999-1	01	1	1311-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) (D)	8-98229-000-1	01	1	1311-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (G)	8-98232-080-1	01	1	1311-1403	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> (G)	8-98232-080-1	01	1	1311-1403	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (G)	8-98232-080-2	01	1	1404-	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> (G)	8-98232-080-2	01	1	1404-	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> (G)	8-98232-080-2	01	1	1404-		●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (E)	8-98232-084-1	01	1	1311-1403	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (E)	8-98232-084-1	01	1	1311-1403			●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> (E)	8-98232-084-1	01	1	1404-	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (E)	8-98232-084-1	01	1	1404-			●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-98144-195-2	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-98144-195-2	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (B)	8-98144-196-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (B)	8-98144-196-0	01	1	1409-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-198-0	01	1	1309-1408	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-98144-198-0	01	1	1409-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403			●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-			●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	14	1	1309-1408	●	●
596	03.704 BOLT; BRKT,DPD 4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE	0-28651-035-0	14	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1403	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF> 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-1403	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 75L<7GX> 03.162 M10 FLANGE	0-91180-110-0	01	1	1404-		●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	14	1	1309-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	14	1	1409-	●	●	●
597	03.704 NUT; BRKT,DPD 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1310	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1311-1408	●	●
597	03.704 NUT; BRKT,DPD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●

529 46 416 416 46 529 143 143 416 12 14 46 416 143 143 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-275-0	01	1	1404-1408	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-275-0	01	1	1409-	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A)	8-98228-994-1	01	1	1311-	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98228-995-1	01	1	1311-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=65	8-97148-757-1	01	1	1311-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 ID=81	8-98043-481-0	01	1	1309-1408	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 ID=81	8-98043-481-0	01	1	1409-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-1403	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1309-1310	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (D)	8-98034-767-0	01	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1409-	●	●	●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (D)	8-98273-276-0	01	1	1404-1408	●	●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (D)	8-98273-276-0	01	1	1409-	●	●	●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98229-004-2	01	1	1311-	●	●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (A)	8-98229-004-2	01	1	1311-			●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-98229-003-2	01	1	1311-	●
416	03.706 BRACKET; RR EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C)	8-98229-005-2	01	1	1311-	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408			●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1309-1408	●	●
529	03.704 NUT; BRKT,EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1409-	●	●	●

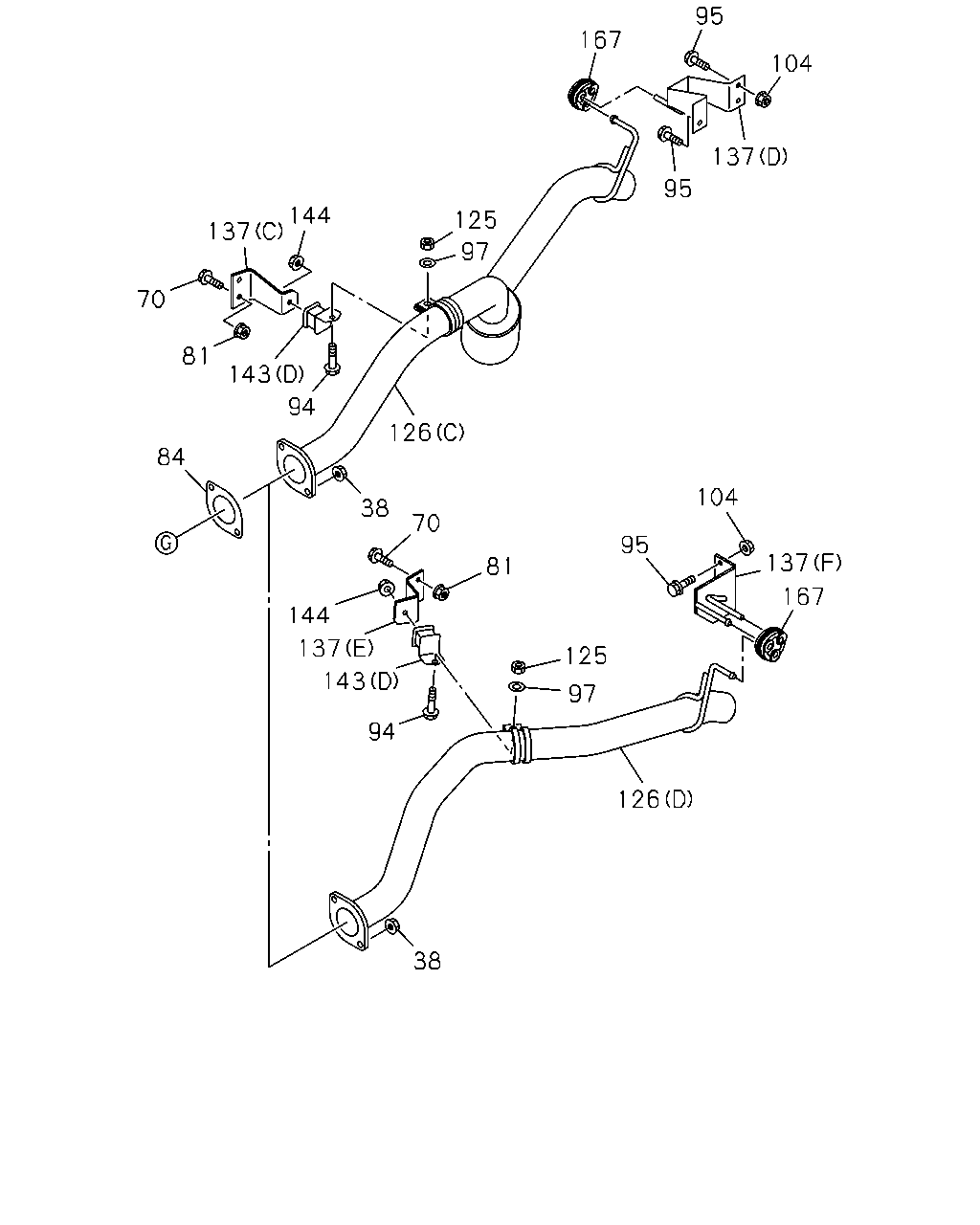

38 126 97 95 125 137 167 104 81 94 143 137 70 144 38 126 84 143 81 94 70 137 144 125 97 95 137 104 167 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) ID=65	8-97148-757-1	01	1	1311-	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	1311-	●	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 03.023 M10X50 FLANGE	8-97301-165-0	01	1	1311-	●	●	●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1311-	●	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1311-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-274-0	01	1	1404-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-274-0	01	1	1409-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98228-990-1	01	1	1311-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (D)	8-98228-990-1	01	1	1311-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98228-989-1	01	1	1311-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98228-991-1	01	1	1311-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1309-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1409-	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (E)	8-98001-895-1	01	1	1311-	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (E)	8-98001-895-1	01	1	1311-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (F)	8-98229-009-1	01	1	1311-	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (F)	8-98229-009-1	01	1	1311-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98001-893-1	01	1	1311-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D)	8-98229-008-1	01	1	1311-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1311-1403	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1404-1408	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1404-1408			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1409-	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1311-1403	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1404-1408	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1404-1408			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (D)	8-98034-767-0	01	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1409-	●	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
167	03.706 HANGER; EXH PIPE 4JJ1-TCC ENG(RDU) 03.704	8-97080-694-0	01	1	1311-	●	●	●

434 542 434 566 565 564 566 563 182 563 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
182	03.682 CLIP; HARNESS 4JJ1-TCC ENG(RDU) (C) ID=7	8-98002-767-0	03	1	1311-	●	●	●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1309-1310	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	01	1	1311-1408	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	01	1	1409-	●	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1309-1310	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1311-	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	04	1	1311-	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	1309-1310	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1309-1408	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCC ENG(RDU) (E)	8-98236-437-2	01	1	1311-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (D)	8-98150-368-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (D)	8-98150-368-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98165-442-2	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98165-442-2	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (C)	8-98205-049-1	01	1	1409-	●	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98242-537-0	01	1	1309-1408	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98242-537-0	01	1	1409-	●	●	●
556	03.701 DPD ASM 4JJ1-TCC ENG(RDU)	8-98227-899-3	01	1	1311-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) (C)	8-98002-572-4	01	1	1406-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) 03.337 (C)	8-98031-605-1	01	1	1311-1405	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) EXC. SMOOTHER-EX(TYPE2)(8NS) 03.337 (C)	8-98031-605-1	01	1	1406-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCC ENG(RDU) (D)	8-98186-762-1	01	1	1311-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-329-0	01	1	1309-1408	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-329-0	01	1	1409-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-98299-541-0	01	1	1502-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-330-0	01	1	1309-1408	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-330-0	01	1	1409-1501	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1-TCS ENG(LFB) (B)	8-98299-542-0	01	1	1502-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCC ENG(RDU)	8-97359-985-2	01	1	1311-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1309-1408	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB)	8-97360-368-2	01	1	1409-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCC ENG(RDU)	8-98029-347-0	01	1	1311-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1309-1408	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB)	8-98209-756-1	01	1	1409-	●	●	●
566	03.706 BOLT; SENSOR 4JJ1-TCC ENG(RDU) 02.343 (B) M6X16 FLANGE	0-28650-616-0	03	1	1311-	●	●	●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1309-1310	●	●
566	03.706 BOLT; SENSOR 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●	●

167 104 137 95 126 97 125 70 81 143 137 144 38 84 363 84 554 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) ID=65	8-97148-757-1	01	1	1311-	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	1311-	●	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) 03.023 M10X50 FLANGE	8-97301-165-0	01	1	1311-	●	●	●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1311-	●	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-1403	●	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-1408			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) 00.833 M10	0-91110-510-0	01	1	1311-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-274-0	01	1	1404-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) (B)	8-98273-274-0	01	1	1409-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98228-990-1	01	1	1311-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (D)	8-98228-990-1	01	1	1311-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98228-989-1	01	1	1311-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98228-991-1	01	1	1311-	●	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1309-1408	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (A)	8-98207-611-0	01	1	1409-	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (E)	8-98001-895-1	01	1	1311-	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (E)	8-98001-895-1	01	1	1311-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (F)	8-98229-009-1	01	1	1311-	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (F)	8-98229-009-1	01	1	1311-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98001-893-1	01	1	1311-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D)	8-98229-008-1	01	1	1311-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1311-1403	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1404-1408	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1404-1408			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1409-	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1311-1403	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1404-1408	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1404-1408			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98229-010-1	01	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (C)	8-97080-694-0	05	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) (D)	8-98034-767-0	01	1	1311-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (A)	8-97625-670-0	02	1	1409-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1309-1408	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) 03.706 (B)	8-98149-202-0	02	1	1409-	●	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
167	03.706 HANGER; EXH PIPE 4JJ1-TCC ENG(RDU) 03.704	8-97080-694-0	01	1	1311-	●	●	●
363	03.704 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1311-	●	●	●
554	03.705 PIPE; EXH,SILENCER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98228-987-1	01	1	1311-	●	●	●

556 589 534 561 159 547 547 561 558 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCC ENG(RDU)	8-98242-133-0	06	1	1311-	●	●	●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB) 03.685 M6X16	8-98019-179-0	10	1	1309-1408	●	●
159	03.690 BOLT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB) 03.685 M6X16	8-98019-179-0	10	1	1409-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCC ENG(RDU)	8-98242-134-0	01	1	1311-	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1309-1408	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 01.531 M6X30 FLANGE	0-28050-630-0	01	1	1409-	●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1309-1310	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1311-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1309-1310	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1311-	●	●	●
556	03.701 DPD ASM 4JJ1-TCC ENG(RDU)	8-98227-899-3	01	1	1311-	●	●	●
558	03.634 FILTER ASM 4JJ1-TCC ENG(RDU)	8-98233-618-1	01	1	1311-	●	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1309-1408	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98205-061-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (C)	8-98233-520-1	01	1	1311-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCC ENG(RDU) (D)	8-98233-521-1	01	1	1311-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98127-334-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98127-334-0	01	1	1409-	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98127-335-0	01	1	1309-1408	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98127-335-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (E)	8-98233-517-1	01	1	1311-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCC ENG(RDU) (F)	8-98233-518-0	01	1	1311-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-97383-660-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-97383-660-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-921-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-921-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-98032-923-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-98032-923-0	01	1	1409-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	1309-1408	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
