Sayfa 1-46 - Isuzu EPC

1-46 — DEF TANK AND PIPING (#126527) — 369 parça

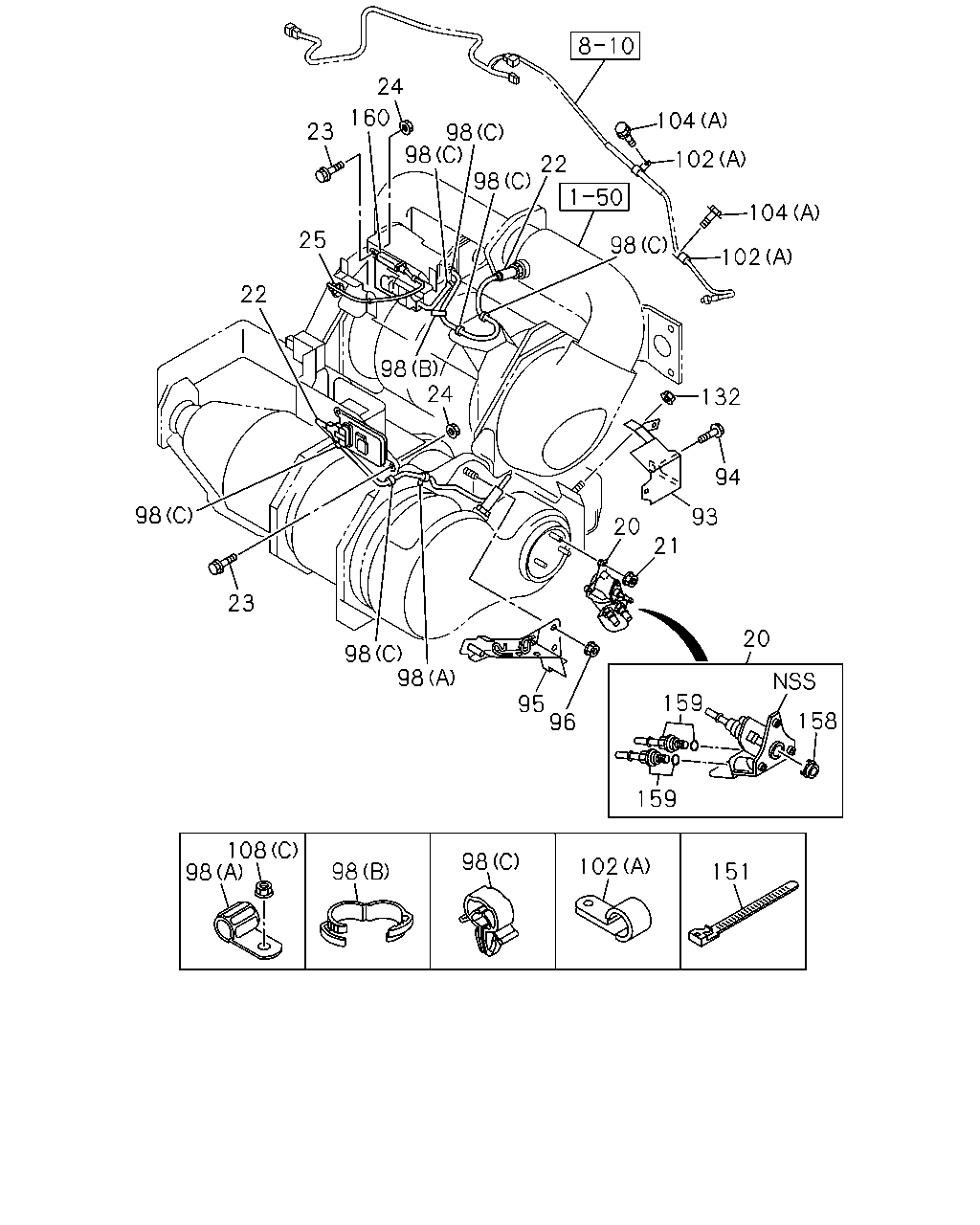

20 21 93 94 132 20 95 96 98 98 23 98 22 25 23 160 24 98 98 98 22 98 102 104 102 104 159 159 158 151 102 98 98 108 98 24 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	03.680 INJECTOR ASM; DEF DCM 4JJ1-TCS ENG(LFB)	8-98231-898-2	01	1	1309-1408	●	●
20	03.680 INJECTOR ASM; DEF DCM 4JJ1-TCS ENG(LFB)	8-98231-898-2	01	1	1409-	●	●	●
21	00.010 NUT; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	03	1	1309-1408	●	●
21	00.010 NUT; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	03	1	1409-	●	●	●
22	01.150 SENSOR; DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98236-920-0	02	1	1309-1408	●	●
22	01.150 SENSOR; DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98236-920-0	02	1	1409-1502	●	●	●
22	01.150 SENSOR; DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98302-394-0	02	1	1503-	●	●	●
23	03.613 BOLT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98155-181-0	04	1	1309-1408	●	●
23	03.613 BOLT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB)	8-98155-181-0	04	1	1409-	●	●	●
24	00.010 NUT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	04	1	1309-1408	●	●
24	00.010 NUT; SENSOR,DEF DCM EXH NOX 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	04	1	1409-	●	●	●
25	01.150 SENSOR; DEF DCM EXH TEMP 4JJ1-TCS ENG(LFB)	8-98086-329-0	01	1	1309-1408	●	●
25	01.150 SENSOR; DEF DCM EXH TEMP 4JJ1-TCS ENG(LFB)	8-98086-329-0	01	1	1409-	●	●	●
93	03.609 PROTECTOR; DEF DCM 4JJ1-TCS ENG(LFB)	8-98201-844-0	01	1	1309-1408	●	●
93	03.609 PROTECTOR; DEF DCM 4JJ1-TCS ENG(LFB)	8-98201-844-0	01	1	1409-	●	●	●
94	00.010 BOLT; PROTECTOR,DEF DCM 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1408	●	●
94	00.010 BOLT; PROTECTOR,DEF DCM 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-1502	●	●	●
94	00.010 BOLT; PROTECTOR,DEF DCM 4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1503-	●	●	●
95	03.634 BRACKET; HARN,DEF DCM EXH NOX SE 4JJ1-TCS ENG(LFB)	8-98204-433-1	01	1	1309-1408	●	●
95	03.634 BRACKET; HARN,DEF DCM EXH NOX SE 4JJ1-TCS ENG(LFB)	8-98204-433-1	01	1	1409-	●	●	●
96	00.010 NUT; BRACKET,DEF DCM EXH NOX SEN 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1408	●	●
96	00.010 NUT; BRACKET,DEF DCM EXH NOX SEN 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (B) ID=20	8-94241-972-0	01	1	1309-1408	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (B) ID=20	8-94241-972-0	01	1	1409-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (C) ID=10	8-94450-392-0	06	1	1309-1408	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 02.559 (C) ID=10	8-94450-392-0	06	1	1409-	●	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 03.682 (A) ID=7	8-98002-767-0	01	1	1309-1408	●	●
98	00.010 CLIP; DEF DCM EXH NOX SEN HARN 4JJ1-TCS ENG(LFB) 03.682 (A) ID=7	8-98002-767-0	01	1	1409-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	02	1	1309-1408	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	02	1	1409-1505	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1506-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN (B) ID=10 L=20	0-95221-035-0	01	1	1309-1310	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1311-1408	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1409-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN (B) ID=14 L=28	8-98135-163-0	01	1	1309-1310	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1311-1408	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1409-	●	●	●
104	00.010 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1309-1310	●	●
104	00.010 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1311-1408	●	●
104	00.010 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1409-	●	●
104	00.010 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1409-			●
104	00.010 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●	●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1309-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
108	00.010 NUT; CLIP 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-			●
108	00.010 NUT; CLIP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1311-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1409-			●
132	00.010 NUT; PROTECTOR 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1408	●	●
132	00.010 NUT; PROTECTOR 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●
151	03.162 CLIP; COVER L=140	5-09707-031-1	01	1	1309-1310	●	●
151	03.162 CLIP; COVER EURO6 SPECIFICATION(NT6) L=140	5-09707-031-1	01	1	1311-1408	●	●
151	03.162 CLIP; COVER EURO6 SPECIFICATION(NT6) L=140	5-09707-031-1	01	1	1409-	●	●	●
158	03.890 GASKET; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB)	8-98086-333-0	02	1	1309-1406	●	●
158	03.890 GASKET; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB)	8-98086-333-0	01	1	1407-1408	●	●
158	03.890 GASKET; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB)	8-98086-333-0	01	1	1409-1503	●	●	●
158	03.890 GASKET; INJECTOR ASM,DEF DCM 4JJ1-TCS ENG(LFB)	8-98086-333-0	01	1	1504-	●	●	●
159	03.890 CONNECTOR KIT; COOLANT,INJECTOR 4JJ1-TCS ENG(LFB)	8-98169-416-1	04	1	1309-1406	●	●
159	03.890 CONNECTOR KIT; COOLANT,INJECTOR 4JJ1-TCS ENG(LFB)	8-98169-416-1	02	1	1407-1408	●	●
159	03.890 CONNECTOR KIT; COOLANT,INJECTOR 4JJ1-TCS ENG(LFB)	8-98169-416-1	02	1	1409-1503	●	●	●
159	03.890 CONNECTOR KIT; COOLANT,INJECTOR 4JJ1-TCS ENG(LFB)	8-98169-416-1	02	1	1504-	●	●	●
160	03.890 CLIP; HARNESS,SENSOR DEF DCM EXH 4JJ1-TCS ENG(LFB)	8-98170-331-0	01	1	1309-1408	●	●
160	03.890 CLIP; HARNESS,SENSOR DEF DCM EXH 4JJ1-TCS ENG(LFB)	8-98170-331-0	01	1	1409-	●	●	●

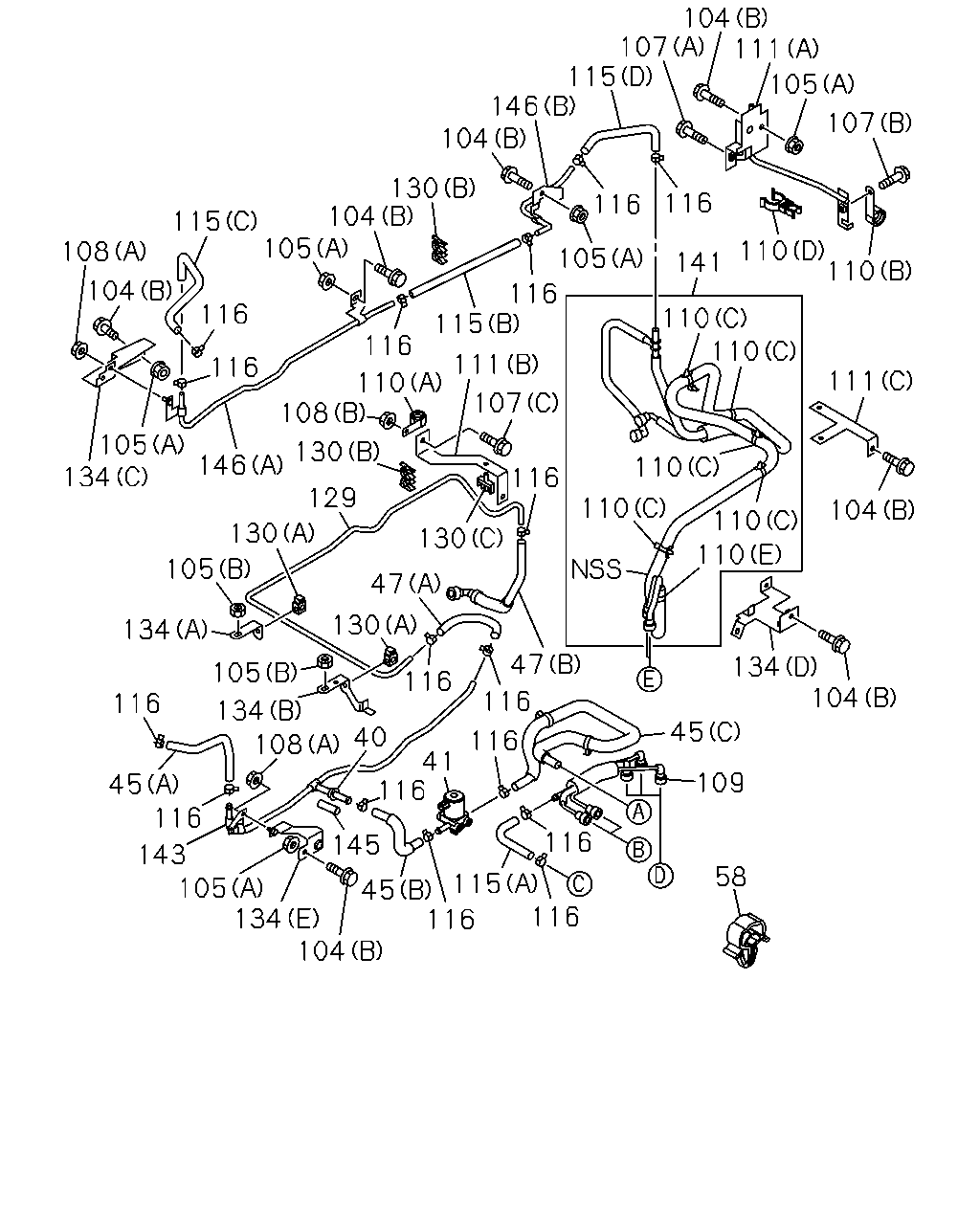

104 134 104 111 110 107 105 111 104 107 115 146 104 130 104 105 116 115 108 116 105 134 146 30 108 110 116 115 116 105 116 116 141 110 110 110 110 110 110 110 116 107 111 129 130 105 134 105 116 45 116 143 105 134 104 145 108 134 130 130 47 116 116 116 41 116 115 45 116 116 116 45 109 58 47 104 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	00.010 GROMMET 02.343 ID=17	8-94128-319-2	01	1	1309-1310	●	●
40	00.010 GROMMET 4JJ1-TCS ENG(LFB) 02.343 ID=17	8-94128-319-2	01	1	1311-1408	●	●
40	00.010 GROMMET 4JJ1-TCS ENG(LFB) 02.343 ID=17	8-94128-319-2	01	1	1409-	●	●
40	00.010 GROMMET 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.343 ID=17	8-94128-319-2	01	1	1409-			●
41	03.708 VALVE ASM; DEF TANK HTR DLVY	8-98232-679-0	01	1	1309-1310	●	●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1311-1408	●	●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1409-	●	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98281-101-0	01	1	1409-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY (A)	8-98210-110-1	01	1	1309-1310	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) (A)	8-98210-110-1	01	1	1311-1408	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) (A)	8-98210-110-1	01	1	1409-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98210-110-1	01	1	1409-			●
45	03.630 HOSE ASM; DEF TANK HTR DLVY (B)	8-98210-111-1	01	1	1309-1310	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) (B)	8-98210-111-1	01	1	1311-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY (C)	8-98233-936-1	01	1	1309-1310	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) (C)	8-98233-936-1	01	1	1311-1408	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) (C)	8-98233-936-1	01	1	1409-	●	●
45	03.630 HOSE ASM; DEF TANK HTR DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98233-936-1	01	1	1409-			●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1311-1408	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1409-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) 01.855 (A) L=150 SERVICED BY L=3000	0-03561-300-0	01	1	1409-			●
47	03.630 HOSE; DEF DCM COOL DLVY 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1309-1310	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1311-1408	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1409-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.855 (A) L=220 SERVICED BY L=3000	0-03561-300-0	01	1	1409-			●
47	03.630 HOSE; DEF DCM COOL DLVY (B)	8-98209-322-0	01	1	1309-1310	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) (B)	8-98209-322-0	01	1	1311-1408	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) (B)	8-98209-322-0	01	1	1409-	●	●
47	03.630 HOSE; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98209-322-0	01	1	1409-			●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1309-1310	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE 4JJ1-TCS ENG(LFB) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1311-1408	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE 4JJ1-TCS ENG(LFB) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1409-	●	●
58	00.010 CLIP; DEF RSVR HTR DLVY HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.681 ID=18-24 L=14.5	1-09709-298-0	02	1	1409-			●
104	00.010 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1309-1310	●	●
104	00.010 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1311-1408	●	●
104	00.010 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1409-	●	●
104	00.010 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	07	1	1409-			●
104	00.010 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●	●
104	00.010 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●	●
105	00.010 NUT; BRKT 00.787 (B) M10	0-91111-510-0	02	1	1309-1310	●	●
105	00.010 NUT; BRKT 4JJ1-TCS ENG(LFB) 00.787 (B) M10	0-91111-510-0	02	1	1311-1312	●	●
105	00.010 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.787 (B) M10	0-91111-510-0	02	1	1401-1408	●	●
105	00.010 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.787 (B) M10	0-91111-510-0	02	1	1409-	●	●	●
105	00.010 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1309-1310	●	●
105	00.010 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1311-1408	●	●
105	00.010 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1409-	●	●
105	00.010 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	05	1	1409-			●
107	00.010 BOLT; CLIP 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1409-			●
107	00.010 BOLT; CLIP 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1309-1310	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1311-1408	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1409-	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1409-			●
107	00.010 BOLT; CLIP 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1309-1310	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1311-1408	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1409-	●	●
107	00.010 BOLT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1409-			●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1309-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
108	00.010 NUT; CLIP 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-			●
108	00.010 NUT; CLIP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1311-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1409-			●
109	03.682 TUBE ASM; DEF & WATER	8-98233-512-1	01	1	1309-1310	●	●
109	03.682 TUBE ASM; DEF & WATER 4JJ1-TCS ENG(LFB)	8-98233-512-1	01	1	1311-1408	●	●
109	03.682 TUBE ASM; DEF & WATER 4JJ1-TCS ENG(LFB)	8-98233-512-1	01	1	1409-	●	●
109	03.682 TUBE ASM; DEF & WATER 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98233-512-1	01	1	1409-			●
110	03.682 CLIP; TUBE ASM 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1309-1310	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1311-1408	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1409-	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 06.672 (A) ID=16 L=40	0-95235-576-0	01	1	1409-			●
110	03.682 CLIP; TUBE ASM 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1309-1310	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1311-1408	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1409-	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.559 (B) ID=35 L=75	1-09700-608-2	01	1	1409-			●
110	03.682 CLIP; TUBE ASM 02.559 (C) L=170.3	1-09987-182-0	05	1	1309-1310	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 02.559 (C) L=170.3	1-09987-182-0	05	1	1311-1408	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 02.559 (C) L=170.3	1-09987-182-0	05	1	1409-	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 02.559 (C) L=170.3	1-09987-182-0	05	1	1409-			●
110	03.682 CLIP; TUBE ASM 04.128 (E) L=213.5	8-98000-506-1	01	1	1309-1310	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 04.128 (E) L=213.5	8-98000-506-1	01	1	1311-1408	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 04.128 (E) L=213.5	8-98000-506-1	01	1	1409-	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.128 (E) L=213.5	8-98000-506-1	01	1	1409-			●
110	03.682 CLIP; TUBE ASM 03.162 (D) ID=15.5 & 19.5	8-98137-046-0	01	1	1309-1310	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 03.162 (D) ID=15.5 & 19.5	8-98137-046-0	01	1	1311-1408	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) 03.162 (D) ID=15.5 & 19.5	8-98137-046-0	01	1	1409-	●	●
110	03.682 CLIP; TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (D) ID=15.5 & 19.5	8-98137-046-0	01	1	1409-			●
111	03.634 BRACKET; CLIP,TUBE ASM (A)	8-98209-320-0	01	1	1309-1310	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) (A)	8-98209-320-0	01	1	1311-1408	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) (A)	8-98209-320-0	01	1	1409-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98209-320-0	01	1	1409-			●
111	03.634 BRACKET; CLIP,TUBE ASM (B)	8-98209-977-0	01	1	1309-1310	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) (B)	8-98209-977-0	01	1	1311-1408	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) (B)	8-98209-977-0	01	1	1409-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98209-977-0	01	1	1409-			●
111	03.634 BRACKET; CLIP,TUBE ASM (C)	8-98217-162-1	01	1	1309-1310	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) (C)	8-98217-162-1	01	1	1311-1408	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) (C)	8-98217-162-1	01	1	1409-	●	●
111	03.634 BRACKET; CLIP,TUBE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98217-162-1	01	1	1409-			●
115	03.630 HOSE; DEF TANK HTR RTN 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1309-1310	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1311-1408	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1409-	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.855 (B) L=330 SERVICED BY L=3000	0-03561-300-0	01	1	1409-			●
115	03.630 HOSE; DEF TANK HTR RTN (A)	8-98122-725-1	01	1	1309-1310	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (A)	8-98122-725-1	01	1	1311-1408	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (A)	8-98122-725-1	01	1	1409-	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98122-725-1	01	1	1409-			●
115	03.630 HOSE; DEF TANK HTR RTN (C)	8-98209-315-0	01	1	1309-1310	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (C)	8-98209-315-0	01	1	1311-1408	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (C)	8-98209-315-0	01	1	1409-	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98209-315-0	01	1	1409-			●
115	03.630 HOSE; DEF TANK HTR RTN (D)	8-98209-316-1	01	1	1309-1310	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (D)	8-98209-316-1	01	1	1311-1408	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (D)	8-98209-316-1	01	1	1409-	●	●
115	03.630 HOSE; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (D)	8-98209-316-1	01	1	1409-			●
116	00.010 CLAMP; HOSE 01.097 ID=16	8-97329-628-0	17	1	1309-1310	●	●
116	00.010 CLAMP; HOSE 4JJ1-TCS ENG(LFB) 01.097 ID=16	8-97329-628-0	17	1	1311-1408	●	●
116	00.010 CLAMP; HOSE 4JJ1-TCS ENG(LFB) 01.097 ID=16	8-97329-628-0	17	1	1409-	●	●
116	00.010 CLAMP; HOSE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.097 ID=16	8-97329-628-0	17	1	1409-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1311-1408	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1409-	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS)	8-98209-975-0	01	1	1409-			●
129	03.609 PIPE ASM; DEF DCM COOL DLVY	8-98209-288-1	01	1	1309-1310	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1311-1408	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1409-	●	●
129	03.609 PIPE ASM; DEF DCM COOL DLVY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98209-288-1	01	1	1409-			●
130	03.682 CLIP; PIPE ASM 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1309-1310	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1311-1408	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1409-	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=12 & 6.35	8-97215-437-0	02	1	1409-			●
130	03.682 CLIP; PIPE ASM 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1309-1310	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1311-1408	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1409-	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1409-			●
130	03.682 CLIP; PIPE ASM 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1309-1310	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1311-1408	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1409-	●	●
130	03.682 CLIP; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.128 (C) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1409-			●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) (C)	8-98272-089-0	01	1	1402-	●	●
134	03.634 BRACKET; PIPE ASM 03.162 (A)	8-98006-480-1	01	1	1309-1310	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) 03.162 (A)	8-98006-480-1	01	1	1311-1312	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A)	8-98006-480-1	01	1	1401-1408	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (A)	8-98006-480-1	01	1	1409-	●	●	●
134	03.634 BRACKET; PIPE ASM 03.162 (B)	8-98039-929-1	01	1	1309-1310	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) 03.162 (B)	8-98039-929-1	01	1	1311-1312	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B)	8-98039-929-1	01	1	1401-1408	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B)	8-98039-929-1	01	1	1409-	●	●	●
134	03.634 BRACKET; PIPE ASM (C)	8-98209-974-1	01	1	1309-1310	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) (C)	8-98209-974-1	01	1	1311-1401	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98209-974-1	01	1	1402-1408	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C)	8-98209-974-1	01	1	1409-	●	●	●
134	03.634 BRACKET; PIPE ASM (D)	8-98210-089-1	01	1	1309-1310	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) (D)	8-98210-089-1	01	1	1311-1408	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) (D)	8-98210-089-1	01	1	1409-	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (D)	8-98210-089-1	01	1	1409-			●
134	03.634 BRACKET; PIPE ASM (E)	8-98234-523-0	01	1	1309-1310	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) (E)	8-98234-523-0	01	1	1311-1408	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) (E)	8-98234-523-0	01	1	1409-	●	●
134	03.634 BRACKET; PIPE ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (E)	8-98234-523-0	01	1	1409-			●
141	03.682 TUBE ASM; DEF DCM 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98281-100-0	01	1	1409-			●
141	03.682 TUBE ASM; DEF DCM	8-98209-317-2	01	1	1309-1310	●	●
141	03.682 TUBE ASM; DEF DCM 4JJ1-TCS ENG(LFB)	8-98209-317-2	01	1	1311-	●	●
143	03.609 PIPE ASM; DEF TANK HTR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1309-1310	●	●
143	03.609 PIPE ASM; DEF TANK HTR FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1309-1310	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1311-1408	●	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1311-1408	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1409-	●	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1409-	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1409-			●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98209-976-2	01	1	1409-			●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98215-292-2	01	1	1309-1310	●	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98215-292-2	01	1	1311-1408	●	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98215-292-2	01	1	1409-	●	●
143	03.609 PIPE ASM; DEF TANK HTR 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98215-292-2	01	1	1409-			●
145	03.265 RUBBER 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1309-1310	●	●
145	03.265 RUBBER 4JJ1-TCS ENG(LFB) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1311-1408	●	●
145	03.265 RUBBER 4JJ1-TCS ENG(LFB) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1409-	●	●
145	03.265 RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1409-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN (A)	8-98209-284-1	01	1	1309-1310	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (A)	8-98209-284-1	01	1	1311-1408	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (A)	8-98209-284-1	01	1	1409-	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98209-284-1	01	1	1409-			●
146	03.609 PIPE ASM; DEF TANK HTR RTN (B)	8-98209-287-1	01	1	1309-1310	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (B)	8-98209-287-1	01	1	1311-1408	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) (B)	8-98209-287-1	01	1	1409-	●	●
146	03.609 PIPE ASM; DEF TANK HTR RTN 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98209-287-1	01	1	1409-			●

75 108 73 72 71 4 5 102 74 12 13 11 15 14 14 41 18 14 18 14 18 18 66 64 65 66 63 162 61 42 19 161 67 1 4 157 155 156 154 157 152 153 76 77 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.708 TANK ASM; DEF 4JJ1-TCS ENG(LFB)	8-98210-142-4	01	1	1309-1408	●	●
1	03.708 TANK ASM; DEF 4JJ1-TCS ENG(LFB)	8-98210-142-4	01	1	1409-	●	●	●
4	03.650 PUMP ASM; DEF,DCM SPLY 4JJ1-TCS ENG(LFB)	8-98268-812-0	01	1	1309-1408	●	●
4	03.650 PUMP ASM; DEF,DCM SPLY 4JJ1-TCS ENG(LFB)	8-98268-812-0	01	1	1409-	●	●	●
5	00.010 BOLT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 03.670 M8X20,M8X90 L=118	8-98140-158-0	03	1	1309-1408	●	●
5	00.010 BOLT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 03.670 M8X20,M8X90 L=118	8-98140-158-0	03	1	1409-	●	●	●
11	03.613 BOLT; DEF TANK 4JJ1-TCS ENG(LFB)	8-98243-779-0	02	1	1409-			●
11	03.613 BOLT; DEF TANK 4JJ1-TCS ENG(LFB)	8-98157-936-0	02	1	1309-	●	●
12	00.010 NUT; DEF TANK 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1408	●	●
12	00.010 NUT; DEF TANK 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-	●	●	●
13	03.632 RETAINER; DEF TANK 4JJ1-TCS ENG(LFB)	8-98156-747-0	01	1	1309-1408	●	●
13	03.632 RETAINER; DEF TANK 4JJ1-TCS ENG(LFB)	8-98156-747-0	01	1	1409-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (D)	8-98279-890-0	01	1	1409-			●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (A)	8-98287-956-0	01	1	1409-			●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (A)	8-98236-403-0	01	1	1309-	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (B)	8-98236-404-1	01	1	1309-1408	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (B)	8-98236-404-1	01	1	1409-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (C)	8-98236-405-2	01	1	1309-1408	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (C)	8-98236-405-2	01	1	1409-	●	●	●
14	03.616 BRACKET ASM; DEF TANK 4JJ1-TCS ENG(LFB) (D)	8-98236-406-2	01	1	1309-	●	●
15	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1408	●	●
15	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1409-	●	●	●
18	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	1309-1408	●	●
18	00.010 BOLT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE	0-28651-035-0	08	1	1409-	●	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1409-			●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1408	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-	●	●
19	00.010 NUT; BRKT,DEF TANK 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1409-			●
41	03.708 VALVE ASM; DEF TANK HTR DLVY	8-98232-679-0	01	1	1309-1310	●	●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1311-1408	●	●
41	03.708 VALVE ASM; DEF TANK HTR DLVY CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98232-679-0	01	1	1409-	●	●	●
42	00.010 BOLT; DEF RSVR HTR DLVY VLV 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-1310	●	●
42	00.010 BOLT; DEF RSVR HTR DLVY VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1311-1408	●	●
42	00.010 BOLT; DEF RSVR HTR DLVY VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1409-	●	●	●
61	03.630 BODY ASM; DEF TANK 4JJ1-TCS ENG(LFB)	8-98220-878-1	01	1	1309-1408	●	●
61	03.630 BODY ASM; DEF TANK 4JJ1-TCS ENG(LFB)	8-98220-878-1	01	1	1409-	●	●	●
62	03.630 HOSE; VENT,DEF TANK 4JJ1-TCS ENG(LFB)	8-98120-261-0	01	1	1309-1408	●	●
62	03.630 HOSE; VENT,DEF TANK 4JJ1-TCS ENG(LFB)	8-98120-261-0	01	1	1409-	●	●	●
63	03.708 CAP ASM; FILLER,DEF TANK 4JJ1-TCS ENG(LFB)	8-98147-581-1	01	1	1309-1408	●	●
63	03.708 CAP ASM; FILLER,DEF TANK 4JJ1-TCS ENG(LFB)	8-98147-581-1	01	1	1409-	●	●	●
64	03.708 PLUG; DRAIN,DEF TANK 4JJ1-TCS ENG(LFB)	8-98120-263-0	01	1	1309-1408	●	●
64	03.708 PLUG; DRAIN,DEF TANK 4JJ1-TCS ENG(LFB)	8-98120-263-0	01	1	1409-	●	●	●
65	03.630 HOSE; WATER LEVEL 4JJ1-TCS ENG(LFB)	8-98120-264-1	01	1	1309-1408	●	●
65	03.630 HOSE; WATER LEVEL 4JJ1-TCS ENG(LFB)	8-98120-264-1	01	1	1409-	●	●	●
66	03.708 CLAMP; WATER LEVEL HOSE 4JJ1-TCS ENG(LFB)	8-98120-265-1	02	1	1309-1408	●	●
66	03.708 CLAMP; WATER LEVEL HOSE 4JJ1-TCS ENG(LFB)	8-98120-265-1	02	1	1409-	●	●	●
67	03.708 SENSOR ASM; DEF TANK 4JJ1-TCS ENG(LFB)	8-98213-926-1	01	1	1309-1408	●	●
67	03.708 SENSOR ASM; DEF TANK 4JJ1-TCS ENG(LFB)	8-98213-926-1	01	1	1409-	●	●	●
71	03.634 COVER; DEF DCM SPLY	8-98234-553-0	01	1	1309-1310	●	●
71	03.634 COVER; DEF DCM SPLY 4JJ1-TCS ENG(LFB)	8-98234-553-0	01	1	1311-1408	●	●
71	03.634 COVER; DEF DCM SPLY 4JJ1-TCS ENG(LFB)	8-98234-553-0	01	1	1409-	●	●
71	03.634 COVER; DEF DCM SPLY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98234-553-0	01	1	1409-			●
72	00.010 BOLT; COVER,DEF DCM SPLY 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●
72	00.010 BOLT; COVER,DEF DCM SPLY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1409-			●
73	00.010 NUT; COVER,DEF DCM SPLY 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
73	00.010 NUT; COVER,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●	●
73	00.010 NUT; COVER,DEF DCM SPLY 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●
73	00.010 NUT; COVER,DEF DCM SPLY 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-			●
74	03.634 BRACKET; DEF DCM SPLY COVER	8-97642-595-0	01	1	1309-1310	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-97642-595-0	01	1	1311-1408	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB)	8-97642-595-0	01	1	1409-	●	●
74	03.634 BRACKET; DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97642-595-0	01	1	1409-			●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-1408	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●	●
75	00.010 NUT; BRKT,DEF DCM SPLY COVER 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-			●
76	03.634 COVER; DEF TANK CAP 4JJ1-TCS ENG(LFB)	8-98156-298-1	01	1	1309-1408	●	●
76	03.634 COVER; DEF TANK CAP 4JJ1-TCS ENG(LFB)	8-98156-298-1	01	1	1409-	●	●	●
77	03.682 CLIP; DEF TANK CAP CVR 4JJ1-TCS ENG(LFB) L=350	1-09707-183-0	01	1	1309-1408	●	●
77	03.682 CLIP; DEF TANK CAP CVR 4JJ1-TCS ENG(LFB) L=350	1-09707-183-0	01	1	1409-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	02	1	1309-1408	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	02	1	1409-1505	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	03	1	1506-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN (B) ID=10 L=20	0-95221-035-0	01	1	1309-1310	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1311-1408	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=10 L=20	0-95221-035-0	01	1	1409-	●	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN (B) ID=14 L=28	8-98135-163-0	01	1	1309-1310	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1311-1408	●	●
102	03.634 CLIP; DEF DCM EXH TEMP SEN HARN EURO6 SPECIFICATION(NT6) (B) ID=14 L=28	8-98135-163-0	01	1	1409-	●	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1309-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
108	00.010 NUT; CLIP 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-			●
108	00.010 NUT; CLIP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1309-1310	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1311-1408	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1409-	●	●
108	00.010 NUT; CLIP 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1409-			●
152	03.890 FILTER KIT; PUMP ASM,DEF DCM SPL 4JJ1-TCS ENG(LFB)	8-98169-403-0	01	1	1309-1408	●	●
152	03.890 FILTER KIT; PUMP ASM,DEF DCM SPL 4JJ1-TCS ENG(LFB)	8-98169-403-0	01	1	1409-	●	●	●
153	03.890 COVER KIT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB)	8-98169-408-0	01	1	1309-1408	●	●
153	03.890 COVER KIT; PUMP ASM,DEF DCM SPLY 4JJ1-TCS ENG(LFB)	8-98169-408-0	01	1	1409-	●	●	●
154	03.890 CONNECTOR KIT; INLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-409-0	01	1	1309-1408	●	●
154	03.890 CONNECTOR KIT; INLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-409-0	01	1	1409-	●	●	●
155	03.890 CONNECTOR KIT; OUTLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-411-0	01	1	1309-1408	●	●
155	03.890 CONNECTOR KIT; OUTLET PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-411-0	01	1	1409-	●	●	●
156	03.890 CONNECTOR KIT; RETURN PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98268-813-0	01	1	1309-1408	●	●
156	03.890 CONNECTOR KIT; RETURN PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98268-813-0	01	1	1409-	●	●	●
157	03.890 CONNECTOR KIT; COOLANT PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-414-1	02	1	1309-1408	●	●
157	03.890 CONNECTOR KIT; COOLANT PUMP,DEF 4JJ1-TCS ENG(LFB)	8-98169-414-1	02	1	1409-	●	●	●
161	03.890 GASKET; SENSOR ASM,DEF TANK 4JJ1-TCS ENG(LFB)	8-98170-383-0	01	1	1309-1408	●	●
161	03.890 GASKET; SENSOR ASM,DEF TANK 4JJ1-TCS ENG(LFB)	8-98170-383-0	01	1	1409-	●	●	●
162	03.890 ADAPTER; DEF TANK 4JJ1-TCS ENG(LFB)	8-98131-158-0	01	1	1309-1408	●	●
162	03.890 ADAPTER; DEF TANK 4JJ1-TCS ENG(LFB)	8-98131-158-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
