◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51496 - NLR/NMR LHD EUROPE EURO5B+,6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#126522) — 79 parça

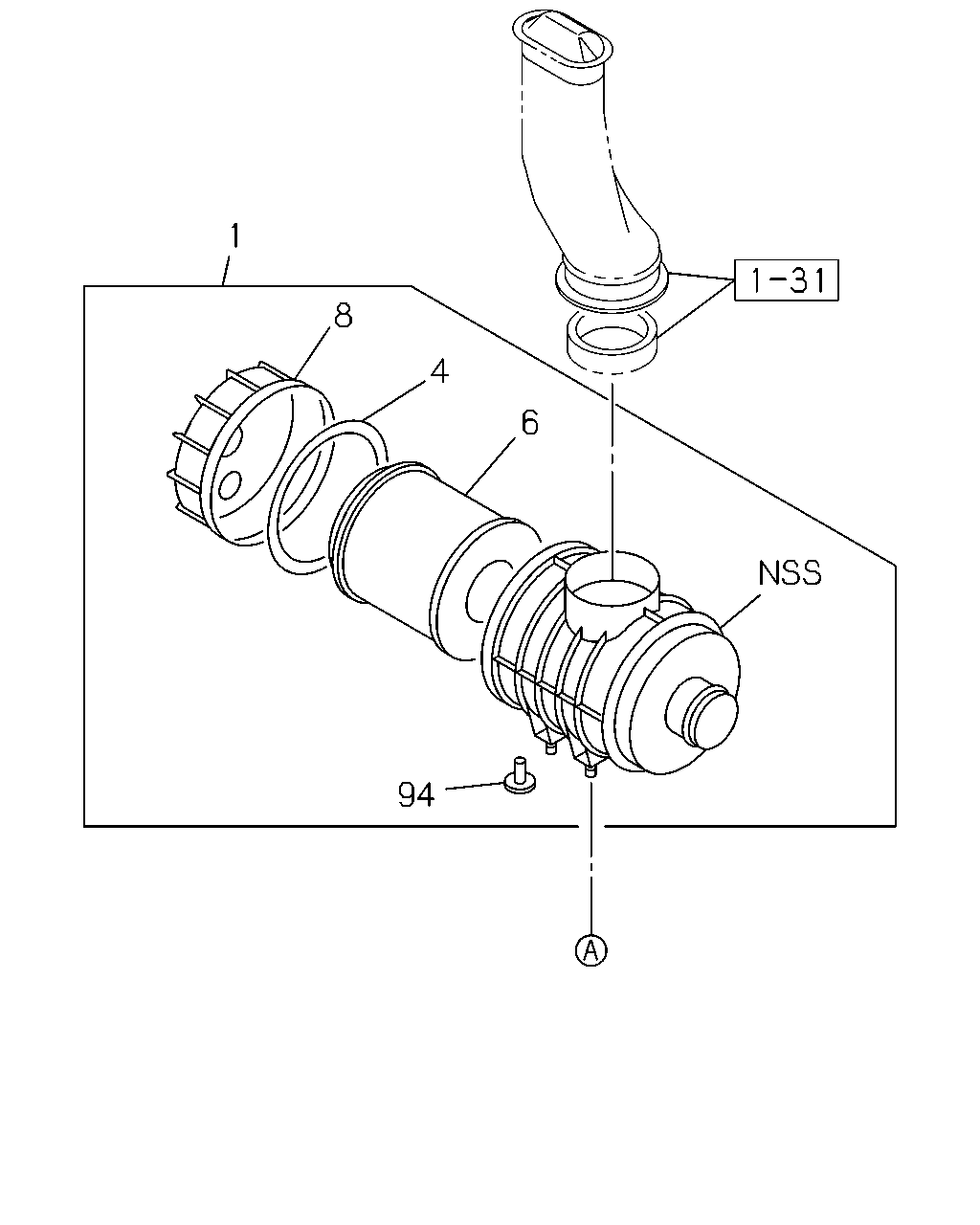

çizim 373955
94 6 4 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.402 CLEANER ASM; AIR
4JJ1-TCS ENG(LFB) 		8-98116-638-0 01 1 1409- ●
1 03.402 CLEANER ASM; AIR 8-98050-415-2 01 1 1309-1310 ● ●
1 03.402 CLEANER ASM; AIR 8-98050-415-2 01 1 1311- ● ●
1 03.402 CLEANER ASM; AIR
4JJ1-TCC ENG(RDU) 		8-98050-415-2 01 1 1311- ●
4 03.403 GASKET; COVER TO BODY 8-97352-113-0 01 1 1309-1310 ● ●
4 03.403 GASKET; COVER TO BODY 8-97352-113-0 01 1 1311- ● ● ●
6 03.410 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 1309-1310 ● ●
6 03.410 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 1311- ● ● ●
6 03.410 FILTER; ACL 8-97062-294-0 01 1 1309-1310 ● ●
6 03.410 FILTER; ACL 8-97062-294-0 01 1 1311- ● ● ●
8 03.410 COVER ASM; ACL
4JJ1-TCS ENG(LFB) 		8-98116-639-0 01 1 1409- ●
8 03.410 COVER ASM; ACL 8-98050-434-1 01 1 1309-1310 ● ●
8 03.410 COVER ASM; ACL 8-98050-434-1 01 1 1311- ● ●
8 03.410 COVER ASM; ACL
4JJ1-TCC ENG(RDU) 		8-98050-434-1 01 1 1311- ●
94 03.415 VALVE; VACUATOR
4JJ1-TCS ENG(LFB) 		8-97352-112-0 01 1 1409- ●
94 03.415 VALVE; VACUATOR 8-97093-694-0 01 1 1309-1310 ● ●
94 03.415 VALVE; VACUATOR 8-97093-694-0 01 1 1311- ● ●
94 03.415 VALVE; VACUATOR
4JJ1-TCC ENG(RDU) 		8-97093-694-0 01 1 1311- ●

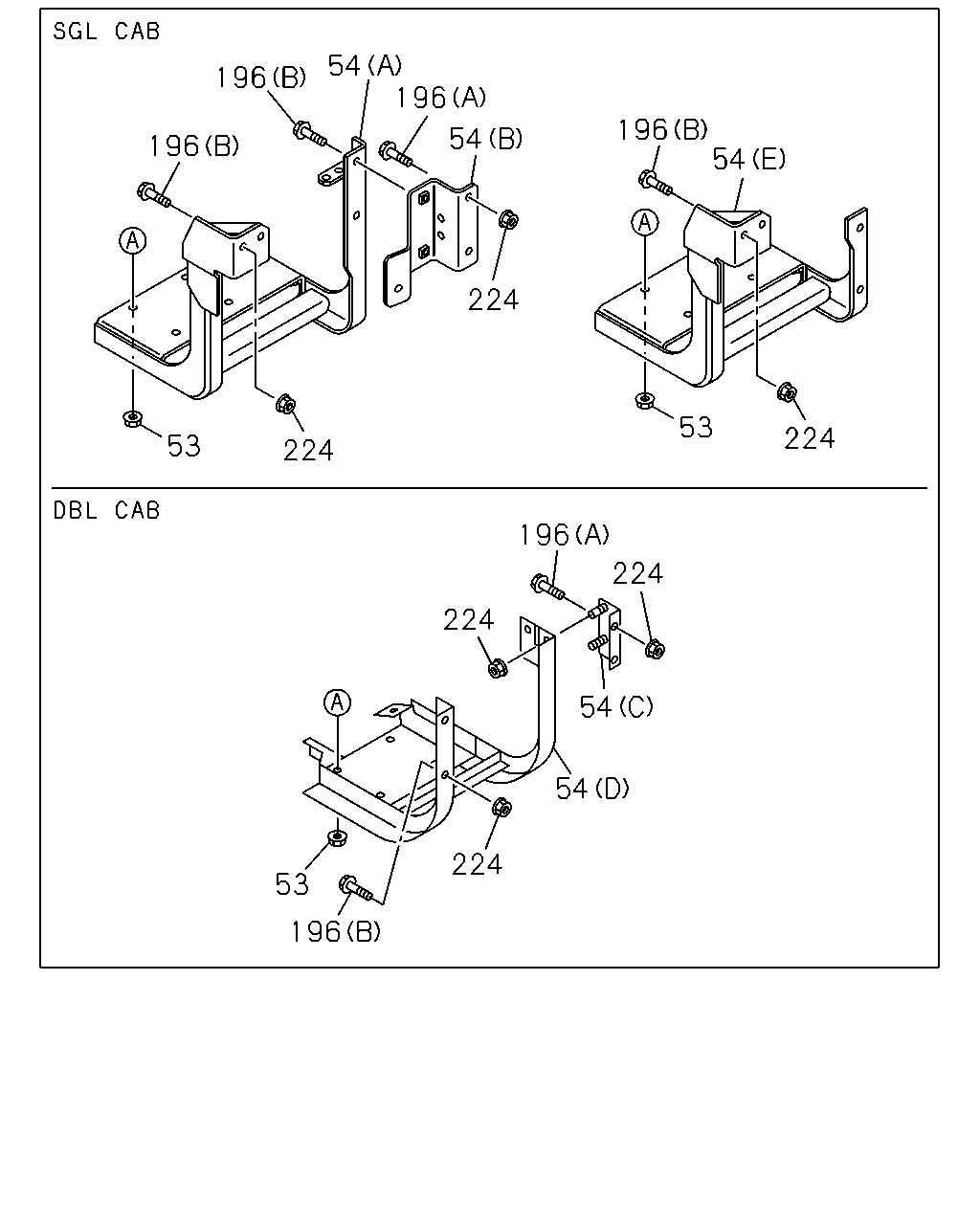

çizim 426167
196 53 224 54 54 224 196 224 53 224 54 196 54 196 224 224 53 196 196 54
BalonParca AdiParca NoAdetTipApplied Date A B C
53 03.403 NUT; ACL
01.062 M8 FLANGE 		0-91180-108-0 04 1 1309-1310 ● ●
53 03.403 NUT; ACL
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311- ● ●
53 03.403 NUT; ACL
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1311- ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) (E) 		8-98269-242-0 01 1 1401- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) 		8-98032-125-1 01 1 1311- ●
54 03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (D) 		8-98066-916-1 01 1 1311- ●
54 03.405 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1309-1310 ● ●
54 03.405 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1311-1312 ● ●
54 03.405 BRACKET; ACL
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98067-768-2 01 1 1401-1403 ● ●
54 03.405 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1404-1408 ● ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) 		8-98067-768-2 01 1 1409- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU) (A) 		8-98067-768-2 01 1 1409- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-98067-768-2 01 1 1409- ●
54 03.405 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1309-1310 ● ●
54 03.405 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1311-1312 ● ●
54 03.405 BRACKET; ACL
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B) 		8-98071-306-1 01 1 1401-1403 ● ●
54 03.405 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1404-1408 ● ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B) 		8-98071-306-1 01 1 1409- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCC ENG(RDU) (B) 		8-98071-306-1 01 1 1409- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) 		8-98071-306-1 01 1 1409- ●
196 03.417 BOLT; BRKT,ACL
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ●
196 03.417 BOLT; BRKT,ACL
00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1309-1310 ● ●
196 03.417 BOLT; BRKT,ACL
00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1311-1312 ● ●
196 03.417 BOLT; BRKT,ACL
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1401-1403 ● ●
196 03.417 BOLT; BRKT,ACL
00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1404-1408 ● ●
196 03.417 BOLT; BRKT,ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1409- ● ●
196 03.417 BOLT; BRKT,ACL
4JJ1-TCC ENG(RDU) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1409- ● ●
196 03.417 BOLT; BRKT,ACL
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1409- ●
196 03.417 BOLT; BRKT,ACL
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1309-1310 ● ●
196 03.417 BOLT; BRKT,ACL
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1311- ● ●
196 03.417 BOLT; BRKT,ACL
WHEEL BASE 3300MM(33W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1311- ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
224 03.407 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1311-1312 ● ●
224 03.407 NUT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1401-1403 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ●
224 03.407 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1311-1312 ● ●
224 03.407 NUT; BRKT
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1311-1312 ● ●
224 03.407 NUT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1401-1403 ● ●
224 03.407 NUT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1401-1403 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1409- ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1409- ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1409- ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1409- ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1409- ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE 		0-91180-110-0 05 1 1409- ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 06 1 1311- ●
224 03.407 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1310 ● ●
224 03.407 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1311-1312 ● ●
224 03.407 NUT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1401-1403 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1404-1408 ● ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ● ●
224 03.407 NUT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1409- ● ●
